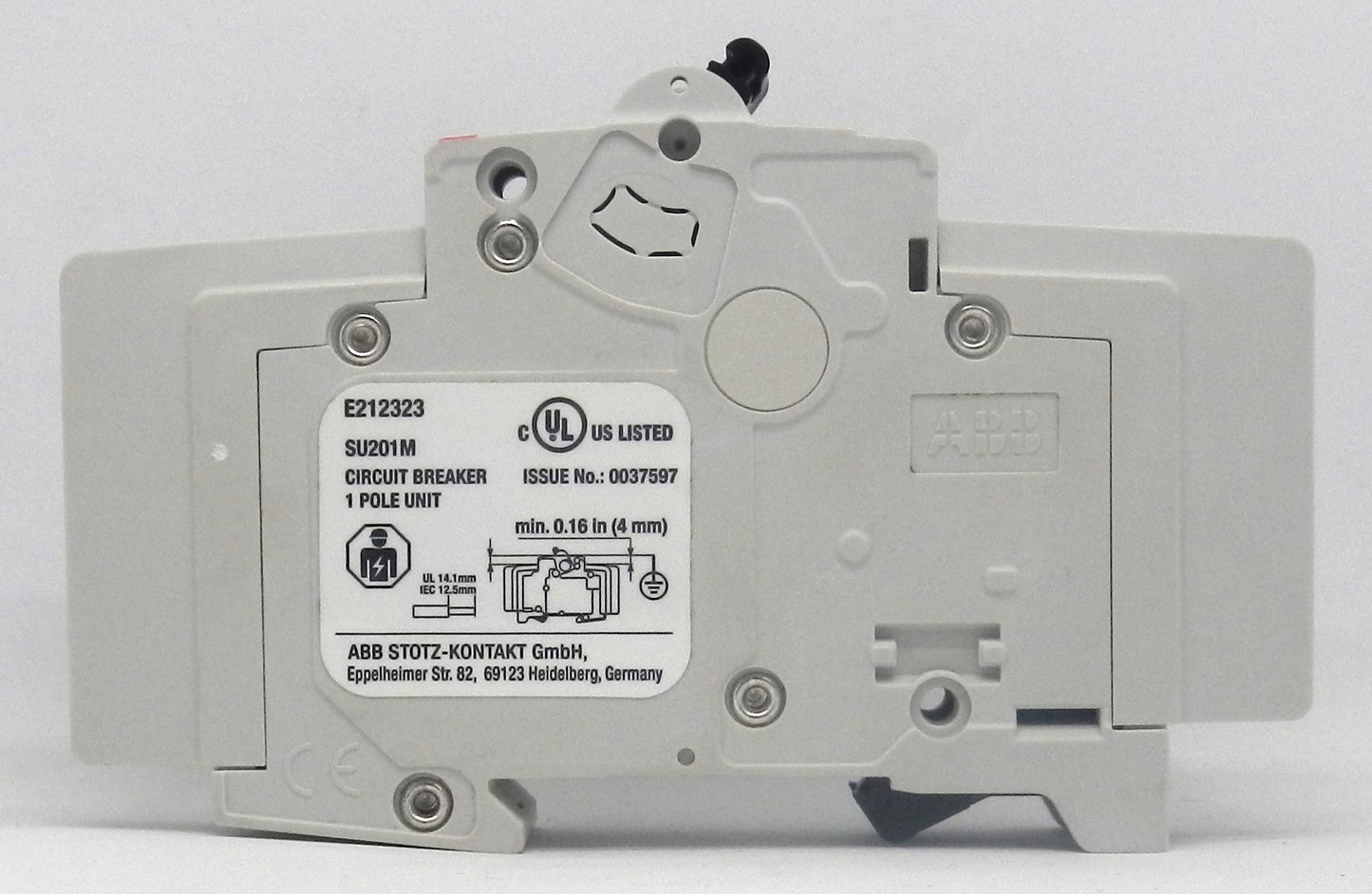

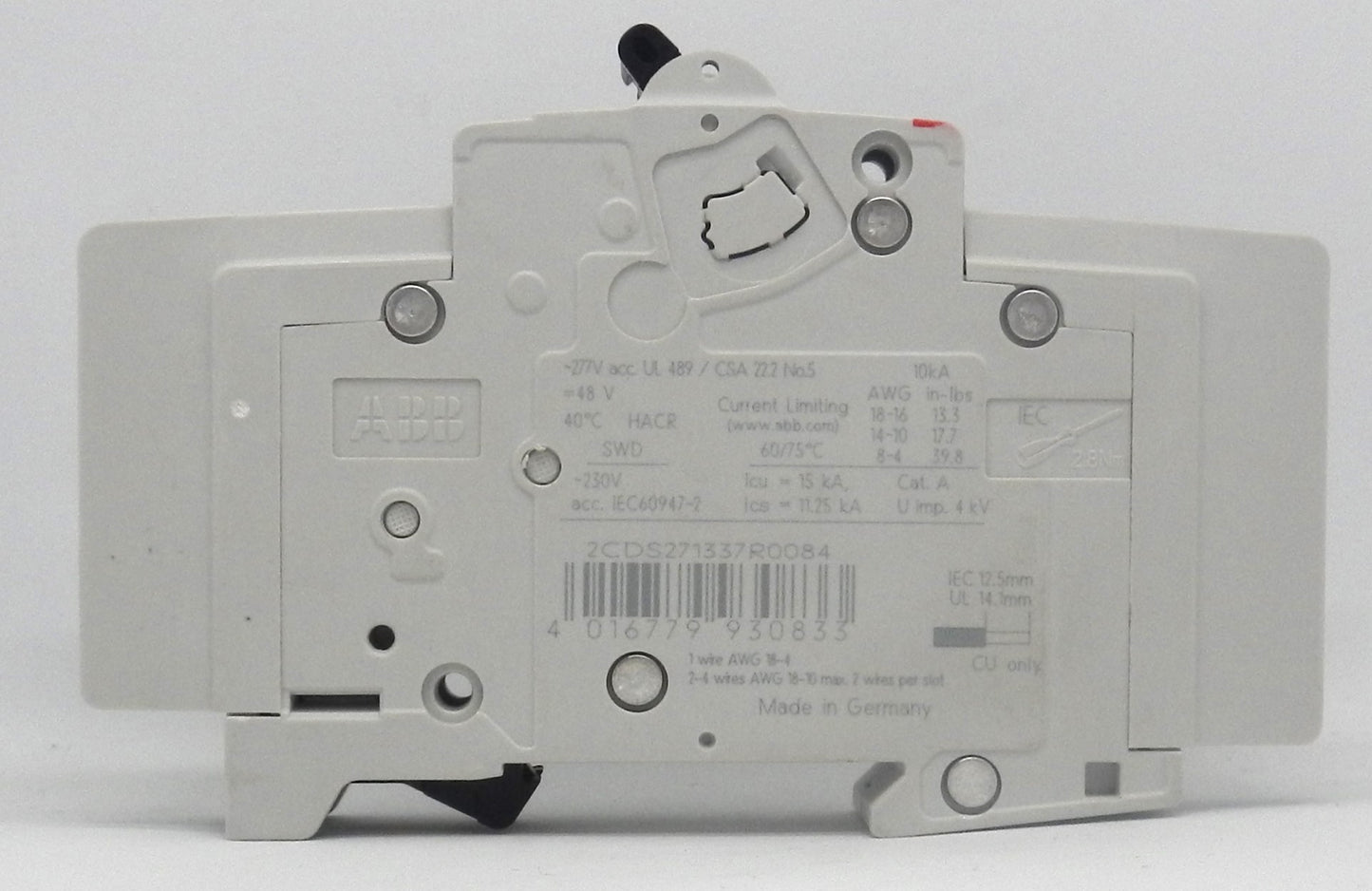

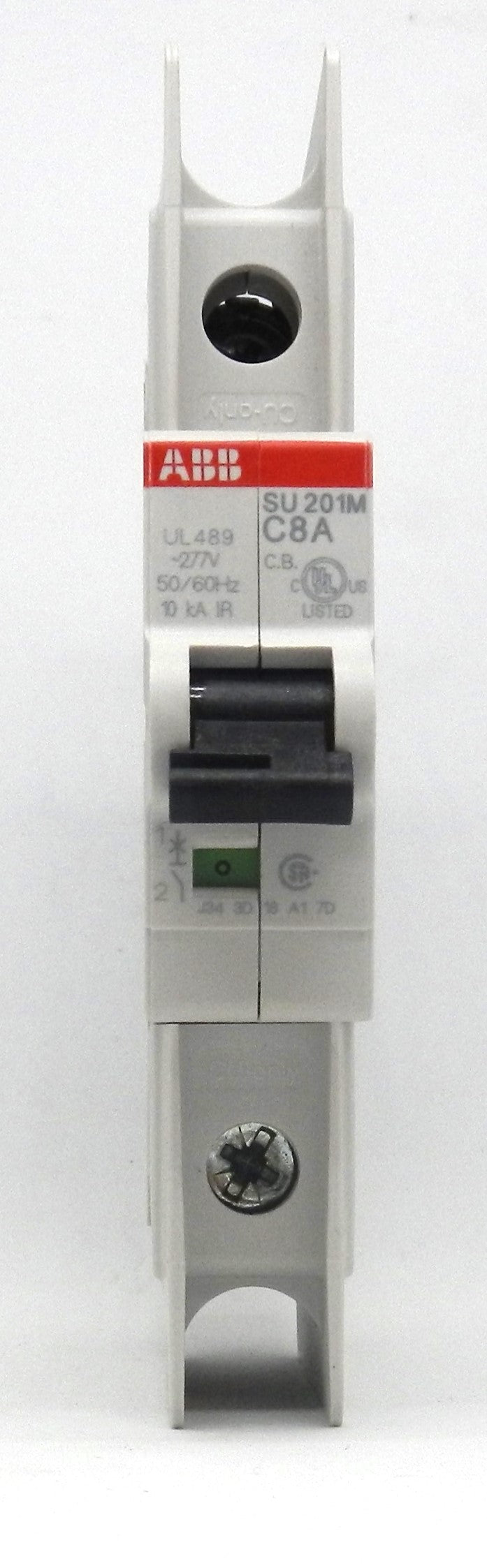

SU201M-C8A 2CDS271337R0084 ABB 8A 1-Pole Miniature Circuit Breaker C-Curve UL489 DIN Rail

Description:

• Genuine ABB miniature circuit breaker from the System pro M compact SU200M series
• Provides 1-pole, 8 Amp overcurrent protection for industrial branch circuits and control panels
• C-Curve trip characteristic ideal for circuits with moderate inrush currents, including motors, transformers, contactors, and industrial control equipment
• Rated for 277 VAC and 48 VDC in accordance with UL 489 requirements
• High 10 kA interrupting capacity for reliable short-circuit protection
• Compact 35 mm DIN rail mounting for quick installation in industrial enclosures
• Thermal-magnetic trip mechanism ensures dependable overload and short-circuit protection
• Suitable for industrial automation, OEM machinery, electrical distribution panels, motor control, and machine building
• Complies with UL 489, CSA 22.2 No. 5, and IEC/EN 60947-2 standards for global industrial applications.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): SU201M-C8A
• Order Code: 2CDS271337R0084
• Product Series: System pro M compact SU200M
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1
• Rated Current: 8 A
• Trip Curve: C
• Protection Type: Thermal-Magnetic
• Rated AC Voltage: 277 VAC (UL 489)
• Rated DC Voltage: 48 VDC
• Rated Frequency: 50/60 Hz
• Interrupt Rating:
  • 10 kA (UL 489)
  • 11.2 kA @ 230 VAC (IEC Rated Short-Circuit Capacity)
  • 15 kA Icu @ 230 VAC (IEC Ultimate Breaking Capacity)
• Rated Insulation Voltage (Ui): 440 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: 35 mm DIN Rail
• Standards:
  • UL 489
  • CSA 22.2 No. 5
  • IEC/EN 60947-2
• Applications:
  • Industrial Control Panels
  • Branch Circuit Protection
  • Machine Automation
  • OEM Equipment
  • Electrical Distribution
  • Motor Control Systems

Dimensions:

• Height: 111 mm (4.37 in)
• Width: 17.5 mm (0.69 in)
• Depth: 69 mm (2.72 in).

Weight:

• Approximate Weight: 0.125 kg (0.28 lb).
