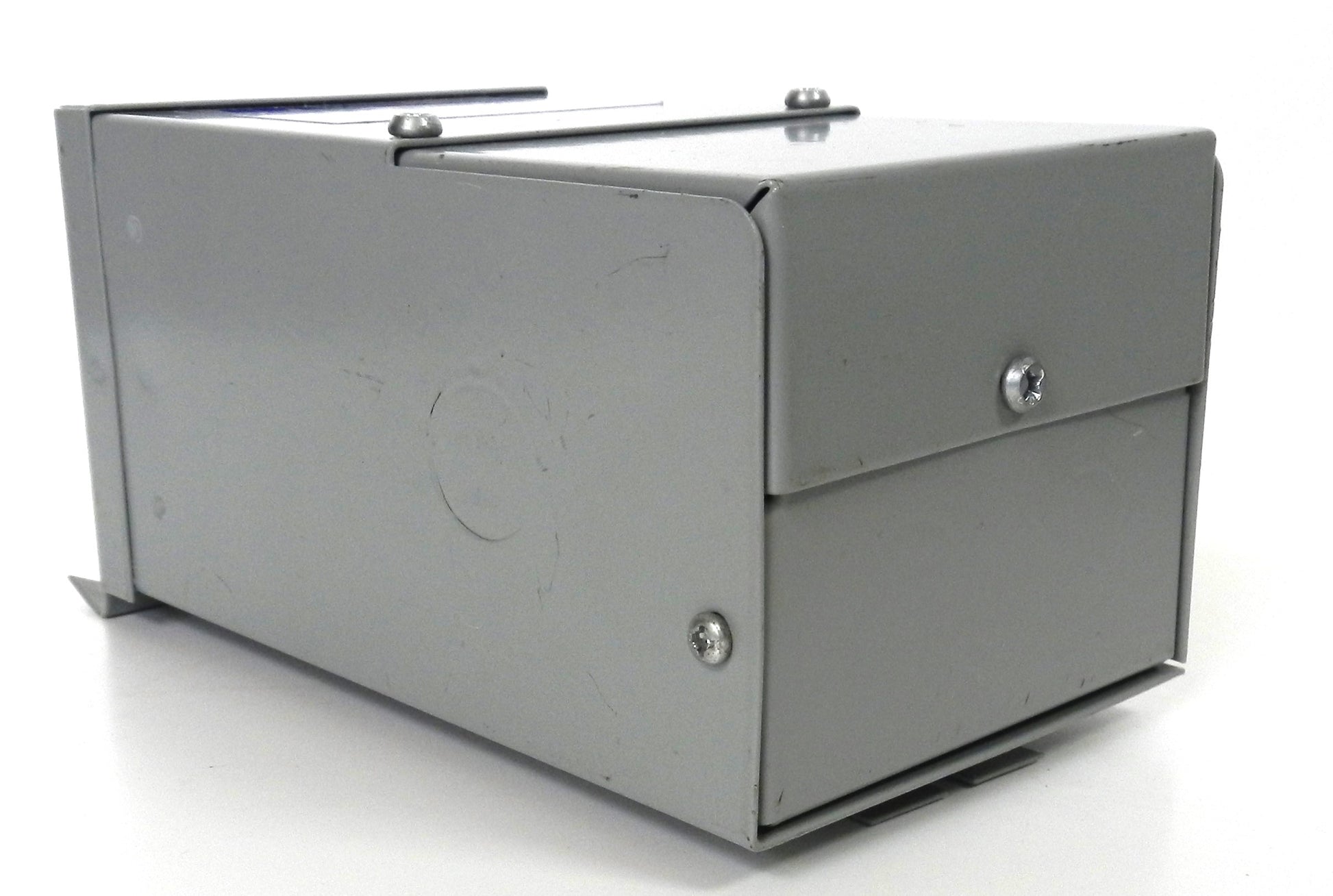

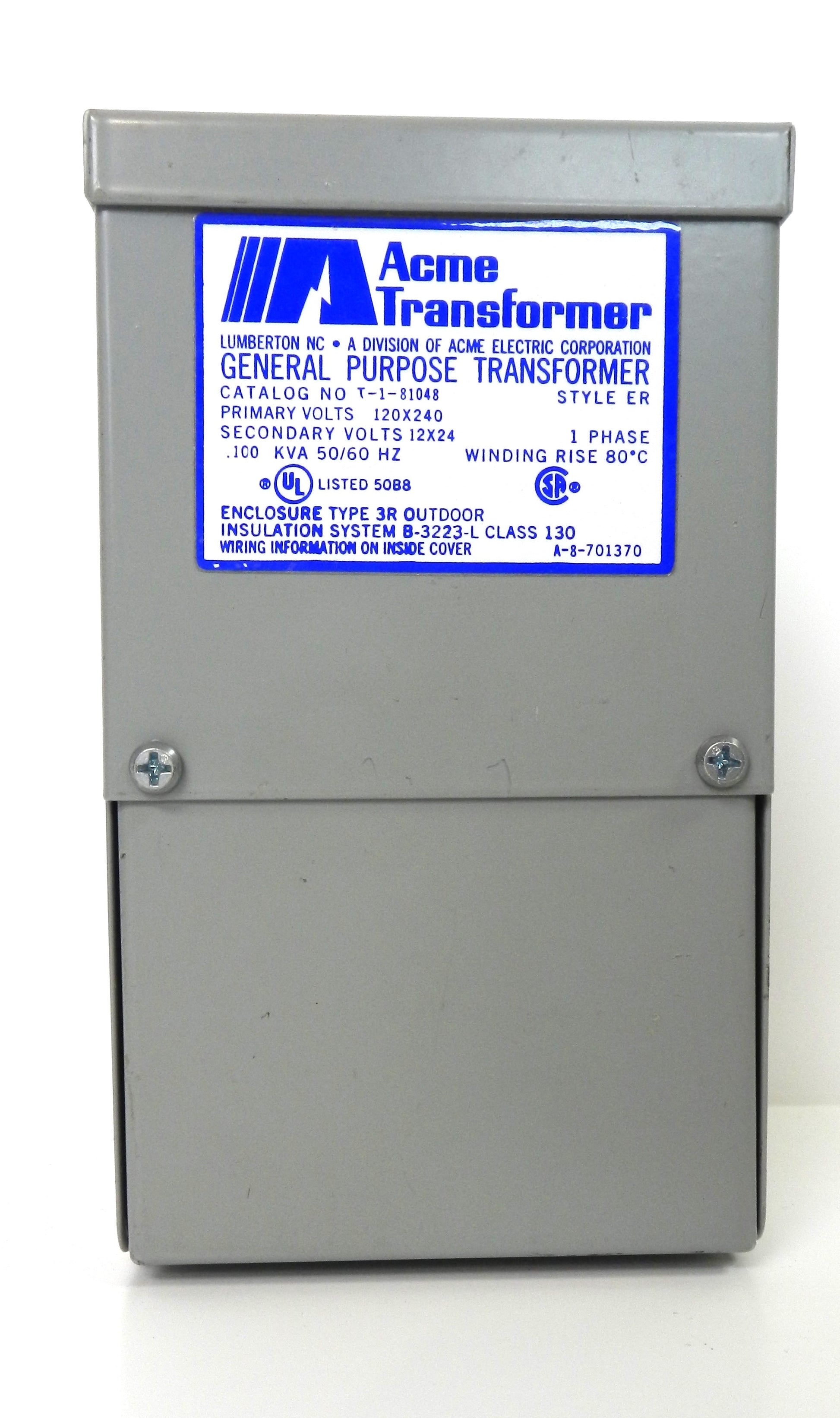

T-1-81048 Acme Electric Buck-Boost Transformer 0.10 kVA 120x240V Primary 12/24V Secondary 1-Phase

Description:

• Genuine Acme Electric single-phase buck-boost transformer for industrial and commercial voltage correction applications
• Rated at 0.10 kVA (100 VA) for reliable low-voltage power conversion
• Features 120 x 240 VAC primary and 12/24 VAC secondary windings
• Designed for buck-boost, isolation, and low-voltage control circuit applications
• Suitable for correcting voltage drops or boosting low supply voltage to improve equipment performance
• Dry-type transformer with durable industrial construction for long service life
• Compact design allows easy wall or panel mounting
• Operates at 60 Hz for North American electrical systems
• Ideal for HVAC equipment, industrial machinery, OEM equipment, control panels, lighting systems, and machine automation
• Manufactured by Acme Electric, a trusted supplier of industrial transformers and power distribution products.

Specifications:

• Manufacturer Name: Acme Electric
• Part Number (MPN): T-1-81048
• Product Type: Buck-Boost Transformer
• Transformer Rating: 0.10 kVA (100 VA)
• Phase: Single Phase
• Frequency: 60 Hz
• Primary Voltage:
  • 120 VAC
  • 240 VAC
• Secondary Voltage:
  • 12 VAC
  • 24 VAC
• Secondary Current:
  • 8.32 A @ 12 VAC
  • 4.16 A @ 24 VAC
• Cooling Type: Dry Type, Natural Air
• Mounting: Wall or Panel Mount
• Insulation System: Class 180°C
• Applications:
  • Buck-Boost Voltage Correction
  • Industrial Control Panels
  • HVAC Systems
  • OEM Equipment
  • Machine Automation
  • Low-Voltage Power Distribution
  • Lighting Systems
  • Control Circuits

Dimensions:

• Height: 7.16 in (182 mm)
• Width: 3.89 in (99 mm)
• Depth: 3.67 in (93 mm)

Weight:

• Approximate Weight: 2.3 kg (5 lb).
