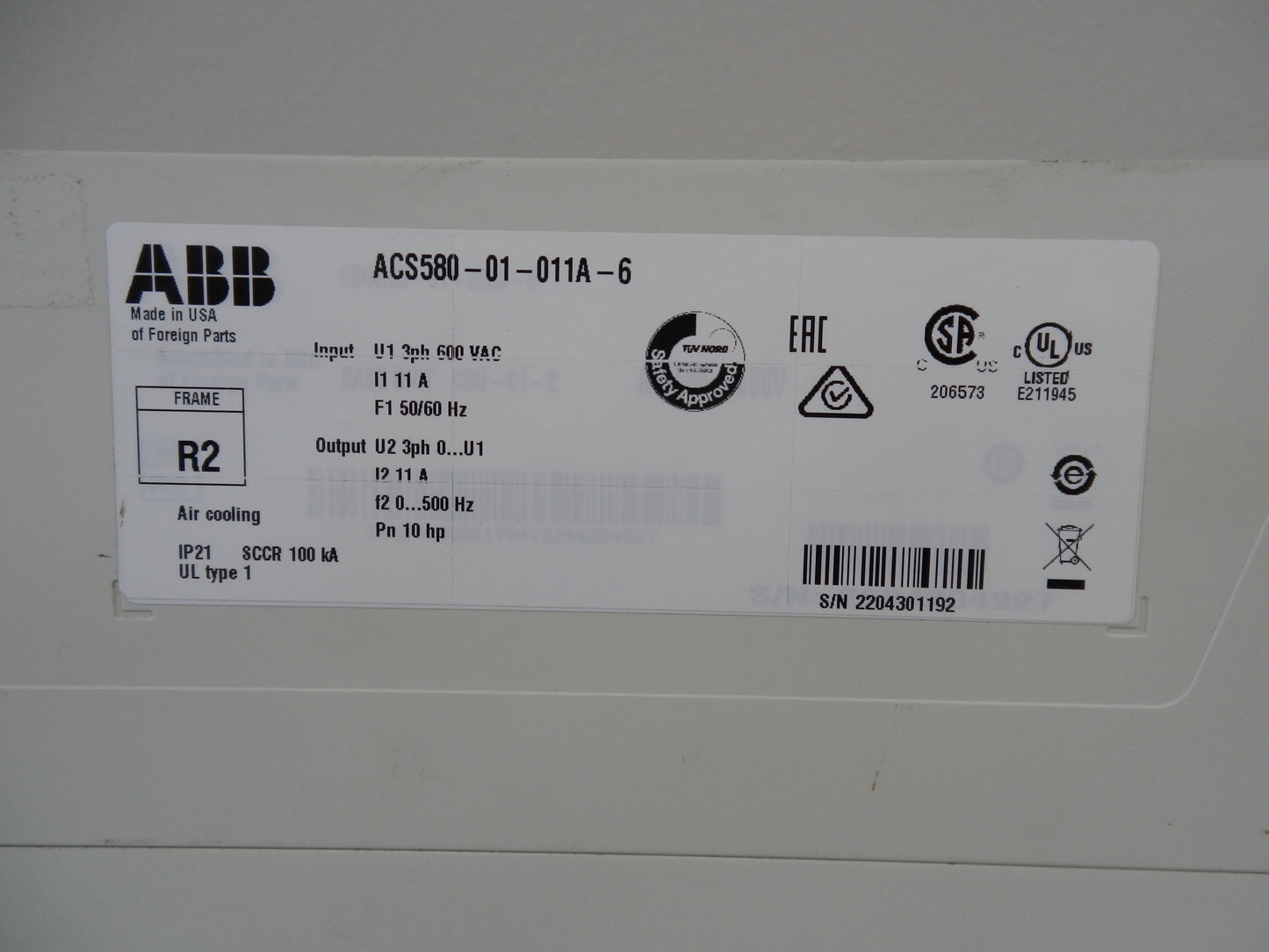

ACS580-01-011A-6 ABB AC Drive 7.5 HP 500-600V 3-Phase General Purpose Variable Frequency Drive (VFD)

Description:

• Genuine ABB ACS580 Series general-purpose AC drive designed for reliable motor speed control in industrial applications
• Rated for 7.5 HP (Heavy Duty) and 10 HP (Light Duty) with 500–600 VAC three-phase input power
• Delivers 9.0 A continuous output (Heavy Duty) and 11.0 A continuous output (Light Duty) for a wide range of motor applications
• Features advanced sensorless vector control for precise motor performance without requiring an encoder
• Built-in EMC filter, braking chopper (frame dependent), PID controller, energy optimizer, and Safe Torque Off (STO)
• Intuitive assistant control panel simplifies commissioning, diagnostics, and parameter configuration
• Optimized for pumps, fans, conveyors, compressors, mixers, and general industrial machinery
• Supports Modbus RTU communication with optional fieldbus adapters for EtherNet/IP, PROFINET, PROFIBUS, CANopen, and more
• Compact wall-mounted design with high reliability and low maintenance requirements
• Ideal for industrial automation, HVAC, water and wastewater, manufacturing, material handling, food processing, and OEM equipment

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): ACS580-01-011A-6
• Product Series: ACS580
• Product Type: AC Drive / Variable Frequency Drive (VFD)
• Drive Type: General Purpose
• Input Voltage: 500–600 VAC
• Input Phase: 3-Phase
• Input Frequency: 50/60 Hz
• Heavy Duty Rating:
  • 7.5 HP (5.5 kW)
  • 9.0 A Output Current
• Light Duty Rating:
  • 10 HP (7.5 kW)
  • 11.0 A Output Current
• Maximum Output Current: 16.2 A
• Frame Size: R2
• Motor Control: Sensorless Vector Control
• Communication:
  • Modbus RTU (Standard)
  • Optional EtherNet/IP
  • Optional PROFINET
  • Optional PROFIBUS DP
  • Optional CANopen
• Built-in Safety: Safe Torque Off (STO)
• Cooling Method: Forced Air
• Mounting Type: Wall Mount / Panel Mount
• Protection Rating: IP21 (Standard) / IP55 (Optional)
• Operating Temperature:
  • -15°C to +50°C (Derating Above 40°C)
• Certifications:
  • UL Listed
  • CE
  • cUL
  • EAC
  • RoHS
• Applications:
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Mixers
  • HVAC Systems
  • Industrial Automation
  • Material Handling
  • Water & Wastewater
  • Manufacturing Equipment

Dimensions:

• Frame Size: R2
• Height: 407 mm (16.0 in)
• Width: 125 mm (4.9 in)
• Depth: 226 mm (8.9 in)

Weight:

• Approximate Weight: 5.9 kg (13.0 lb).
