ACS580-01-011A-6+B056 ABB AC Drive 10 HP 500–600V 3-Phase General Purpose Variable Frequency Drive VFD

Description:

• Genuine ABB ACS580 general-purpose AC drive for industrial motor speed control and energy-efficient operation
• Rated for 10 HP Variable Torque and 7.5 HP Constant Torque applications
• Operates on 500–600 VAC, 3-phase power with a 575 VAC nominal input
• Delivers 11A Variable Torque and 9A Constant Torque output current
• Features sensorless vector control for precise motor performance with induction and permanent magnet motors
• Includes +B056 option package for enhanced application flexibility
• Built-in EMC filter, Safe Torque Off (STO), adaptive programming, PID control, and energy optimizer
• Integrated control panel with intuitive assistant keypad for quick commissioning and diagnostics
• Suitable for pumps, fans, compressors, conveyors, mixers, and general industrial automation
• NEMA 12 / IP55 enclosure provides excellent protection for harsh industrial environments
• Designed for panel or wall mounting in commercial and industrial facilities.

Specifications:

• Manufacturer Name: ABB

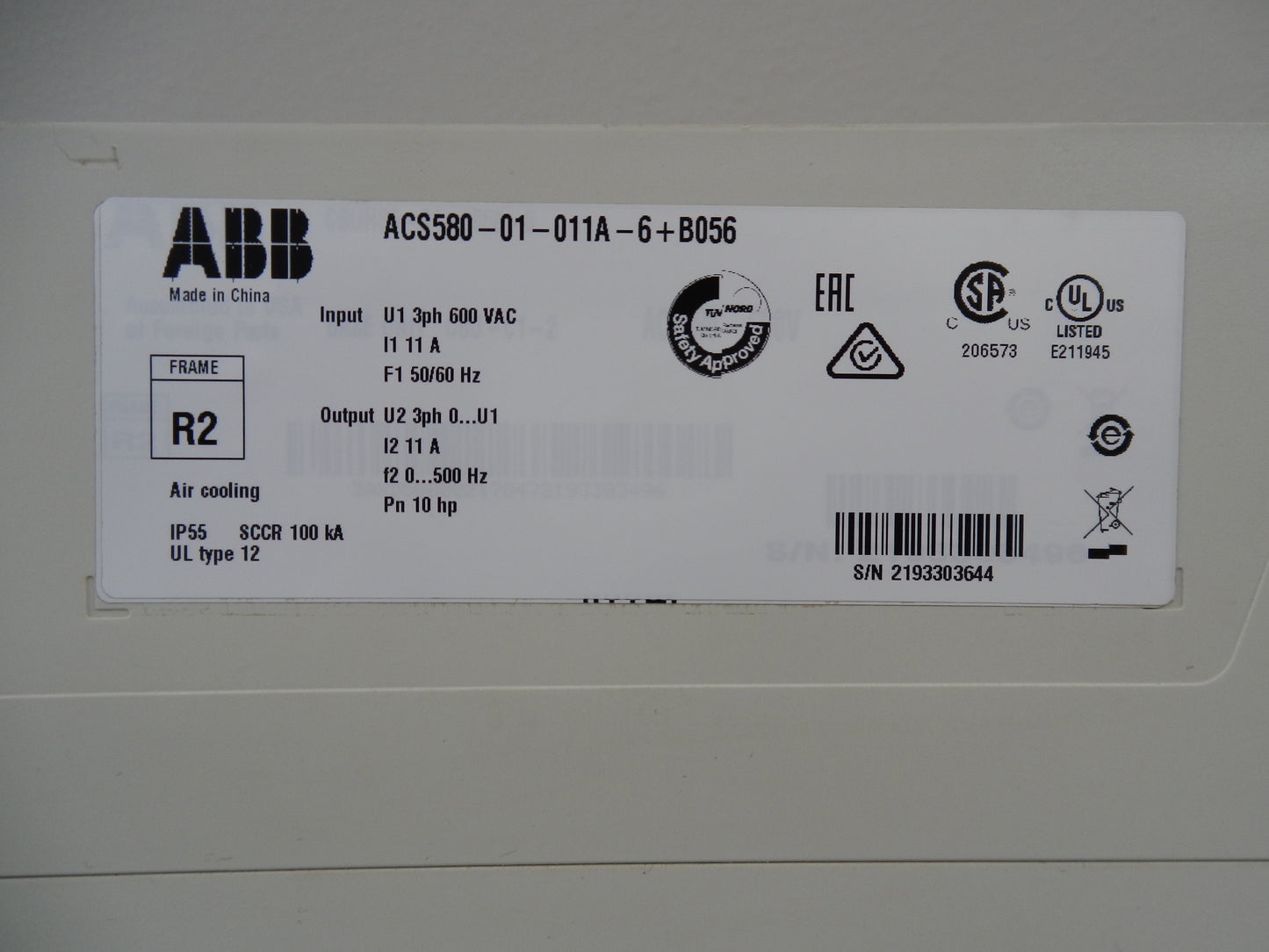

• Part Number (MPN): ACS580-01-011A-6+B056
• Product Series: ACS580
• Product Type: AC Drive / Variable Frequency Drive (VFD)
• Drive Type: General Purpose
• Input Voltage: 500–600 VAC
• Nominal Input Voltage: 575 VAC
• Input Phase: 3-Phase
• Input Frequency: 50/60 Hz
• Variable Torque Rating:
  • 10 HP
  • 11 A
• Constant Torque Rating:
  • 7.5 HP
  • 9 A
• Motor Control:
  • Sensorless Vector Control
  • Scalar (V/Hz) Control
• Enclosure Rating:
  • NEMA 12
  • IP55
• Frame Size: R2
• Dynamic Braking: Included
• Flux Braking: Supported
• Safe Torque Off (STO): Built-In
• Keypad: Assistant Control Panel Included
• Mounting Type:
  • Wall Mount
  • Panel Mount
• Compatible Motors:
  • AC Induction Motors
  • Permanent Magnet Motors
• Applications:
  • Pumps
  • Fans
  • Compressors
  • Conveyors
  • Mixers
  • HVAC Systems
  • Industrial Automation
  • Water & Wastewater
  • Manufacturing Equipment

Dimensions:

• Height: 546 mm (21.49 in)
• Width: 130 mm (5.12 in)
• Depth: 239 mm (9.41 in)

Weight:

• Approximate Weight: 6.8 kg (15 lb).
