ACS580-01-022A-6+B056 ABB AC Drive 20 HP 500–600V 3-Phase IP55 Wall-Mounted Variable Frequency Drive (VFD)

Description:

• Genuine ABB ACS580 Series general-purpose AC drive designed for industrial motor speed control and energy-efficient operation
• Rated for 20 HP (15 kW) motors with 500–600 VAC, 3-phase input power
• IP55 (UL Type 12) enclosure provides protection against dust and water spray, making it ideal for harsh industrial environments
• Delivers 22 A nominal output current for reliable motor performance
• Supports both induction motors and permanent magnet (PM) motors using advanced sensorless vector control
• Integrated ACS-AP Assistant Control Panel simplifies commissioning, programming, and diagnostics
• Built-in Safe Torque Off (STO) enhances personnel safety during maintenance
• Includes integrated EMC filter, choke, coated circuit boards, and advanced energy optimization functions
• Supports Modbus RTU, BACnet MS/TP, and additional communication options through optional fieldbus modules
• Ideal for conveyors, pumps, fans, compressors, mixers, material handling, manufacturing equipment, HVAC systems, and OEM machinery
• Wall-mounted design provides a compact, space-saving solution for industrial automation.

Specifications:

• Manufacturer Name: ABB

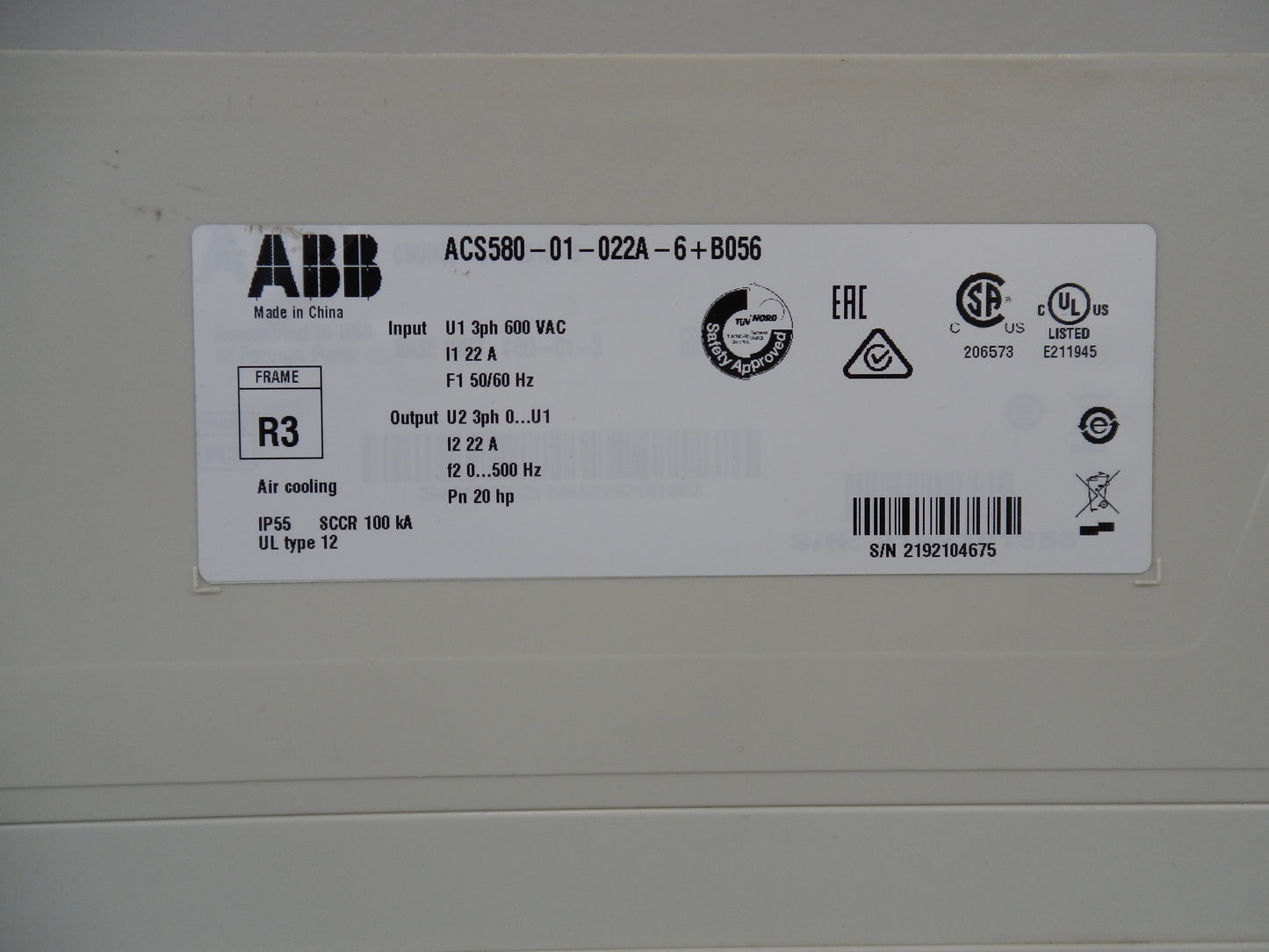

• Part Number (MPN): ACS580-01-022A-6+B056
• Product Series: ACS580
• Product Type: Variable Frequency Drive (VFD)
• Motor Rating: 20 HP (15 kW)
• Input Voltage: 500–600 VAC
• Input Phase: 3-Phase
• Nominal Output Current: 22 A
• Output Frequency: 0–500 Hz
• Motor Control Method: Sensorless Vector Control
• Enclosure Rating:
  • IP55
  • UL Type 12
• Frame Size: R3
• Mounting Type: Wall Mount
• Built-in Features:
  • Safe Torque Off (STO)
  • EMC Filter
  • Input Choke
  • Assistant Control Panel
  • Coated Circuit Boards
• Communications:
  • Modbus RTU
  • Optional Ethernet/IP
  • PROFINET
  • PROFIBUS DP
  • DeviceNet
  • CANopen
  • BACnet (optional modules)
• Operating Temperature: -15°C to +50°C (derating may apply above 40°C)
• Certifications:
  • UL
  • cUL
  • CE
  • EAC
  • RoHS
• Applications:
  • Pumps
  • Fans
  • Compressors
  • Conveyors
  • Mixers
  • Material Handling
  • HVAC
  • Industrial Automation
  • OEM Equipment

Dimensions:

• Height: 532 mm (20.93 in)
• Width: 207 mm (8.16 in)
• Depth: 237 mm (9.33 in)

Weight:

• Approximate Weight: 18 kg (39.7 lb)
