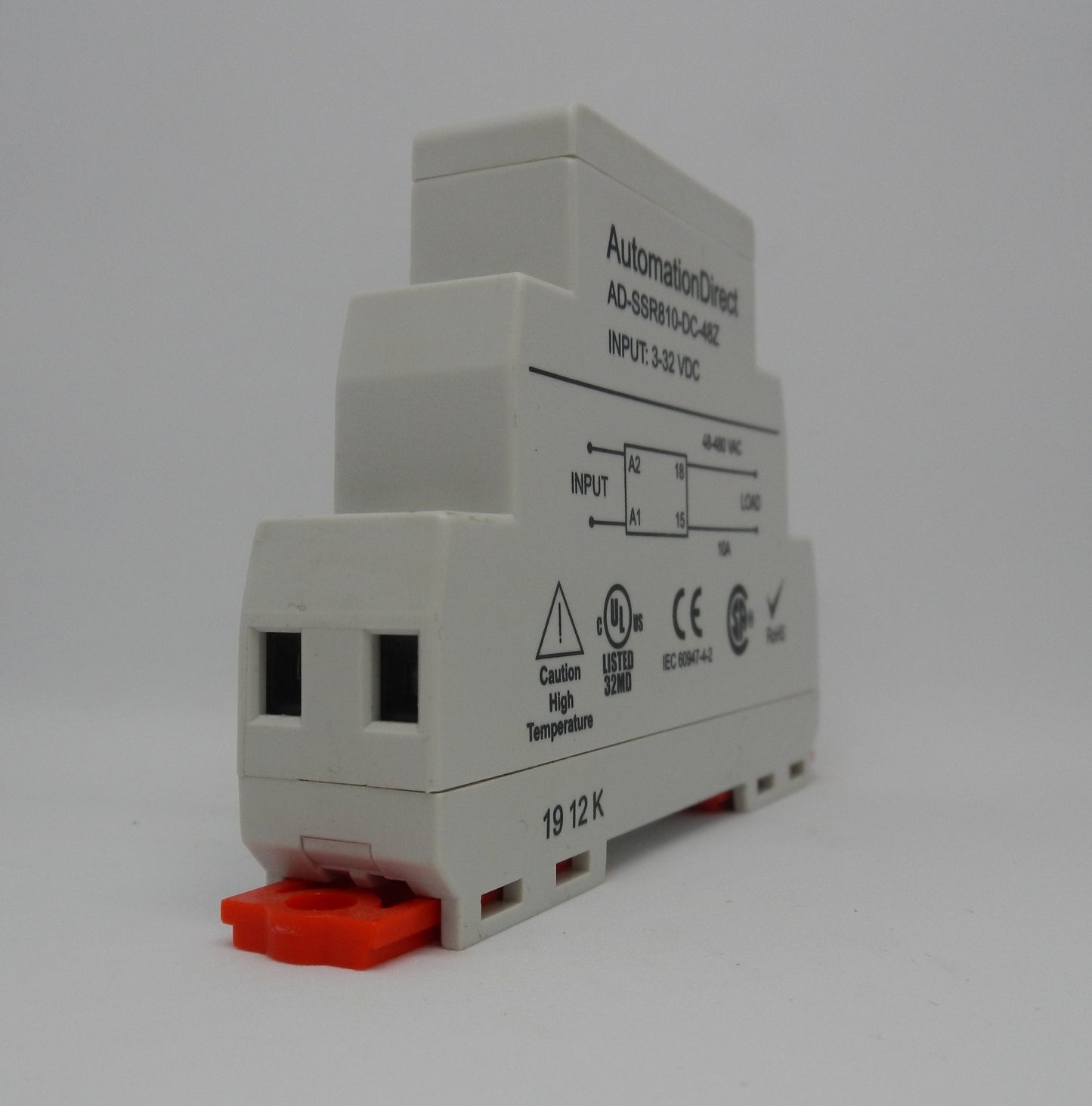

AD-SSR810-DC-48Z AutomationDirect 10A Solid State Relay SPST 3-32VDC Input 48-480VAC Zero Cross DIN Rail

Description:

• Genuine AutomationDirect solid state relay (SSR) for industrial automation and control applications
• Provides 10 Amp SPST Normally Open (N.O.) SCR output for reliable AC load switching
• 3–32 VDC control input compatible with PLC digital outputs and other DC control signals
• 48–480 VAC load voltage for switching a wide range of AC loads
• Zero-cross switching minimizes electrical noise and reduces stress on resistive loads
• Compact 35 mm DIN rail mount design with finger-safe housing for safe panel installation
• Built-in LED status indicator for quick visual confirmation of relay operation
• Screw terminal connections provide secure and reliable field wiring
• Ideal for heaters, lighting, industrial automation, packaging equipment, HVAC systems, and OEM machinery
• Discontinued by AutomationDirect (Retired August 2024) with no direct replacement available.

Specifications:

• Manufacturer Name: AutomationDirect
• Part Number (MPN): AD-SSR810-DC-48Z
• Product Type: Solid State Relay (SSR)
• Relay Configuration: SPST
• Output Type: 1 Normally Open (SCR)
• Rated Load Current: 10 A
• Control Input Voltage: 3–32 VDC
• Load Voltage: 48–480 VAC
• Switching Type: Zero Cross
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Terminals
• Housing: Finger-Safe
• Status Indicator: LED
• Maximum Turn-On Time: 8.3 ms
• Maximum Turn-Off Time: 8.3 ms
• Minimum Load Current: 50 mA
• Non-Repetitive Surge Current: 500 A (1 Cycle)
• Maximum Off-State Leakage Current: 10 mA
• Typical On-State Voltage Drop: 1.25 VAC
• Dielectric Strength: 2500 VAC
• Operating Temperature: -30°C to +80°C
• Storage Temperature: -40°C to +100°C
• Environmental Protection: IP20
• Maximum Wire Size: 14 AWG (2.5 mm²)
• Certifications:
  • UL Listed
  • CSA
  • CE
  • RoHS Compliant

Dimensions:

• Mounting: 35 mm DIN Rail
• Compact industrial relay housing for control panel installation.

Weight:

• Approximate Weight: 0.127 kg (4.1 oz).
