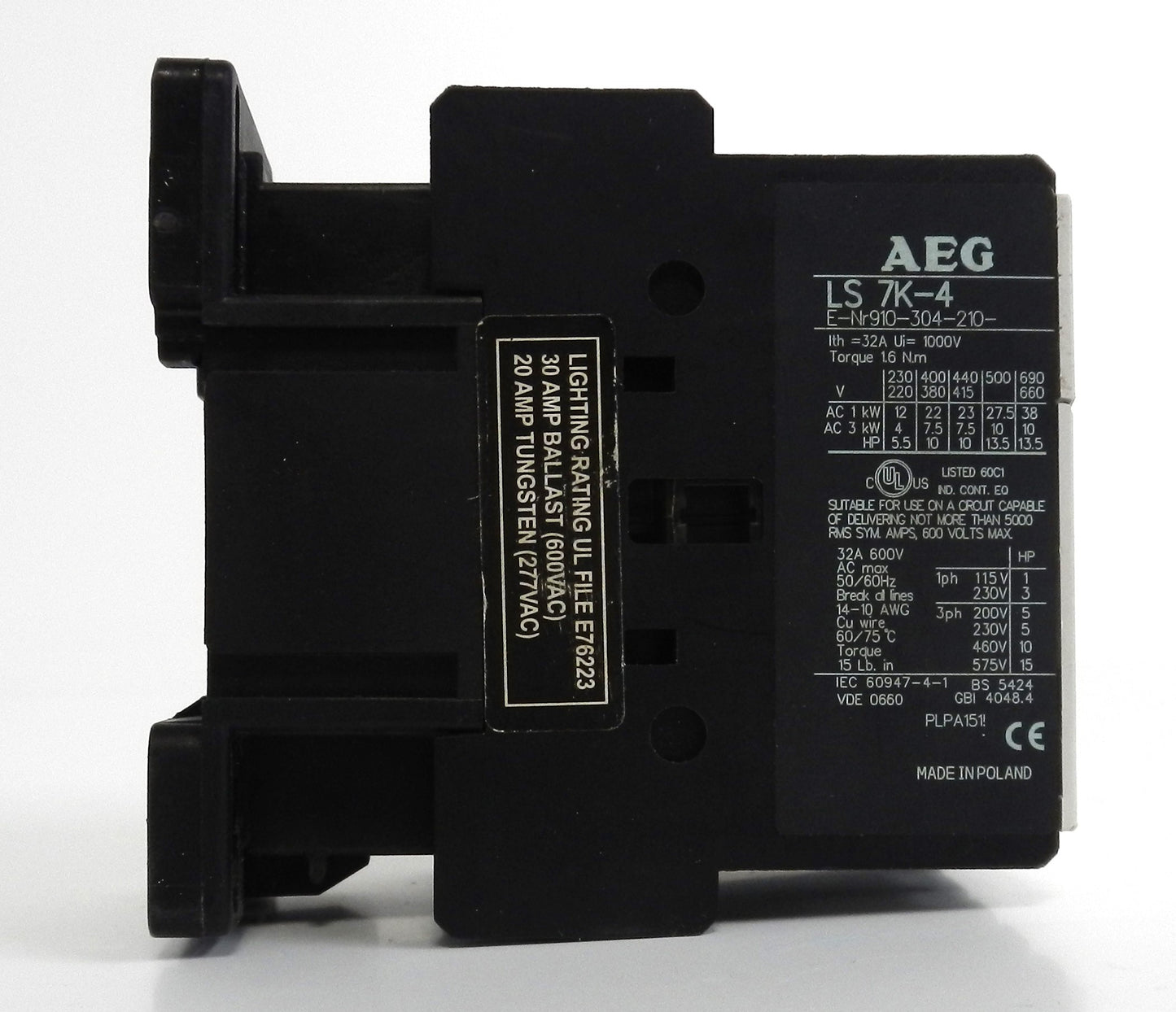

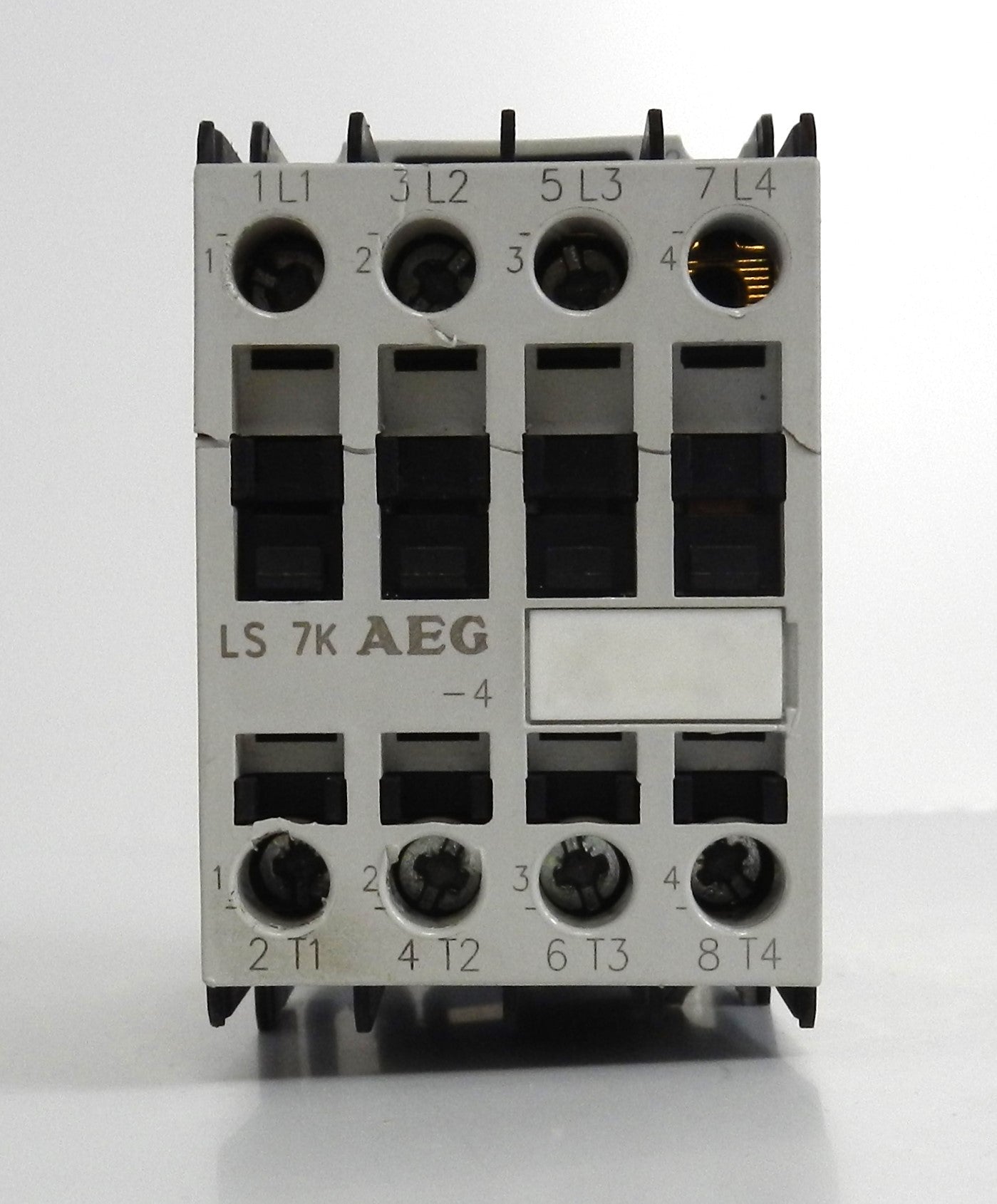

LS7K-4 AEG 4-Pole 30A Lighting Contactor Electrically Held DIN Rail / Panel Mount

Description:

• Genuine AEG LS7K Series lighting contactor for commercial and industrial lighting control applications
• 4-pole normally open (4 NO) electrically held contactor designed for switching multiple lighting circuits
• Rated for 30A ballast lighting loads and 20A tungsten loads
• Compact design supports both 35 mm DIN rail and panel mounting for flexible installation
• Electrically held coil for dependable operation in building automation and lighting control systems
• Screw-clamp terminals accept 14–10 AWG copper conductors
• Ideal for controlling lighting circuits from time clocks, occupancy sensors, BAS systems, and manual switches
• Suitable for commercial buildings, warehouses, schools, hospitals, industrial facilities, and OEM lighting control panels
• Direct replacement options are available through the EE Controls LSN7 series for legacy AEG installations.

Specifications:

• Manufacturer Name: AEG
• Part Number (MPN): LS7K-4
• Product Series: LS7K
• Product Type: Lighting Contactor
• Contact Configuration: 4 Normally Open (4 NO)
• Contact Rating:
  • 30A Ballast @ 600 VAC
  • 20A Tungsten @ 277 VAC
• Coil Type: Electrically Held AC or DC (coil voltage determined by suffix)
• Coil Consumption (AC):
  • 45 VA Inrush
  • 6 VA Holding
• Frequency: 50/60 Hz
• Mounting Type:
  • 35 mm DIN Rail
  • Panel Mount
• Wiring Capacity: 14–10 AWG Copper
• Operating Temperature: -25°C to +55°C (-13°F to +131°F)
• Approvals:
  • UL Listed (File E76233)
  • CE
• Applications:
  • Commercial Lighting Control
  • Building Automation Systems (BAS)
  • Industrial Lighting
  • Warehouse Lighting
  • HVAC Control Panels
  • OEM Control Panels

Dimensions:

• Height: 85 mm (3.35 in)
• Width: 45 mm (1.77 in)
• Depth: 81 mm (3.18 in)

Weight:

• Approximate Weight: 0.30 kg (0.66 lb).
