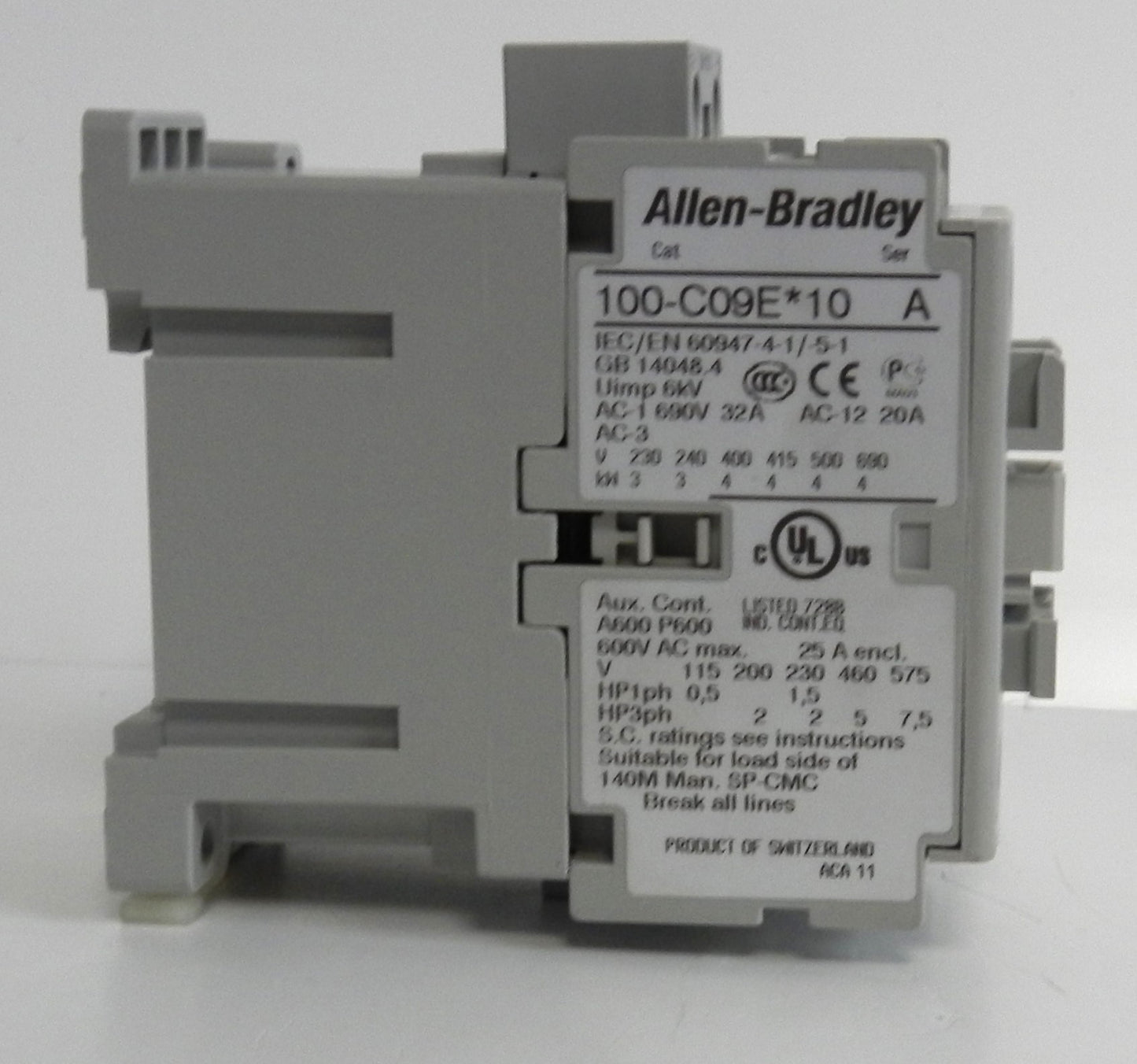

100-C09E*10 Allen-Bradley IEC Contactor 9A 3-Pole 1NO Auxiliary Electronic DC Coil Screw Terminal

Description:

• Genuine Allen-Bradley IEC contactor designed for industrial motor control and automation applications
• Rated 9A (AC-3) for reliable switching of three-phase motors and industrial loads
• 3-pole (3 NO) main contacts with 1 Normally Open (1 NO) built-in auxiliary contact
• Designed for use with an electronic DC coil (coil voltage varies by catalog suffix)
• Compact IEC design with DIN rail or panel mounting for flexible installation
• Screw terminal connections provide secure and dependable field wiring
• Suitable for motor starters, pumps, compressors, conveyors, HVAC systems, packaging equipment, and industrial machinery
• Compatible with Allen-Bradley 193 Series overload relays for complete motor starter assemblies
• Manufactured by Rockwell Automation for dependable industrial performance
• Conforms to IEC/EN 60947-4-1 and IEC/EN 60947-5-1 standards.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 100-C09E*10
• Product Series: Bulletin 100-C
• Product Type: IEC Magnetic Contactor
• Number of Poles: 3
• Main Contacts: 3 NO
• Auxiliary Contacts: 1 NO
• Rated Operational Current (AC-3): 9 A
• Rated Thermal Current (AC-1): 32 A
• Coil Type: Electronic DC Coil
• Coil Voltage: Varies by catalog suffix (e.g., EA10, ED10, EJ10, EQ10, EW10, EY10)
• Motor Rating:
  • 2 HP @ 230V, 3-Phase
  • 5 HP @ 460V, 3-Phase
• Rated Operational Voltage: Up to 690 VAC
• Connection Type: Screw Terminals
• Mounting Type: DIN Rail or Panel Mount
• Standards: IEC/EN 60947-4-1, IEC/EN 60947-5-1
• Certifications: UL Listed, CE, CCC, KC, ABS
• Application: Motor Starters, Industrial Automation, Machine Control, HVAC Equipment, Pumps, Compressors, Conveyors, OEM Equipment.

Dimensions:

• Width: 45 mm (1.77 in)
• Height: 77 mm (3.03 in)
• Depth: 86 mm (3.39 in).

Weight:

• Approximate Weight: 0.30 kg (0.66 lb).
