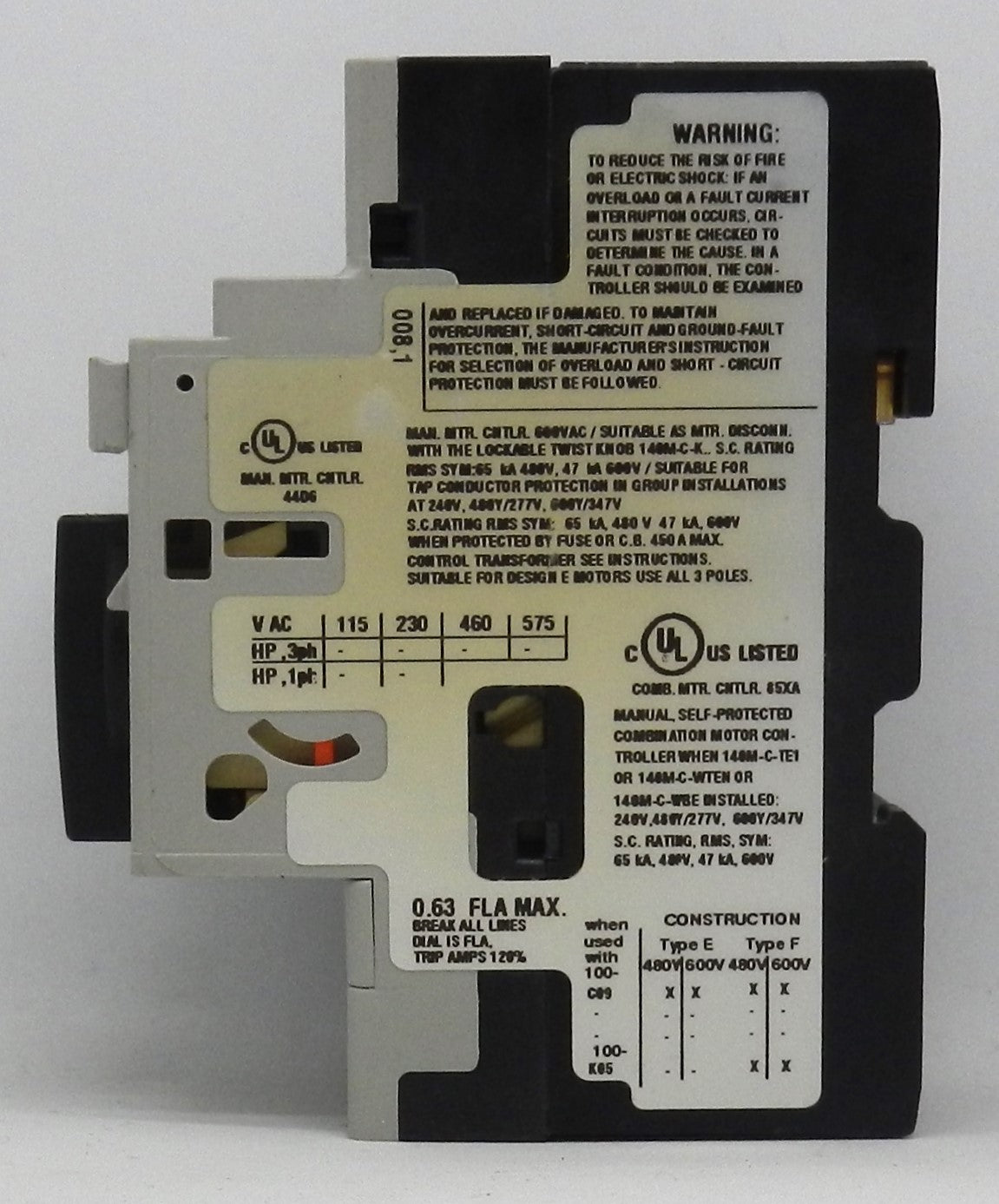

140M-C2E-A63 Allen-Bradley Motor Protection Circuit Breaker 0.4–0.63A 3-Pole Manual Motor Starter

Description:

• Genuine Allen-Bradley motor protection circuit breaker (MPCB) designed for industrial motor starting and protection
• Adjustable thermal overload protection from 0.40 to 0.63 A for small three-phase motors
• 3-pole thermomagnetic design combines overload and short-circuit protection in one compact device
• Manual ON/OFF control with integrated trip indication for quick fault identification
• Fixed magnetic trip at approximately 13–14 × rated current for dependable short-circuit protection
• Screw terminal connections provide secure and reliable field wiring
• Compact panel-mounted design compatible with Allen-Bradley motor starters and accessories
• Ideal for motor control centers, industrial automation, OEM machinery, conveyors, pumps, compressors, and machine tools
• Discontinued by Rockwell Automation. Recommended engineering replacement: 140MT-C3E-A63.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 140M-C2E-A63
• Product Series: Bulletin 140M
• Product Type: Motor Protection Circuit Breaker (MPCB)
• Number of Poles: 3
• Adjustable Current Range: 0.40–0.63 A
• Rated Operational Current (Ie): 0.63 A
• Thermal Trip Setting: 0.40–0.63 A
• Magnetic Trip Current: 8.2 A
• Protection Type: Adjustable Thermal / Fixed Magnetic
• Trip Class: 10
• Rated Operating Voltage: Up to 690 VAC
• Rated Frequency: 50/60 Hz
• Rated Ultimate Breaking Capacity (Icu): 100 kA @ 400/690 VAC
• Rated Service Breaking Capacity (Ics): 100 kA @ 400/690 VAC
• Type of Connection: Screw Terminal
• Degree of Protection: IP20
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +80°C
• Country of Origin: Switzerland
• Lifecycle Status: Discontinued
• Recommended Replacement: 140MT-C3E-A63
• Applications:
  • Motor Protection
  • Manual Motor Starter
  • Industrial Automation
  • Motor Control Centers
  • Pumps
  • Compressors
  • Conveyor Systems
  • OEM Equipment

Dimensions:

• Height: 90 mm (3.54 in)
• Width: 45 mm (1.77 in)
• Depth: 74.5 mm (2.93 in)

Weight:

• Approximate Weight: 0.317 kg (0.70 lb).
