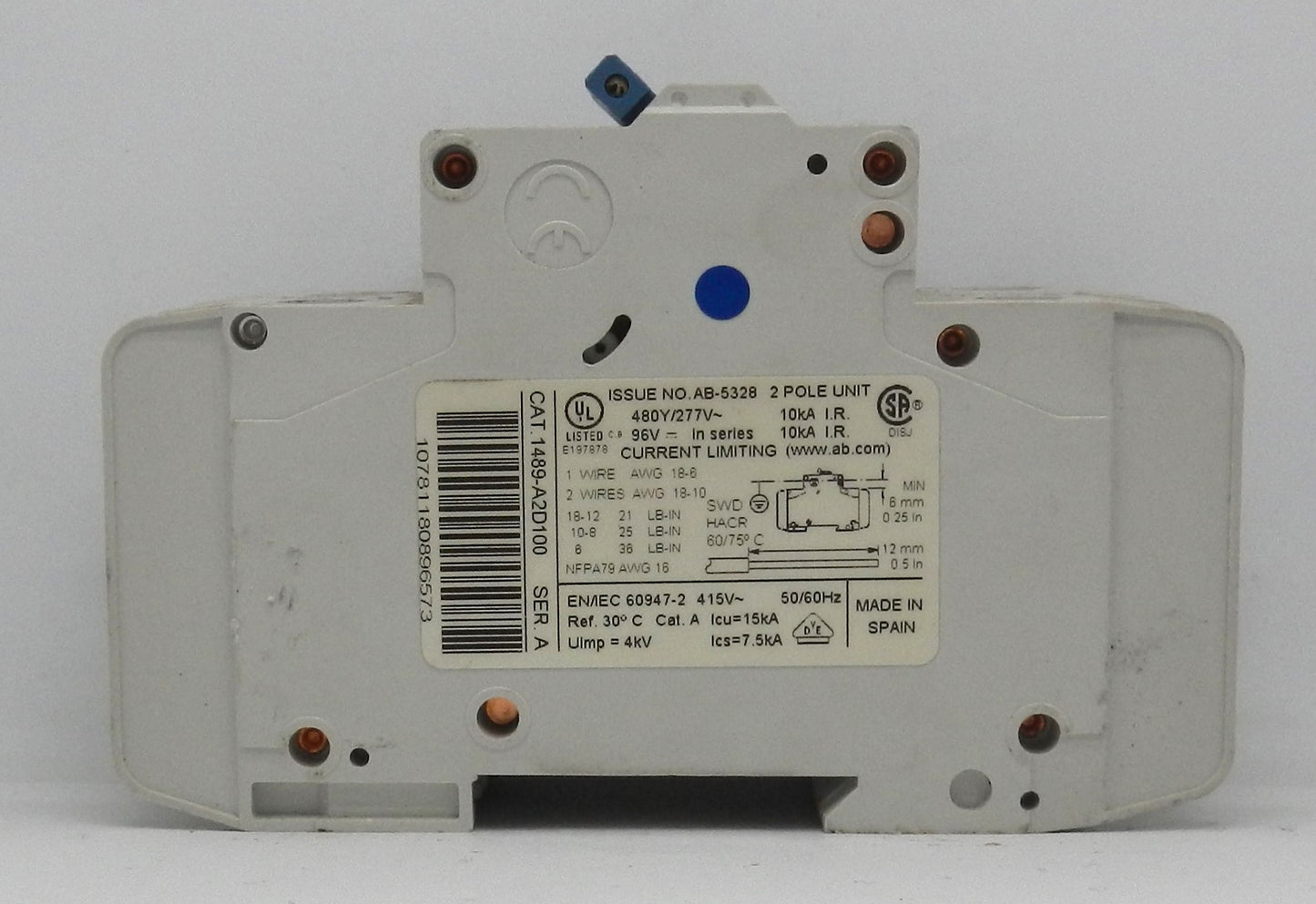

1489-A2D100 Allen-Bradley 10A 2-Pole Miniature Circuit Breaker D-Curve 480Y/277VAC DIN Rail

Description:

• Genuine Allen-Bradley miniature circuit breaker for industrial branch circuit and control panel protection
• Provides 2-pole, 10 Amp overcurrent protection for AC and DC electrical systems
• D-Curve trip characteristic designed for high inrush current loads, including motors, transformers, solenoids, and industrial machinery
• Rated for 480Y/277 VAC and 96 VDC applications
• Thermal-magnetic trip mechanism delivers reliable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for quick installation in industrial control panels
• UL 489 Listed branch circuit protector suitable for industrial and commercial electrical installations
• Lug-in/lug-out terminals provide secure wiring connections
• Ideal for industrial automation, OEM machinery, motor control centers, electrical distribution, and control panels
• Discontinued by Rockwell Automation, making it ideal for maintenance and replacement of existing systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1489-A2D100
• Product Series: Bulletin 1489-A
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 2
• Rated Current: 10 A
• Trip Curve: D
• Protection Type: Thermal-Magnetic
• Rated AC Voltage:
  • 480Y/277 VAC (UL/CSA)
  • 415 VAC (IEC)
• Rated DC Voltage: 96 VDC
• Frequency: 50/60 Hz
• Interrupt Rating:
  • 14 kA @ 480Y/277 VAC
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Lug-In / Lug-Out
• Degree of Protection:
  • IP20 (Front)
  • IP00 (Terminals)
• Operating Temperature: -30°C to +60°C
• Certifications:
  • UL 489 Listed
  • CSA Certified
  • CE
• Lifecycle Status: Discontinued
• Applications:
  • Branch Circuit Protection
  • Industrial Control Panels
  • Motor Control
  • Machine Automation
  • OEM Equipment
  • Electrical Distribution

Dimensions:

• Height: 111 mm (4.37 in)
• Width: 35 mm (1.38 in)
• Depth: 75 mm (2.95 in)

Weight:

• Approximate Weight: 0.25 kg (0.55 lb).
