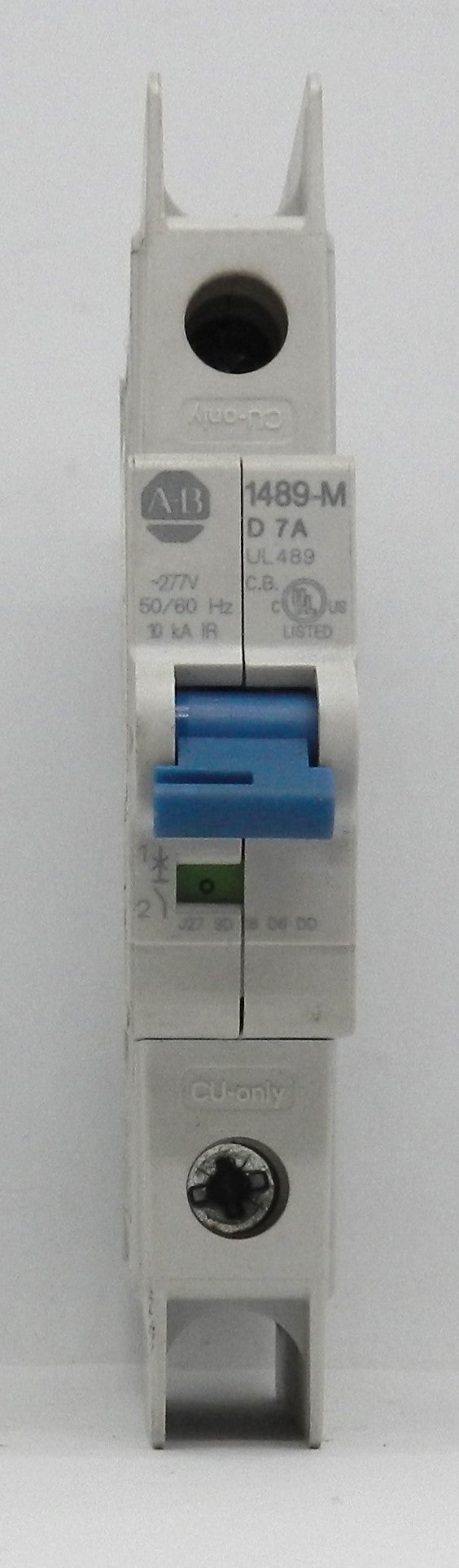

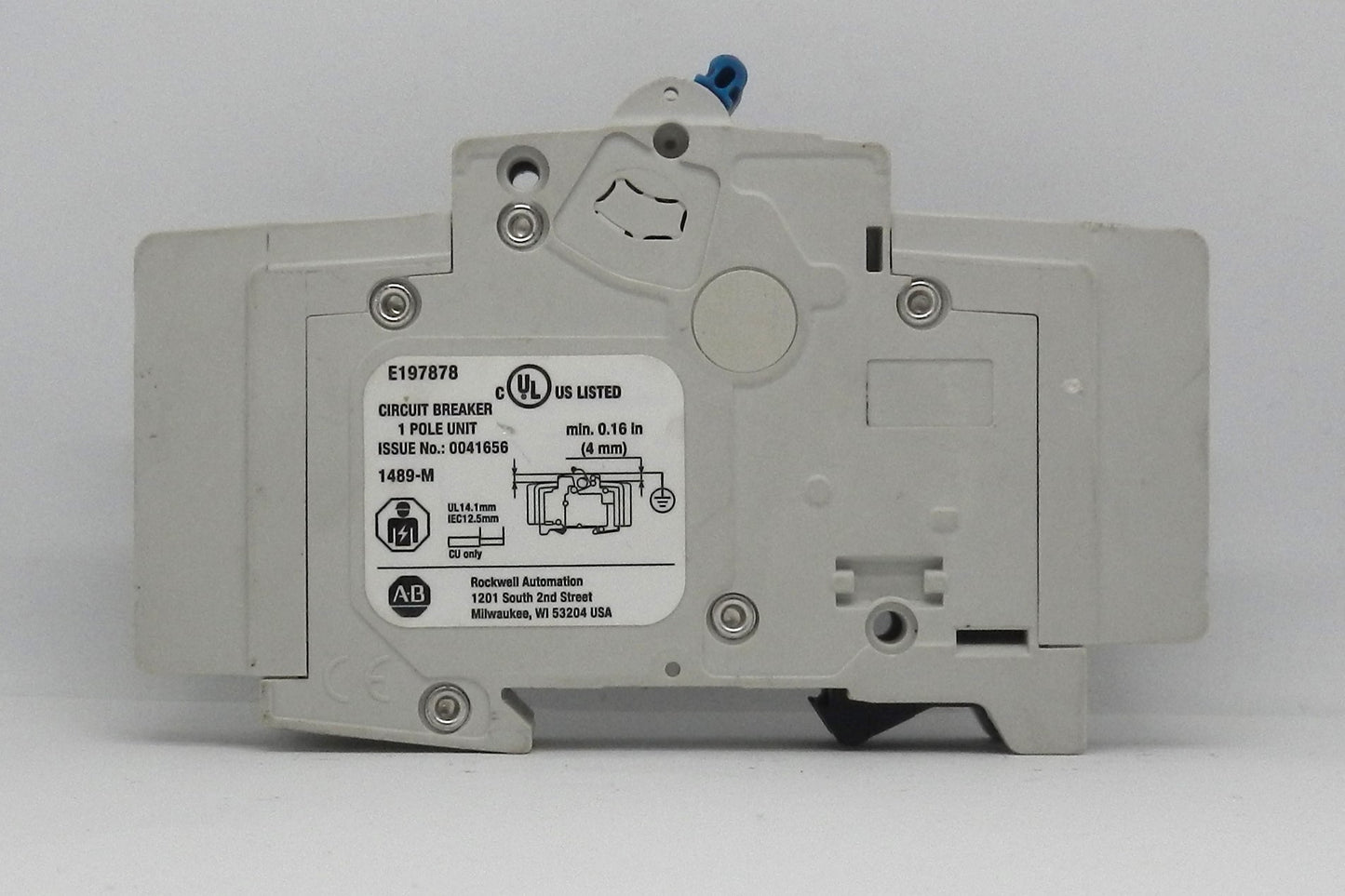

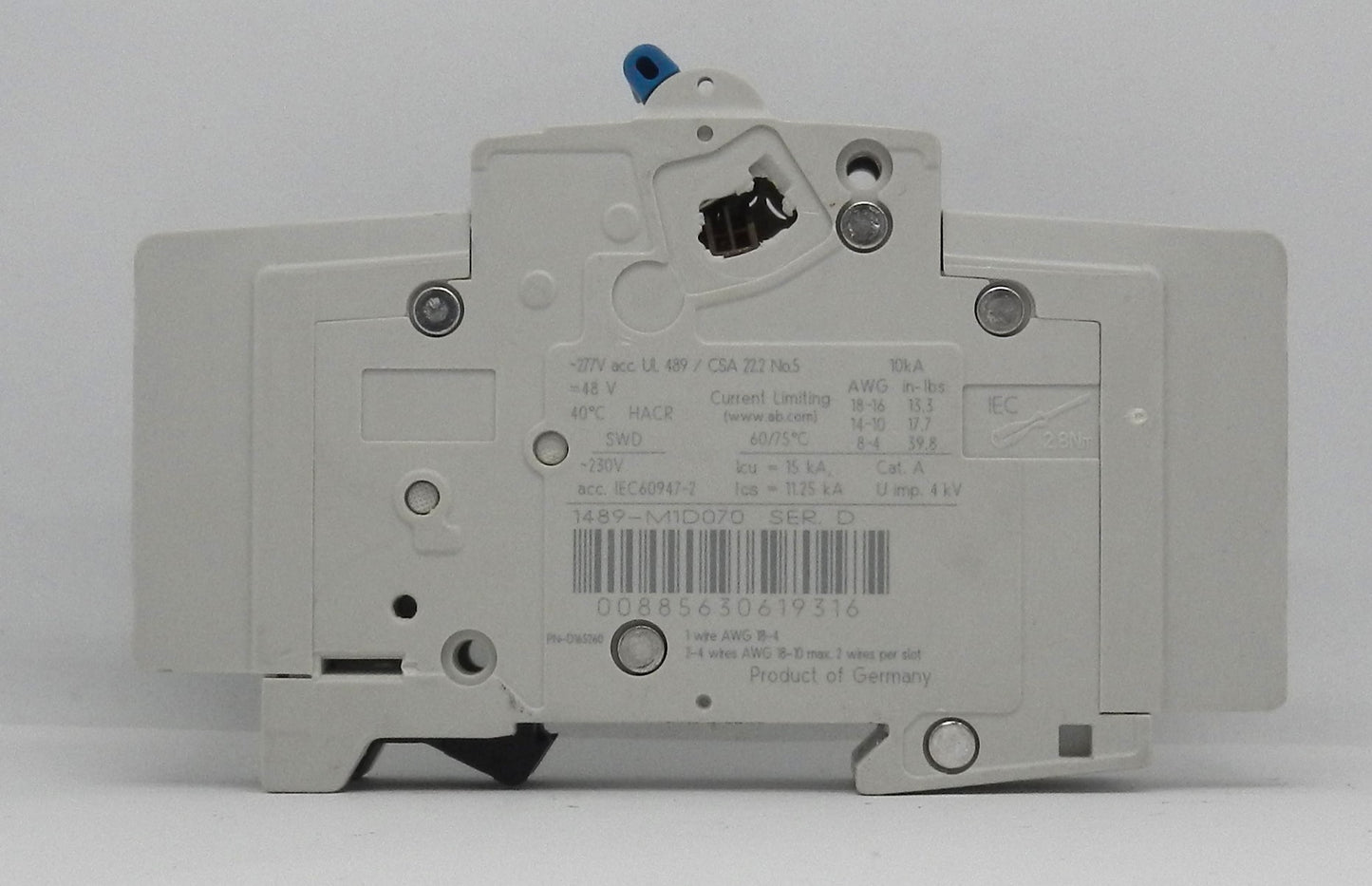

ALLEN-BRADLEY 1489-M1C070 Miniature Circuit Breaker – 7A, 1-Pole, 480Y/277V, Curve C

Description

• The Allen‑Bradley 1489-M1C070 is a high-quality miniature circuit breaker from the trusted 1489-M Series, designed to provide reliable branch circuit protection in industrial and commercial control panels.

  This 1-pole, 7-amp breaker operates at up to 480Y/277 VAC and features a Trip Curve C, making it ideal for standard loads with moderate inrush currents such as control circuits, power supplies, lighting, and automation equipment.

  Built for DIN-rail mounting, the 1489-M series offers compact design, fast installation, and dependable thermal-magnetic protection, ensuring long-term safety and performance in demanding environments.

  ---

  Key Specifications

  • Manufacturer: Allen-Bradley

  • Part Number: 1489-M1C070

  • Series: 1489-M

  • Type: Miniature Circuit Breaker (MCB)

  • Poles: 1-Pole

  • Current Rating: 7 Amp

  • Trip Curve: C

  • Voltage Rating: 480Y / 277 VAC Max

  • Frequency: 50/60 Hz

  • Mounting: DIN Rail

  • Protection Type: Thermal-Magnetic

  • Application: Industrial control panels, automation systems, lighting circuits

  ---

  Applications

  • Industrial control panels

  • PLC and automation systems

  • Power supplies and control circuits

  • Lighting and auxiliary loads

  • OEM machinery protection
