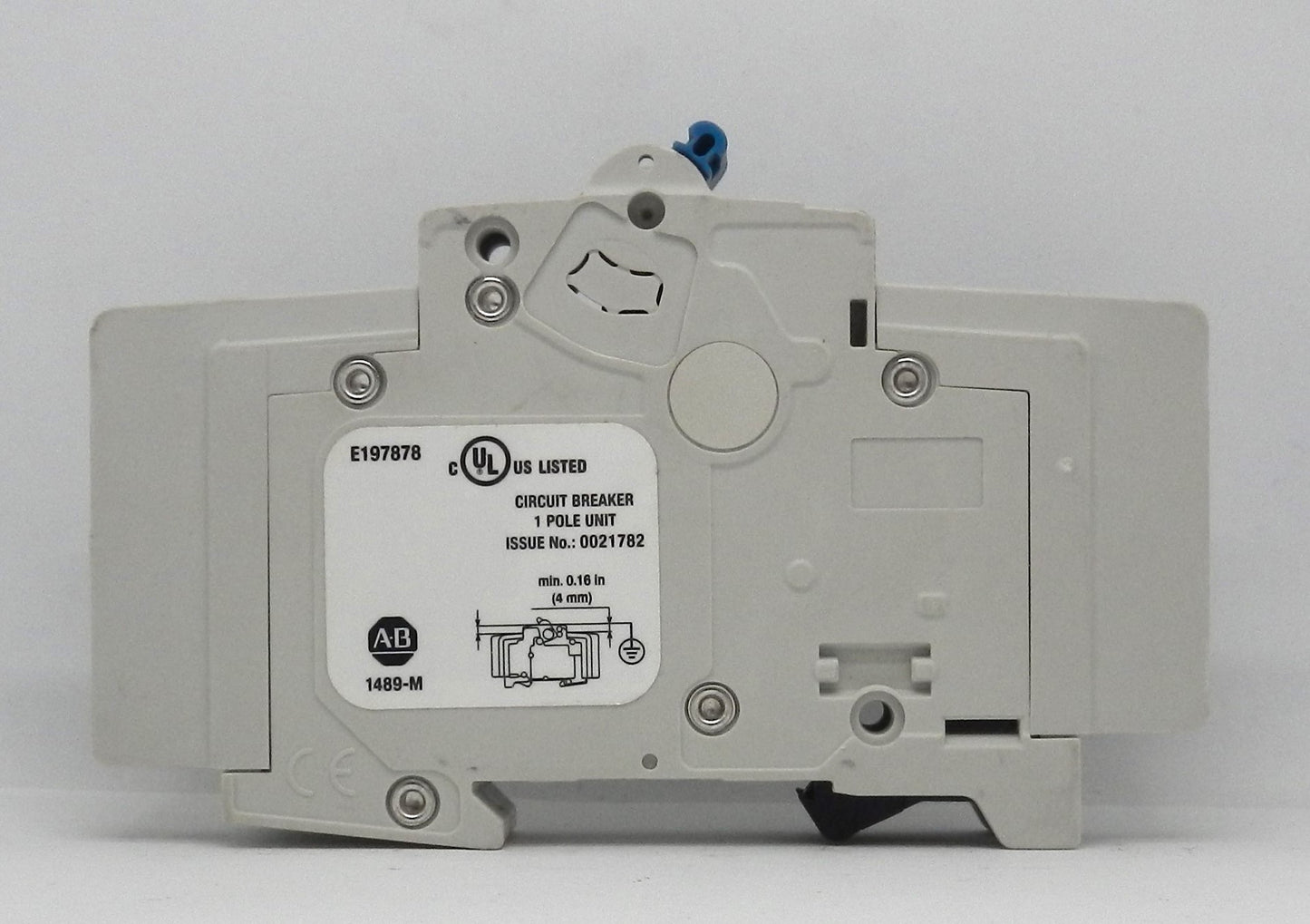

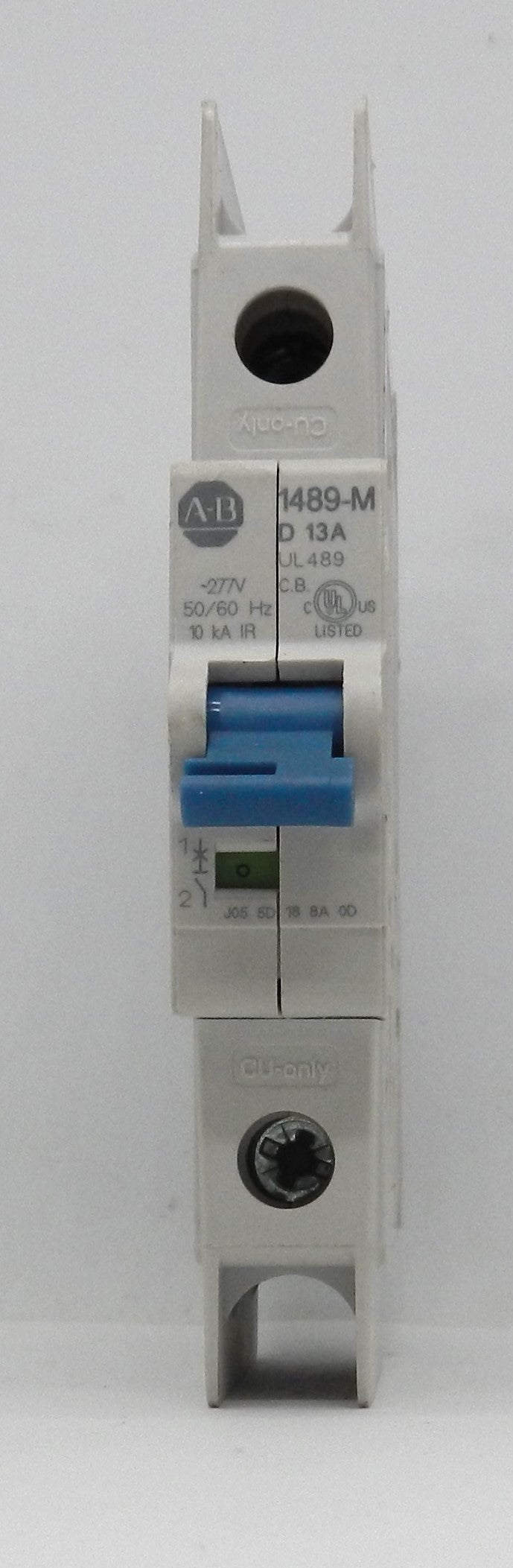

1489-M1C130 Allen-Bradley 13A 1-Pole Miniature Circuit Breaker C-Curve UL489 DIN Rail

Description:

• Genuine Allen-Bradley miniature circuit breaker designed for industrial branch circuit and control panel protection
• Provides 1-pole, 13 Amp overcurrent protection for industrial AC and DC electrical systems
• C-Curve trip characteristic is ideal for circuits with moderate inrush currents, including motors, transformers, power supplies, HVAC equipment, and control circuits
• Rated for 277 VAC (UL/CSA), 230 VAC (IEC/EN), and 48 VDC applications
• Thermal-magnetic trip mechanism provides dependable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for quick installation in industrial control panels
• UL 489 Listed branch circuit protection for industrial and commercial applications
• Compatible with Bulletin 1489-M accessories including auxiliary contacts, bus bars, shunt trips, and lockout devices
• Ideal for industrial automation, OEM machinery, manufacturing equipment, motor control, electrical distribution, and PLC control panels
• Active product in the Rockwell Automation Bulletin 1489-M series.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1489-M1C130
• Product Series: Bulletin 1489-M
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1
• Rated Current: 13 A
• Trip Curve: C
• Protection Type: Thermal-Magnetic
• Rated AC Voltage:
  • 277 VAC (UL/CSA)
  • 230 VAC (IEC/EN)
• Rated DC Voltage: 48 VDC
• Frequency: 50/60 Hz
• Interrupt Rating:
  • 10 kA (UL 489)
  • 15 kA Icu @ 230 VAC (IEC 60947-2)
• Mounting Type: 35 mm DIN Rail
• Degree of Protection:
  • IP20 (Front)
  • IP40 (Installed in Enclosure)
• Mechanical Life: 20,000 Operations
• Electrical Life: 20,000 Operations
• Operating Temperature: -25°C to +55°C
• Certifications:
  • UL 489 Listed
  • CSA Certified
  • CE
  • IEC 60947-2
• Lifecycle Status: Active
• Applications:
  • Industrial Control Panels
  • Branch Circuit Protection
  • Machine Automation
  • Motor Control
  • OEM Equipment
  • Electrical Distribution
  • PLC Control Panels

Dimensions:

• Height: 111 mm (4.37 in)
• Width: 17.5 mm (0.69 in)
• Depth: 74 mm (2.91 in)

Weight:

• Approximate Weight: 0.13 kg (0.29 lb).
