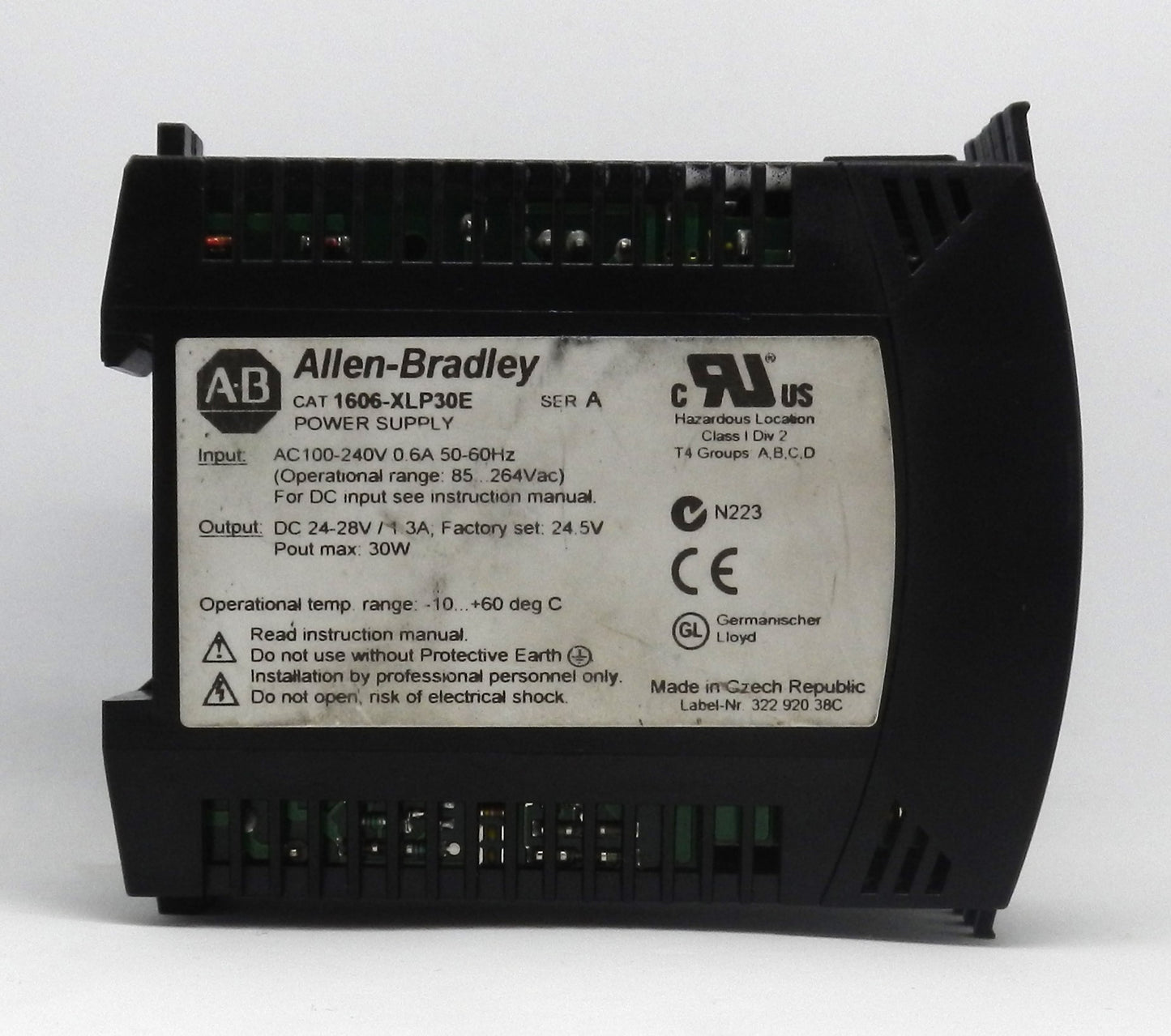

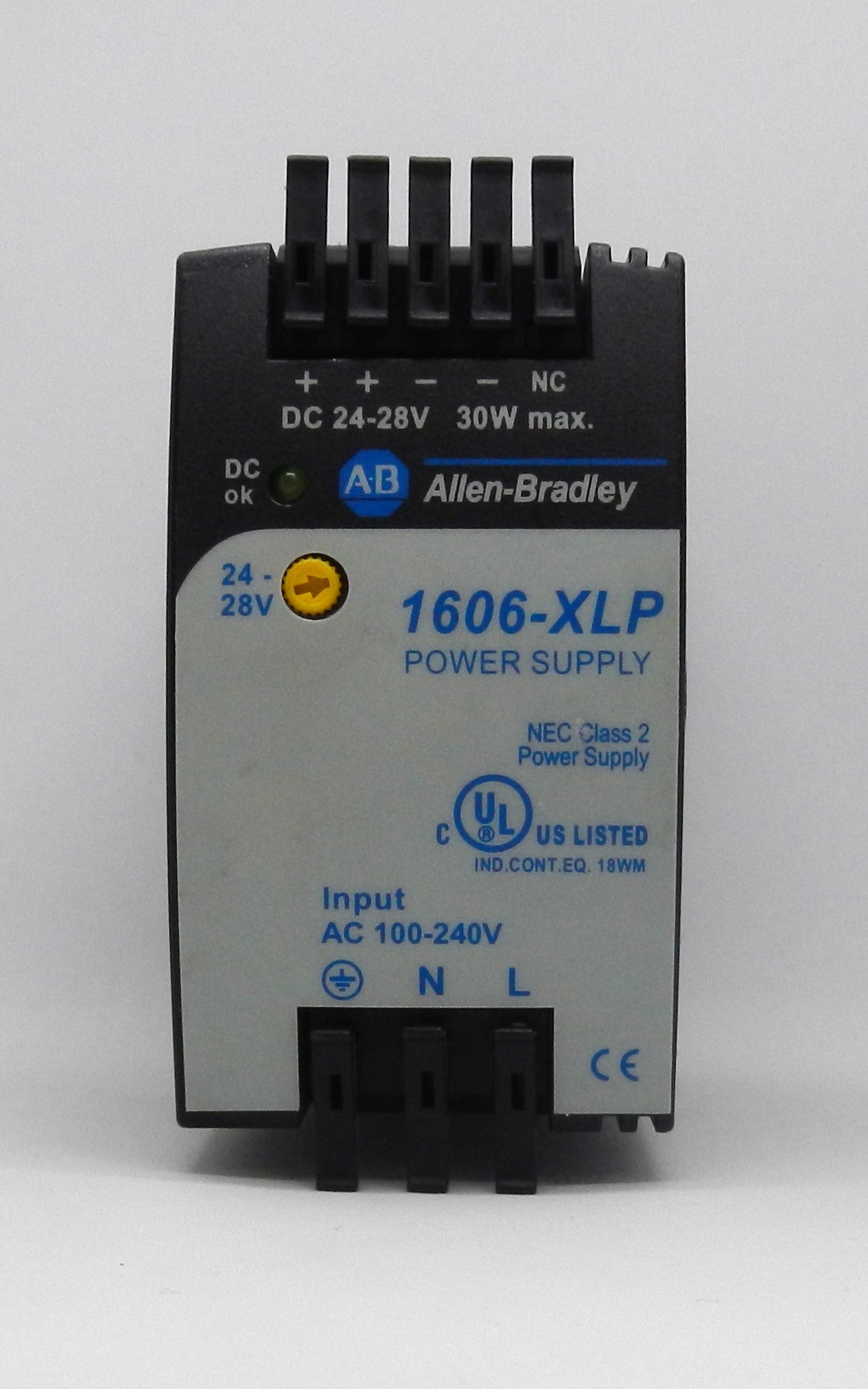

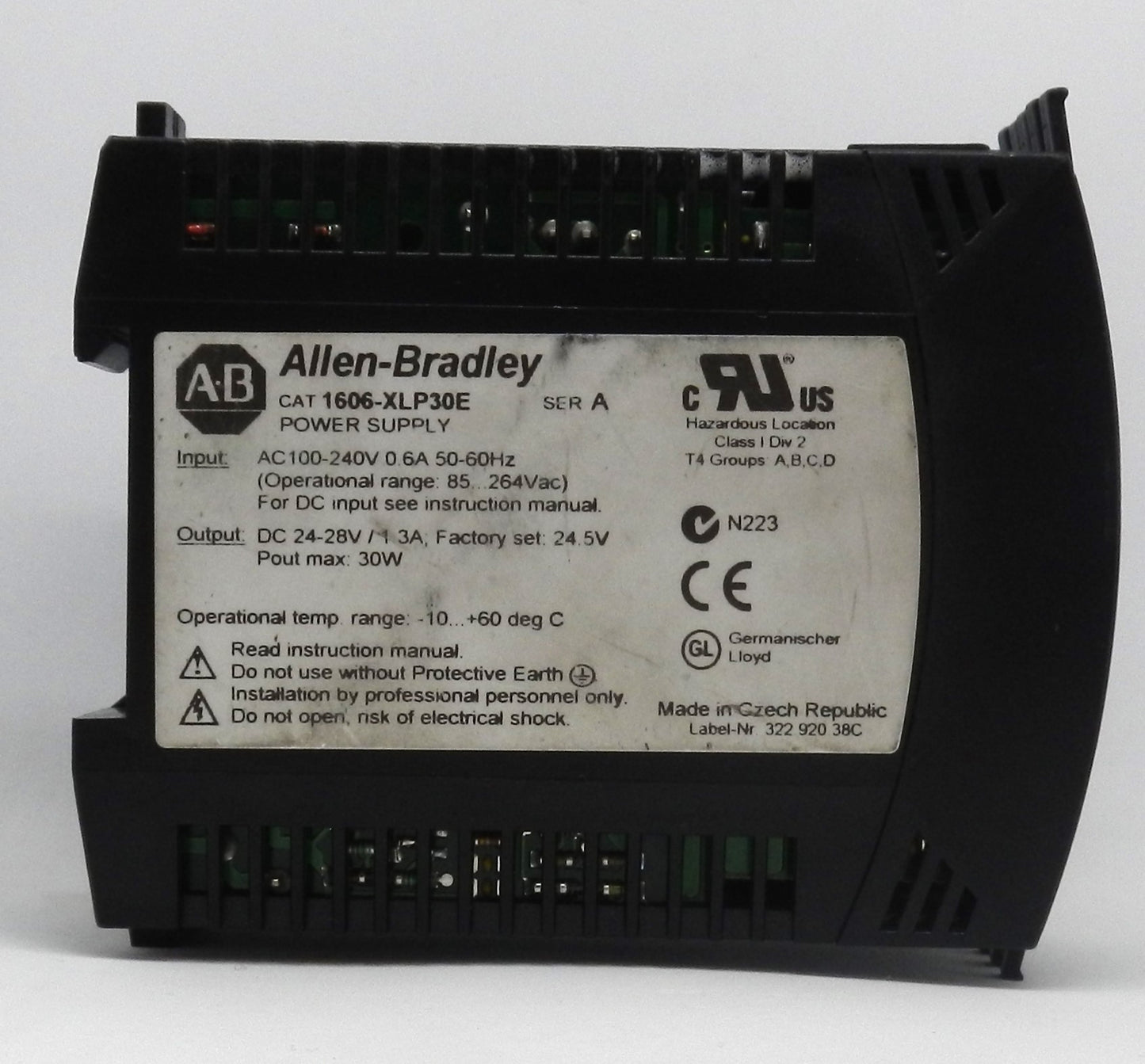

1606-XLP30E Allen-Bradley XLP Compact Power Supply 24-28VDC 30W 1.3A DIN Rail

Description:

• Genuine Allen-Bradley XLP Series compact switching power supply for industrial automation and control systems
• Delivers a regulated 24–28 VDC adjustable output with a maximum 30 W power rating
• Provides up to 1.3 A output current at 24 VDC
• Universal input accepts 100–240 VAC or 85–375 VDC for worldwide compatibility
• High efficiency design (up to 87.5%) minimizes heat generation and energy consumption
• Compact housing saves valuable control panel space
• Spring-clamp terminals enable fast, secure, and tool-free wiring
• DIN rail mountable for quick installation in industrial control cabinets
• Built-in overload, short-circuit, overvoltage, and overtemperature protection
• Ideal for PLC systems, sensors, relays, HMIs, industrial controls, OEM machinery, packaging equipment, and machine automation
• Active product in the Allen-Bradley Bulletin 1606-XLP Compact Power Supply family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1606-XLP30E
• Product Series: Bulletin 1606-XLP
• Product Type: Compact Switching Power Supply
• Input Voltage:
  • 100–240 VAC Nominal
  • 85–264 VAC Operating
  • 85–375 VDC
• Input Frequency: 47–63 Hz
• Output Voltage: 24–28 VDC Adjustable
• Rated Output Current:
  • 1.3 A @ 24 VDC
  • 1.0 A @ 28 VDC
• Output Power: 30 W
• Efficiency: 87.5% Typical
• Ripple & Noise: 50 mV Maximum
• Hold-Up Time: >19 ms
• Inrush Current: 18 A Maximum
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Spring-Clamp
• Degree of Protection: IP20
• Operating Temperature: -10°C to +70°C
• MTBF: 650,000 Hours @ 40°C
• Certifications:
  • UL Listed
  • CE
  • CSA
  • RCM
  • EAC
• Lifecycle Status: Active

Dimensions:

• Height: 75 mm (2.95 in)
• Width: 45 mm (1.77 in)
• Depth: 91 mm (3.58 in)

Weight:

• Approximate Weight: 0.23 kg (0.51 lb).
