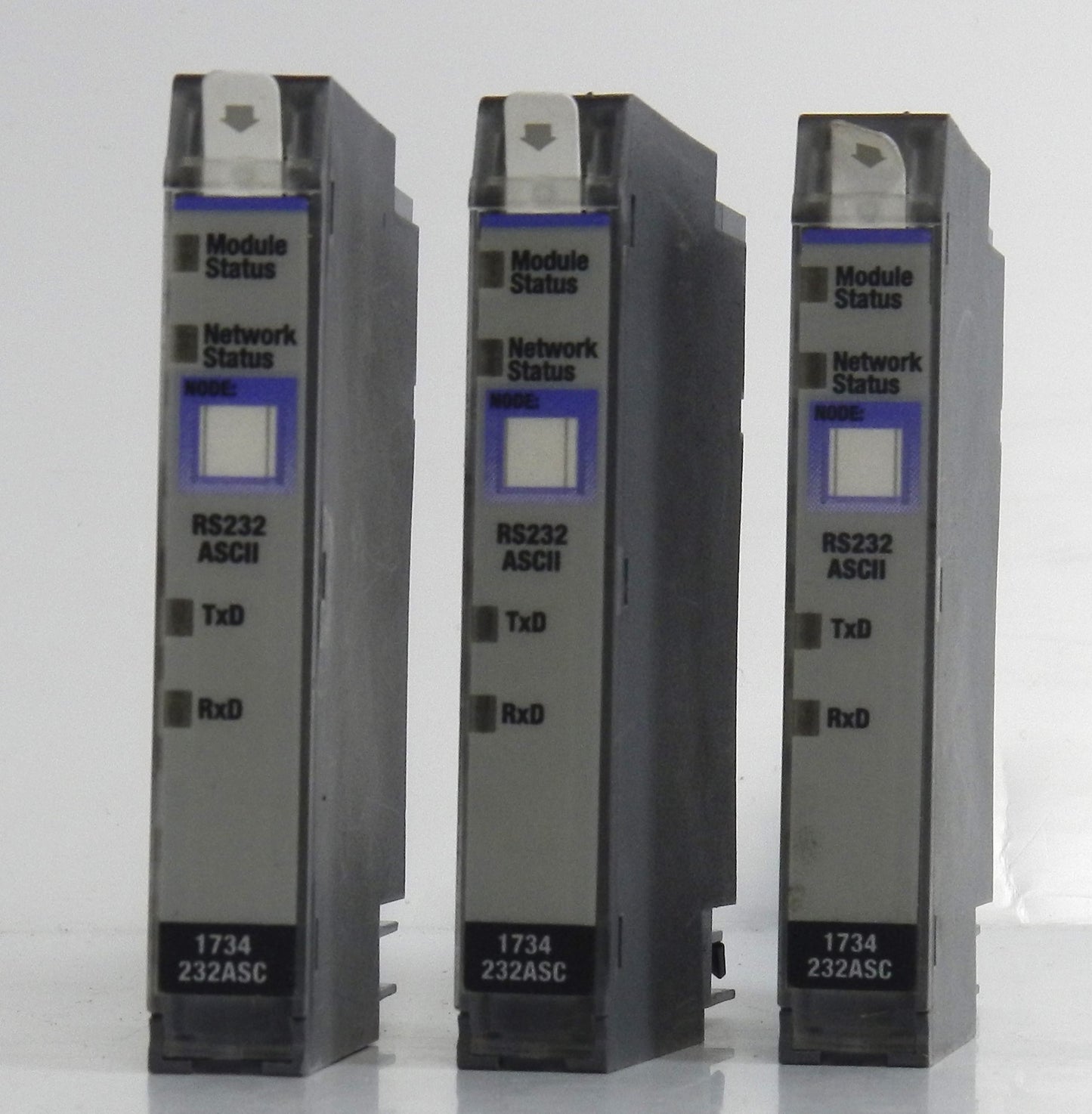

1734-232ASC Allen-Bradley POINT I/O RS-232 ASCII Serial Interface Module 1-Channel 24VDC

Description:

• Genuine Allen-Bradley POINT I/O RS-232 ASCII serial interface module for industrial communication and automation applications
• Provides one full-duplex RS-232 serial communication channel for connecting ASCII-compatible devices to POINT I/O systems
• Supports communication with barcode scanners, printers, weigh scales, RFID readers, HMI devices, serial instruments, and other ASCII-based equipment
• Operates from a 24 VDC nominal power supply with a 10–28.8 VDC operating range
• Configurable serial communication parameters including baud rates from 1,200 to 38,400 bps and multiple character framing formats
• Requires a compatible 1734-TB or 1734-TBS POINT I/O terminal base (sold separately)
• DIN rail mounted, compact open-style module for easy integration into POINT I/O systems
• Compatible with EtherNet/IP, DeviceNet, and ControlNet POINT I/O adapter systems
• Ideal for machine automation, manufacturing, packaging, process control, OEM equipment, and industrial communication applications
• Active product in the Allen-Bradley POINT I/O specialty module family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1734-232ASC
• Product Series: POINT I/O (1734)
• Product Type: RS-232 ASCII Serial Interface Module
• Number of Serial Channels: 1
• Communication Type: Full Duplex RS-232 ASCII
• Communication Protocol: RS-232
• Power Supply:
  • 24 VDC Nominal
  • 10–28.8 VDC Operating Range
• Supply Current: 15 mA @ 24 VDC
• POINTBus Current: 75 mA @ 5 VDC
• Power Dissipation: 0.75 W Max
• Thermal Dissipation: 2.5 BTU/hr Max
• Baud Rates:
  • 1,200 bps
  • 2,400 bps
  • 4,800 bps
  • 9,600 bps
  • 19,200 bps
  • 38,400 bps
• Supported Character Framing:
  • 7N2
  • 7E1
  • 7O1
  • 8N1
  • 8N2
  • 8E1
  • 8O1
  • 7E2
  • 7O2
• Mounting Type: DIN Rail
• Required Terminal Base:
  • 1734-TB
  • 1734-TBS
• Operating Temperature:
  • -20°C to +55°C
• Relative Humidity:
  • 5–95% Non-Condensing
• Country of Origin: United States
• Certifications:
  • UL Listed
  • UL Class I Division 2
  • ABS
  • RINA
• Lifecycle Status: Active.

Dimensions:

• Standard POINT I/O specialty module form factor
• Designed for installation on a compatible 1734-TB or 1734-TBS terminal base with DIN rail mounting.

Weight:

• Approximate Weight: 0.02 kg (0.04 lb).
