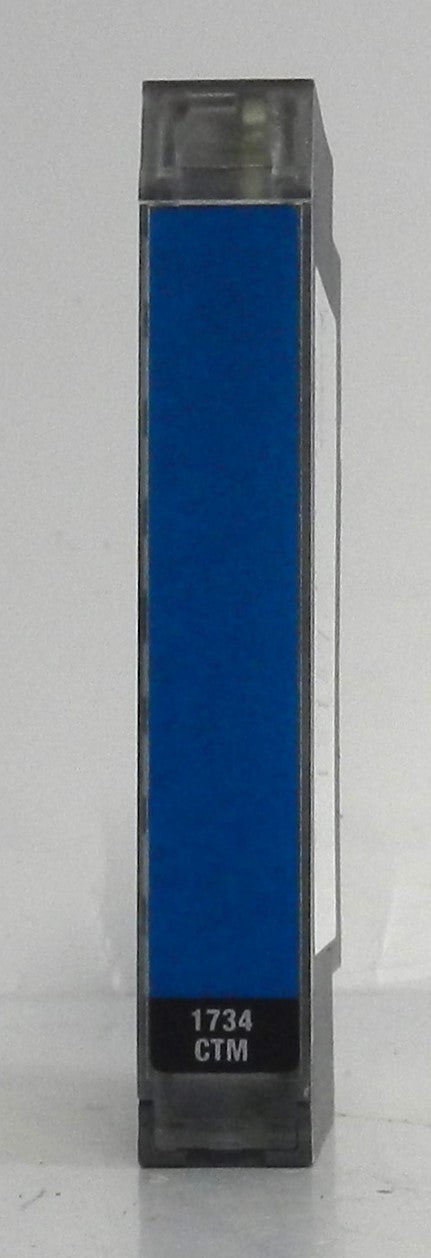

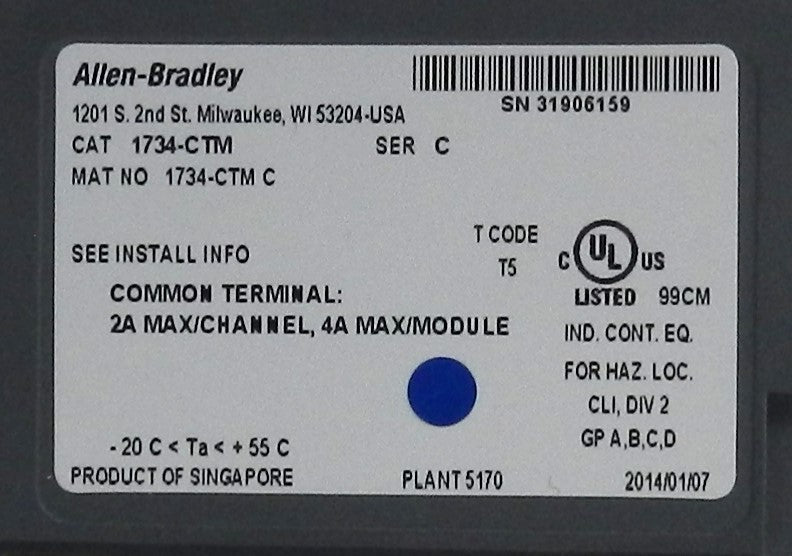

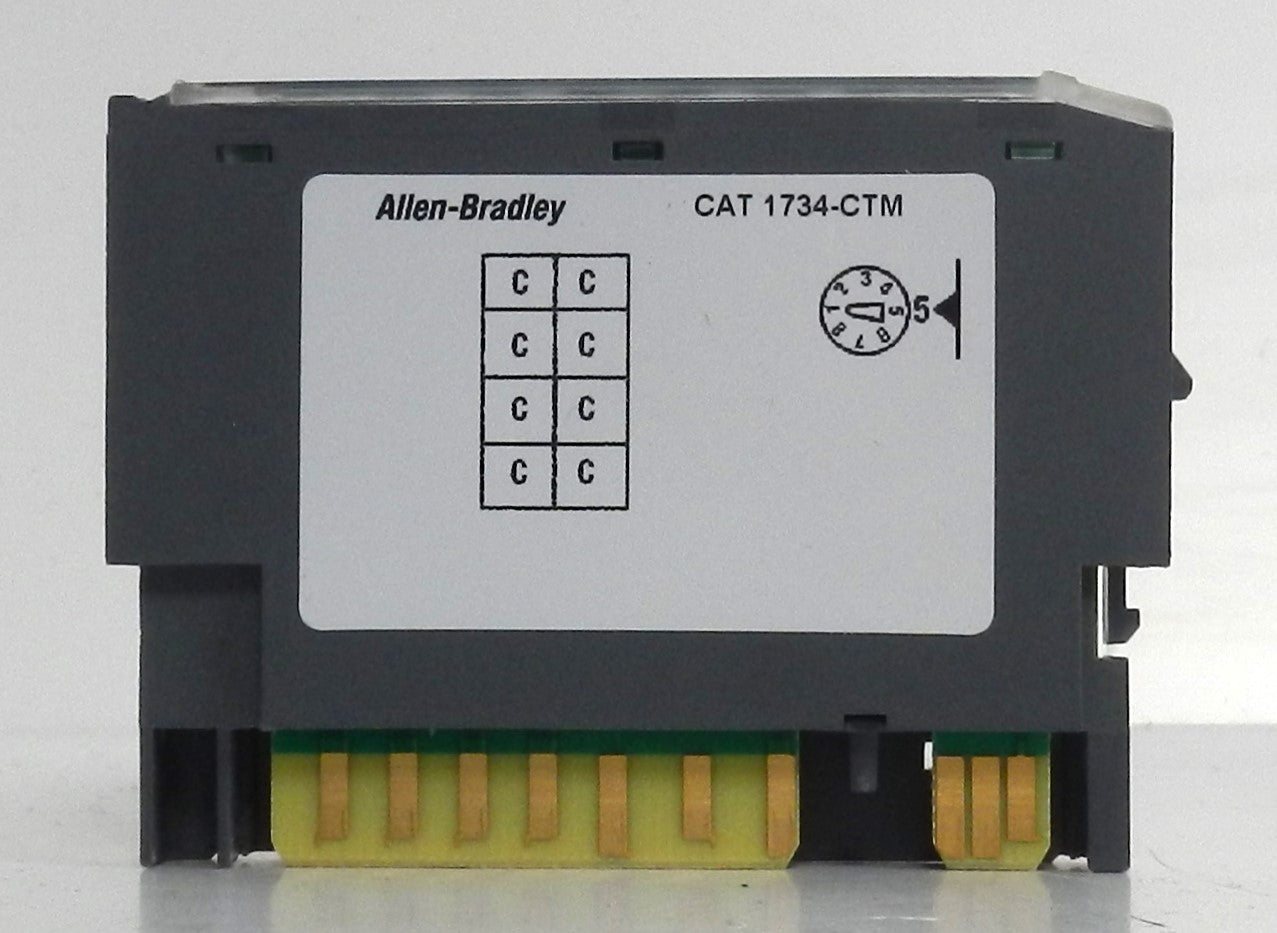

1734-CTM Allen-Bradley POINT I/O Common Terminal Module 8-Channel DIN Rail

Description:

• Genuine Allen-Bradley POINT I/O common terminal module for expanding field wiring connections in POINT I/O systems
• Provides 8 common terminals for simplifying wiring of compatible 8-channel POINT I/O modules
• Single-slot, 12 mm wide open-style module designed for compact control panel installations
• DIN rail-mounted design enables quick installation and easy maintenance
• Compatible with 1734-TB, 1734-TBS, 1734-TOP, and 1734-TOPS wiring base assemblies
• Supports field power bus voltages from 10...28.8 VDC and 120/240 VAC
• Delivers up to 2 A per point and 4 A per module field power output
• Ideal for industrial automation, machine control, OEM equipment, process control, and PLC systems
• Active product in the Allen-Bradley Bulletin 1734 POINT I/O family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1734-CTM
• Product Series: Bulletin 1734 POINT I/O
• Product Type: Common Terminal Module
• Number of Common Terminals: 8
• Module Width: 12 mm
• Mounting Type: 35 mm DIN Rail
• Compatible Wiring Bases:
  • 1734-TB
  • 1734-TBS
  • 1734-TOP
  • 1734-TOPS
• Field Power Supply Voltage:
  • 10...28.8 VDC
  • 120/240 VAC
• Field Power Output:
  • 2 A per point
  • 4 A per module
• Isolation Voltage:
  • 250V Continuous
  • Tested at 1600 VDC for 60 seconds
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Country of Origin: Singapore
• Certifications:
  • CE
  • Registro Italiano Navale (RINA)
• Lifecycle Status: Active

Dimensions:

• Height: 77.5 mm (3.05 in)
• Width: 12.1 mm (0.48 in)
• Depth: 56.6 mm (2.23 in)

Weight:

• Approximate Weight: 0.03 kg (0.07 lb).
