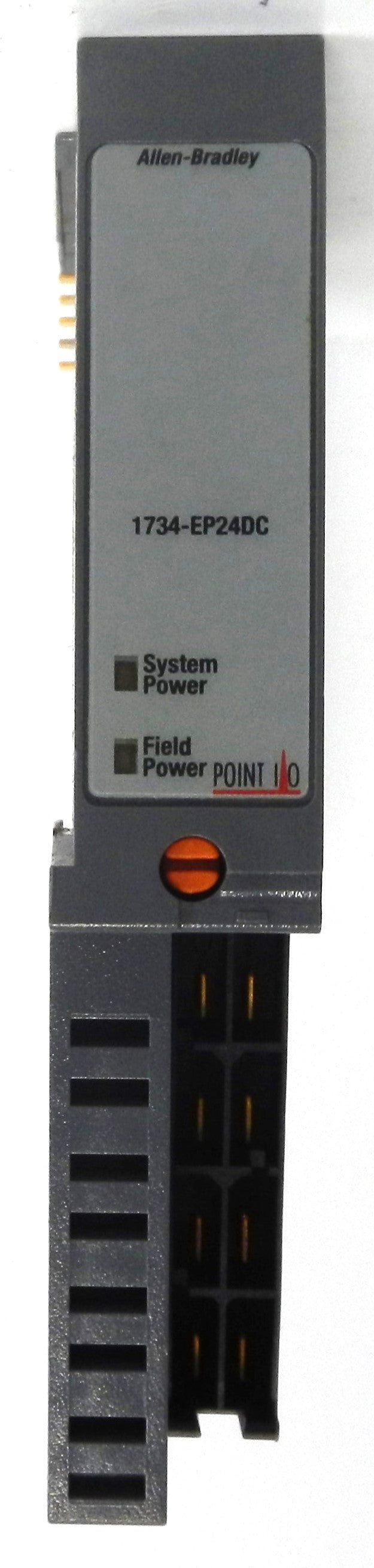

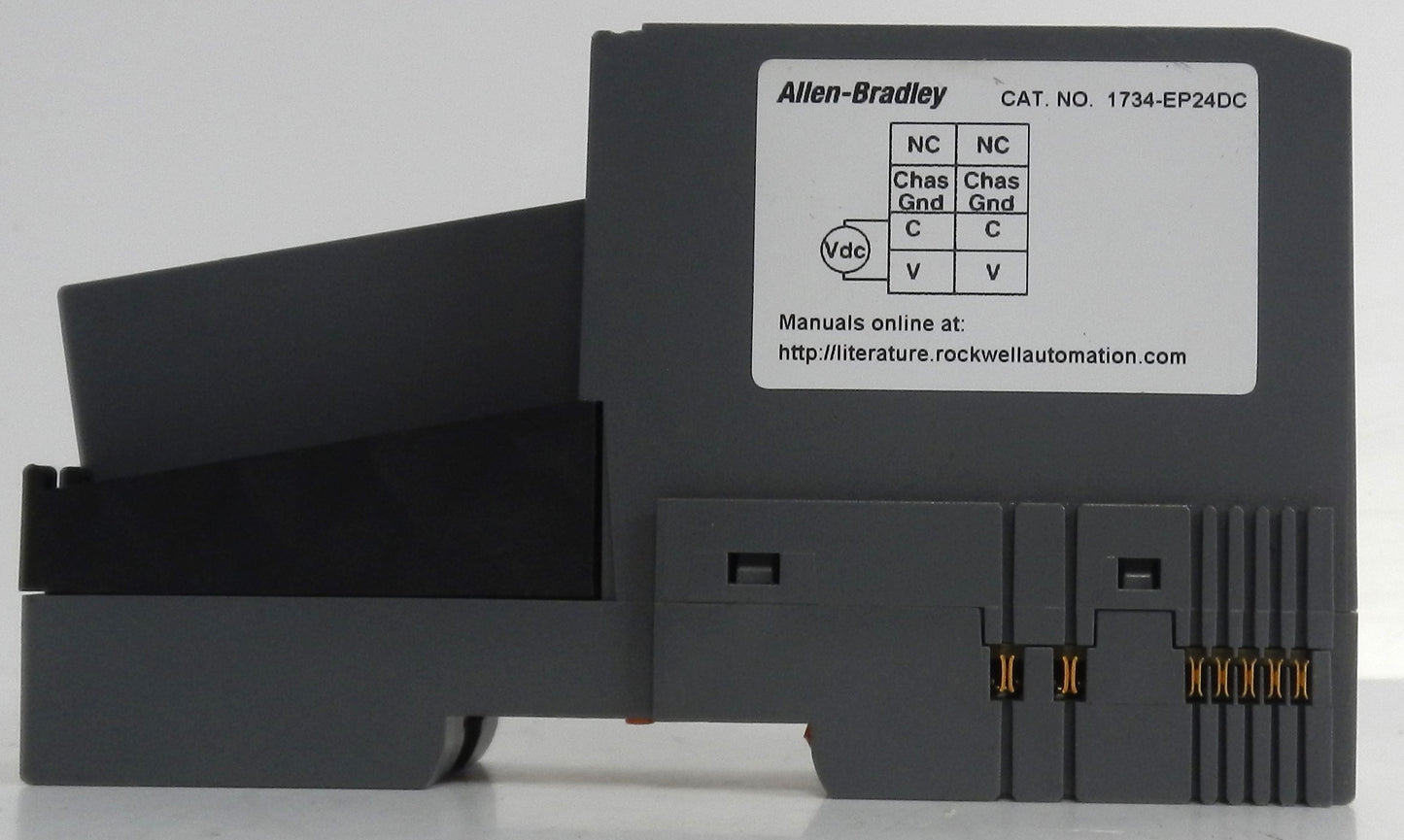

1734-EP24DC Allen-Bradley POINT I/O 24V DC Expansion Power Unit POINTBus Extension Module

Description:

• Genuine Allen-Bradley POINT I/O expansion power module for extending field power and POINTBus power in distributed I/O systems
• Supplies 24V DC field power while regenerating POINTBus power for additional POINT I/O modules
• Designed to increase the number of POINT I/O modules supported on a single network adapter
• Separates field power between I/O groups for improved power management and system flexibility
• Provides up to 1.3 A POINTBus output current (horizontal mounting) for downstream modules
• Features dual LED status indicators for Field Power and System Power diagnostics
• Compact DIN rail mount design for fast installation in industrial control panels
• Compatible with Allen-Bradley POINT I/O adapters including EtherNet/IP, DeviceNet, ControlNet, and PROFIBUS interface modules
• Ideal for industrial automation, machine control, process control, OEM equipment, material handling, and distributed I/O applications
• Active product in the Rockwell Automation POINT I/O product family.

Specifications:

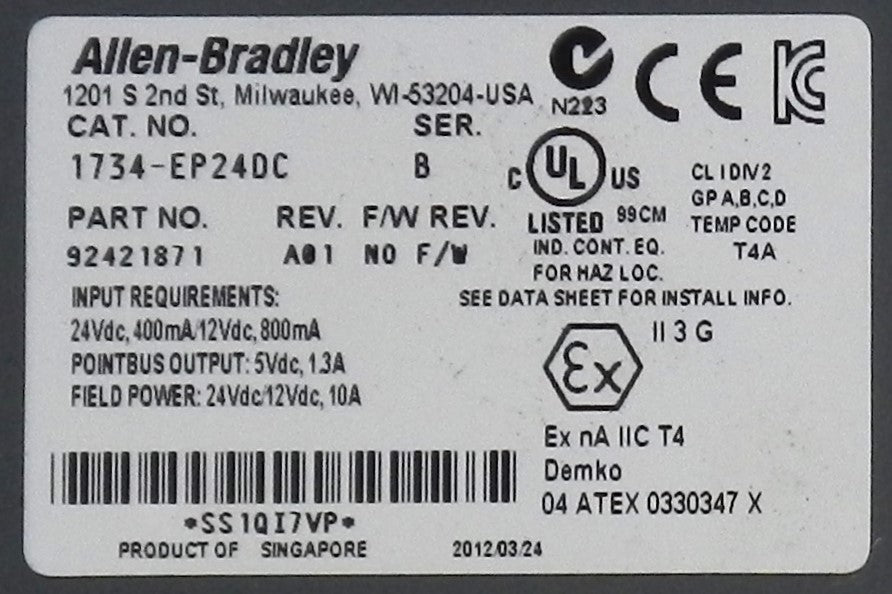

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1734-EP24DC
• Product Series: POINT I/O
• Product Type: Expansion Power Unit
• Input Voltage:
  • 24 VDC Nominal
  • 10…28.8 VDC Operating Range
• Field Side Power Requirement:
  • 24 VDC
  • 400 mA Maximum
• POINTBus Output Current:
  • 1.3 A @ 19.2–28.8 VDC (Horizontal Mounting)
  • 1.0 A @ 10–19.2 VDC (Horizontal Mounting)
  • 1.0 A @ 10–28.8 VDC (Vertical Mounting)
• Inrush Current: 6 A Maximum for 10 ms
• Reverse Polarity Protection: Yes
• Status Indicators:
  • Green Field Power LED
  • Green System Power LED
• Mounting Type: 35 mm DIN Rail
• Module Capacity: Supports approximately 4–17 POINT I/O modules (depending on module power consumption)
• Compatible Product Family: Allen-Bradley POINT I/O
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Country of Origin: Singapore
• Certifications:
  • UL Listed
  • CE
  • IECEx
  • UKEX
  • CCC
• Applications:
  • Distributed I/O Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • OEM Equipment
  • Material Handling
  • Manufacturing Systems

Dimensions:

• Height: 76.2 mm (3.00 in)
• Width: 25.4 mm (1.00 in)
• Depth: 133.4 mm (5.25 in)

Weight:

• Approximate Weight: 0.12 kg (0.27 lb).
