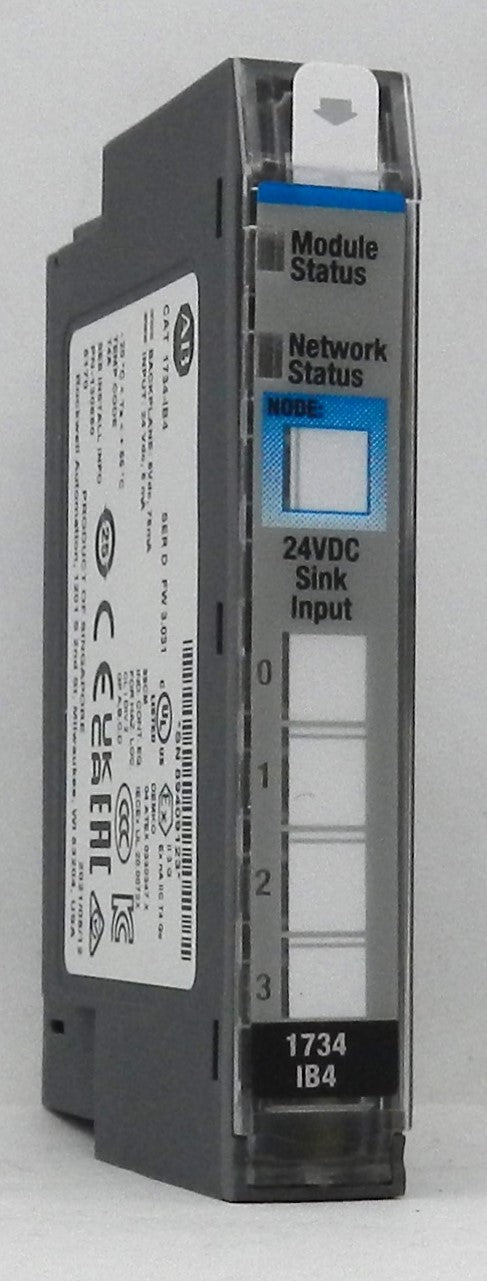

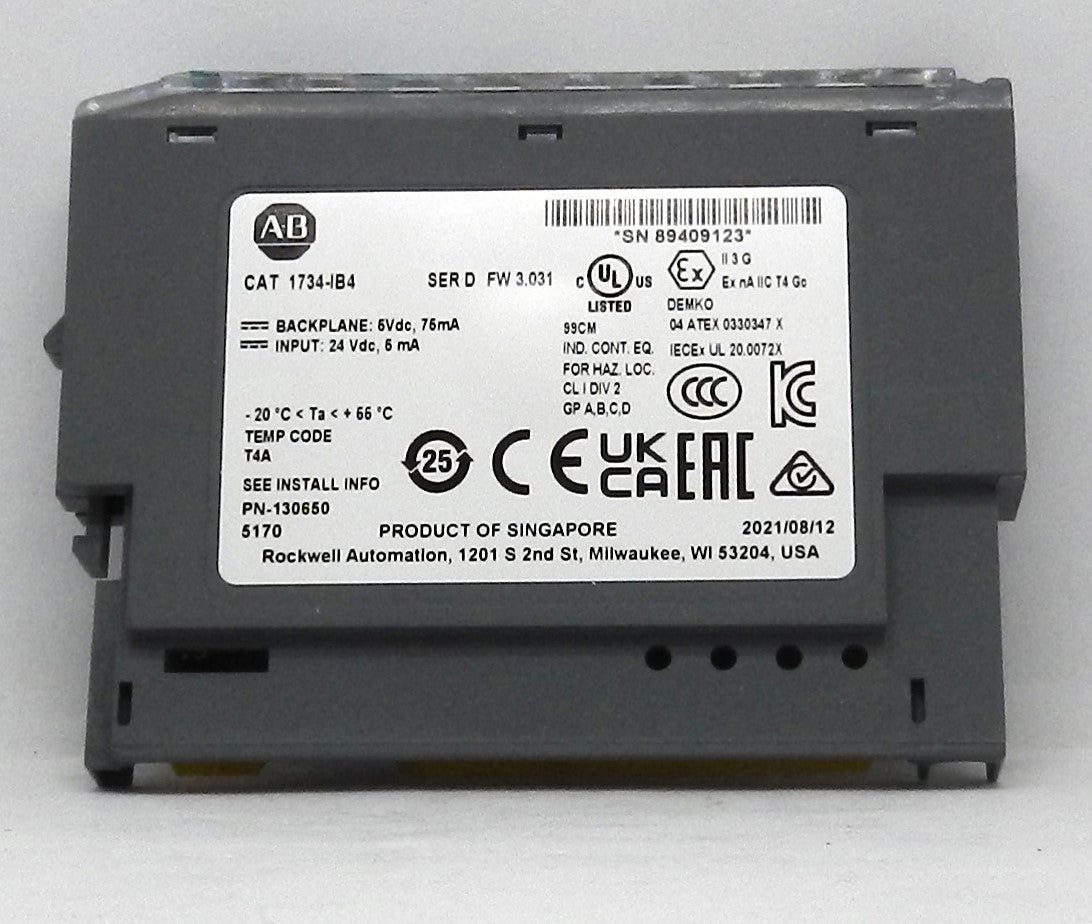

1734-IB4 Allen-Bradley POINT I/O 4-Point 24VDC Digital Sink Input Module DIN Rail

Description:

• Genuine Allen-Bradley POINT I/O digital input module for distributed industrial automation systems
• Provides 4 sinking digital input channels for 24 VDC field devices
• Compact modular design for use with POINT I/O communication adapters and terminal bases
• Supports 24 VDC nominal input voltage with selectable input filter times for improved noise immunity
• Features individual LED status indicators for each input channel to simplify troubleshooting and diagnostics
• Compatible with EtherNet/IP, DeviceNet, ControlNet, and other POINT I/O network adapters
• Mounts on a compatible 1734-TB or 1734-TBS terminal base (sold separately)
• DIN rail installation for quick integration into industrial control panels
• Ideal for machine automation, packaging equipment, material handling, process control, OEM machinery, and PLC systems
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1734-IB4
• Product Series: POINT I/O
• Product Type: Digital Input Module
• Number of Inputs: 4
• Input Type: 24 VDC Sinking
• Nominal Input Voltage: 24 VDC
• Input Voltage Range: 10…28.8 VDC
• Maximum Input Current: 5 mA
• POINTBus Current: 75 mA @ 5 VDC
• Power Dissipation: 1 W
• Input Filter Time: 0–65 ms Selectable
• Mounting Type: DIN Rail (requires 1734-TB or 1734-TBS terminal base)
• Status Indicators: Individual Input LEDs
• Operating Temperature: 0°C to +55°C
• Protection Rating: IP20
• Country of Origin: Singapore
• Certifications: UL Listed, CSA Certified, CE
• Applications:
  • Distributed I/O Systems
  • PLC Automation
  • Machine Control
  • Material Handling
  • Packaging Equipment
  • Industrial Control Panels

Dimensions:

• Height: 56 mm (2.21 in)
• Width: 12 mm (0.47 in)
• Depth: 75.5 mm (2.97 in)

Weight:

• Approximate Weight: 0.02 kg (0.04 lb).
