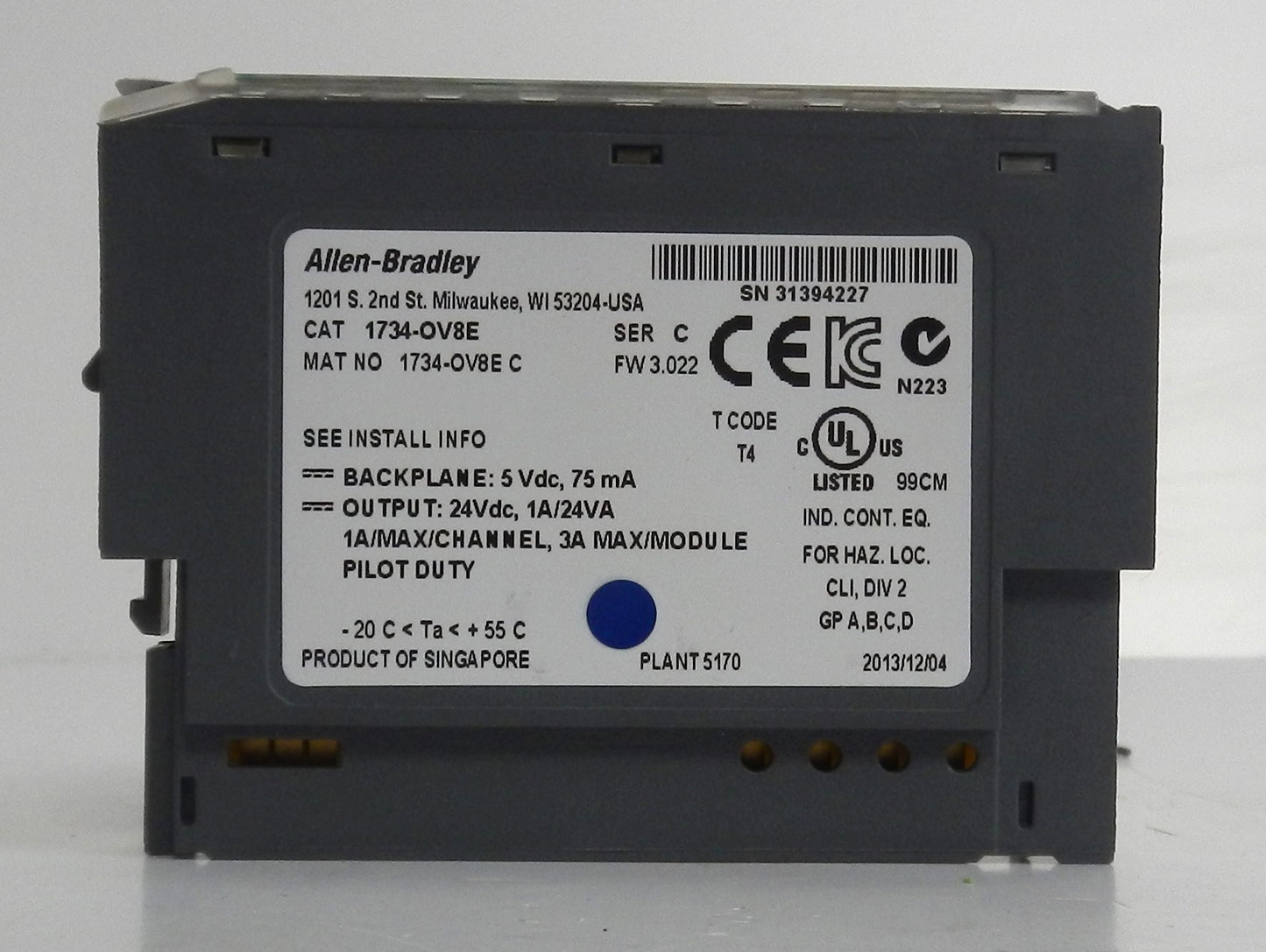

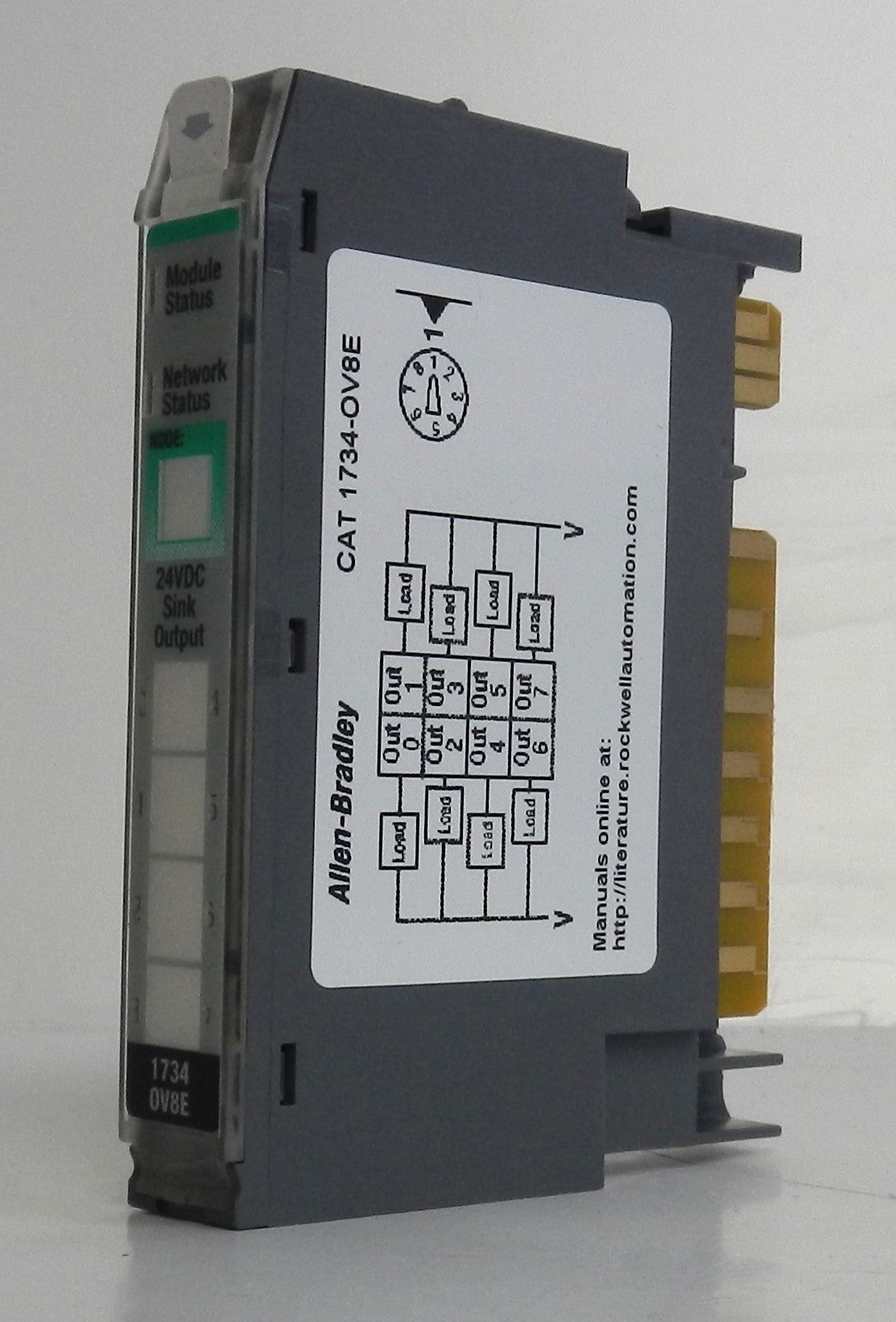

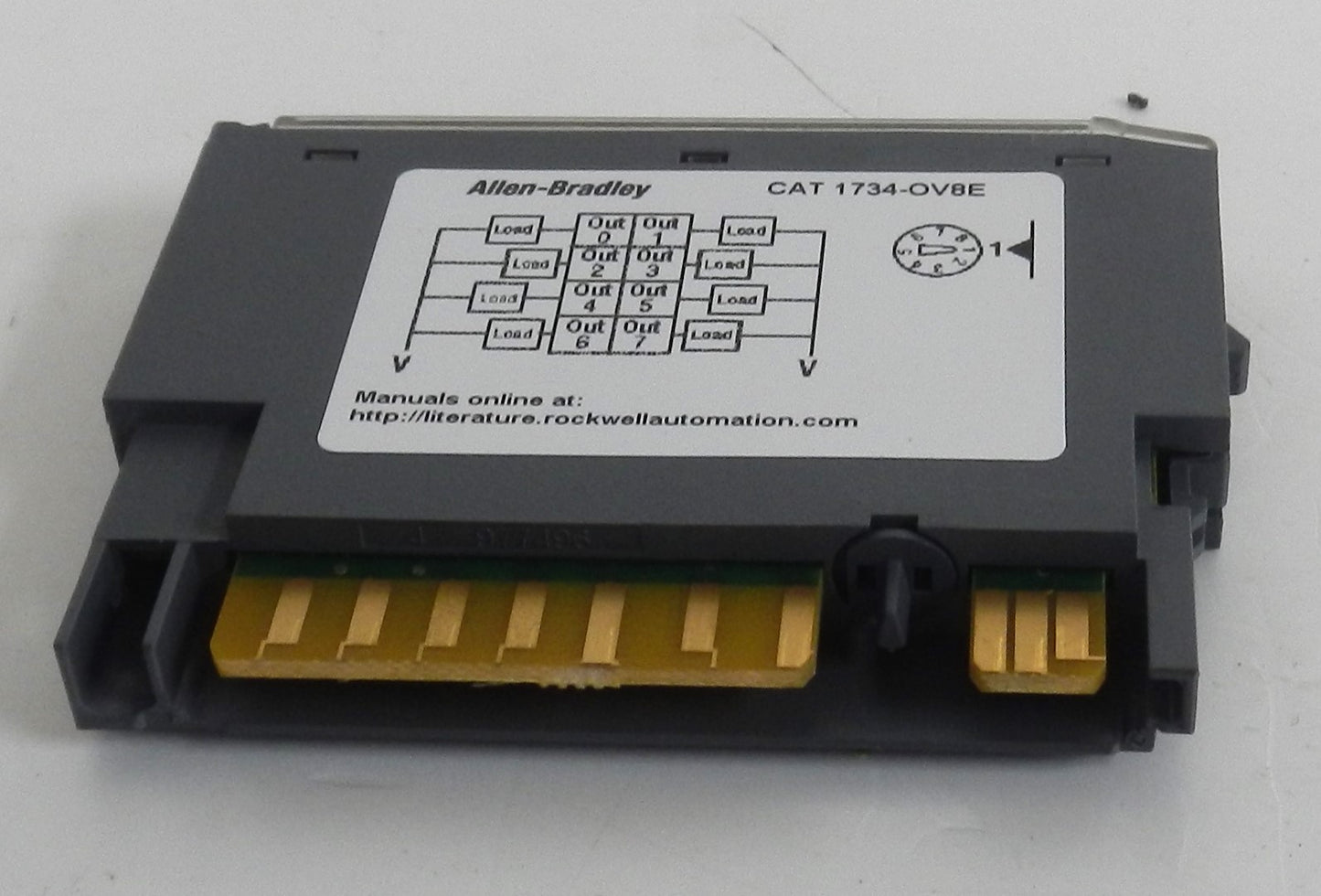

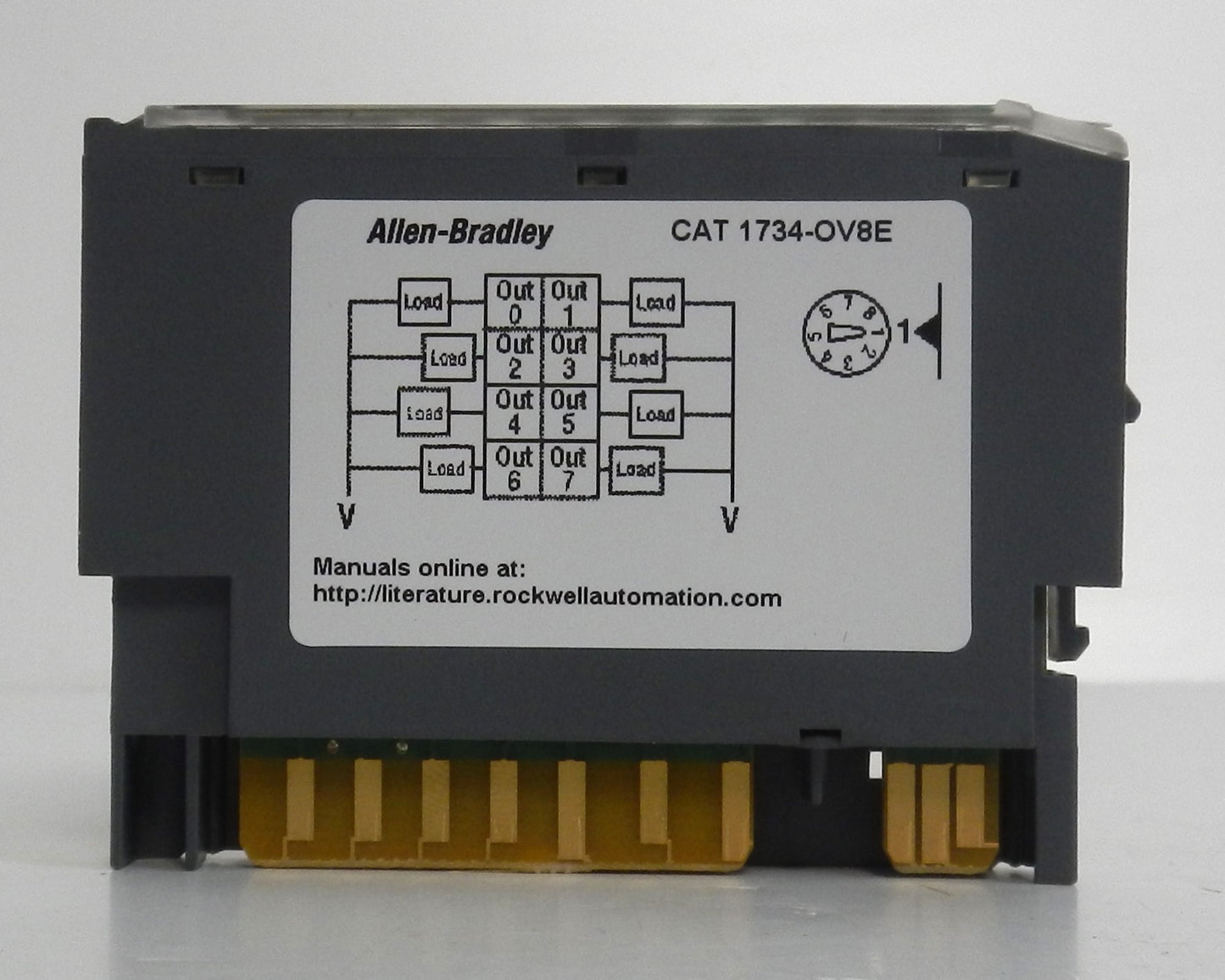

1734-OV8E Allen-Bradley POINT I/O 8-Point 24VDC Sinking Digital Output Module Electronically Protected

Description:

• Genuine Allen-Bradley POINT I/O digital output module for distributed industrial automation systems
• Provides 8 electronically protected sinking digital output channels
• Designed for 24 VDC output applications with an operating voltage range of 10...28.8 VDC
• Supports up to 1 A per output and 3 A total per module
• Features electronic short-circuit and overload protection for improved system reliability

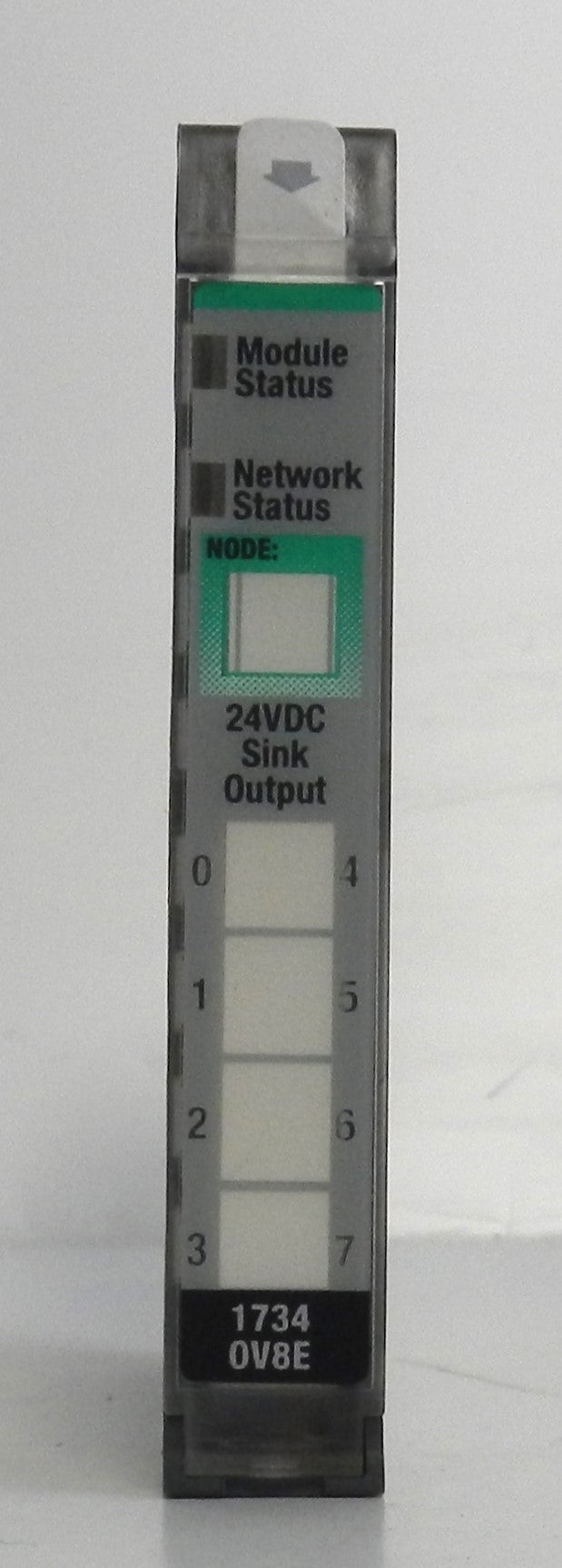

• Individual channel status indicators provide fast diagnostics and troubleshooting
• Compatible with 1734-TB and 1734-TBS terminal bases (sold separately)
• Hot-swap (RIUP – Removal and Insertion Under Power) capable for simplified maintenance
• Installs on standard 35 mm DIN rail as part of the Allen-Bradley POINT I/O distributed I/O platform
• Ideal for machine automation, OEM equipment, packaging systems, process control, material handling, and industrial automation applications.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1734-OV8E
• Product Series: POINT I/O (Bulletin 1734)
• Product Type: Digital DC Output Module
• Number of Outputs: 8
• Output Type: Sinking, Electronically Protected
• Nominal Output Voltage: 24 VDC
• Operating Voltage Range: 10...28.8 VDC
• Maximum Output Current:
  • 1 A per output
  • 3 A per module
• POINTBus Current: 75 mA @ 5 VDC
• Power Dissipation: 2 W
• Output Groups: 1 Group of 8
• Mounting Type: 35 mm DIN Rail
• Compatible Terminal Bases:
  • 1734-TB
  • 1734-TBS
• Protection:
  • Electronic Short-Circuit Protection
  • Electronic Overload Protection
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% Non-Condensing
• Certifications:
  • UL Listed
  • CE
  • CSA
  • IEC
• Applications:
  • Distributed I/O Systems
  • PLC Automation
  • Machine Control
  • Material Handling
  • Packaging Equipment
  • OEM Machinery
  • Industrial Control Panels

Dimensions:

• Height: 56 mm (2.20 in)
• Width: 12 mm (0.47 in)
• Depth: 75.5 mm (2.97 in).

Weight:

• Approximate Weight: 0.06 kg (0.13 lb).
