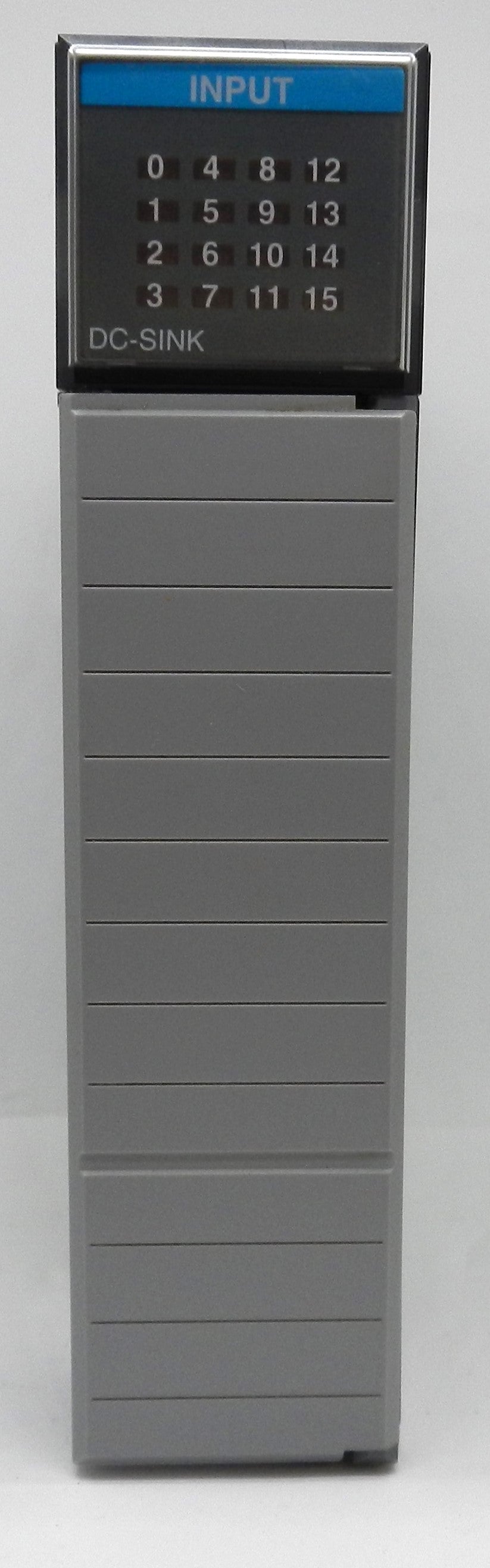

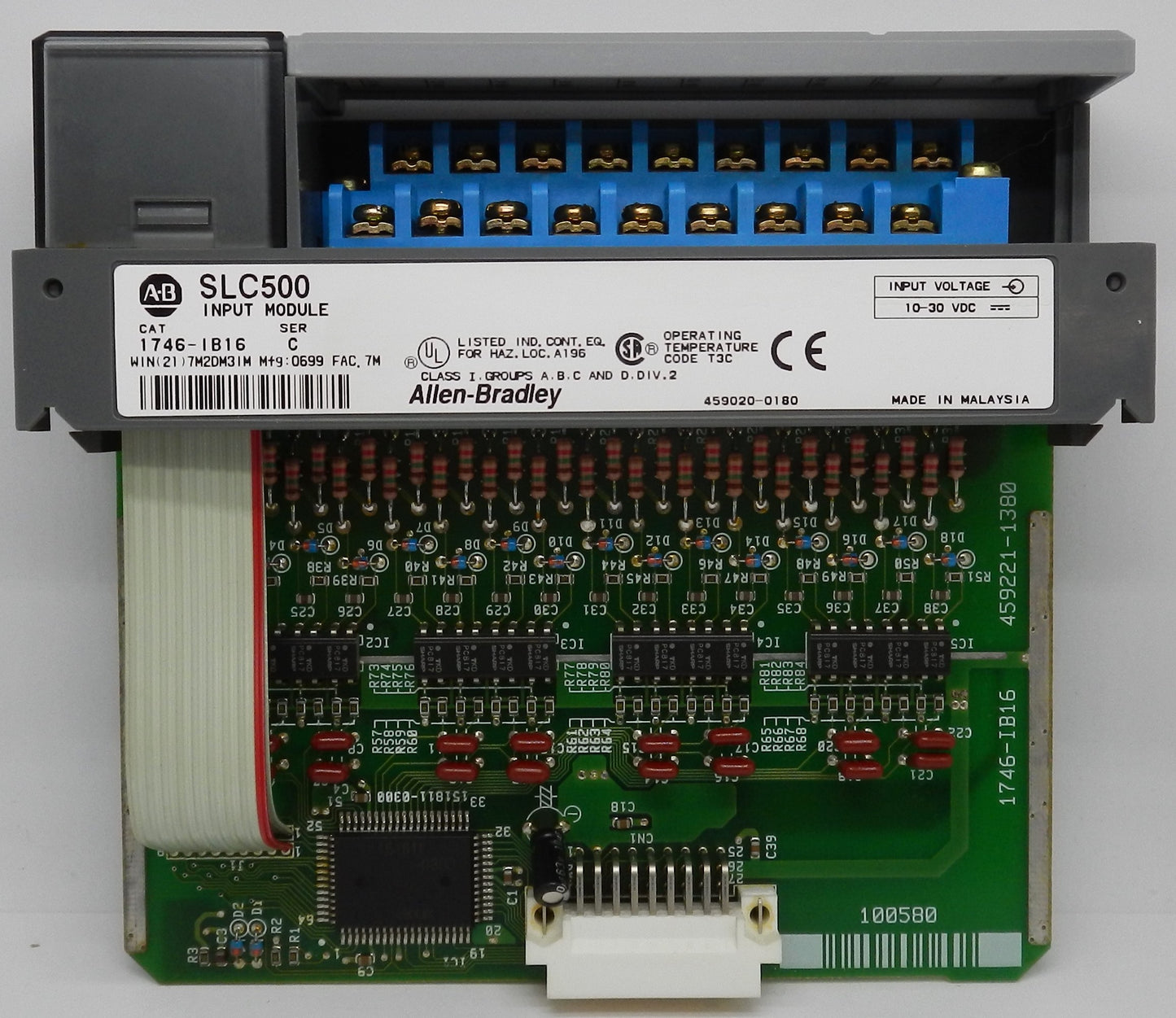

1746-IB16 Allen-Bradley SLC 500 16-Point 24VDC Digital Input Module Sinking PLC I/O

Description:

• Genuine Allen-Bradley SLC 500 digital DC input module for industrial PLC and automation applications
• Provides 16 sinking digital input channels for monitoring 24 VDC field devices
• Accepts 10–30 VDC input signals with a nominal operating voltage of 24 VDC
• Designed for use with sourcing sensors and input devices such as proximity sensors, photoelectric sensors, push buttons, and limit switches
• Features 16 input points in a single group with common return wiring
• Front-panel LED status indicators provide individual channel diagnostics for quick troubleshooting
• Installs in any SLC 500 (1746) chassis slot except Slot 0
• Rugged industrial design for reliable performance in demanding manufacturing environments
• Ideal for machine automation, process control, material handling, packaging equipment, OEM machinery, and industrial control systems
• Discontinued by Rockwell Automation; commonly used for maintenance and replacement of legacy SLC 500 systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1746-IB16
• Product Series: SLC 500
• Product Type: Digital DC Input Module
• Number of Inputs: 16
• Input Type: Sinking
• Nominal Input Voltage: 24 VDC
• Input Voltage Range: 10–30 VDC
• Input Current: 8 mA @ 24 VDC
• Input Delay:
  • ON: 8 ms Maximum
  • OFF: 8 ms Maximum
• Backplane Current Draw: 85 mA @ 5 VDC
• Isolation: 500 VDC Communication Circuits
• Mounting Type: SLC 500 Chassis
• Compatible Chassis: Allen-Bradley 1746 SLC 500 Series
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 5–95% Non-Condensing
• Country of Origin: Malaysia
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
  • UKCA
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Packaging Equipment
  • Material Handling
  • OEM Machinery

Dimensions:

• Standard 1746 SLC 500 rack-mounted module form factor
• Fits any SLC 500 chassis slot except Slot 0.

Weight:

• Approximate Weight: 0.10 kg (0.22 lb).
