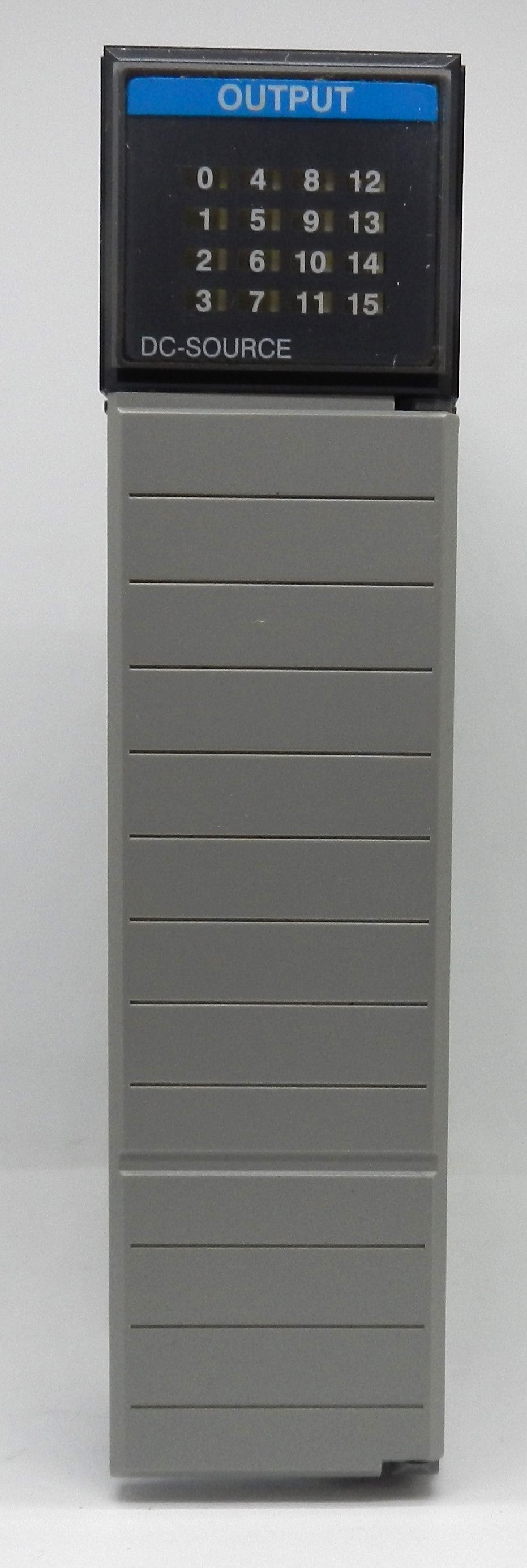

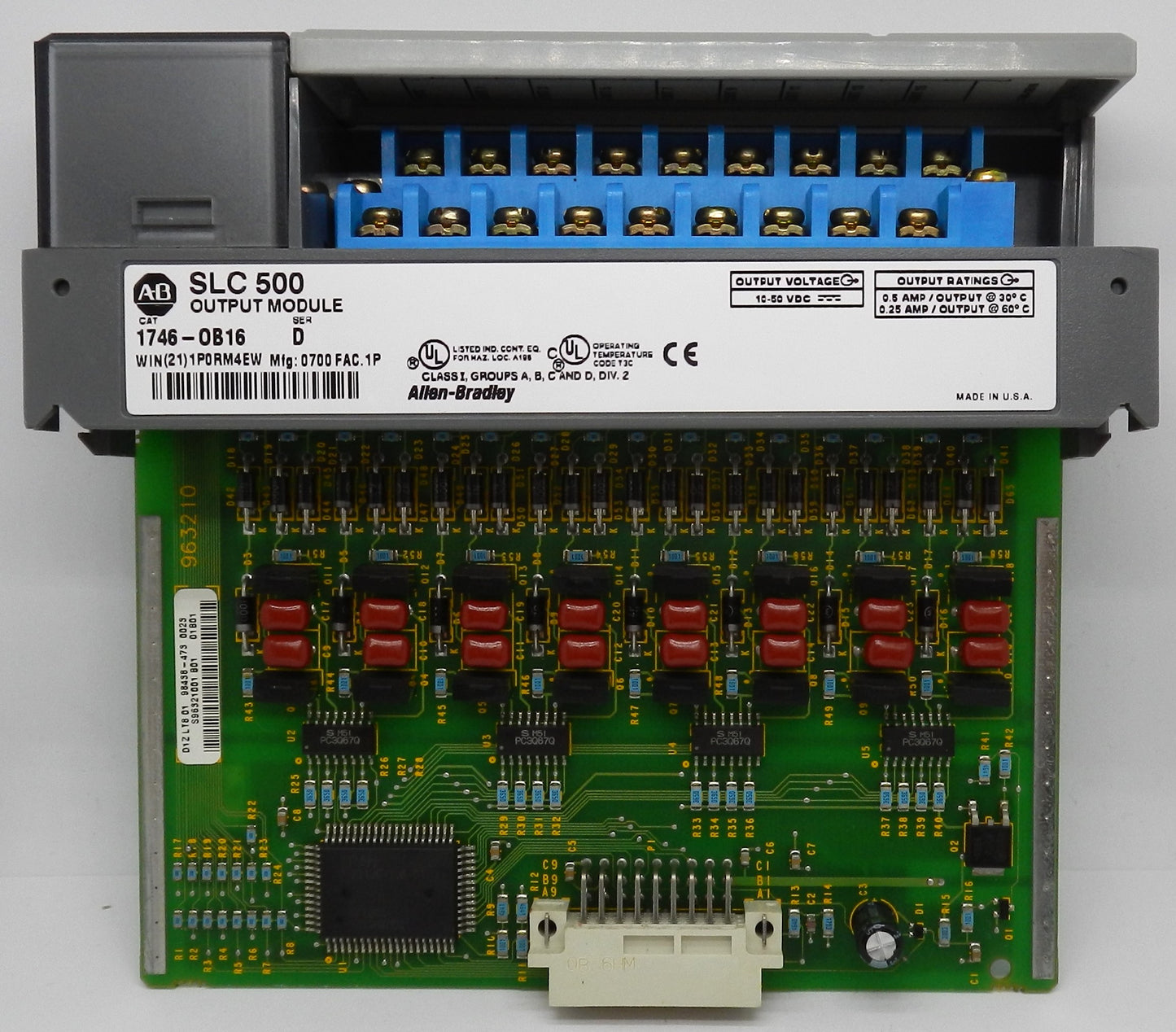

1746-OB16 Allen-Bradley SLC 500 16-Point 24VDC Digital Output Module Sourcing PLC I/O

Description:

• Genuine Allen-Bradley SLC 500 digital DC output module for industrial PLC and automation applications
• Provides 16 sourcing digital output channels for controlling 24 VDC field devices
• Operates with an output voltage range of 10–50 VDC, suitable for general-purpose DC load switching
• Supports continuous output currents of up to 0.5 A per point (30°C) and 8 A per module (30°C)
• Designed for controlling relays, solenoids, pilot lights, contactors, valves, and other DC output devices
• Front-panel LED status indicators provide clear output diagnostics and troubleshooting
• Installs in any SLC 500 (1746) chassis slot except Slot 0
• Screw-clamp removable terminal block simplifies installation and maintenance
• Ideal for machine automation, process control, packaging equipment, material handling, OEM machinery, and industrial control systems
• Discontinued by Rockwell Automation, making it ideal for replacement and maintenance of legacy SLC 500 installations.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1746-OB16
• Product Series: SLC 500
• Product Type: Digital DC Output Module
• Number of Outputs: 16
• Output Type: Sourcing (Transistor)
• Nominal Output Voltage: 24 VDC
• Operating Voltage Range: 10–50 VDC
• Continuous Current per Output:
  • 0.5 A @ 30°C (86°F)
  • 0.25 A @ 60°C (140°F)
• Continuous Current per Module:
  • 8 A @ 30°C (86°F)
  • 4 A @ 60°C (140°F)
• Surge Current per Output: 4 A for 10 ms
• OFF-State Leakage Current: 1 mA Max
• Output Delay:
  • ON: 1.0 ms Max
  • OFF: 0.1 ms Max
• Backplane Current Draw:
  • 280 mA @ 5 VDC
  • 0 mA @ 24 VDC
• Isolation: 500 VDC Communication Circuit
• Terminal Type: Screw Clamp (Removable Terminal Block)
• Mounting Type: SLC 500 Chassis
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Packaging Equipment
  • Material Handling
  • OEM Machinery

Dimensions:

• Standard 1746 SLC 500 rack-mounted module form factor
• Fits any SLC 500 chassis slot except Slot 0.

Weight:

• Approximate Weight: 0.27 kg (0.60 lb).
