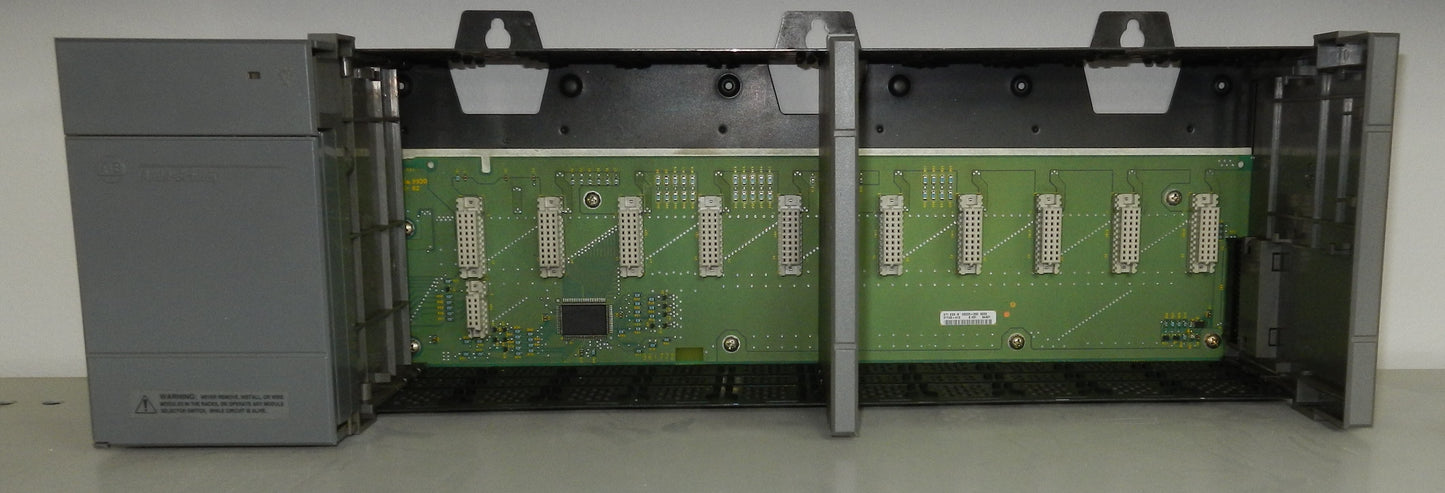

1746-P2 + 1746-A10 Allen-Bradley SLC 500 Power Supply & 10-Slot PLC Chassis Rack Assembly

Description:

• Genuine Allen-Bradley SLC 500 rack assembly including the 1746-P2 rack-mount power supply and 1746-A10 10-slot chassis
• Complete foundation for building or expanding SLC 500 PLC automation systems
• 1746-P2 power supply accepts 85–132 VAC or 170–265 VAC, 47–63 Hz input and provides 5V DC @ 5A plus 24V DC @ 0.96A for SLC 500 processors and I/O modules
• 1746-A10 modular chassis provides 10 slots for installing SLC 500 processors, communication modules, and I/O modules
• Rack-mounted design with convection cooling for reliable industrial operation
• Compatible with SLC 500 processors including SLC 5/01, 5/02, 5/03, 5/04, and 5/05
• Supports a wide range of Allen-Bradley 1746 Series digital, analog, and specialty I/O modules
• Ideal for machine automation, process control, manufacturing, OEM equipment, packaging machinery, and industrial control systems
• Discontinued by Rockwell Automation, making this assembly ideal for maintaining and expanding existing SLC 500 installations.

Specifications:

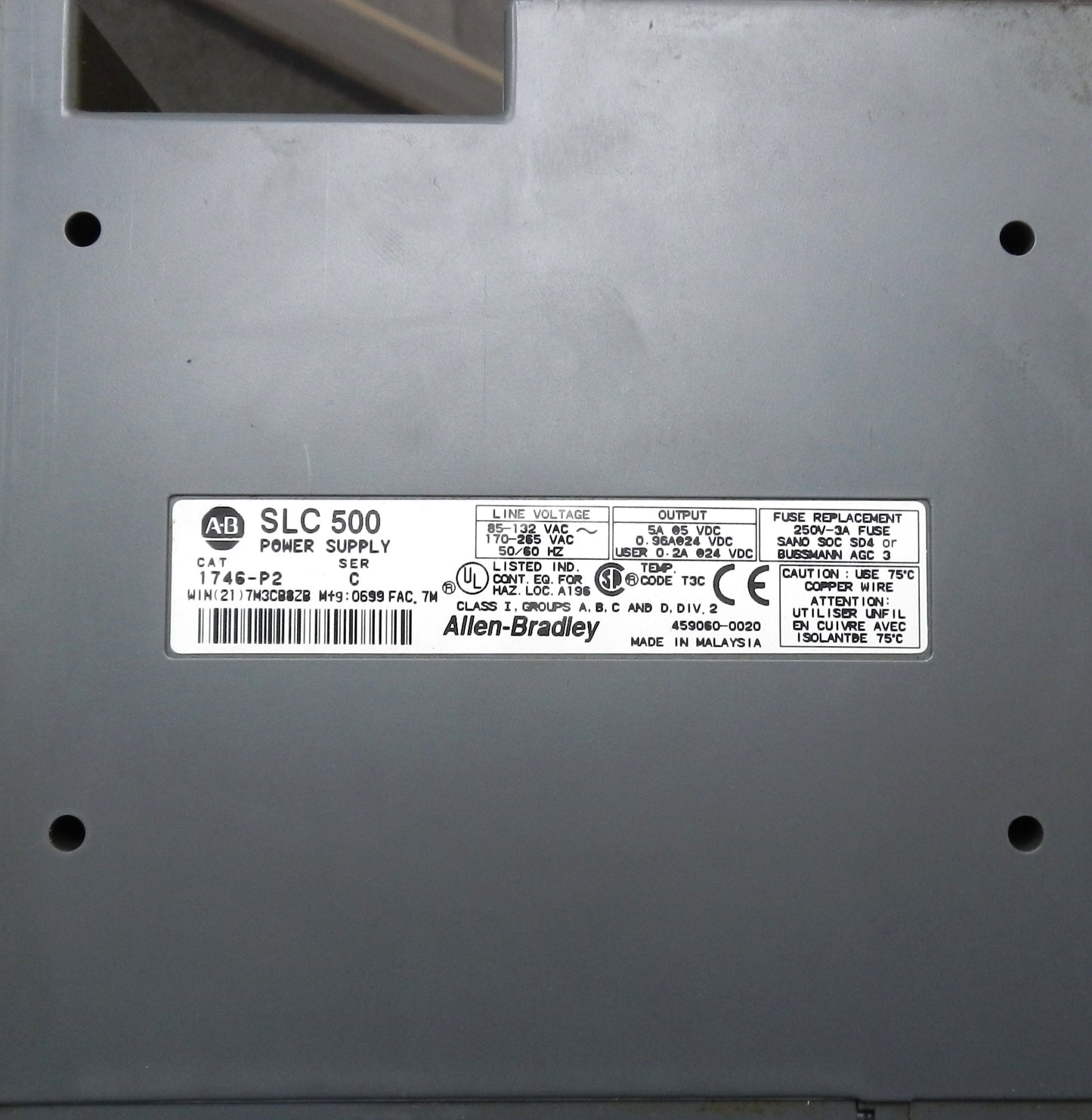

1746-P2 Power Supply

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number: 1746-P2
• Product Type: Rack-Mount Power Supply
• Input Voltage:
  • 85–132 VAC
  • 170–265 VAC
• Frequency: 47–63 Hz
• Line Power Requirement: 180 VA
• Output Capacity:
  • 5V DC @ 5A
  • 24V DC @ 0.96A
• Mounting Type: Rack Mount
• Country of Origin: Malaysia
• Lifecycle Status: Discontinued

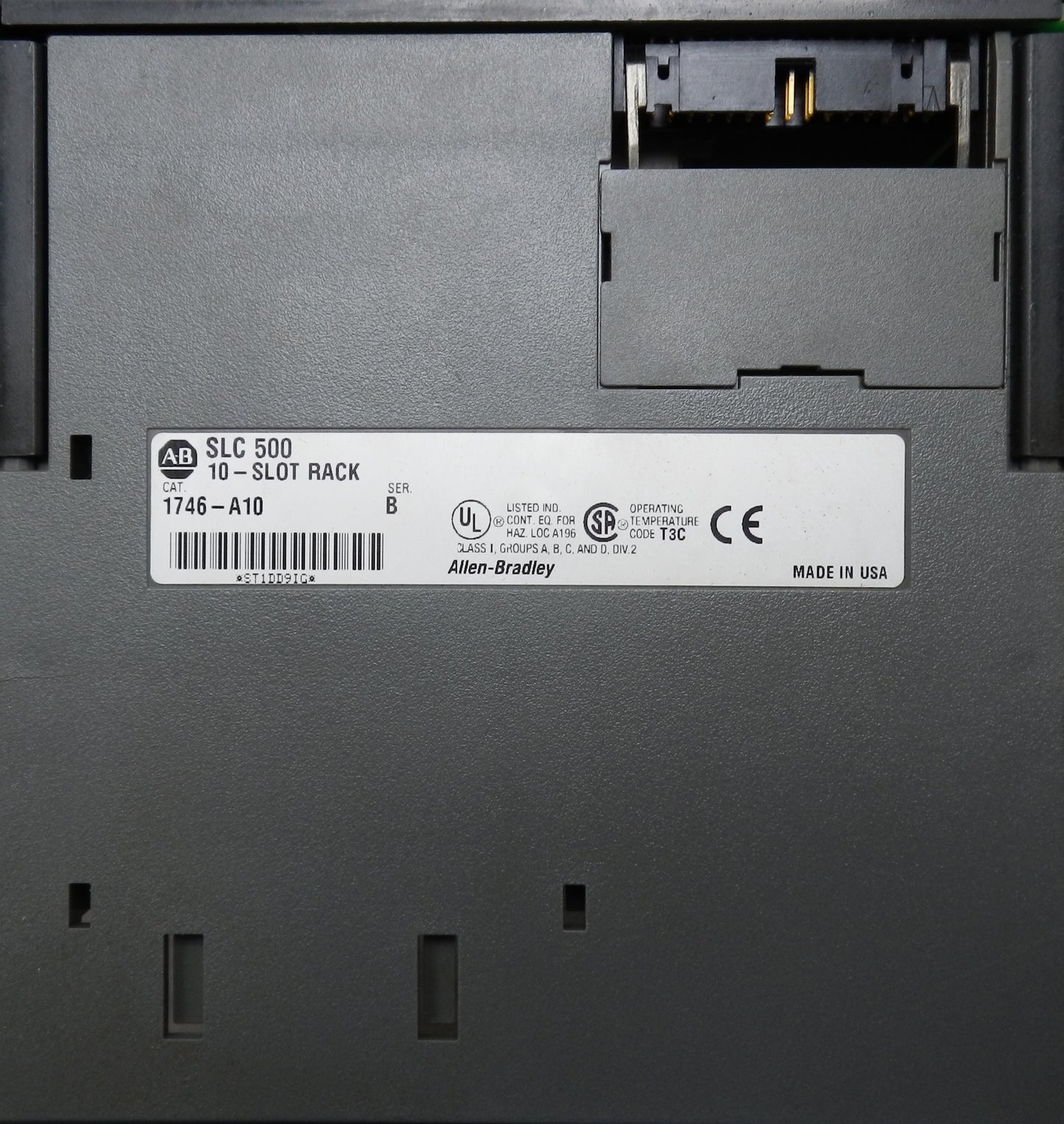

1746-A10 Chassis

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number: 1746-A10
• Product Type: PLC Chassis
• Number of Slots: 10
• Cooling: Convection
• Form Factor: Modular Slot Chassis
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Country of Origin: United States
• Compatible Product Family: SLC 500

Applications

• PLC Systems
• Industrial Automation
• Machine Control
• Process Control
• Manufacturing Equipment
• Material Handling
• Packaging Machinery
• OEM Control Panels

Dimensions:

• 1746-A10 Chassis
  • Height: 171 mm (6.73 in)
  • Width: 397 mm (15.63 in)
  • Depth: 145 mm (5.71 in)
• 1746-P2 Power Supply
  • Depth: 140 mm (5.70 in)

Weight:

• 1746-P2 Power Supply: Approx. 0.59 kg (1.30 lb)
• 1746-A10 Chassis: Approx. 1.8 kg (3.97 lb)
