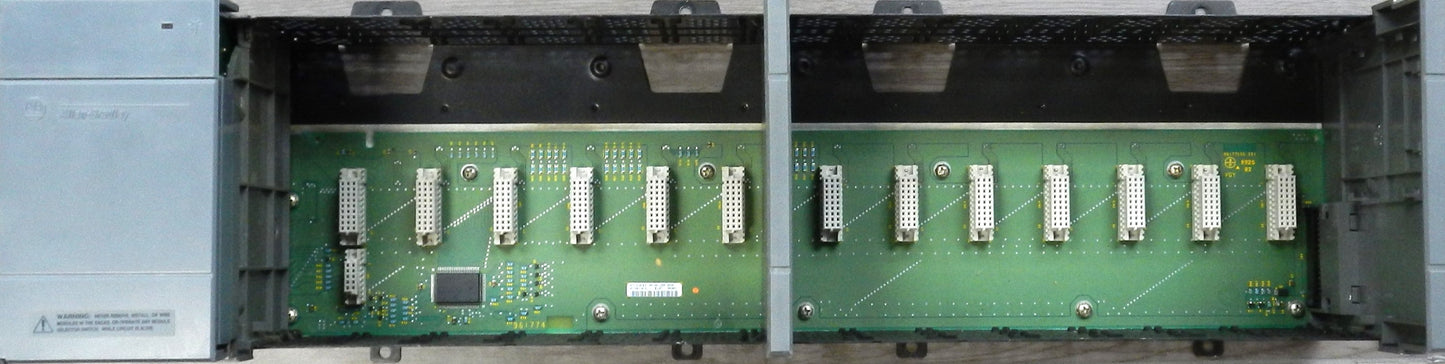

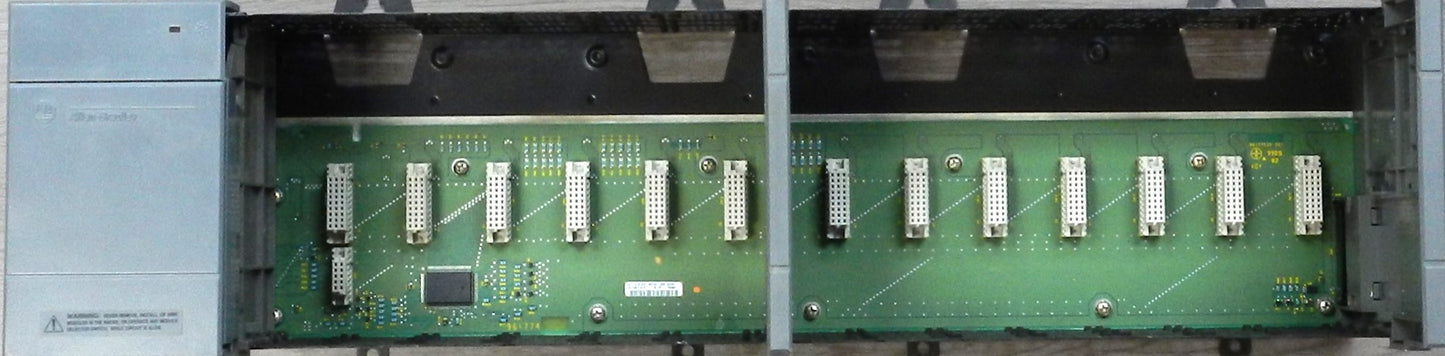

1746-P2 + 1746-A13 Allen-Bradley SLC 500 Power Supply & 13-Slot PLC Chassis Rack Assembly

Description:

• Genuine Allen-Bradley SLC 500 rack assembly including the 1746-P2 rack-mounted power supply and 1746-A13 13-slot modular chassis
• Complete PLC platform for building, expanding, or replacing SLC 500 automation systems
• 1746-P2 power supply accepts 85–132 VAC or 170–265 VAC (47–63 Hz) input and delivers 5 VDC @ 5A plus 24 VDC @ 0.96A to power SLC 500 processors and I/O modules.
• 1746-A13 chassis provides 13 module slots for SLC 500 processors, communication modules, digital I/O, analog I/O, and specialty modules.
• Passive convection cooling ensures reliable operation without fans
• Compatible with SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04, and SLC 5/05 processors
• Supports the complete family of Allen-Bradley 1746 Series I/O and communication modules
• Rugged industrial design for machine automation, manufacturing, material handling, packaging, water treatment, and process control applications
• Discontinued by Rockwell Automation, making this assembly an ideal replacement for maintaining existing SLC 500 installations.

Specifications:

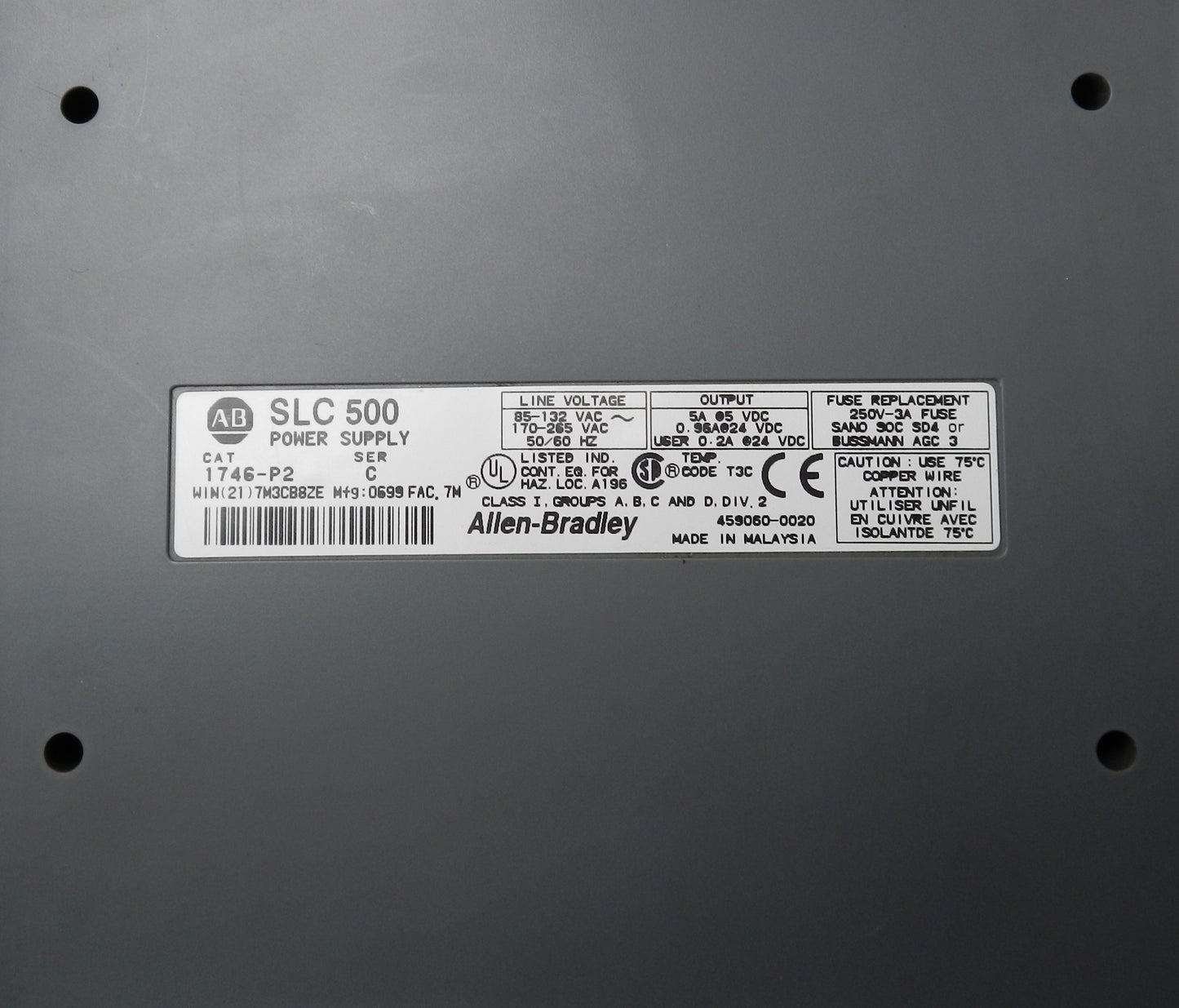

1746-P2 Power Supply

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number: 1746-P2
• Product Type: Rack-Mount Power Supply
• Input Voltage:
  • 85–132 VAC
  • 170–265 VAC
• Frequency: 47–63 Hz
• Line Power Requirement: 180 VA
• Output Capacity:
  • 5 VDC @ 5A
  • 24 VDC @ 0.96A
• Mounting Type: Rack Mount
• Country of Origin: Malaysia
• Lifecycle Status: Discontinued

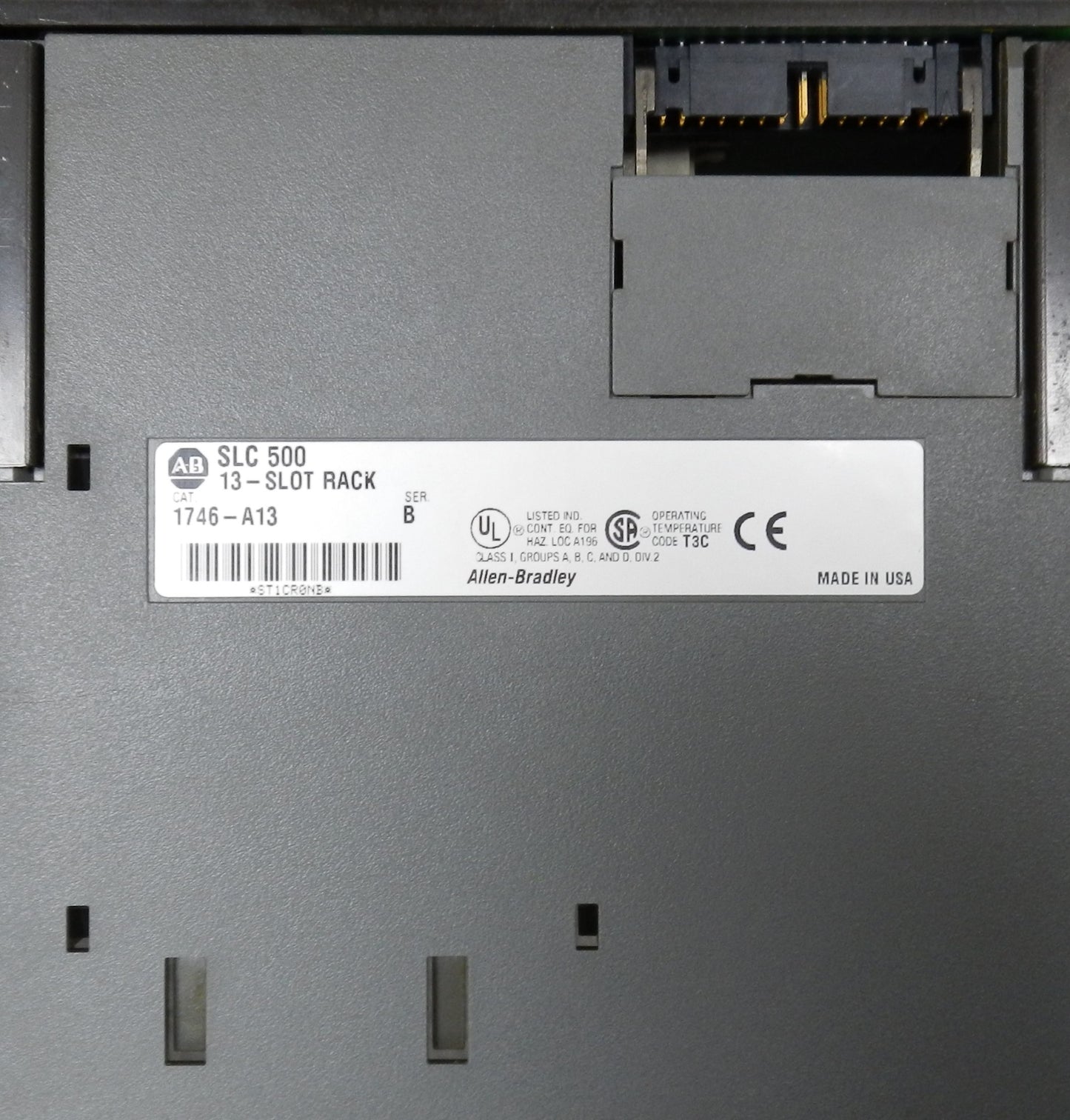

1746-A13 Chassis

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number: 1746-A13
• Product Type: PLC Chassis
• Number of Slots: 13
• Cooling: Convection
• Form Factor: Modular Slot Chassis
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Minimum Enclosure Size: 17.1 × 50.2 × 14.5 cm
• Country of Origin: United States

Applications

• PLC Systems
• Industrial Automation
• Machine Control
• Process Control
• Manufacturing Equipment
• Material Handling
• Packaging Machinery
• OEM Control Panels

Dimensions:

1746-A13 Chassis

• Height: 171 mm (6.73 in)
• Width: 502 mm (19.76 in)
• Depth: 145 mm (5.71 in)

1746-P2 Power Supply

• Depth: 140 mm (5.70 in)

Weight:

• 1746-P2 Power Supply: Approx. 0.59 kg (1.30 lb)
• 1746-A13 Chassis: Approx. 2.2 kg (4.85 lb)
