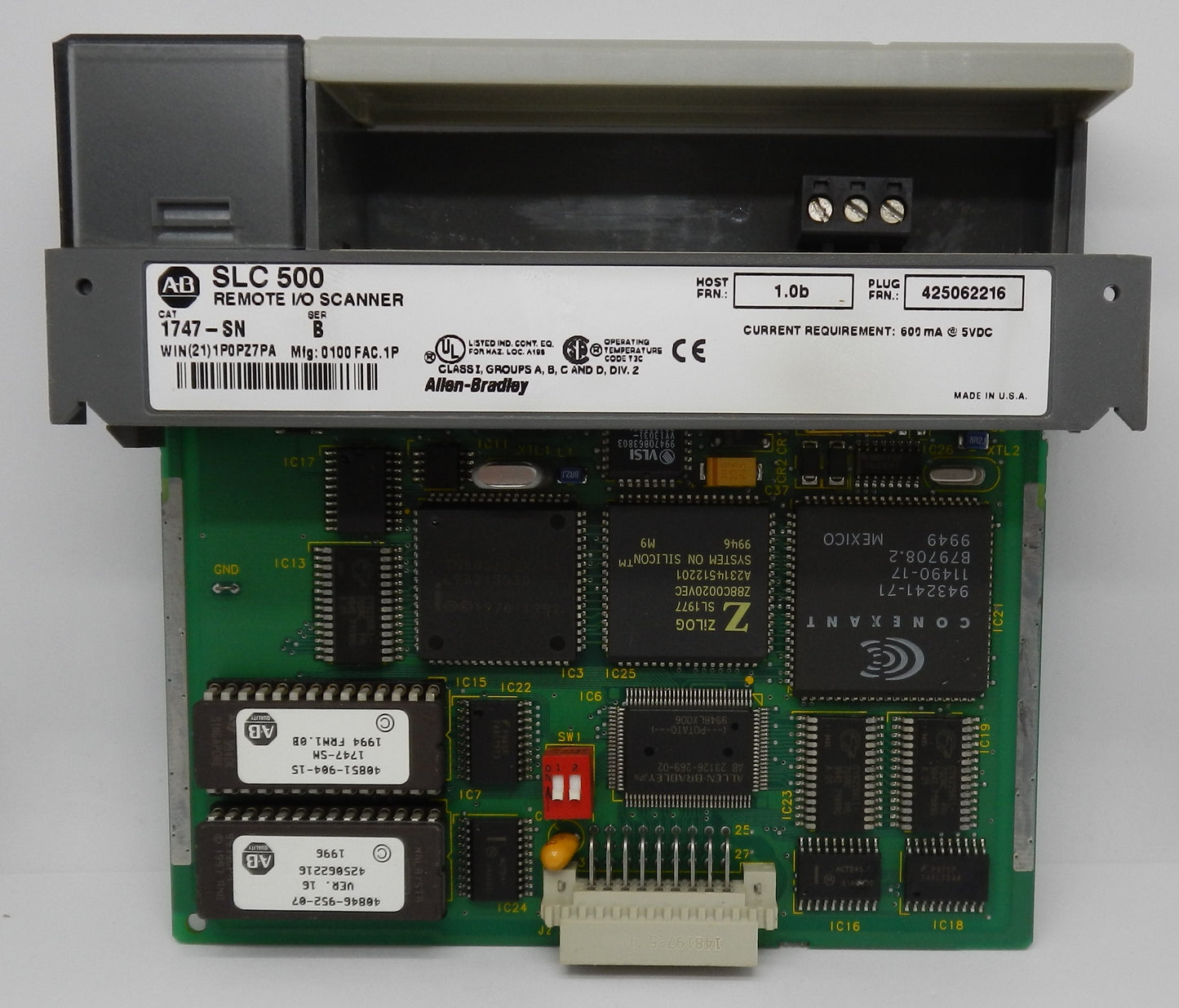

1747-SN Allen-Bradley SLC 500 Remote I/O Scanner Module RIO Communication Interface

Description:

• Genuine Allen-Bradley SLC 500 Remote I/O (RIO) Scanner Module for distributed industrial automation systems
• Enables communication between SLC 5/02, SLC 5/03, SLC 5/04, and SLC 5/05 processors and Remote I/O devices over the Allen-Bradley RIO network
• Functions as the master scanner on a Remote I/O (RIO) network
• Supports communication with 1746 Remote I/O chassis, operator interfaces, and other compatible RIO adapter devices
• Operates at selectable communication rates of 57.6 kbps, 115.2 kbps, or 230.4 kbps
• Supports remote communication distances up to 3,048 m (10,000 ft) using Belden 9463 twisted-pair cable
• Installs in any slot of an SLC 500 chassis except Slot 0
• Front-panel LED indicators provide clear network and module diagnostics
• Ideal for distributed I/O, PLC communication, process automation, manufacturing, and legacy industrial control systems
• Discontinued by Rockwell Automation. Engineering replacement: 5069-AENTR.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1747-SN
• Product Series: SLC 500
• Product Type: Remote I/O Scanner Module
• Communication Protocol: Allen-Bradley Remote I/O (RIO)
• Module Interface: Remote I/O Scanner
• Number of Channels: 4
• Communication Speeds:
  • 57.6 kbps
  • 115.2 kbps
  • 230.4 kbps
• Maximum Remote Distance: 3,048 m (10,000 ft)
• Communication Cable: Belden 9463 Twisted Pair
• Scanner Configuration:
  • Single Master
  • Multiple Slave Devices
• Maximum Logical Racks Supported: 4
• Backplane Current Draw: 600 mA @ 5V DC
• Isolation: 500V DC Communication Circuit Isolation
• Mounting Type: SLC 500 Rack Mount
• Compatible Controllers:
  • SLC 5/02
  • SLC 5/03
  • SLC 5/04
  • SLC 5/05
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5–95% Non-Condensing
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
• Country of Origin: Singapore
• Applications:
  • Distributed I/O
  • PLC Communication
  • Machine Automation
  • Process Control
  • Manufacturing Systems
  • Legacy SLC 500 Installations

Dimensions:

• Standard SLC 500 rack-mounted communication module
• Fits any SLC chassis slot except Slot 0.

Weight:

• Approximate Weight: 0.20 kg (0.44 lb).
