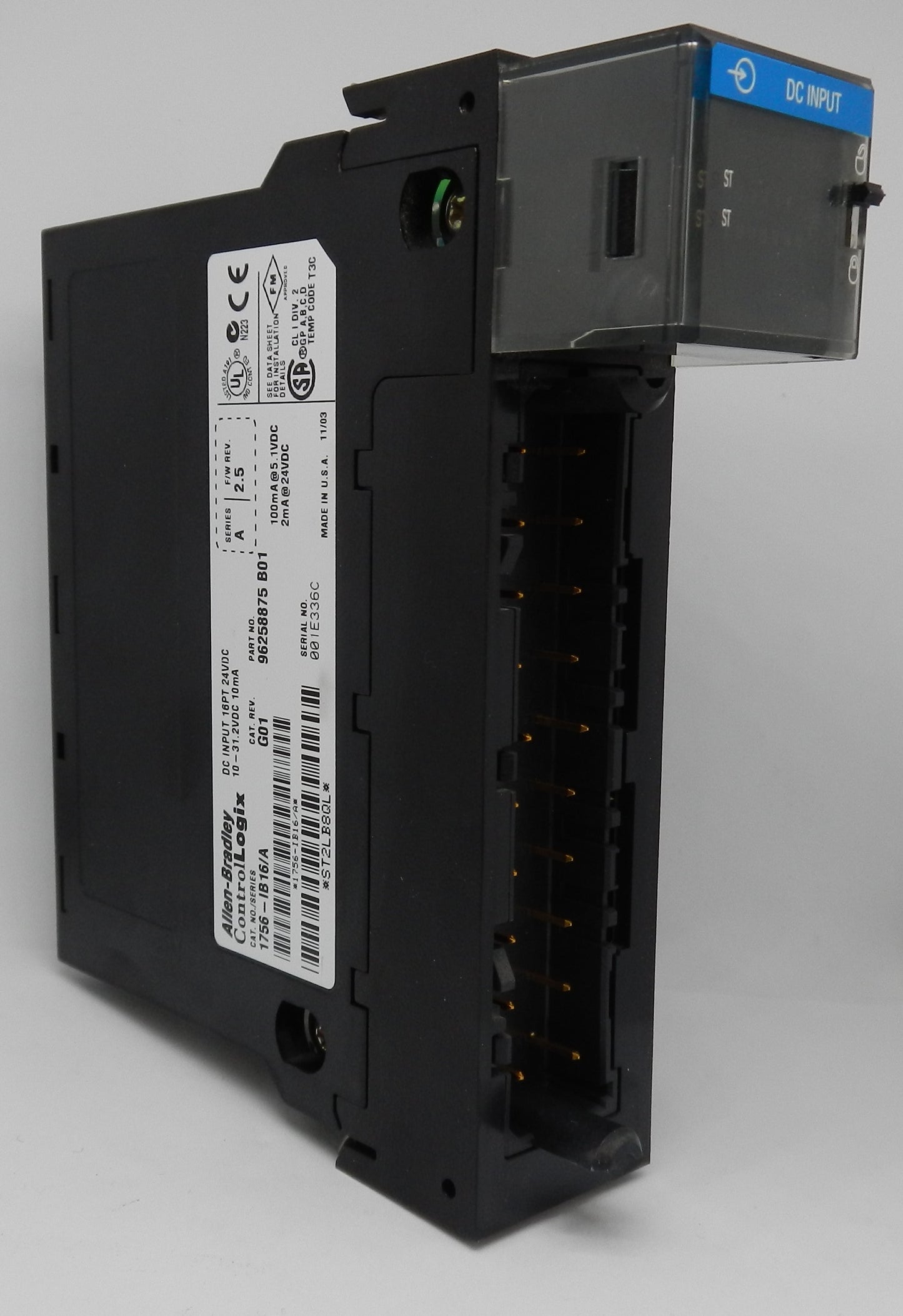

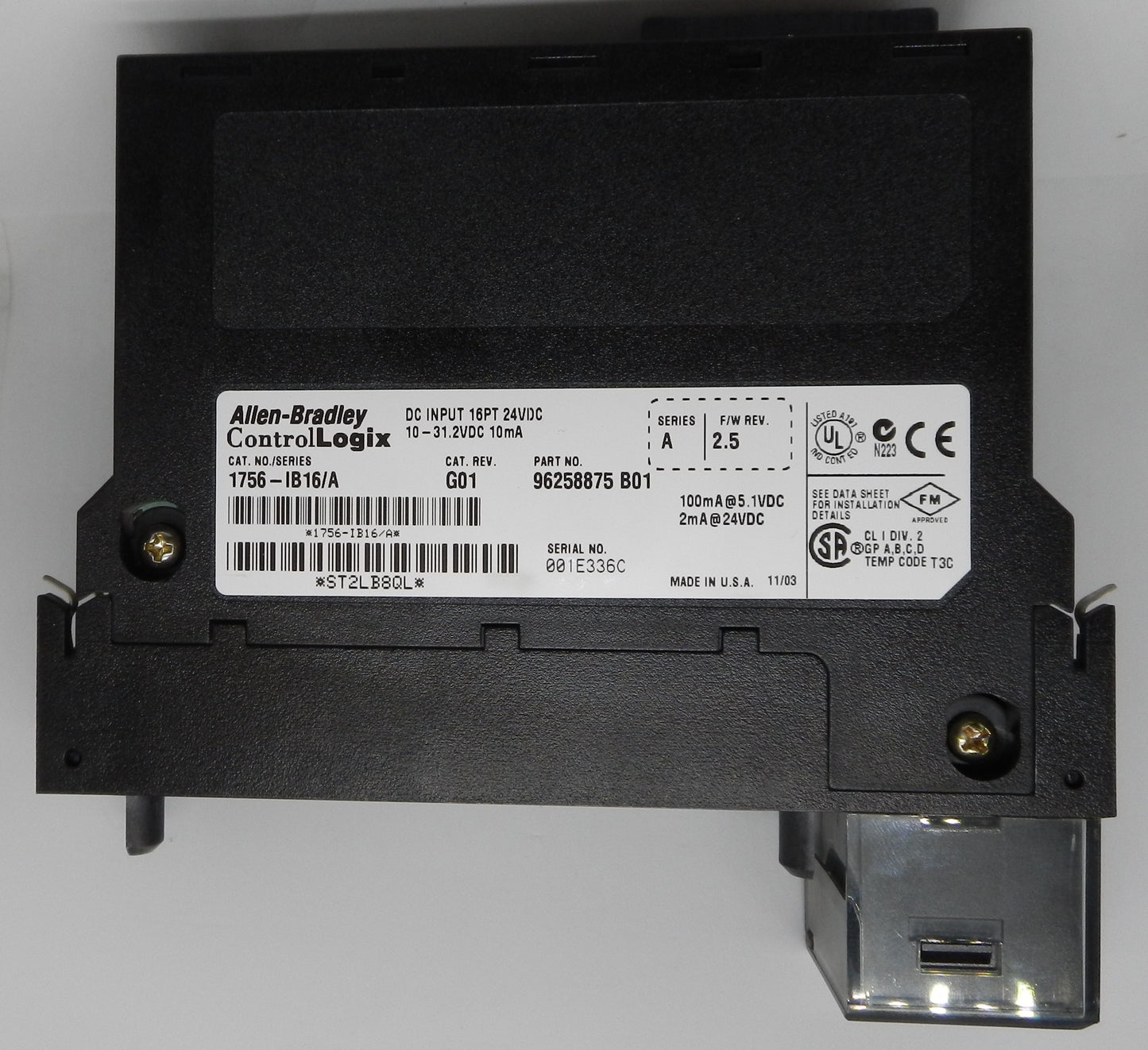

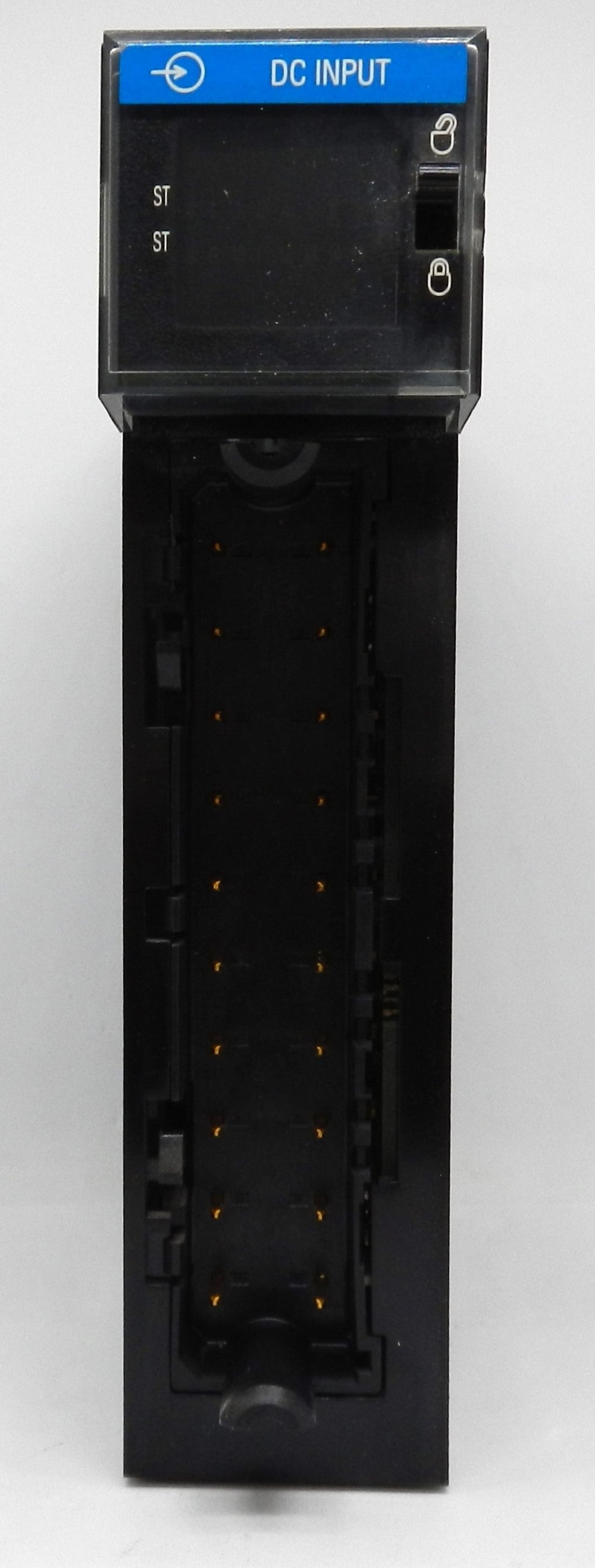

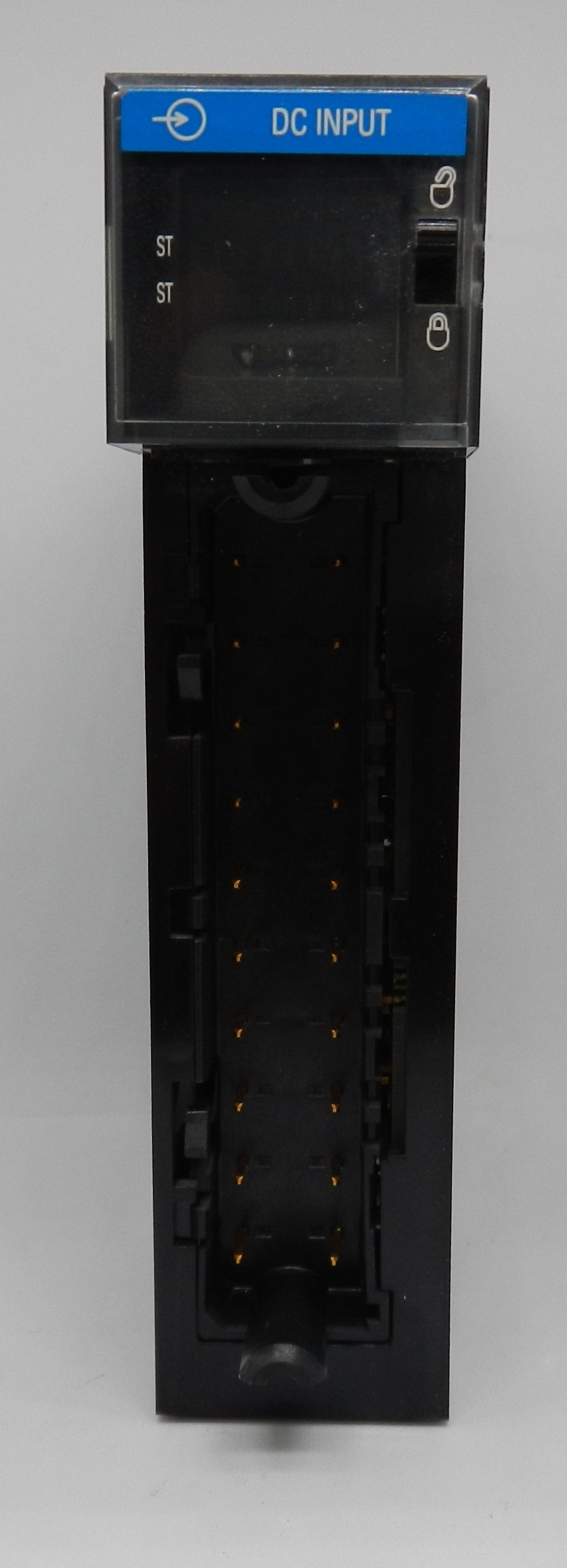

1756-IB16 Allen-Bradley ControlLogix 16-Point 10-31VDC Digital Input Module 20-Pin

Description:

• Genuine Allen-Bradley ControlLogix digital input module for industrial PLC and automation applications
• Provides 16 sinking digital input channels for monitoring 10–31 VDC field devices
• Compatible with 24 VDC industrial sensors, push buttons, limit switches, and proximity sensors
• Features two isolated groups of 8 inputs with 250V continuous isolation between input groups and the backplane
• Requires a compatible 1756-TBNH or 1756-TBSH 20-pin removable terminal block (sold separately)
• Front-panel LED status indicators provide individual channel diagnostics for simplified troubleshooting
• Installs in any ControlLogix 1756 chassis slot
• Designed for use with ControlLogix programmable automation controllers
• Ideal for machine automation, process control, material handling, packaging equipment, OEM machinery, and industrial control systems
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1756-IB16
• Product Series: ControlLogix
• Product Type: Digital Input Module
• Number of Inputs: 16
• Input Type: 24 VDC Sinking
• Input Voltage Range: 10–31 VDC
• Nominal Input Voltage: 12/24 VDC
• Isolation: 250V Continuous (Inputs-to-Backplane and Input Group-to-Group)
• Input Groups: 2 Groups of 8 Inputs
• Current Draw:
  • 100 mA @ 5.1 VDC
  • 2 mA @ 24 VDC
• Compatible Terminal Blocks:
  • 1756-TBNH
  • 1756-TBSH
• Connector: 20-Pin
• Mounting Type: ControlLogix Chassis
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Protection Rating: IP20
• Certifications:
  • UL Listed
  • CE
  • ATEX
  • IECEx
  • FM Approved
  • RCM
  • CCC
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Packaging Equipment
  • Material Handling
  • Manufacturing Systems

Dimensions:

• Height: 145 mm (5.71 in)
• Width: 38 mm (1.50 in)
• Depth: 140 mm (5.51 in).

Weight:

• Approximate Weight: 0.20 kg (0.44 lb).
