AB ALLEN-BRADLEY

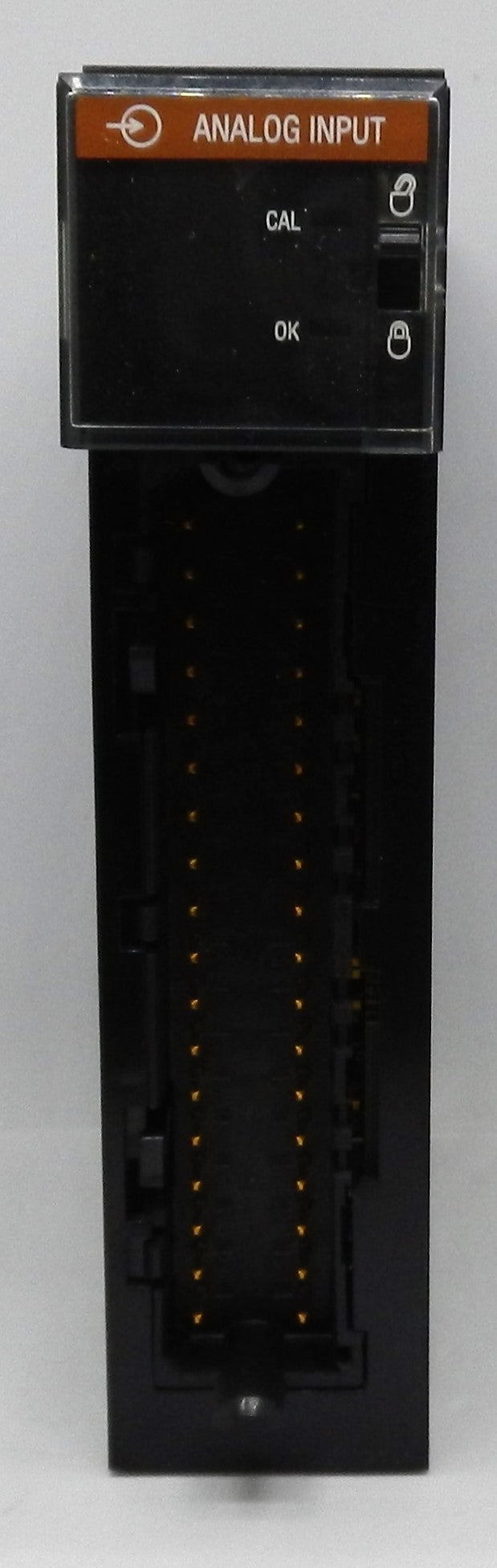

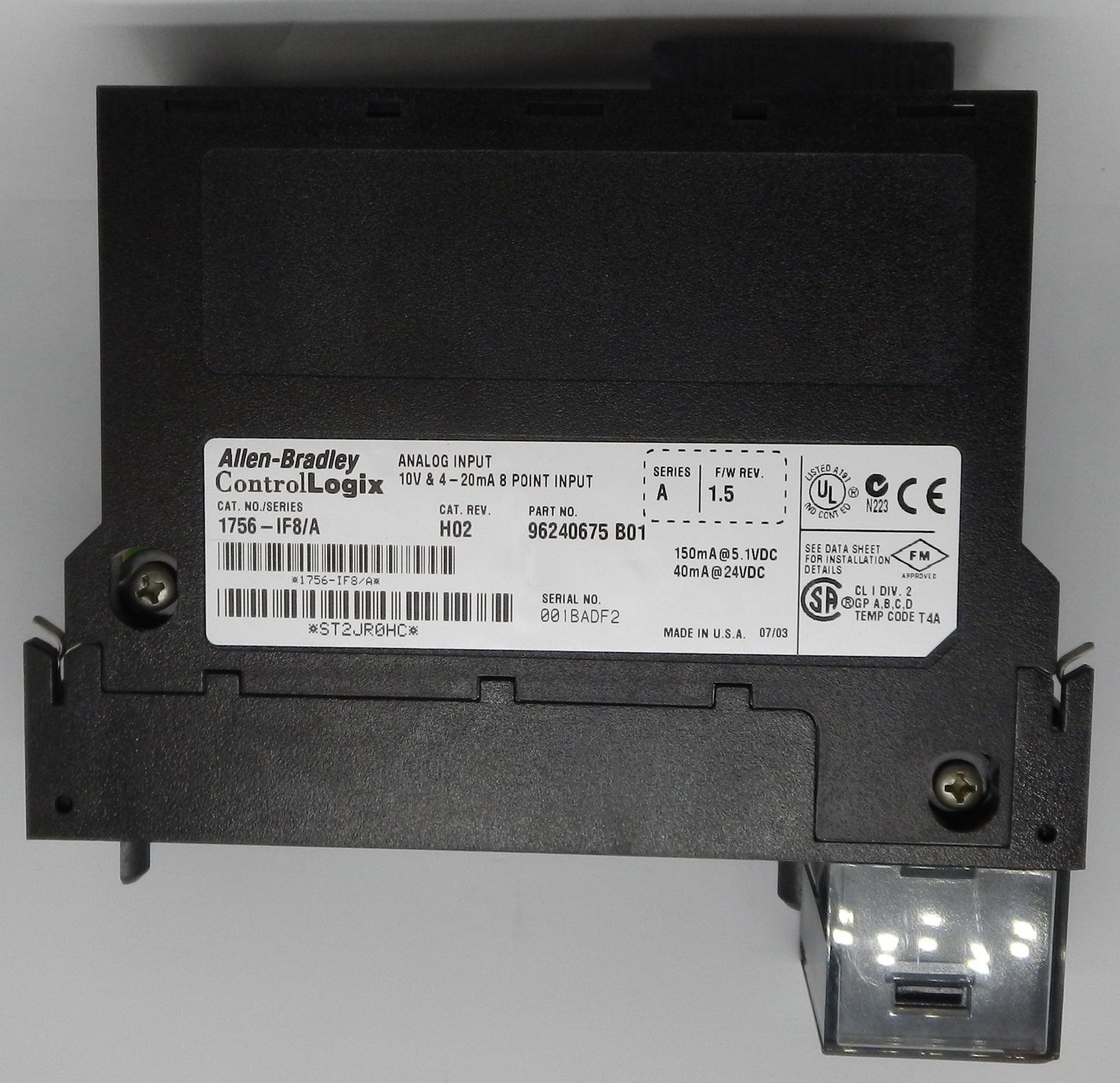

1756-IF8/A Allen-Bradley ControlLogix 8-Point Analog Input Module Current/Voltage 36-Pin

$249.99 CAD

Sale Sold out

STYLE REFURBISH

Description:

Genuine Allen-Bradley ControlLogix analog input module for high-performance industrial automation and process control
Provides 8 configurable analog input channels supporting both current and voltage input signals
Supports 8 single-ended, 4 differential, or 2 high-speed differential input configurations for maximum application flexibility
Accepts common analog signals including 0–10V, ±10V, 0–5V, and 0–20 mA
High-resolution 15/16-bit A/D conversion ensures accurate measurement and control
Requires a compatible 1756-TBCH or 1756-TBS6H removable terminal block (sold separately)
Front-panel status indicators simplify diagnostics and maintenance
Designed for use with ControlLogix 1756 chassis in industrial PLC systems
Ideal for process control, manufacturing, OEM machinery, utilities, and industrial automation applications
Lifecycle Status: Active.

Manufacturer Name: Allen-Bradley (Rockwell Automation)
Part Number (MPN): 1756-IF8/A
Product Series: ControlLogix
Product Type: Analog Input Module
Number of Inputs: 8
Input Configuration:
- 8 Single-Ended
- 4 Differential
- 2 High-Speed Differential
Input Signal Types:
- 0...10.25 VDC
- ±10.25 VDC
- 0...5.125 VDC
- 0...20.5 mA
Resolution: 15/16-Bit
Isolation:
- 250V Continuous (Inputs to Backplane)
- No channel-to-channel isolation
Current Draw:
- 150 mA @ 5.1 VDC
- 40 mA @ 24 VDC
Backplane Power: 1.73 W
Power Dissipation:
- 1.73 W (Voltage Mode)
- 2.33 W (Current Mode)
Terminal Block Required:
- 1756-TBCH
- 1756-TBS6H
Mounting Type: ControlLogix Chassis
Operating Temperature: 0°C to +60°C
Protection Rating: IP20
Certifications:
- UL Listed
- CSA Certified
- CE
- FM Approved
- ATEX
- IECEx
Applications:
- PLC Systems
- Process Control
- Industrial Automation
- Manufacturing
- OEM Equipment
- Machine Control
