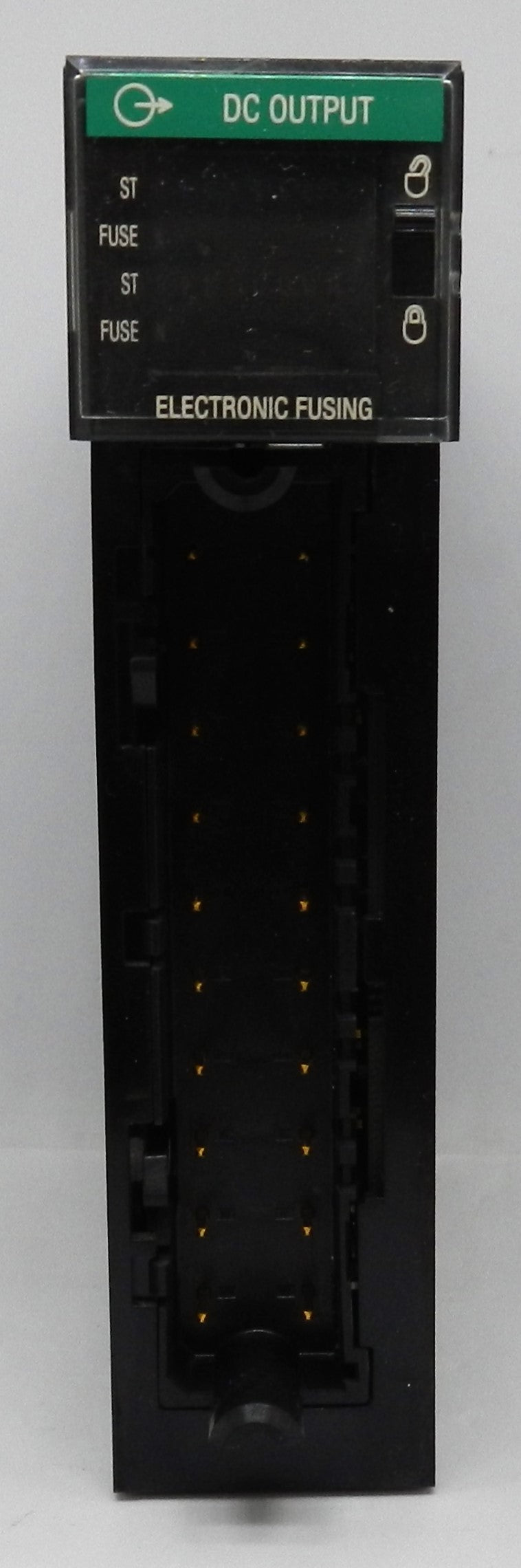

1756-OB16E Allen-Bradley ControlLogix 16-Point 10-31VDC Digital Output Module Electronically Fused

Description:

• Genuine Allen-Bradley ControlLogix digital DC output module for high-performance industrial automation systems
• Provides 16 electronically fused sourcing digital output channels
• Operates with 10–31 VDC output voltage for reliable DC load control
• Electronic fuse protection helps protect each output channel from overloads and short circuits
• Outputs are arranged in 2 isolated groups of 8 points with 250V continuous isolation between groups
• Designed for use in ControlLogix 1756 chassis
• Requires a compatible 1756-TBNH or 1756-TBSH removable terminal block (sold separately)
• Front-panel status LEDs simplify diagnostics and troubleshooting
• Ideal for controlling solenoids, relays, contactors, indicator lights, and other 24VDC field devices
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1756-OB16E
• Product Series: ControlLogix
• Product Type: Digital DC Output Module
• Number of Outputs: 16
• Output Type: Sourcing, Electronically Fused
• Output Voltage Range: 10–31 VDC
• Nominal Voltage: 24 VDC
• Maximum Current per Output: 1 A
• Maximum Current per Module: 8 A
• Isolation: 250V Continuous Between Groups of 8 Outputs
• Output Groups: 2 Groups of 8 Outputs
• Current Draw:
  • ≈250 mA @ 5.1 VDC
  • ≈2 mA @ 24 VDC
• Mounting Type: ControlLogix Chassis
• Compatible Terminal Blocks:
  • 1756-TBNH
  • 1756-TBSH
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Protection Rating: IP20
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
  • ATEX
  • IECEx
  • RCM
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Manufacturing Equipment
  • OEM Machinery
  • Material Handling

Dimensions:

• Height: 145 mm (5.71 in)
• Width: 38 mm (1.50 in)
• Depth: 140 mm (5.51 in).

Weight:

• Approximate Weight: 0.32 kg (0.71 lb).
