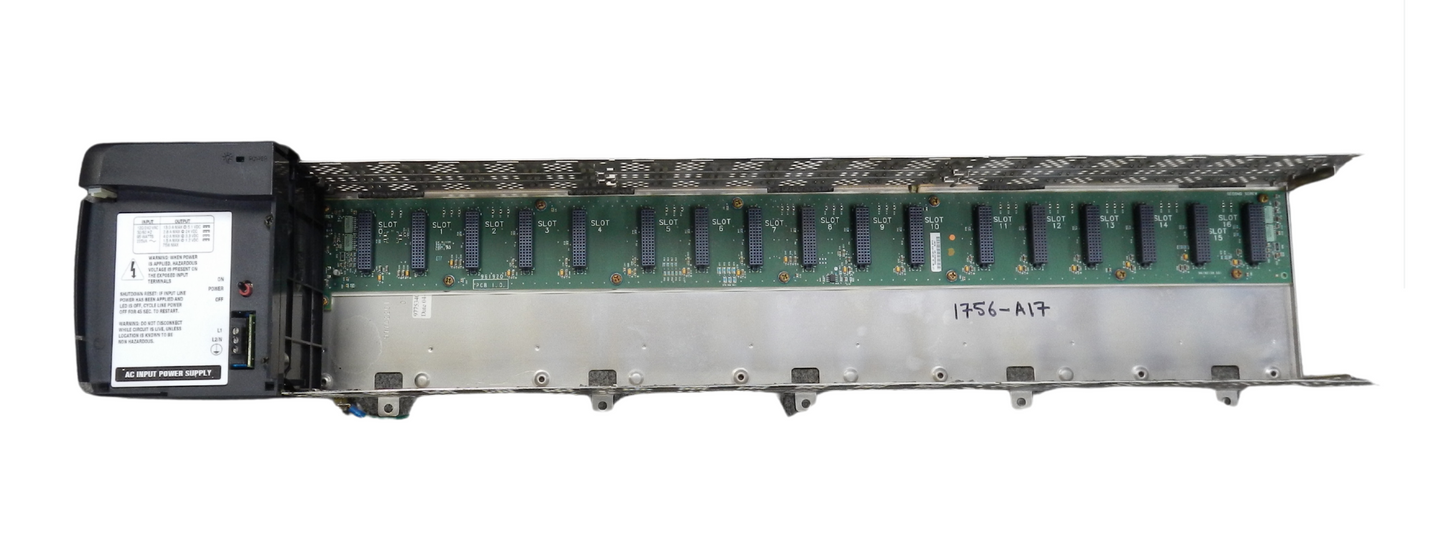

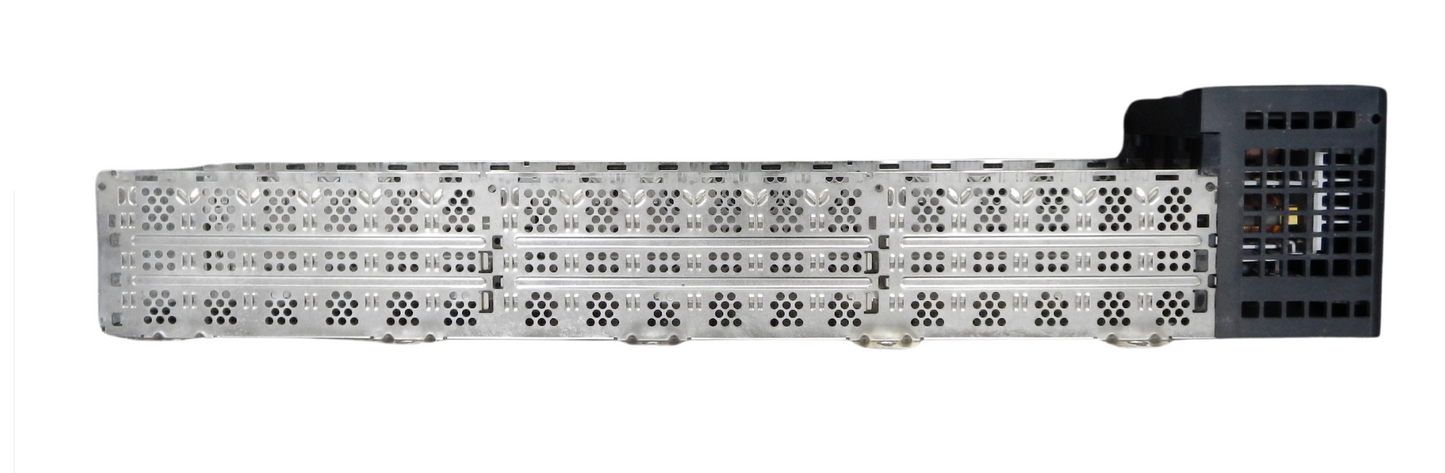

1756-PA75 + 1756-A17 Allen-Bradley ControlLogix 75W AC Power Supply & 17-Slot PLC Chassis Rack

Description:

• Genuine Allen-Bradley ControlLogix rack assembly including the 1756-PA75 AC power supply and 1756-A17 17-slot chassis
• Complete ControlLogix platform for building, expanding, or maintaining large-scale PLC automation systems
• 1756-PA75 standard AC power supply accepts 85–265 VAC, 47–63 Hz input and delivers 75W of output power with 13A @ 5.1 VDC, 4A @ 3.3 VDC, and 2.8A @ 24 VDC to power ControlLogix processors and I/O modules.
• 1756-A17 modular chassis provides 17 slots for ControlLogix controllers, communication modules, motion modules, and digital/analog I/O
• Supports high-density ControlLogix systems for demanding industrial automation applications
• Compatible with the complete family of 1756 ControlLogix processors and I/O modules
• Open-style chassis design with passive cooling for dependable industrial operation
• Ideal for manufacturing, process control, machine automation, material handling, water treatment, and OEM control systems
• Suitable for new installations, system expansion, and replacement of existing ControlLogix hardware

Specifications:

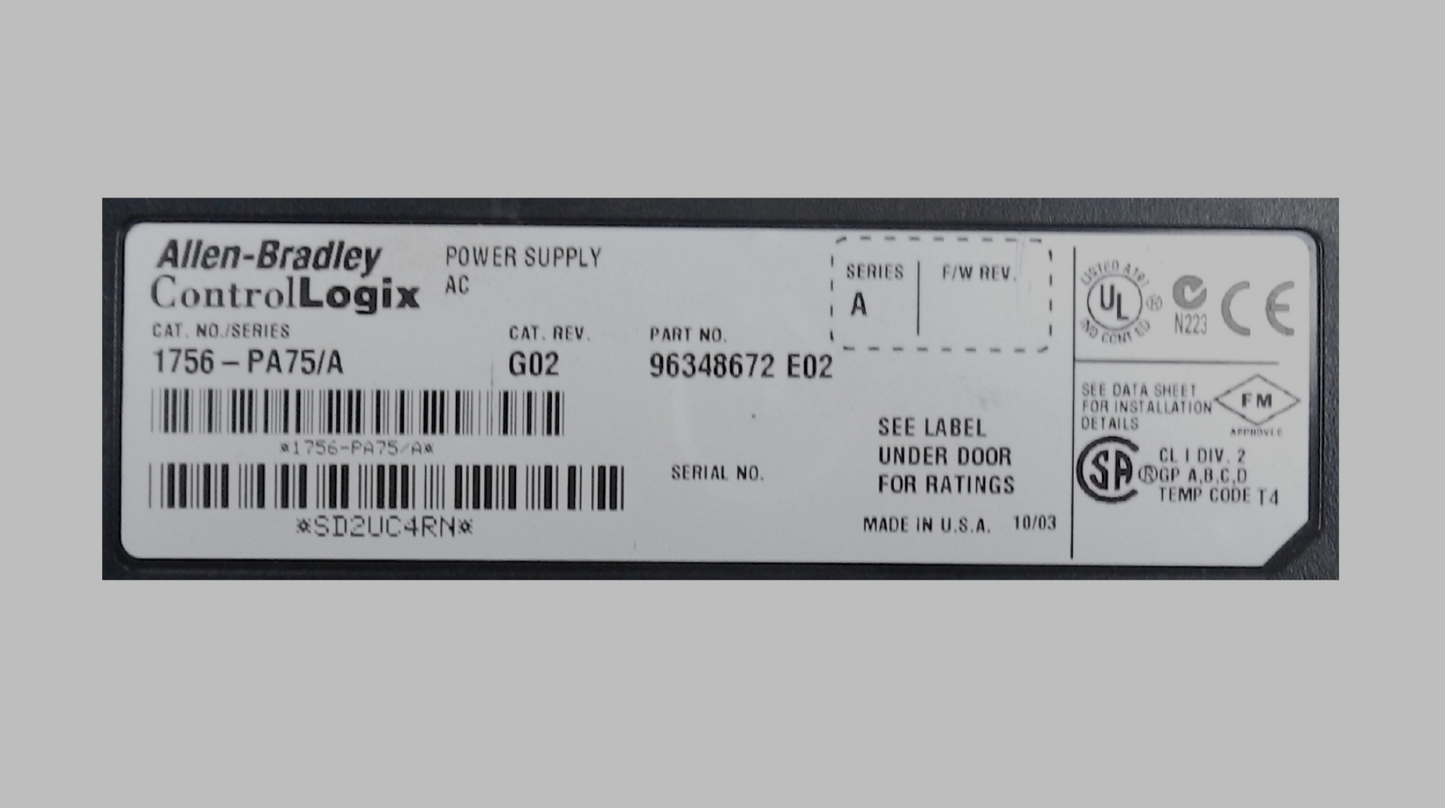

1756-PA75 Power Supply

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number: 1756-PA75
• Product Type: Standard AC Power Supply
• Input Voltage: 85–265 VAC
• Nominal Input Voltage: 120/240 VAC
• Input Frequency: 47–63 Hz
• Maximum Output Power: 75 W
• Output Current:
  • 13A @ 5.1 VDC
  • 4A @ 3.3 VDC
  • 2.8A @ 24 VDC
• Maximum Input Power: 100 VA
• Inrush Current: 20 A Max
• Mounting Location: Left side of ControlLogix chassis
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Country of Origin: Mexico
• Certifications: UL, CE, CSA, RCM, UKCA

1756-A17 Chassis

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number: 1756-A17
• Product Type: PLC Chassis
• Number of Slots: 17
• Chassis Type: Modular ControlLogix Rack
• Mounting: Panel Mount
• Cooling: Passive Convection
• Compatible Modules:
  • ControlLogix Controllers
  • Communication Modules
  • Digital I/O Modules
  • Analog I/O Modules
  • Motion Control Modules
  • Specialty Modules
• Operating Temperature: 0°C to +60°C (32°F to +140°F)

Applications

• PLC Systems
• Industrial Automation
• Machine Control
• Process Automation
• Manufacturing Equipment
• Material Handling
• Water & Wastewater
• OEM Control Panels

Dimensions:

1756-A17 Chassis

• Height: 250 mm (9.84 in)
• Width: 792 mm (31.18 in)
• Depth: 237 mm (9.33 in)

1756-PA75 Power Supply

• Height: 140 mm (5.51 in)
• Width: 112 mm (4.41 in)
• Depth: 145 mm (5.71 in)

Weight:

• 1756-PA75 Power Supply: Approx. 0.95 kg (2.10 lb)
• 1756-A17 Chassis: Approx. 4.6 kg (10.1 lb)
