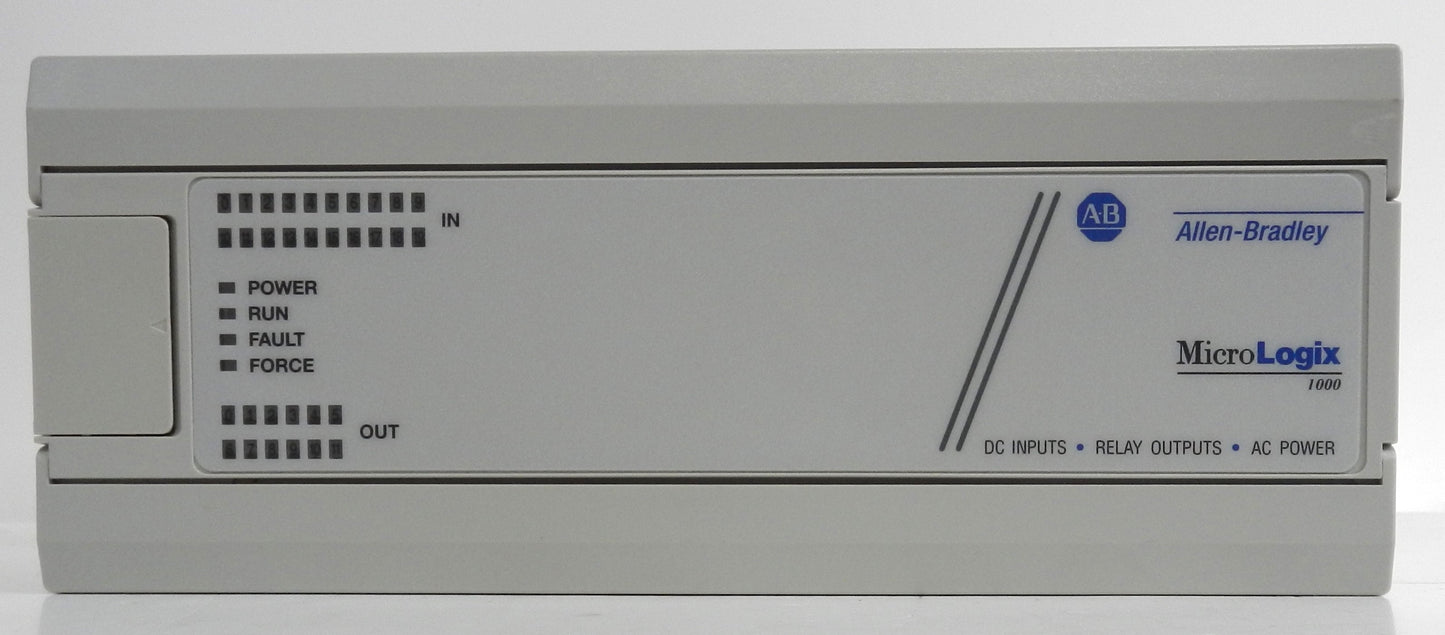

1761-L32BWA Allen-Bradley MicroLogix 1000 PLC Controller 32 I/O 120/240VAC 20 Inputs 12 Relay Outputs

Description:

• Genuine Allen-Bradley MicroLogix 1000 programmable logic controller (PLC) for industrial automation and machine control
• Integrated 32-point I/O consisting of 20 digital 24VDC inputs and 12 relay outputs
• Powered by 120/240 VAC, 50/60 Hz for reliable industrial operation
• Built-in RS-232 DF1 communication port for programming, monitoring, and serial communications
• Compact all-in-one controller eliminates the need for a separate processor and I/O rack
• 1K word EEPROM memory retains the user program without battery backup
• Supports ladder logic programming using RSLogix 500 software
• DIN rail or panel mounting for quick installation in industrial control cabinets
• Ideal for OEM machinery, conveyors, packaging equipment, material handling, HVAC systems, and general industrial automation
• Discontinued by Rockwell Automation, making it an excellent replacement for maintaining legacy MicroLogix 1000 systems.

Specifications:

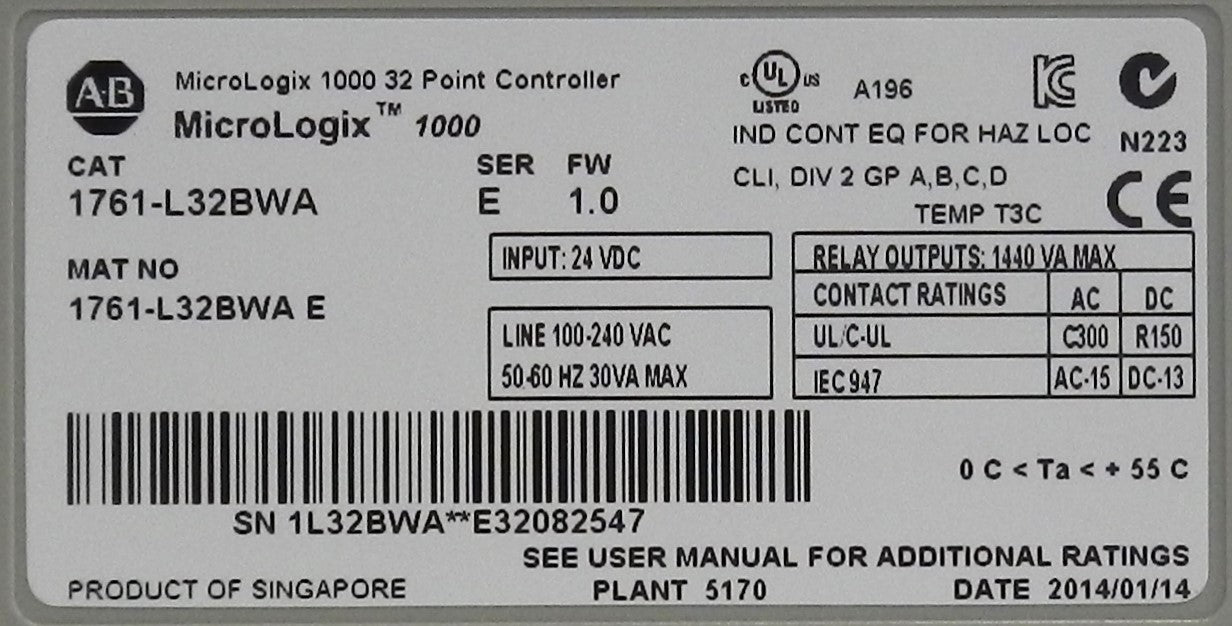

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1761-L32BWA
• Product Series: MicroLogix 1000
• Product Type: PLC Controller
• Power Supply: 120/240 VAC
• Input Voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Total I/O: 32 Points
• Digital Inputs: 20 × 24VDC
• Digital Outputs: 12 Relay Outputs
• Output Type: Relay
• Program Memory: 1K Words EEPROM
• Communication Port:
  • RS-232
  • DF1 Protocol
• Terminal Type: Screw Clamp
• Mounting Type:
  • DIN Rail
  • Panel Mount
• Isolation Voltage: 1500 VDC
• Operating Temperature: 0°C to +55°C
• Lifecycle Status: Discontinued
• Applications:
  • Industrial Automation
  • Machine Control
  • OEM Equipment
  • Packaging Machinery
  • Material Handling
  • Conveyor Systems
  • HVAC Control

Dimensions:

• Height: 80 mm (3.15 in)
• Depth: 73 mm (2.87 in)
• Compact integrated PLC housing for DIN rail or panel mounting.

Weight:

• Approximate Weight: 0.50 kg (1.10 lb).
