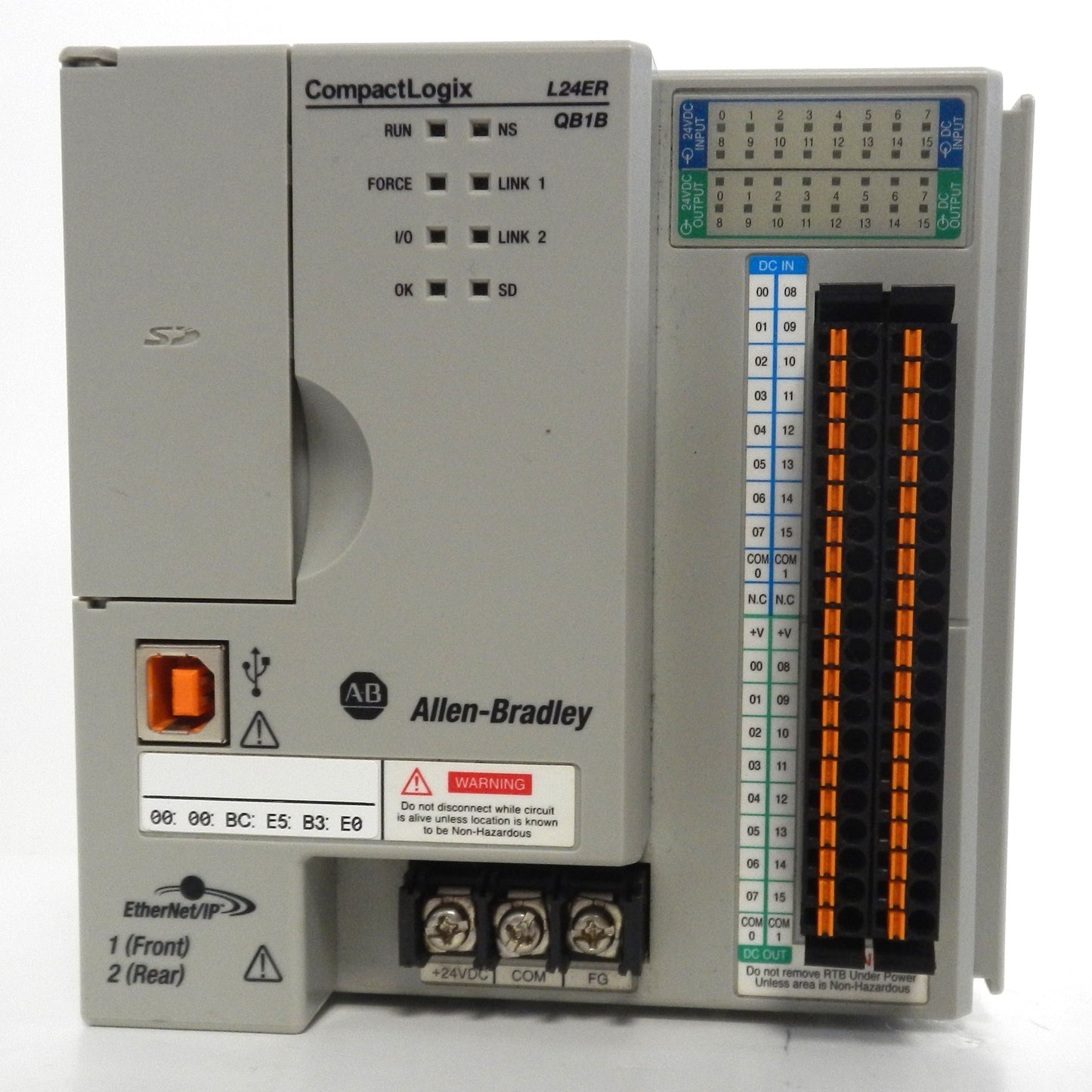

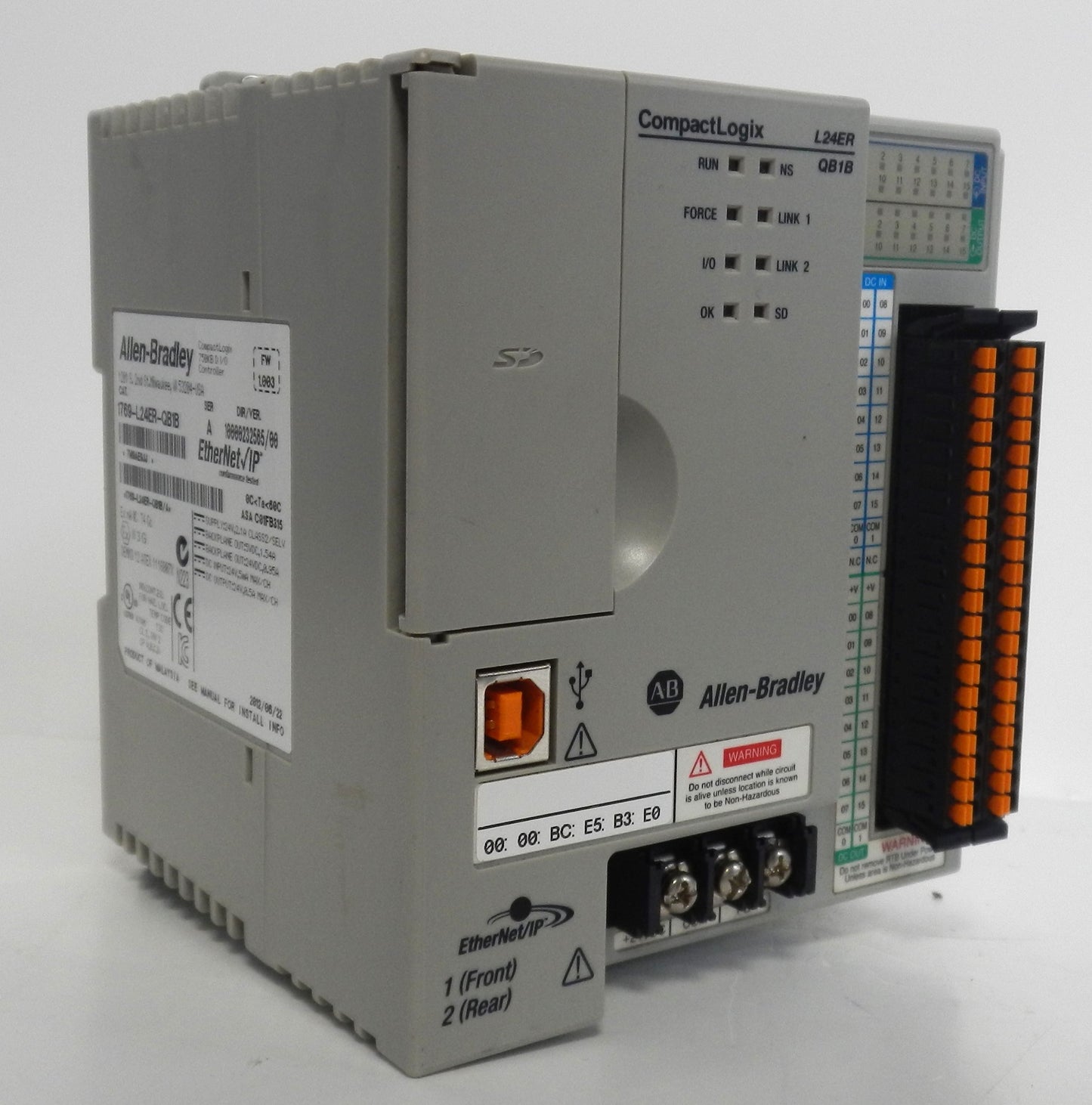

1769-L24ER-QB1B Allen-Bradley CompactLogix 5370 L2 PLC Controller 24VDC 16DI 16DO Dual EtherNet/IP

Description:

• Genuine Allen-Bradley CompactLogix 5370 L2 programmable logic controller (PLC) for industrial automation and machine control
• Integrated 16 digital 24V DC inputs and 16 digital 24V DC outputs eliminate the need for separate onboard I/O modules
• 750 KB user memory for medium-sized machine control and process automation applications
• Features dual EtherNet/IP ports with Device Level Ring (DLR) capability for network redundancy
• Supports up to 4 local 1769 Compact I/O expansion modules
• Includes embedded 24V DC power supply for simplified installation
• Equipped with 1 USB programming port and 1 GB SD memory card (supports up to 2 GB SD cards)
• Supports up to 8 EtherNet/IP devices and 120 TCP/IP connections
• Compatible with Studio 5000 Logix Designer
• Ideal for packaging machinery, conveyors, material handling, OEM equipment, manufacturing, water treatment, and industrial automation systems
• Lifecycle Status: Active Mature.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-L24ER-QB1B
• Product Series: CompactLogix 5370 L2
• Product Type: Programmable Logic Controller (PLC)
• User Memory: 750 KB
• Embedded Digital Inputs: 16 × 24V DC
• Embedded Digital Outputs: 16 × 24V DC
• Input Power: 24V DC
• Embedded Power Supply: Yes
• EtherNet/IP Ports: 2 RJ45
• Network Feature: Device Level Ring (DLR)
• USB Port: 1
• SD Memory Card:
  • Included: 1 GB
  • Maximum Supported: 2 GB
• Local I/O Expansion: Up to 4 Compact I/O (1769) Modules
• EtherNet/IP Devices Supported: Up to 8
• TCP Connections: 120
• Mounting: DIN Rail or Panel Mount
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% Non-Condensing
• Country of Origin: Malaysia
• Certifications:
  • UL Listed
  • CE
  • ATEX
  • IECEx
  • UKCA
  • RCM
  • CCC
• Applications:
  • Industrial Automation
  • Machine Control
  • Process Automation
  • OEM Equipment
  • Packaging Machinery
  • Material Handling
  • Manufacturing Systems

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 115 mm (4.53 in)
• Depth: 87 mm (3.43 in).

Weight:

• Approximate Weight: 0.63 kg (1.39 lb).
