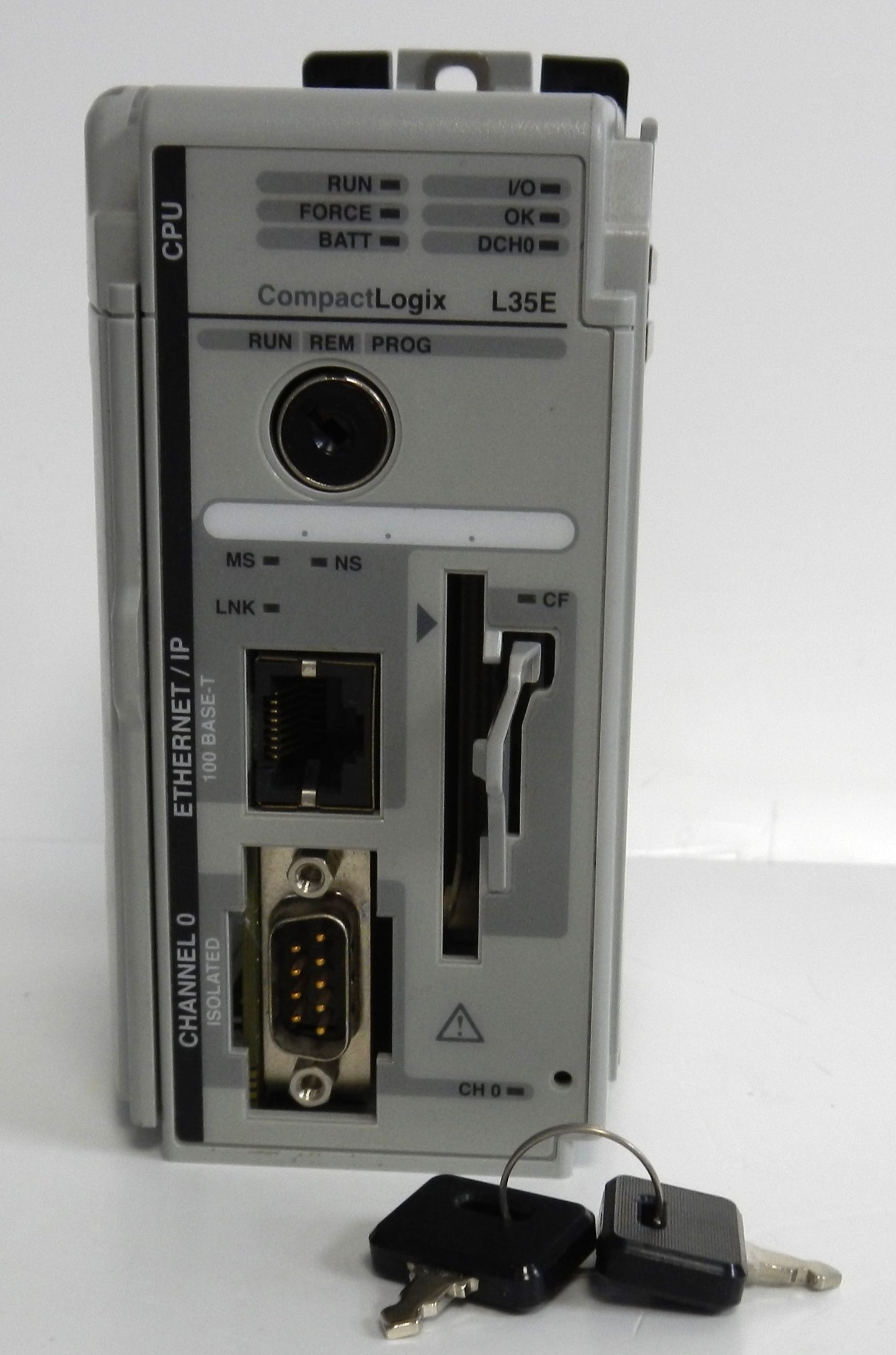

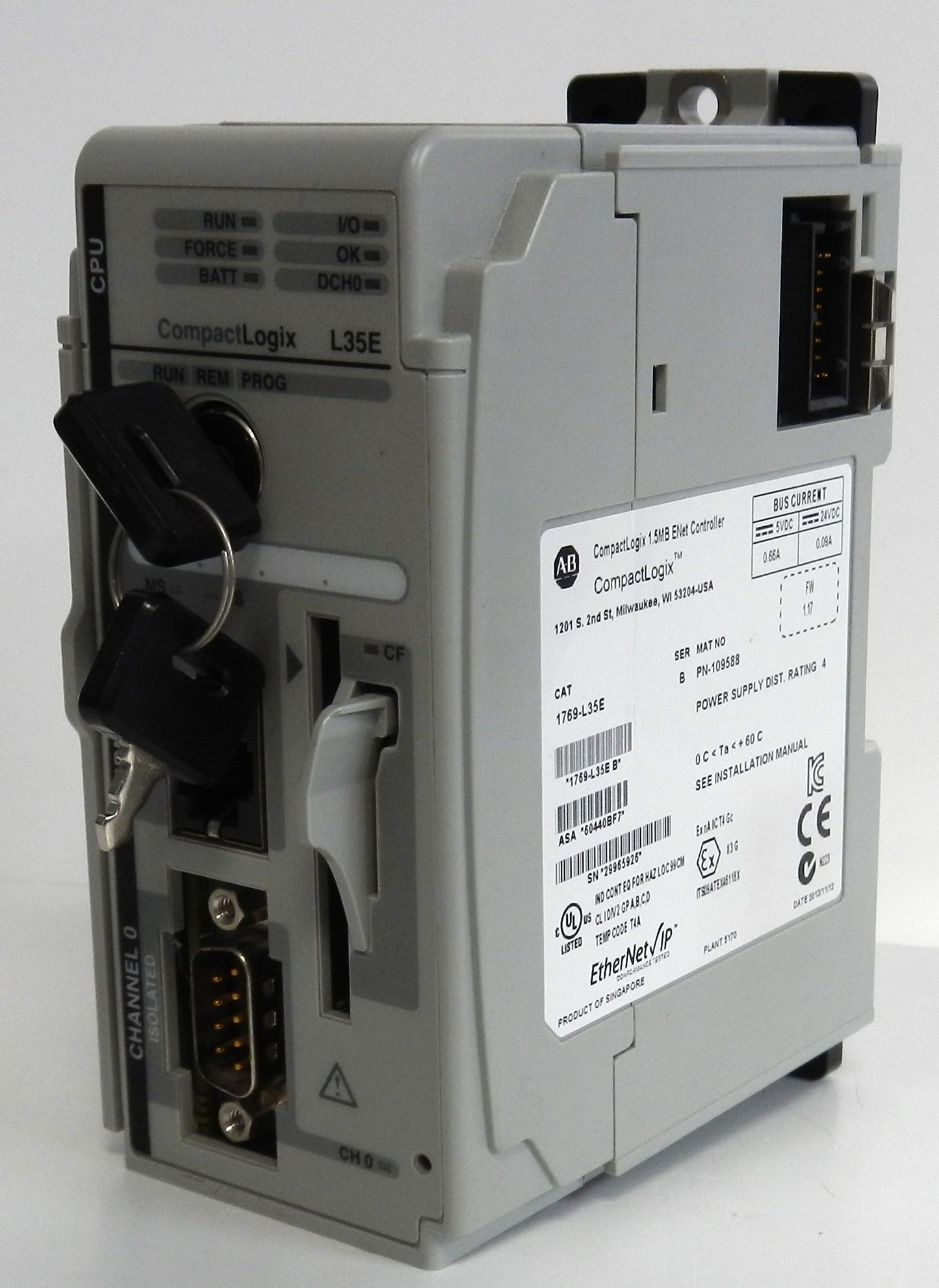

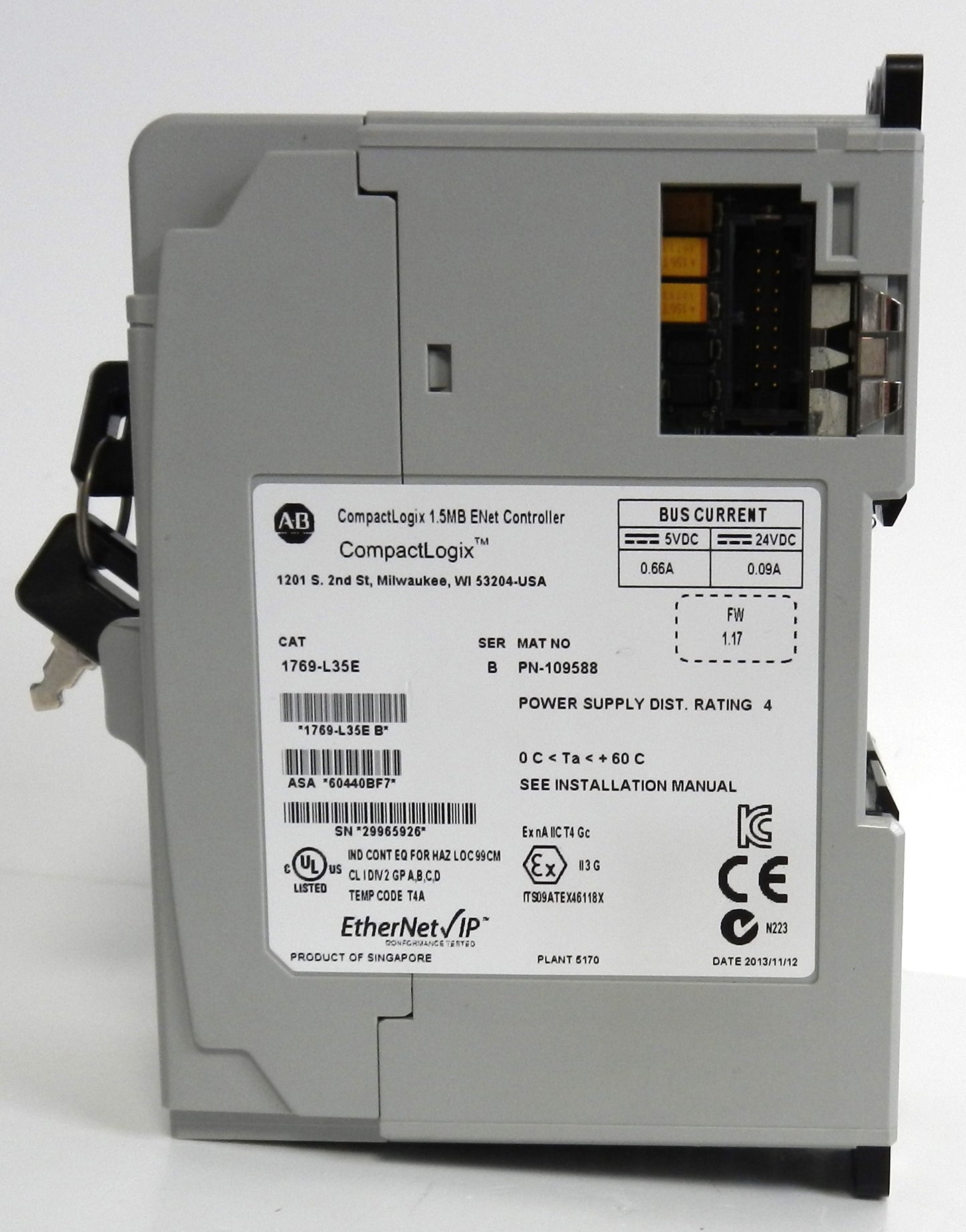

1769-L35E Allen-Bradley CompactLogix Ethernet Processor 1.5MB Memory 24VDC RS-232 EtherNet/IP PLC Controller

Description:

• Genuine Allen-Bradley CompactLogix programmable automation controller with integrated EtherNet/IP communication
• Features 1.5 MB user memory for medium to large machine control and automation applications
• Integrated 10/100 Mbps EtherNet/IP port and RS-232 serial port for programming, communication, and system integration
• Supports up to 30 local 1769 Compact I/O modules (depending on system configuration)
• Compatible with Compact I/O, PowerFlex drives, PanelView HMIs, and other Rockwell Automation devices
• High-performance controller designed for machine automation, material handling, packaging, process control, and OEM equipment
• Supports online editing, motion coordination (non-CIP Motion), and advanced control functions through Studio 5000 / RSLogix 5000
• Requires a 1769 power supply (sold separately) and 1769-ECR/ECL end cap
• DIN rail or panel mount installation
• Discontinued by Rockwell Automation (December 20, 2020); engineering replacement recommended for new installations.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-L35E
• Product Series: CompactLogix
• Product Type: Ethernet Processor / PLC Controller
• User Memory: 1.5 MB
• Nonvolatile Memory: 64 MB CompactFlash / 128 MB Flash
• Communication Ports:
  • 1 × 10/100 Mbps EtherNet/IP
  • 1 × RS-232 Serial
• Communication Protocols:
  • EtherNet/IP
  • DF1
  • DH-485 (via serial configuration)
• Power Consumption:
  • 0.66 A @ 5 VDC
  • 0.09 A @ 24 VDC
• Isolation Voltage: 30V Continuous
• Mounting Type: DIN Rail or Panel Mount
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Protection Rating: IP20
• Certifications: UL Listed, CSA Certified, CE, C-Tick
• Country of Origin: Singapore
• Compatible Software: Studio 5000 Logix Designer, RSLogix 5000
• Applications:
  • Machine Automation
  • Material Handling
  • Packaging Equipment
  • Process Control
  • OEM Machinery
  • Industrial Control Panels

Dimensions:

• Height: 138 mm (5.43 in)
• Width: 118 mm (4.65 in)
• Depth: 87 mm (3.43 in)

Weight:

• Approximate Weight: 0.32 kg (0.71 lb).
