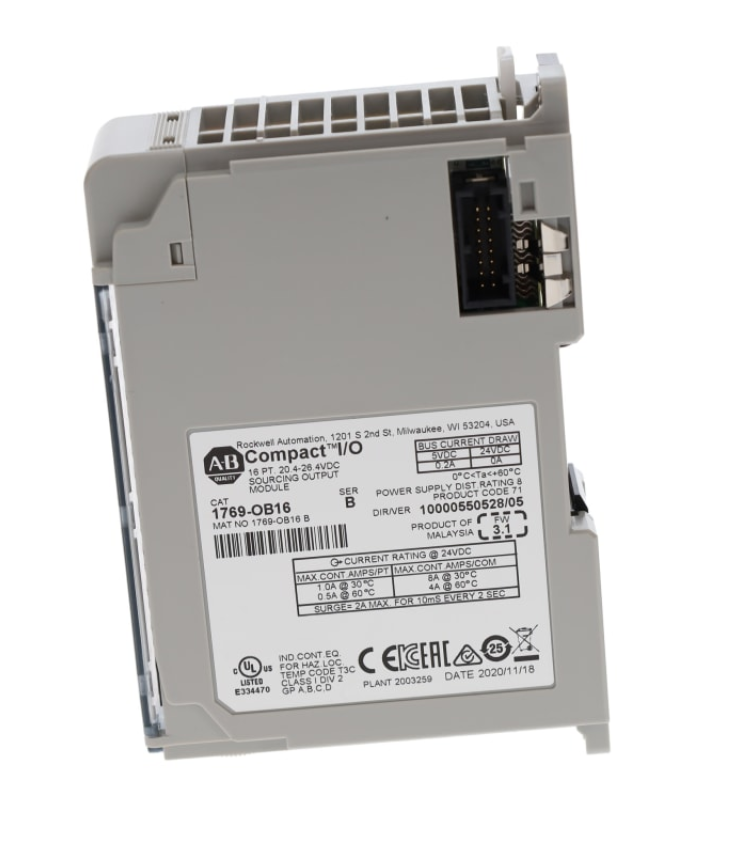

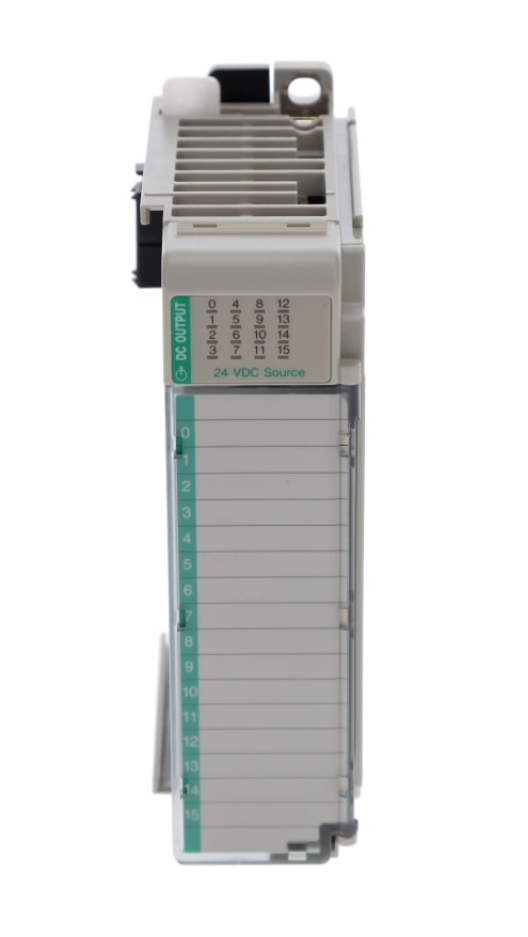

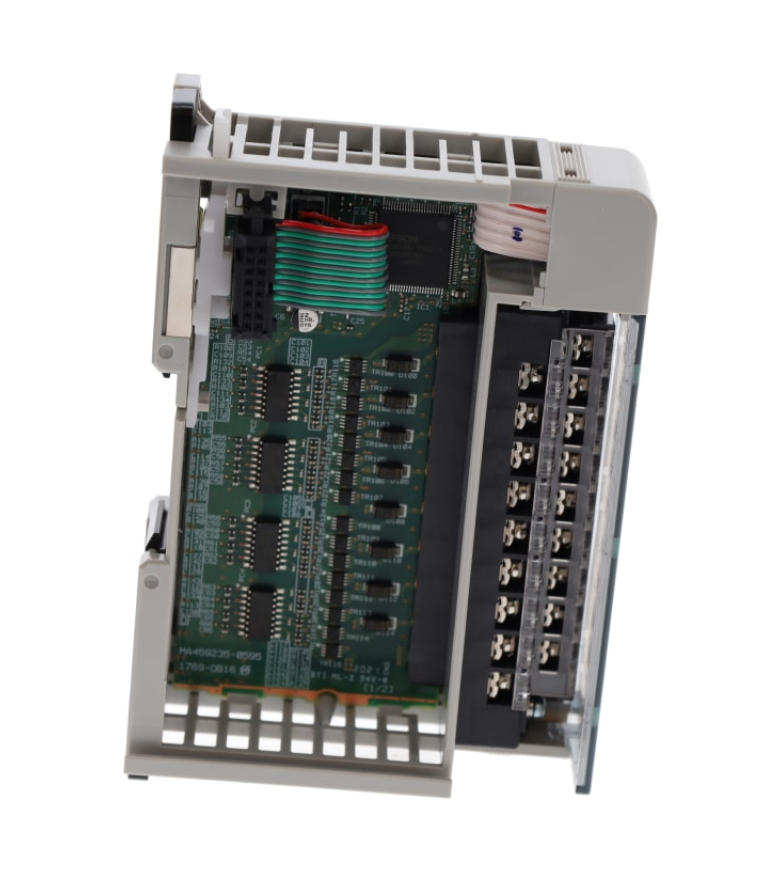

Allen-Bradley 1769-OB16 CompactLogix 16-Point 24V DC Digital Output Module

Description

The Allen-Bradley 1769-OB16 is a CompactLogix 16-point digital DC output module designed for industrial automation applications requiring reliable 24V DC control. This module provides current sourcing outputs for driving relays, solenoids, motor starters, and other field devices.

Operating within a 20.4–26.4 VDC range (nominal 24V DC), the 1769-OB16 integrates seamlessly with CompactLogix controllers and 1769 I/O systems, delivering dependable performance in manufacturing, packaging, material handling, and process automation environments.

🔹 Key Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Part Number (MPN): 1769-OB16

• Series: CompactLogix / 1769 I/O

• Module Type: Digital Output Module

• Number of Outputs: 16

• Output Type: Current Sourcing

• Operating Voltage: 20.4–26.4 VDC (24V DC nominal)

• Mounting: 1769 CompactLogix System

• Application: Industrial automation control
