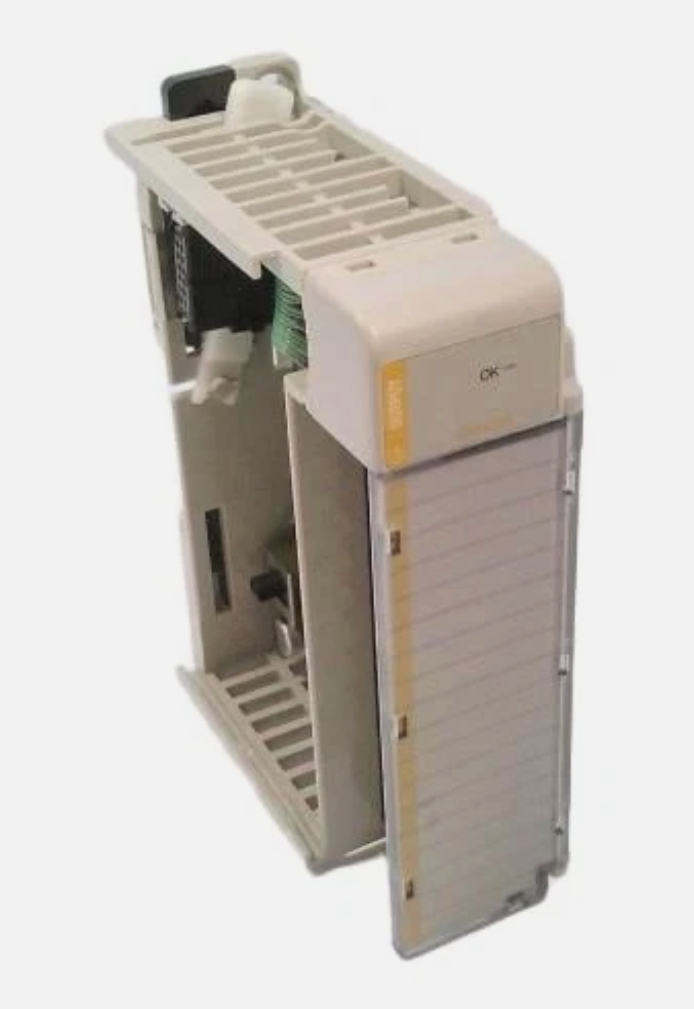

1769-OF2 Allen-Bradley Compact I/O 2-Channel Analog Output Module Voltage/Current 14-Bit

Description:

• Genuine Allen-Bradley Compact I/O analog output module for CompactLogix and MicroLogix 1500 automation systems
• Provides 2 single-ended analog output channels for precise process control
• Supports both voltage and current outputs, including ±10V, 0–10V, 0–5V, 1–5V, 0–20 mA, and 4–20 mA
• High-resolution 14-bit digital-to-analog conversion ensures accurate signal output
• Fast 2.5 ms maximum conversion rate for responsive control applications
• Compatible with CompactLogix and MicroLogix 1500 controllers using the 1769 Compact I/O platform
• Features onboard diagnostic LEDs for simplified troubleshooting and status monitoring
• DIN rail or panel mount installation for flexible industrial control panel integration
• Ideal for VFDs, control valves, actuators, process control, machine automation, and industrial PLC systems
• Manufactured by Rockwell Automation for reliable industrial automation performance.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-OF2
• Product Series: Compact I/O
• Product Type: Analog Output Module
• Number of Outputs: 2 Single-Ended
• Output Signal Types:
  • ±10 VDC
  • 0–10 VDC
  • 0–5 VDC
  • 1–5 VDC
  • 0–20 mA
  • 4–20 mA
• Resolution: 14-Bit
• Converter Type: Sigma-Delta
• Conversion Rate: 2.5 ms (Max.)
• Voltage Output Load: >1 kΩ @ 10 VDC
• Current Output Load: 0–500 Ω
• Current Draw:
  • 120 mA @ 5.1 VDC
  • 120 mA @ 24 VDC
• Heat Dissipation: 2.63 W Max
• Mounting Type: DIN Rail or Panel Mount
• Compatible Controllers:
  • CompactLogix
  • MicroLogix 1500
• Protection Rating: IP20
• Certifications: UL Listed, CSA Certified, CE
• Application: Process Control, VFD Control, Analog Signal Transmission, PLC Automation, Industrial Control Panels, OEM Machinery.

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 35 mm (1.38 in)
• Depth: 87 mm (3.43 in).

Weight:

• Approximate Weight: 0.18 kg (0.40 lb).
