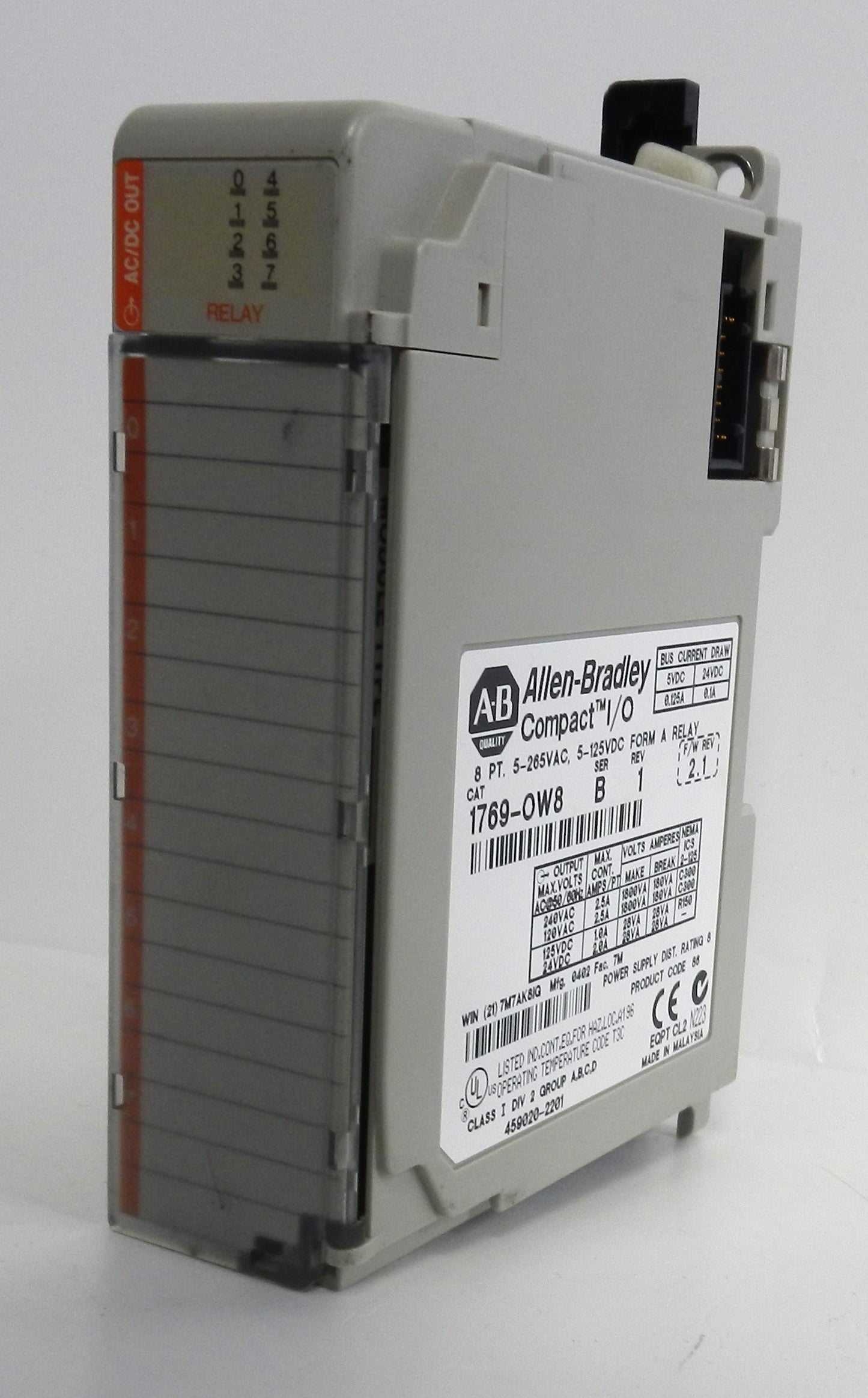

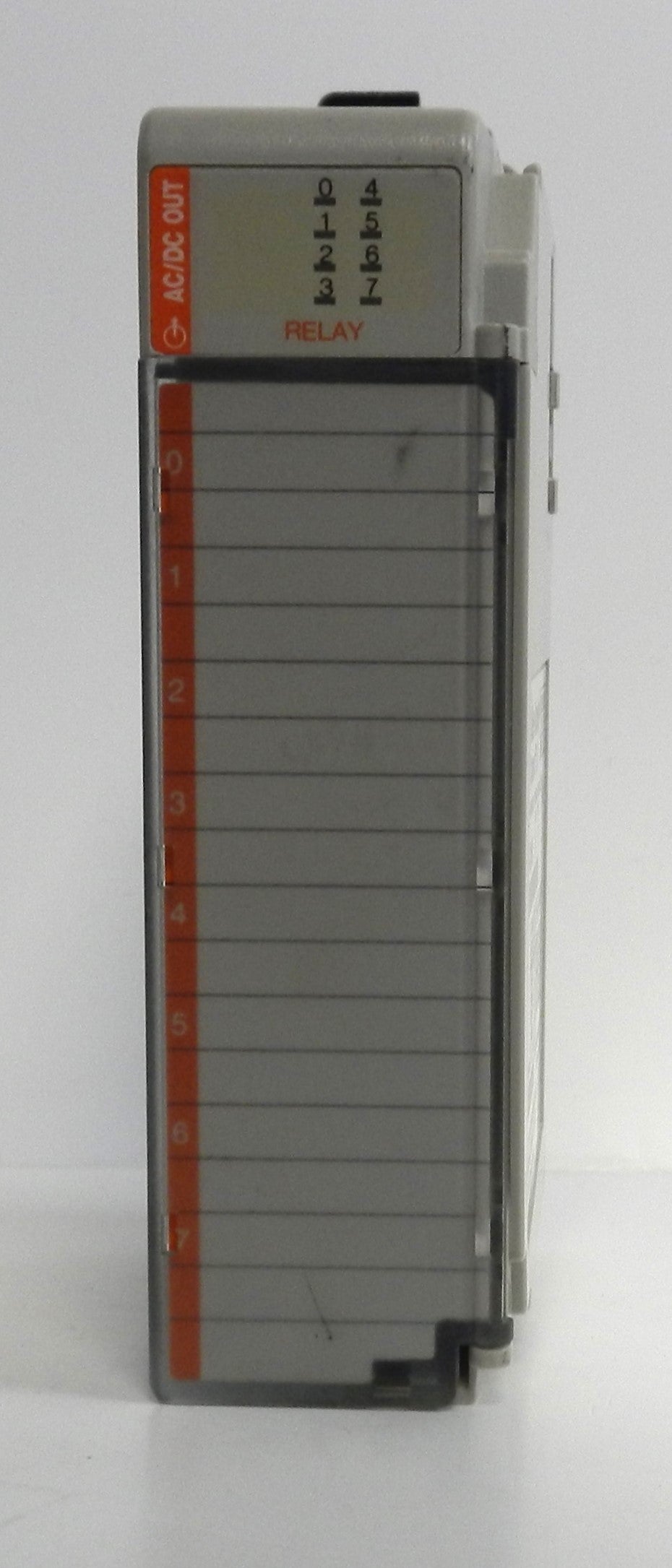

1769-OW8 Allen-Bradley CompactLogix 8-Point Relay Output Module AC/DC Compact I/O

$99.99 CAD

Sale Sold out

STYLE REFURBISH

Description:

Genuine Allen-Bradley CompactLogix relay output module for industrial PLC and machine automation applications
Provides 8 Normally Open (N.O.) relay outputs arranged in 2 isolated groups of 4 outputs
Supports switching of both AC and DC loads, making it ideal for mixed-voltage control applications
Output voltage range: 5–265 VAC and 5–125 VDC
Relay contacts are suitable for controlling contactors, relays, solenoids, valves, pilot lights, and alarms
Compatible with CompactLogix and MicroLogix 1500 Expansion I/O systems
Compact modular design installs on DIN rail or panel mount
Front-access removable terminal block simplifies wiring and maintenance
Ideal for industrial automation, machine control, OEM equipment, packaging, material handling, and process control
Lifecycle Status: Active Mature with a recommended replacement available.

Manufacturer Name: Allen-Bradley (Rockwell Automation)
Part Number (MPN): 1769-OW8
Product Series: Compact I/O
Product Type: Relay Output Module
Number of Outputs: 8
Output Configuration: 8 Normally Open Relay Outputs (4 Outputs per Group)
Output Type: Relay Contacts
Operating Voltage:
- 5–265 VAC
- 5–125 VDC
Maximum Current per Output: 2.5 A
Maximum Current per Module: 16 A
Minimum Load Current: 10 mA @ 5 VDC
ON Delay: 10 ms
OFF Delay: 10 ms
Backplane Current Draw:
- 125 mA @ 5.1 VDC
- 100 mA @ 24 VDC
Maximum Heat Dissipation: 2.83 W
Isolation:
- 1836 VAC for 1 s or 2596 VDC for 1 s
- Output-to-Bus and Group-to-Group
Mounting:
- 35 mm DIN Rail
- Panel Mount
Compatible Power Supplies:
- 1769-PA2
- 1769-PB2
- 1769-PA4
- 1769-PB4
Country of Origin: Malaysia
Certifications:
- UL
- CSA
- CE
- UKCA
Applications:
- Industrial Automation
- PLC Systems
- Machine Control
- Process Control
- Packaging Equipment
- Material Handling
- OEM Equipment
