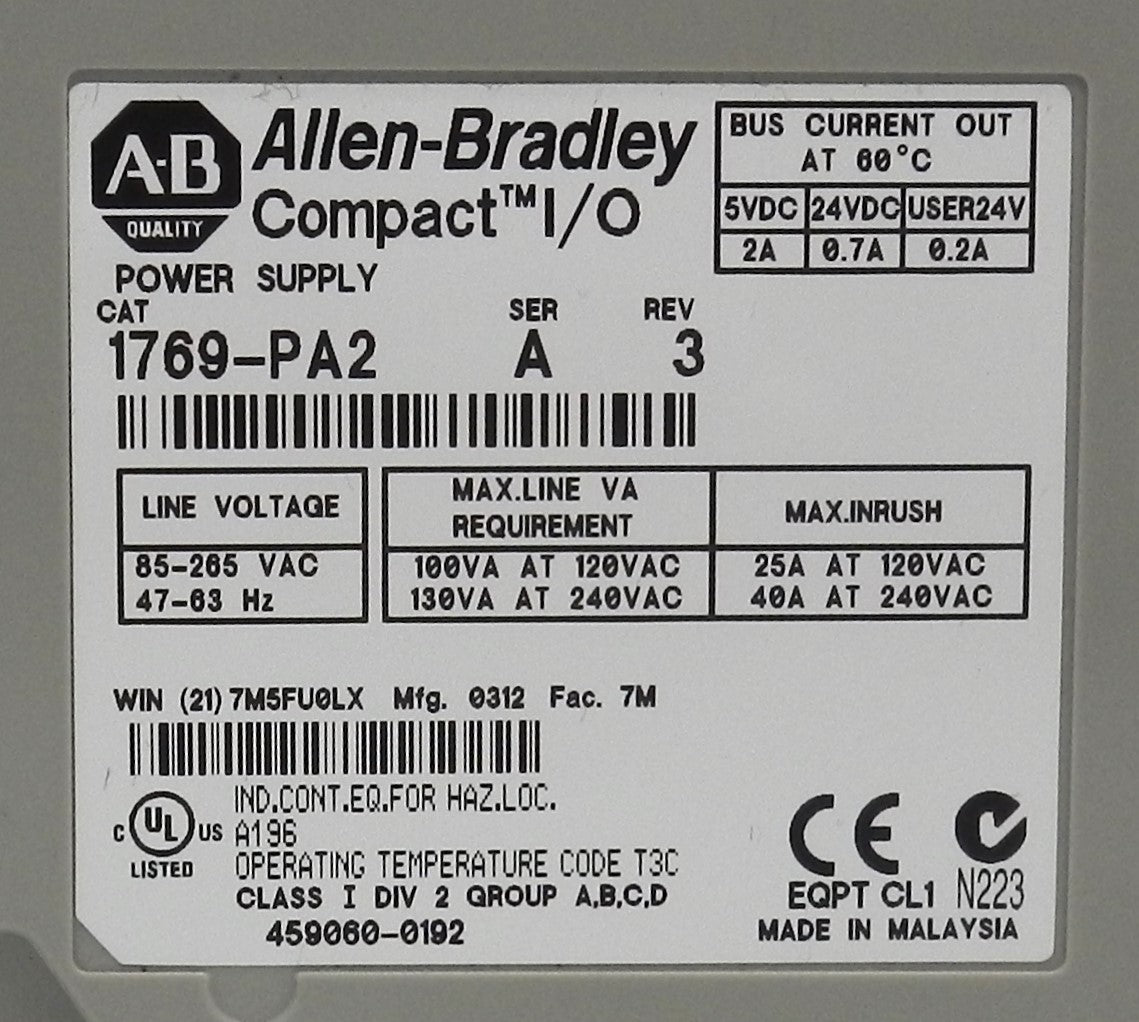

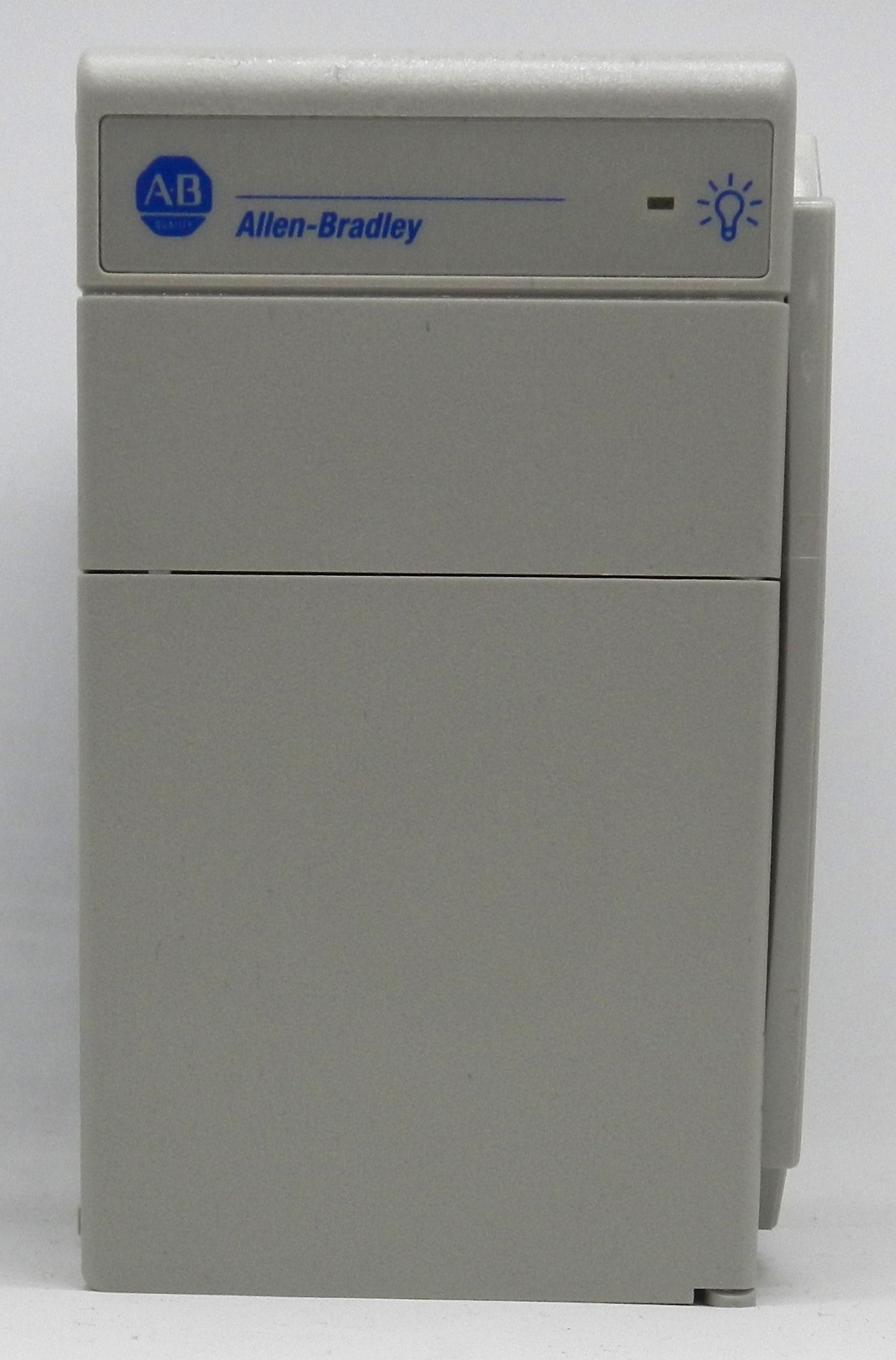

1769-PA2 Allen-Bradley CompactLogix AC Power Supply 120/240VAC Input 2A @ 5VDC

Description:

• Genuine Allen-Bradley CompactLogix AC power supply for Compact I/O and CompactLogix automation systems
• Accepts 85–265 VAC, 47–63 Hz input power for worldwide industrial applications
• Delivers 2A @ 5 VDC and 0.8A @ 24 VDC to power CompactLogix controllers and 1769 Compact I/O modules
• Designed for use with CompactLogix L3x and L3y controller platforms and 1769 expansion I/O systems
• Mounts directly to the 1769 Compact I/O assembly for a compact, modular installation
• Features built-in status LED for power diagnostics and reliable operation
• Supports panel or DIN rail mounting depending on the system configuration
• Rugged industrial design for manufacturing, machine automation, process control, OEM equipment, and material handling applications
• Lifecycle Status: Active Mature.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-PA2
• Product Series: CompactLogix / 1769 Compact I/O
• Product Type: AC Power Supply
• Input Voltage: 85–265 VAC
• Nominal Input Voltage: 120/240 VAC
• Input Frequency: 47–63 Hz
• Output Current:
  • 2 A @ 5 VDC
  • 0.8 A @ 24 VDC
• Mounting Type:
  • Panel Mount
  • DIN Rail Mount
• Status Indicator: Power LED
• Connection Cables: None Required
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Country of Origin: Malaysia
• Lifecycle Status: Active Mature
• Compatible With:
  • CompactLogix L3x Controllers
  • CompactLogix L3y Controllers
  • 1769 Compact I/O Modules
• Certifications:
  • UL Listed
  • UL Hazardous Location
  • UKCA
  • American Bureau of Shipping
  • Registro Italiano Navale
• Applications:
  • Industrial Automation
  • PLC Systems
  • Machine Control
  • OEM Equipment
  • Material Handling
  • Manufacturing
  • Process Control

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 70 mm (2.76 in)
• Depth: 87 mm (3.43 in)

Weight:

• Approximate Weight: 0.45 kg (0.99 lb).
