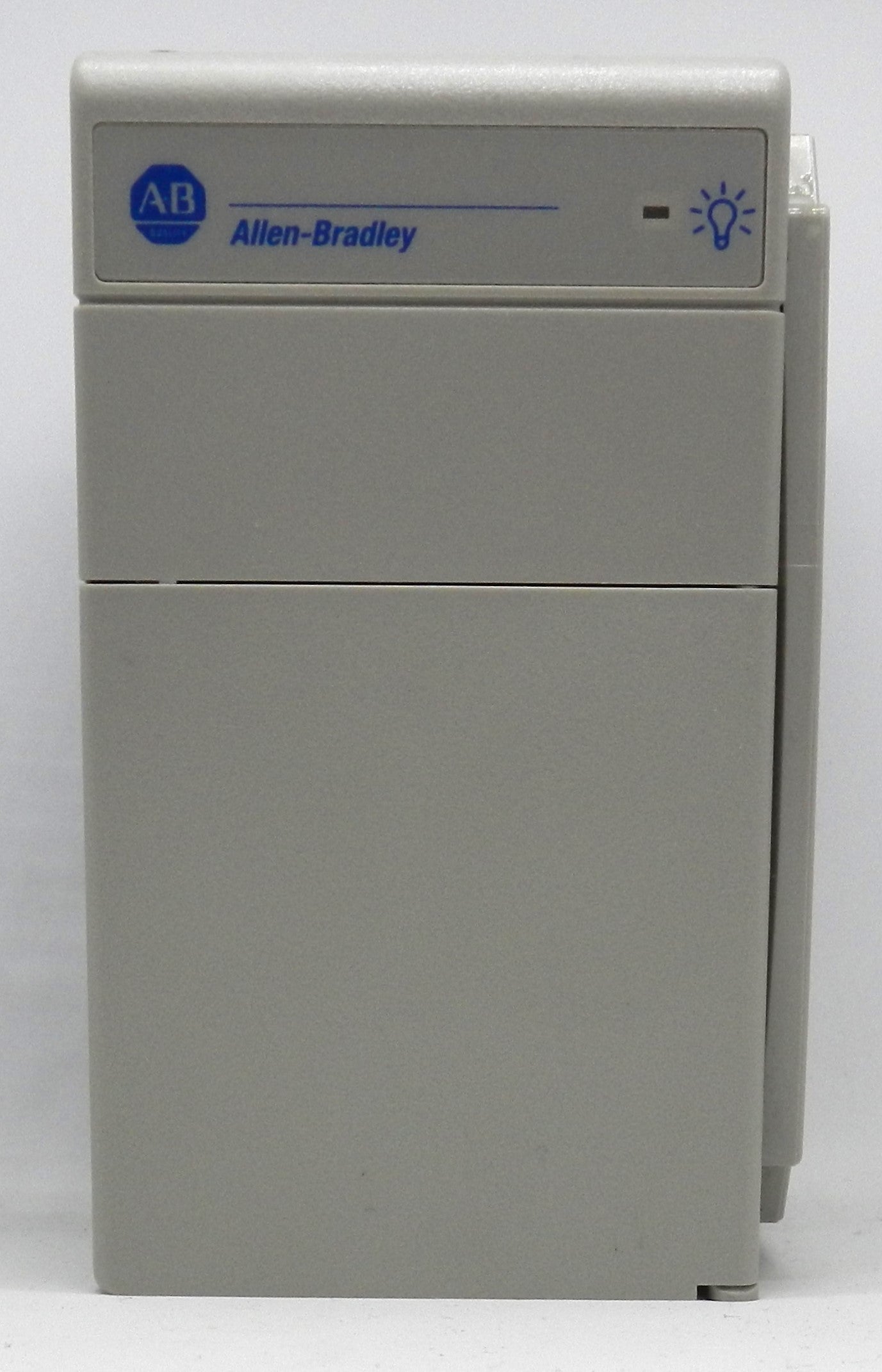

1769-PA4 Allen-Bradley CompactLogix AC Power Supply 120/240VAC Input 18W 4A/2A

Description:

• Genuine Allen-Bradley CompactLogix AC power supply for 1769 Compact I/O and CompactLogix L3x/L3y control systems
• Accepts 120/240 VAC nominal input with a selectable 85–265 VAC or 170–265 VAC input range
• Delivers 4.0A @ 5VDC and 2.0A @ 24VDC to power CompactLogix controllers and local I/O modules
• Provides 18W power dissipation for reliable operation in demanding industrial environments
• Designed for installation within 1769 Compact I/O banks and CompactLogix systems
• Supports up to 8 Compact I/O modules on each side of the power supply (subject to power budget and module distance ratings)
• Rugged industrial construction with built-in protection for dependable long-term operation
• Ideal for machine automation, OEM equipment, packaging systems, material handling, manufacturing, and process control
• Lifecycle Status: Active Mature.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-PA4
• Product Series: CompactLogix / 1769 Compact I/O
• Product Type: AC Power Supply
• Nominal Input Voltage: 120/220–240 VAC
• Input Voltage Range:
  • 85–265 VAC
  • 170–265 VAC (Selectable)
• Input Frequency: 47–63 Hz
• Output Current:
  • 4.0A @ 5VDC
  • 2.0A @ 24VDC
• Power Dissipation: 18 W
• Power Consumption:
  • 200 VA @ 120 VAC
  • 240 VA @ 240 VAC
• Isolation Voltage: 265V Continuous
• Mounting Type: Compact I/O Bank Mount
• Compatible Systems:
  • CompactLogix L3x Controllers
  • CompactLogix L3y Controllers
  • 1769 Compact I/O Modules
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Country of Origin: Malaysia
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
  • cULus
• Lifecycle Status: Active Mature.

Dimensions:

• Height: 118 mm (4.65 in)
• Standard CompactLogix power supply form factor.

Weight:

• Approximate Weight: 0.50 kg (1.10 lb).
