1769-SDN Allen-Bradley CompactLogix DeviceNet Scanner Communication Module 1-Channel Phoenix Connector

Description:

• Genuine Allen-Bradley CompactLogix DeviceNet scanner communication module for industrial automation and PLC networking
• Provides 1 DeviceNet communication channel for connecting CompactLogix controllers to DeviceNet I/O devices and intelligent field devices
• Supports up to 64 DeviceNet nodes on a single network
• Compatible with CompactLogix 1769 controllers and expansion I/O systems

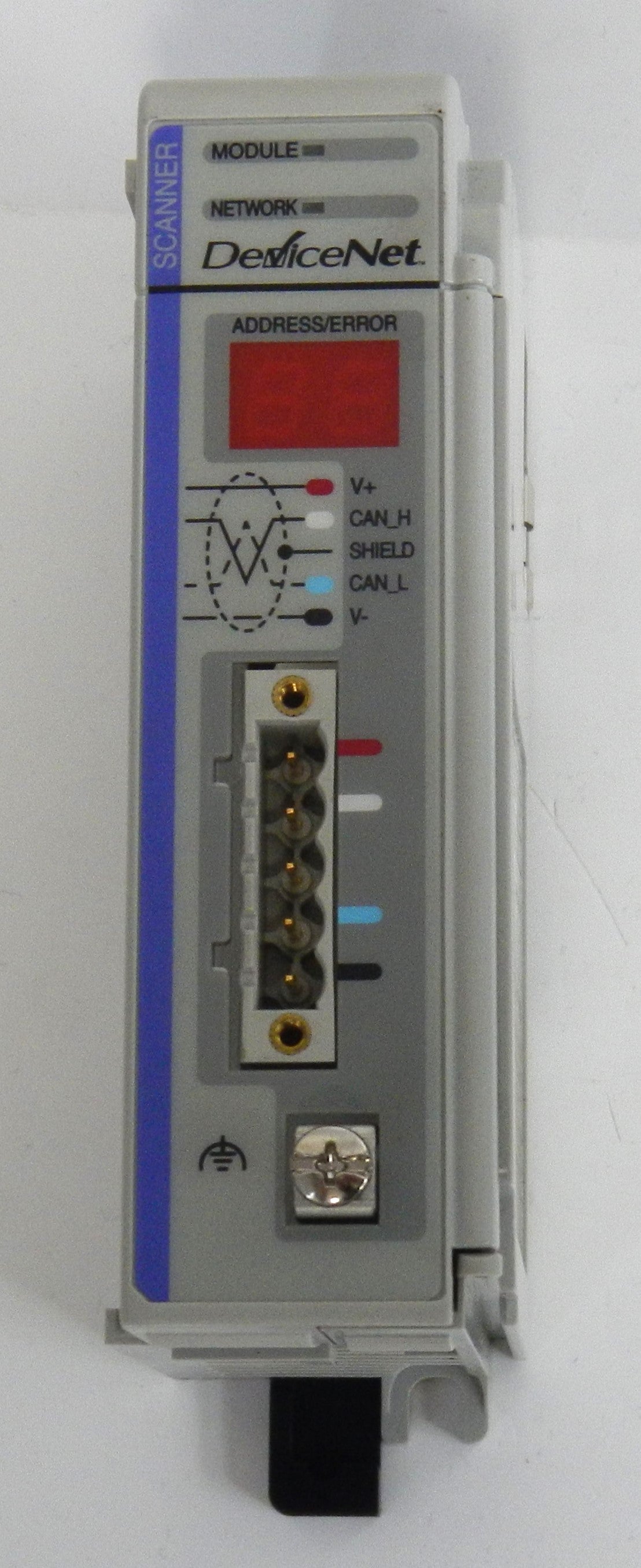

• Features a 5-pin open-style Phoenix DeviceNet connector for secure network wiring
• Supports DeviceNet communication speeds of 125 kbps, 250 kbps, and 500 kbps
• Uses the Common Industrial Protocol (CIP) for reliable control, configuration, and diagnostics
• DIN rail or panel mounting for flexible installation in industrial control panels
• Ideal for machine automation, process control, packaging equipment, material handling, manufacturing systems, and OEM machinery
• Discontinued by Rockwell Automation. Recommended engineering replacement: 1788-EN2DNR EtherNet/IP to DeviceNet Linking Device.

Specifications:

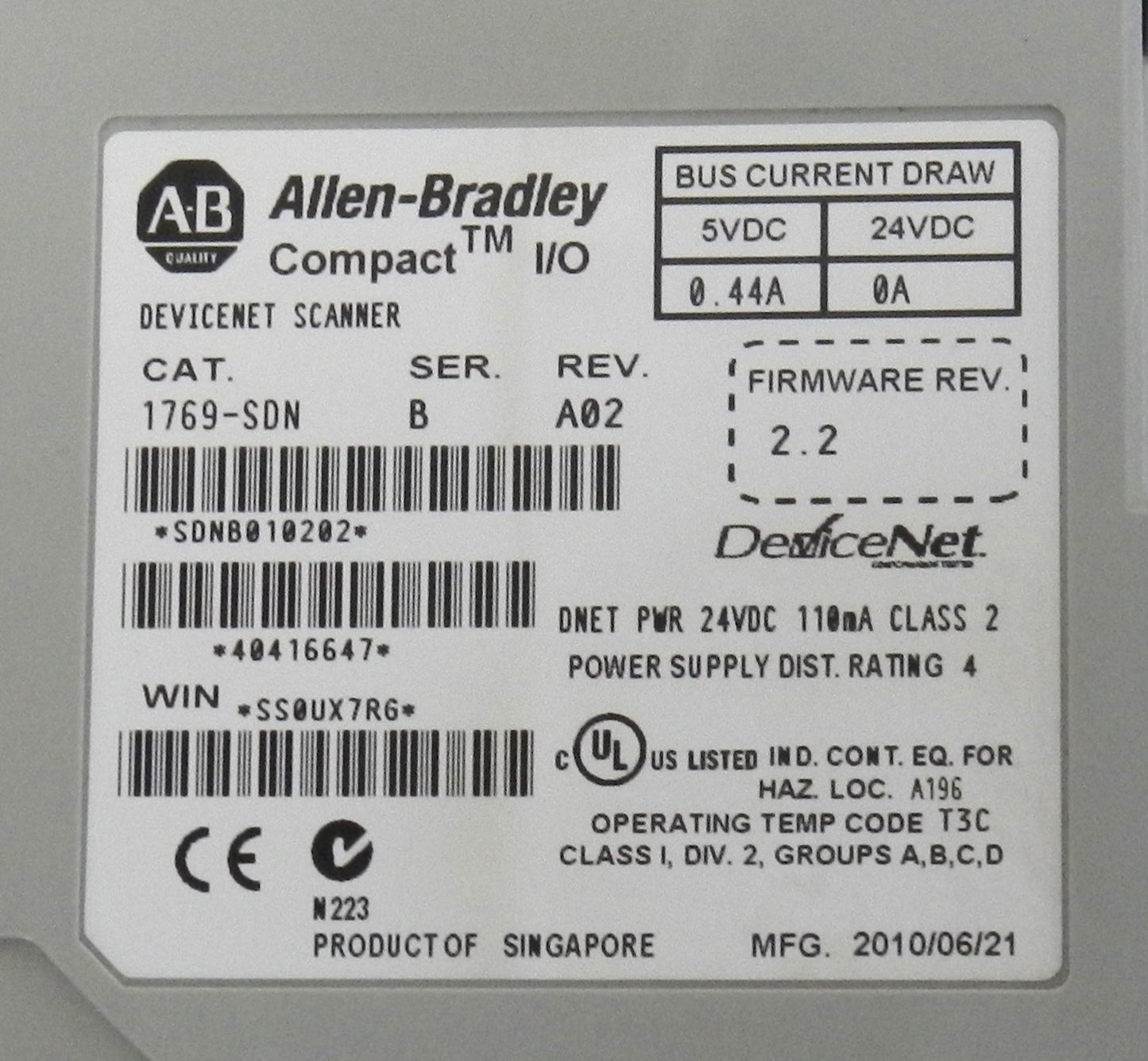

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-SDN
• Product Series: CompactLogix / Bulletin 1769
• Product Type: DeviceNet Scanner Communication Module
• Communication Protocol: DeviceNet
• Number of Channels: 1
• Connector Type: 5-Pin Phoenix (Open-Style Linear Plug)
• Maximum DeviceNet Nodes: 64
• Communication Speeds:
  • 125 kbps (500 m max)
  • 250 kbps (250 m max)
  • 500 kbps (100 m max)
• Backplane Current Draw: 440 mA @ 5.2 VDC
• DeviceNet Current Draw: 110 mA @ 24 VDC
• DeviceNet Supply Voltage: 11–25 VDC
• Power Dissipation: 4.7 W
• Isolation Voltage: 30V Continuous, DeviceNet to Backplane
• Mounting Type:
  • DIN Rail
  • Panel Mount
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 5–95% Non-Condensing
• Country of Origin: Singapore
• Certifications:
  • UL Listed
  • CE
  • CSA
  • Class I, Division 2
• Applications:
  • CompactLogix PLC Systems
  • DeviceNet Networks
  • Industrial Automation
  • Process Control
  • Material Handling
  • Packaging Equipment
  • OEM Machinery

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 50 mm (1.97 in)
• Depth: 87 mm (3.43 in)

Weight:

• Approximate Weight: 0.28 kg (0.61 lb).
