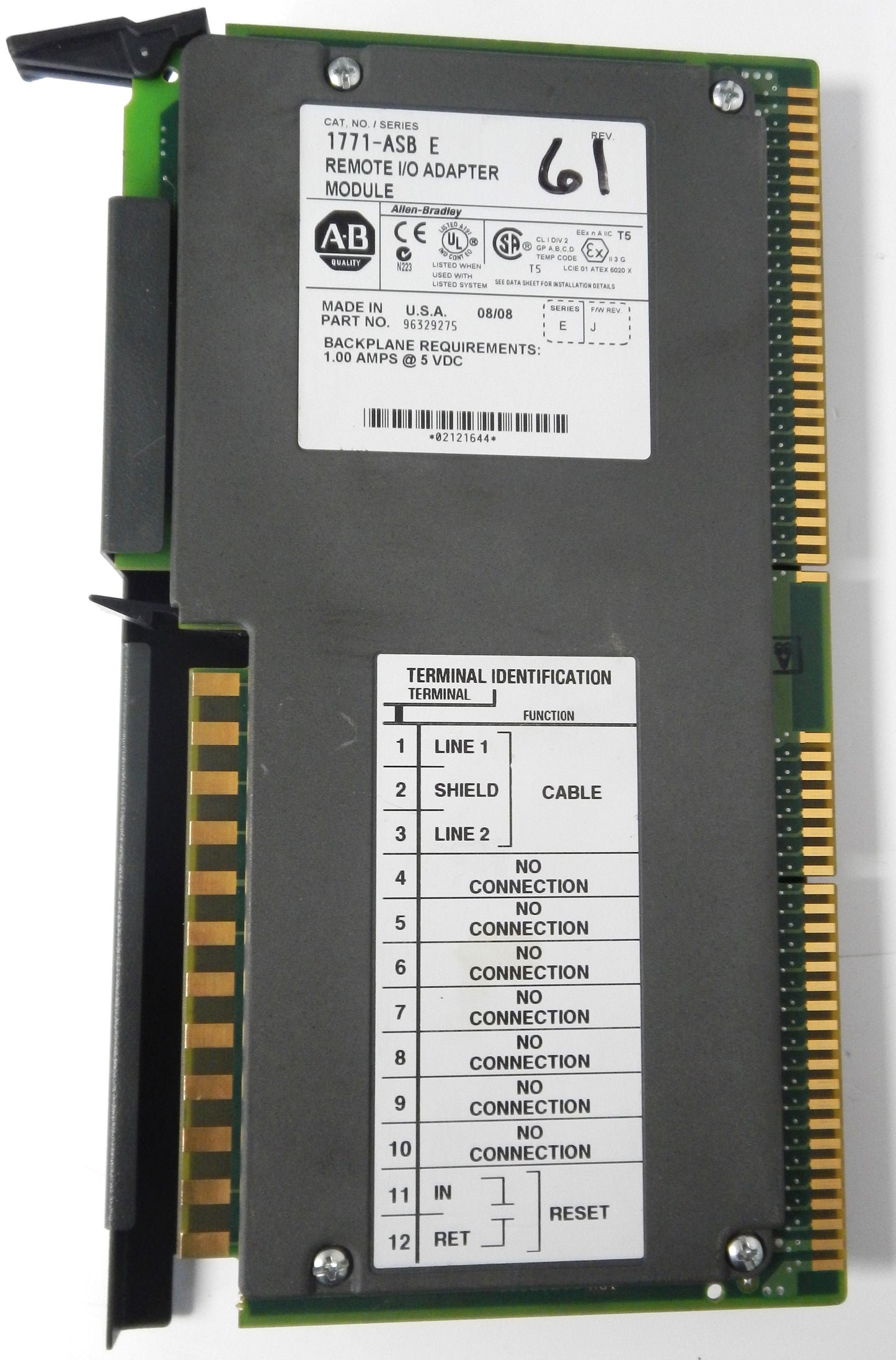

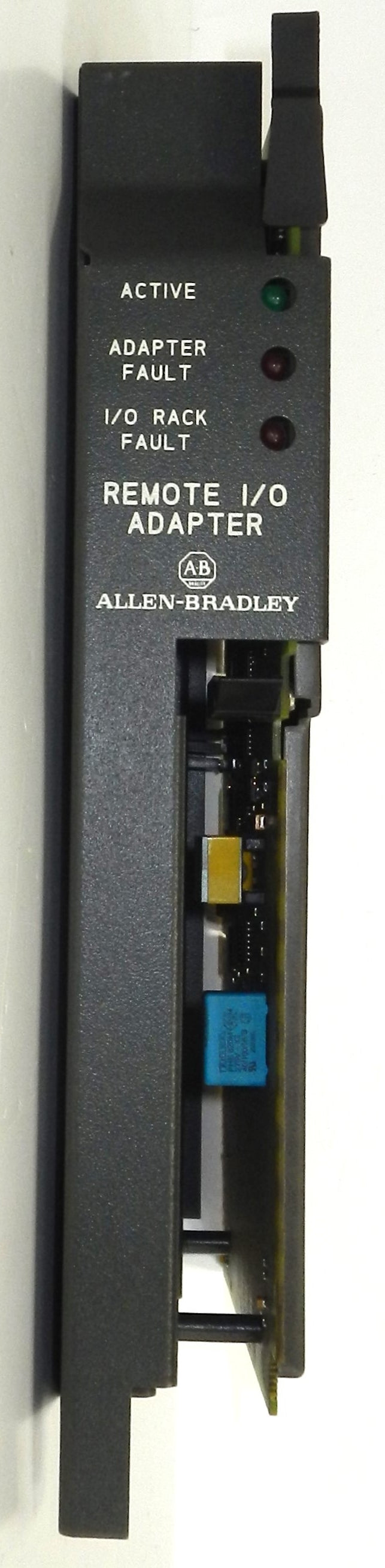

1771-ASB Allen-Bradley PLC-5 Remote I/O Adapter Module Universal Remote PLC

Description:

• Genuine Allen-Bradley PLC-5 Remote I/O Adapter Module for 1771 Universal I/O chassis
• Serves as the communication interface between 1771 I/O modules and PLC controllers over the Remote I/O (RIO) network
• Supports communication with PLC-2, PLC-3, and PLC-5 control systems
• Configurable for 57.6 kbps, 115.2 kbps, and 230.4 kbps Remote I/O communication rates
• Supports 1/2-slot, 1-slot, and 2-slot addressing for flexible I/O configuration
• Automatically verifies I/O module placement and chassis configuration during power-up
• Compatible with a wide range of 1771 Series digital, analog, and specialty I/O modules
• Designed for installation in 1771 Universal I/O chassis using the 1771-WB wiring arm (sold separately)
• Ideal for industrial automation, process control, manufacturing, material handling, and legacy PLC system maintenance
• Discontinued by Rockwell Automation; commonly used for maintaining and expanding legacy PLC-5 and PLC-2/3 systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1771-ASB
• Product Series: PLC-5 / 1771 I/O
• Product Type: Remote I/O Adapter Module
• Communication Interface: Universal Remote I/O (RIO)
• Compatible Controllers:
  • PLC-2
  • PLC-3
  • PLC-5
• Compatible Chassis: 1771 Universal I/O Chassis
• Communication Rates:
  • 57.6 kbps
  • 115.2 kbps
  • 230.4 kbps
• Supported Addressing:
  • 1/2 Slot
  • 1 Slot
  • 2 Slot
• Backplane Current Consumption: 1.0 A @ 5 VDC
• Wiring Arm: 1771-WB
• Connection Cable: Belden 9463
• Mounting Type: Rack Mount
• Terminal Style: Screw Terminals
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Country of Origin: Mexico
• Lifecycle Status: Discontinued

Dimensions:

• Height: 165 mm (6.5 in)
• Width: 89 mm (3.5 in)
• Depth: 51 mm (2.0 in).

Weight:

• Approximate Weight: 0.90 kg (1.90 lb).
