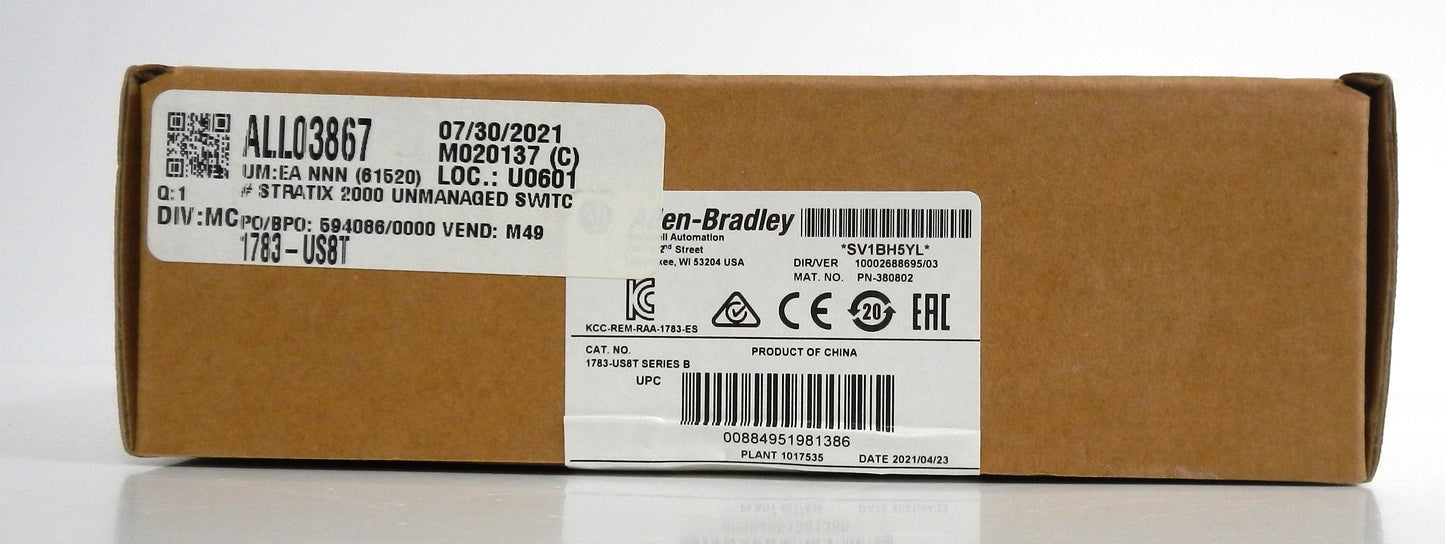

1783-US8T Allen-Bradley Stratix 2000 Unmanaged Ethernet Switch 8-Port 10/100 RJ45 DIN Rail 24VDC

Description:

• Genuine Allen-Bradley Stratix 2000 unmanaged industrial Ethernet switch for machine and factory automation networks
• Features 8 Fast Ethernet RJ45 ports supporting 10/100 Mbps auto-negotiating communication
• Plug-and-play unmanaged switch requires no configuration, simplifying installation and commissioning
• Operates on 12–48 VDC or 18–30 VAC (50/60 Hz) power for flexible industrial applications
• Supports Auto MDI/MDI-X, eliminating the need for crossover cables
• Compact DIN rail mount design fits easily into industrial control panels
• Rugged IP20 enclosure designed for industrial environments
• Ideal for connecting PLCs, HMIs, VFDs, industrial PCs, I/O modules, and other Ethernet/IP devices
• Discontinued by Rockwell Automation; recommended functional replacement is 1783-USP8T (Stratix 2100).

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1783-US8T
• Product Series: Stratix 2000
• Product Type: Unmanaged Industrial Ethernet Switch
• Number of Ports: 8
• Port Type: RJ45 Copper
• Data Rate: 10/100 Mbps Fast Ethernet
• Switch Type: Unmanaged
• Auto MDI/MDI-X: Yes
• Power Supply:
  • 12–48 VDC
  • 18–30 VAC, 50/60 Hz
• Nominal Voltage: 24 VAC/DC
• Power Consumption: 4.6 W
• Maximum Inrush Current: 1.31 A
• Mounting Type: DIN Rail
• Protection Rating: IP20
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Country of Origin: China
• Certifications: CCC, UL, CE
• Applications:
  • Industrial Ethernet Networks
  • PLC Systems
  • HMI Communication
  • Machine Automation
  • Process Control
  • Manufacturing Systems
  • Industrial Control Panels

Dimensions:

• Height: 114.5 mm (4.51 in)
• Width: 76.8 mm (3.02 in)
• Depth: 29.6 mm (1.17 in)

Weight:

• Approximate Weight: 0.73 kg (1.61 lb).
