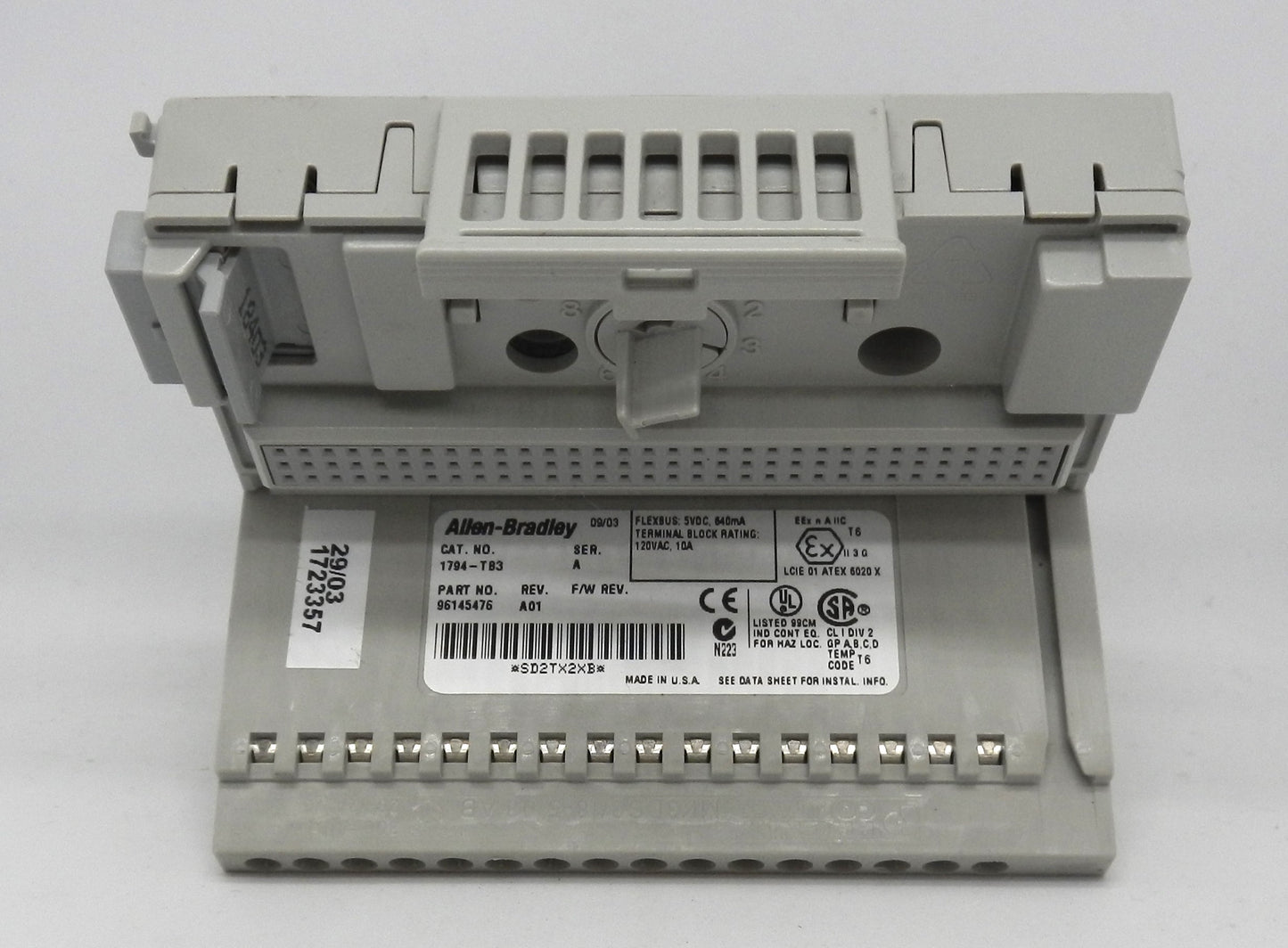

1794-TB3 Allen-Bradley FLEX I/O 3-Wire Terminal Base Unit Screw Clamp 16-Point

Description:

• Genuine Allen-Bradley FLEX I/O terminal base unit for industrial automation and PLC applications
• Designed to provide field wiring connections for compatible 1794 FLEX I/O modules
• 3-wire terminal base with screw-clamp terminals for secure and reliable wiring

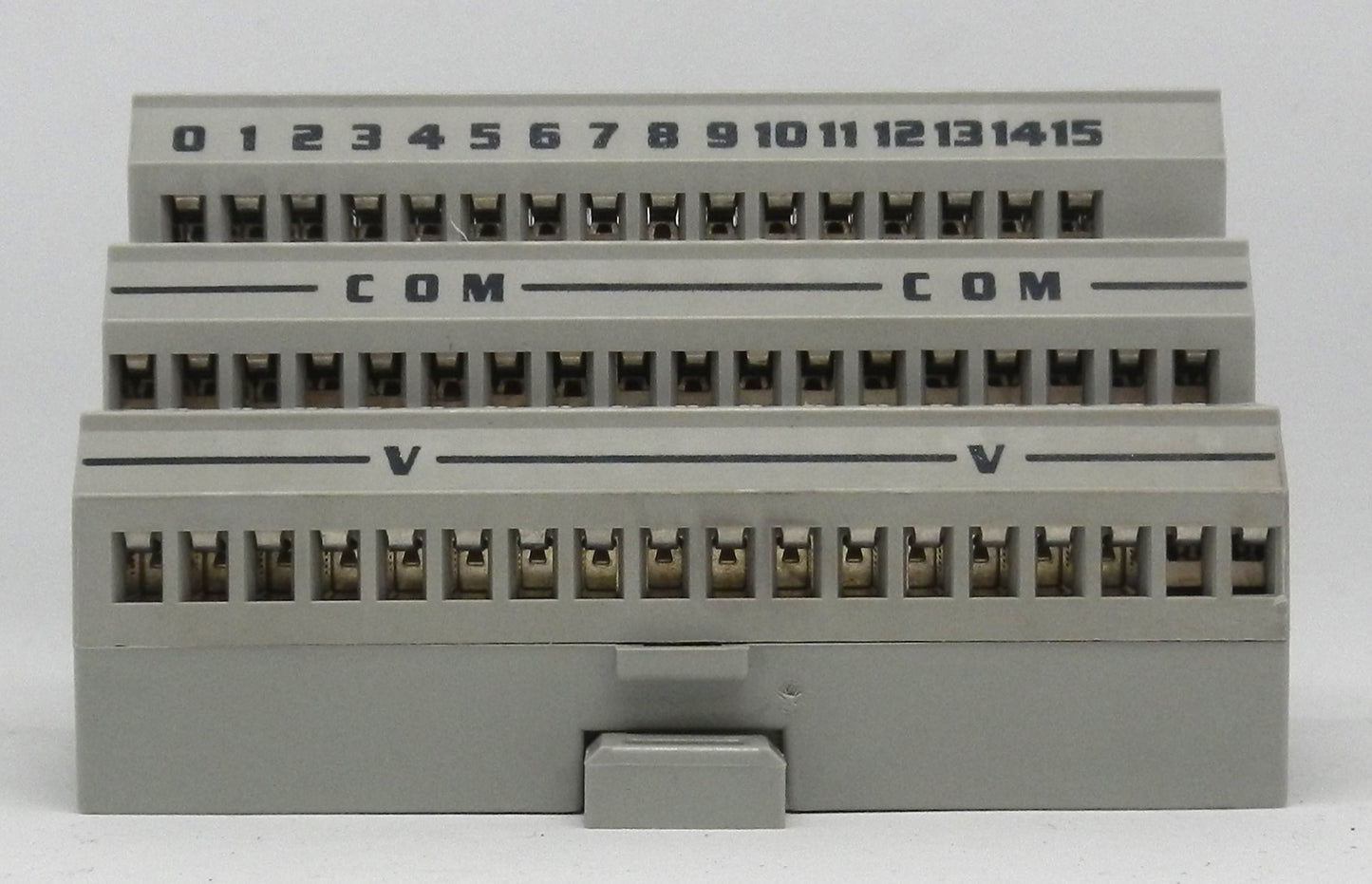

• Features 16 I/O terminals, 18 common terminals, and 18 voltage terminals for flexible field device connections
• Terminal base snaps onto a 35 mm DIN rail and plugs together with adjacent FLEX I/O bases to form the system backplane
• Accepts removable FLEX I/O modules for easy installation and maintenance
• Compatible with a wide range of Allen-Bradley 1794 FLEX I/O digital and analog modules
• Ideal for industrial automation, machine control, process control, OEM equipment, and distributed I/O systems
• Lifecycle Status: Active Mature.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1794-TB3
• Product Series: FLEX I/O
• Product Type: Terminal Base Unit
• Terminal Configuration: 3-Wire
• Terminal Style: Screw Clamp
• Number of I/O Terminals: 16
• Number of Common Terminals: 18
• Number of Voltage Terminals: 18
• Maximum Current Rating: 10 A
• Maximum Voltage Rating: 132 VAC / 125 VDC
• Isolation Voltage: 125V Continuous
• Mounting Type: 35 mm DIN Rail
• Wire Size: 0.34–3.3 mm² (22–12 AWG)
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Country of Origin: Singapore
• Lifecycle Status: Active Mature
• Applications:
  • FLEX I/O Systems
  • Distributed I/O
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • OEM Equipment

Dimensions:

• Height: 94 mm (3.70 in)
• Width: 94 mm (3.70 in)
• Depth: 69 mm (2.72 in).

Weight:

• Approximate Weight: 0.23 kg (0.51 lb).
