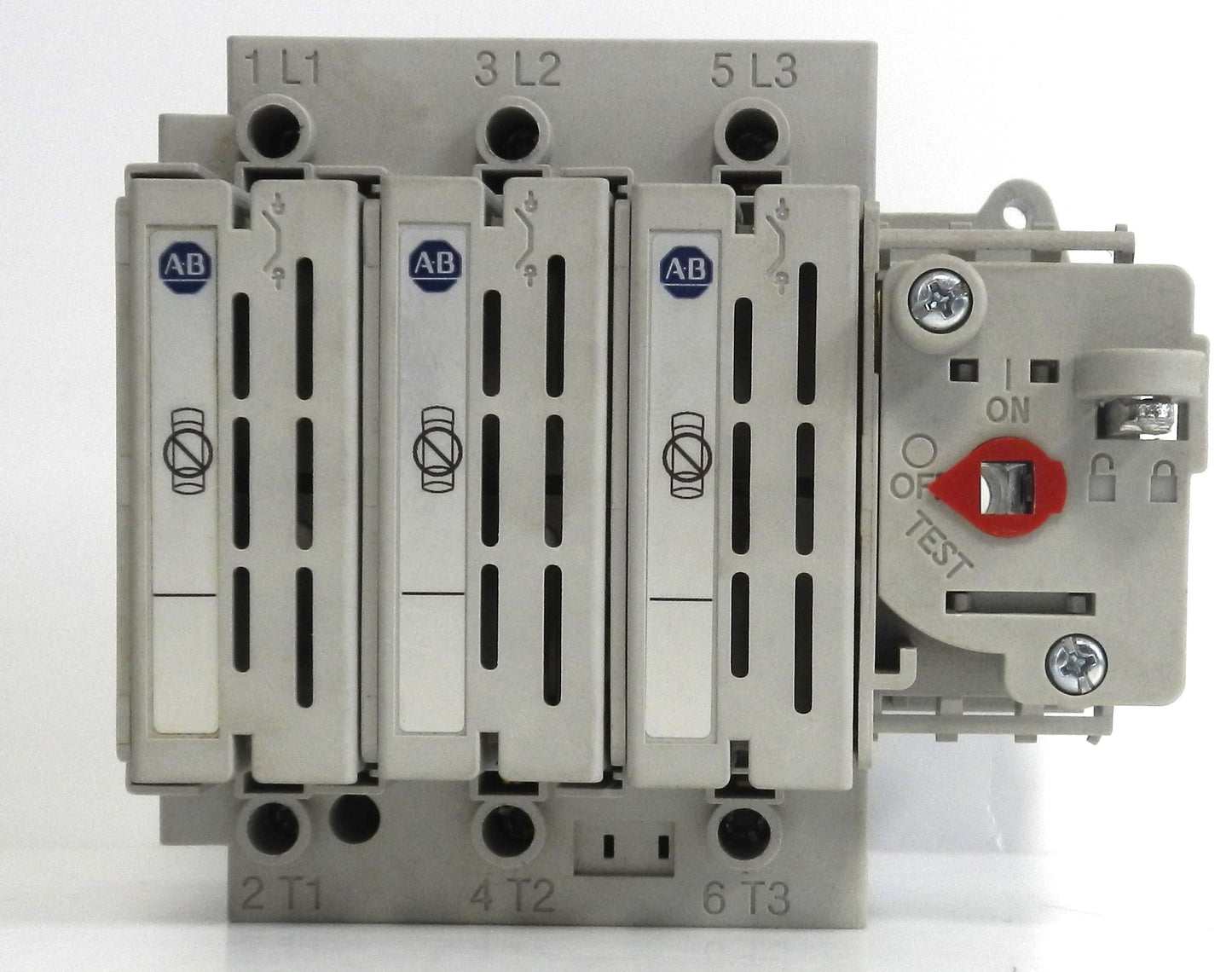

194RN301753 Allen-Bradley 30A 3-Pole Non-Fused Rotary Disconnect Switch 600VAC UL 194R

Description:

• Genuine Allen-Bradley Bulletin 194R non-fused rotary disconnect switch for industrial power isolation and safety applications
• Provides 30 Amp, 3-pole load break switching for AC power circuits
• Rated for 600 VAC operation and suitable for industrial disconnect and isolation applications
• Designed as a UL 508 at-motor disconnect switch and UL 98 service entrance disconnect switch
• Features a long rotary operating handle for safe manual operation
• Heavy-duty switch construction ensures reliable load isolation in demanding industrial environments
• Screw terminal connections provide secure field wiring
• Suitable for motor control panels, machinery, industrial automation systems, OEM equipment, and electrical distribution panels
• Compatible with a wide range of Bulletin 194R accessories including external handles, shafts, auxiliary contacts, and door interlock kits
• Open-style IP20 device intended for installation inside an appropriate enclosure.

Specifications:

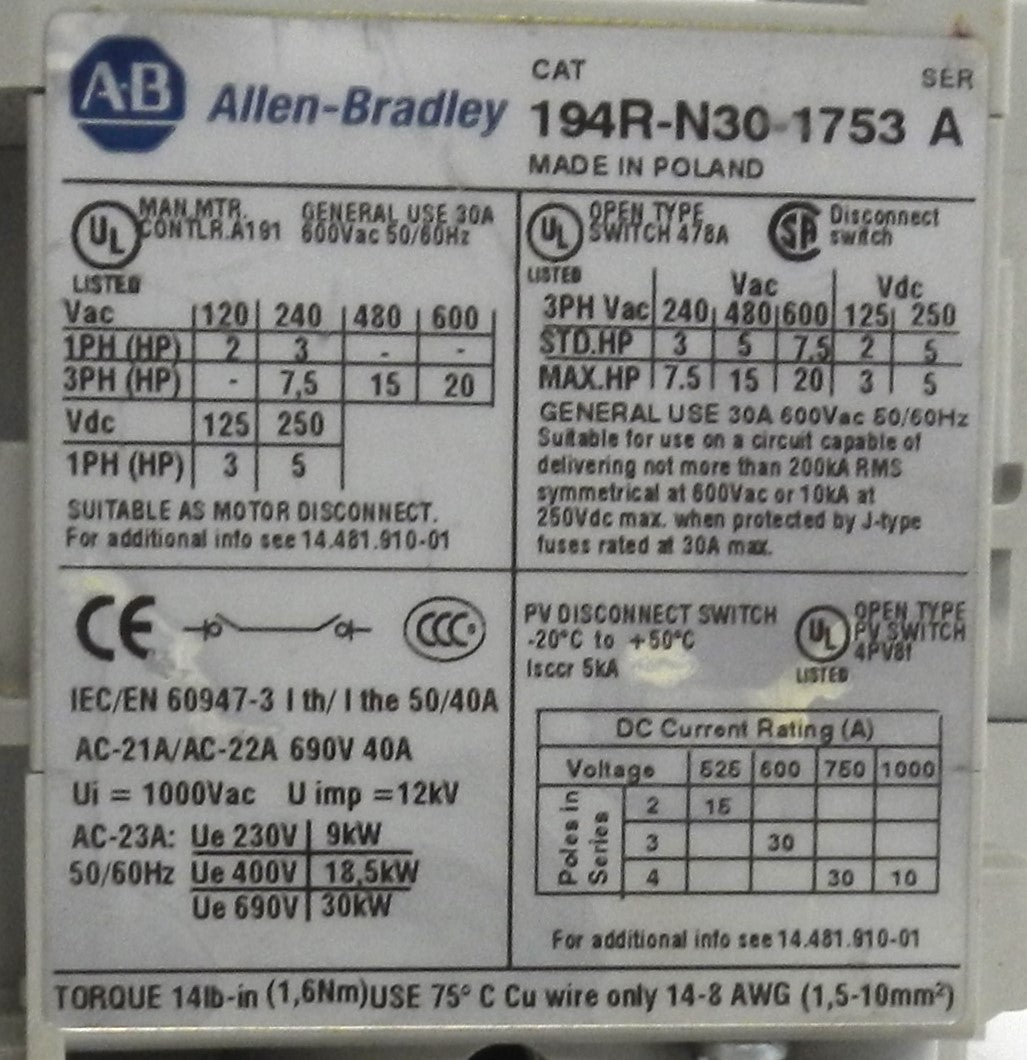

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 194RN301753
• Catalog Number: 194R-N30-1753
• Product Series: Bulletin 194R
• Product Type: Non-Fused Rotary Disconnect Switch
• Rated Current (Iu): 30 A
• Number of Poles: 3
• Rated Voltage: 600 VAC
• Fuse Type: Non-Fused
• Switching Type: Load Break Switch
• Main Circuit Connection: Screw Terminals
• Operating Handle: Long Rotary Handle
• Degree of Protection (Front): IP20
• Mounting: Panel Mount
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +65°C
• Relative Humidity: 5–95% Non-Condensing
• Conductor Size: 2.5–10 mm²
• Standards:
  • UL 508
  • UL 98
  • CSA C22.2 No. 14
  • IEC 60947-3
  • CE
• Applications:
  • Industrial Control Panels
  • Motor Disconnect
  • Machine Isolation
  • OEM Equipment
  • Industrial Automation
  • Electrical Distribution

Dimensions:

• Height: 248 mm (9.76 in)
• Width: 197 mm (7.76 in)
• Depth: 111 mm (4.37 in).

Weight:

• Approximate Weight: 0.81 kg (1.79 lb).
