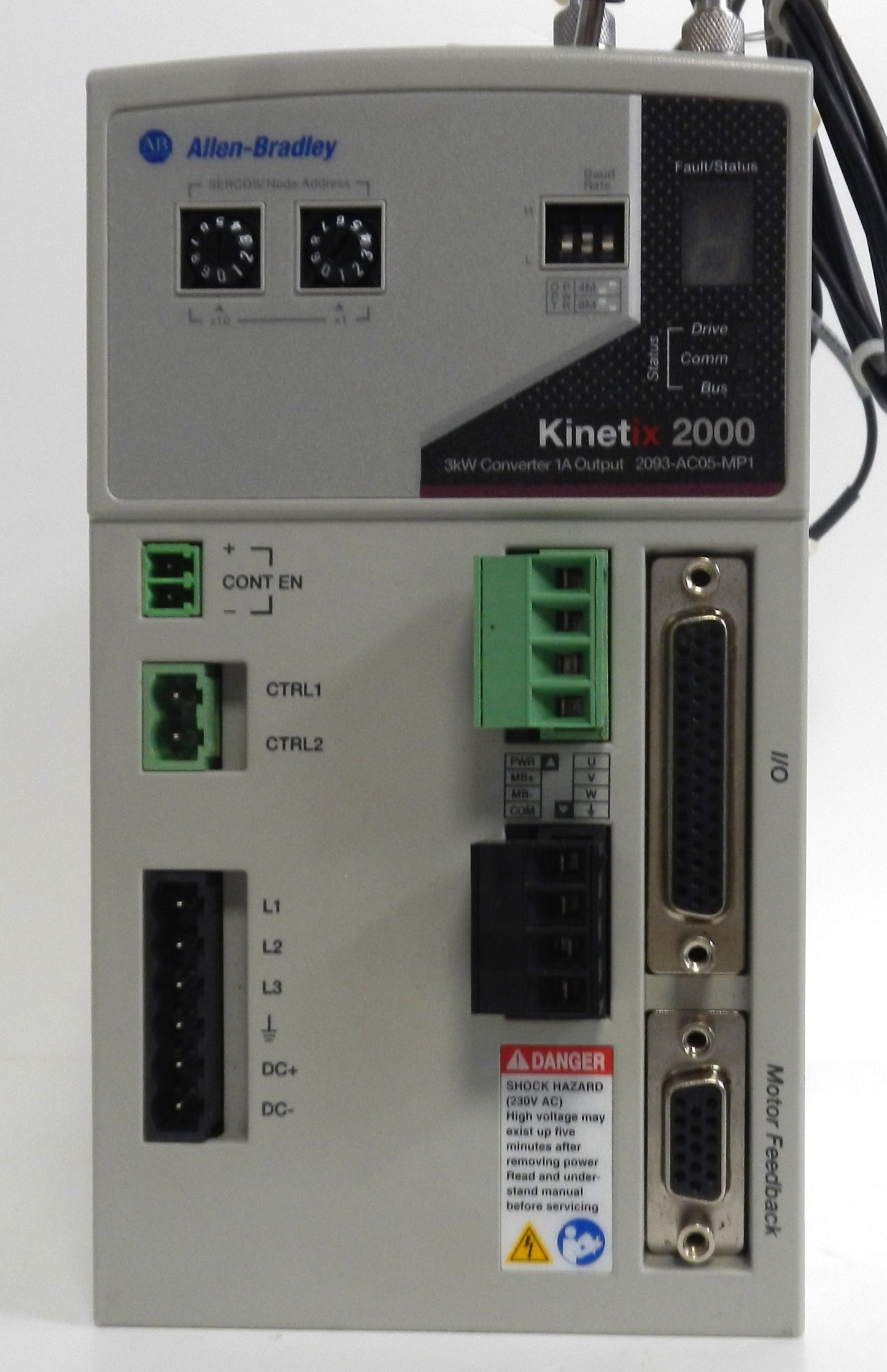

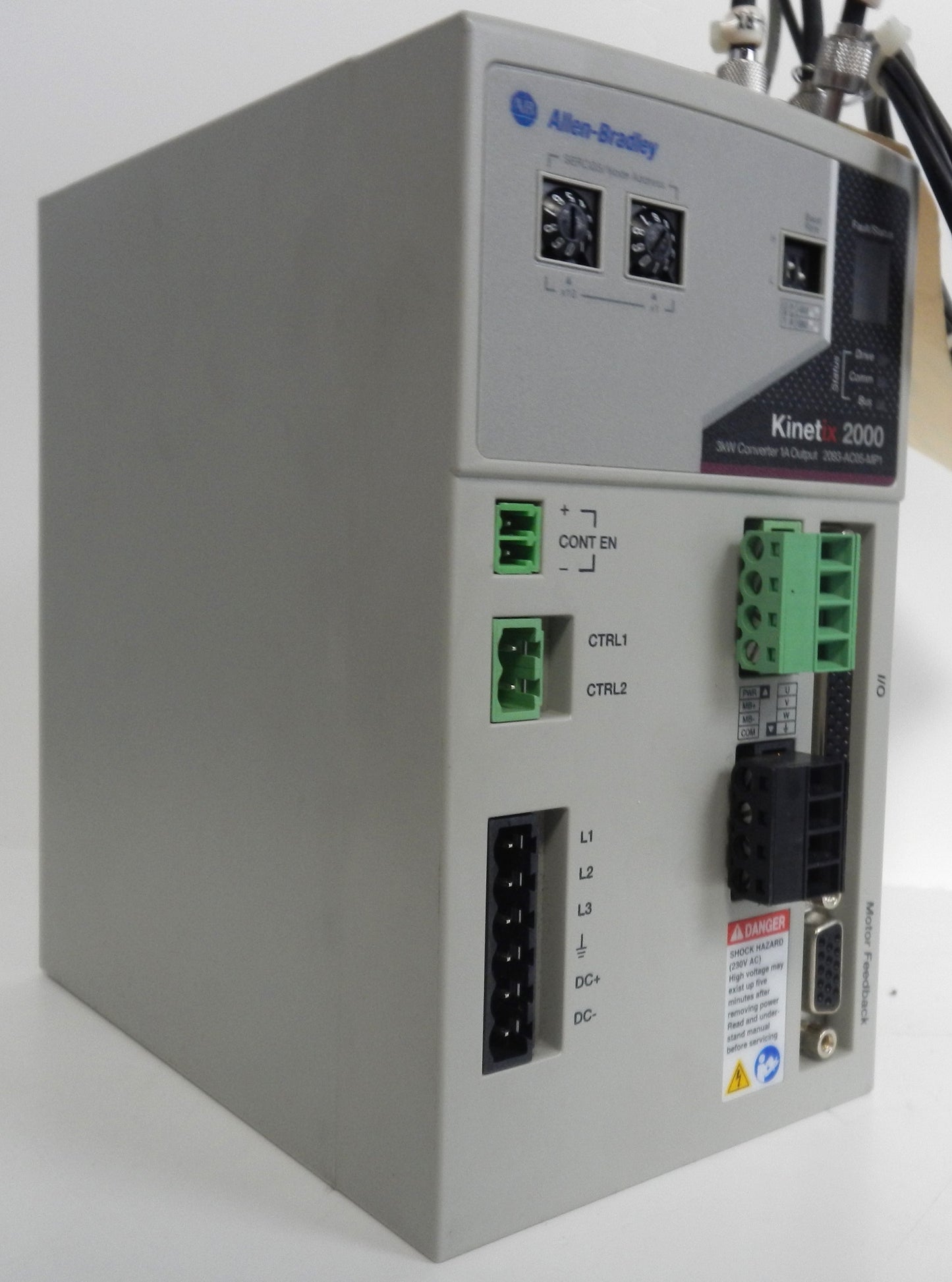

2093-AC05-MP1 Allen-Bradley Kinetix 2000 Integrated Axis Module 230VAC 0.3kW Servo Drive

Description:

• Genuine Allen-Bradley Kinetix 2000 integrated axis module for high-performance servo motion control applications
• Delivers 0.3 kW continuous output power for precise single-axis motion control
• Operates from 170–264 VAC, 1-phase or 3-phase, 50/60 Hz input power
• Integrated inverter and motion control architecture reduce wiring complexity and panel space
• Designed for use with the Kinetix 2000 multi-axis servo drive system
• Supports Smart Motor Technology (SMT) for automatic motor recognition and simplified commissioning
• Uses the Kinetix Power Rail system to reduce installation time and minimize wiring requirements
• Seamlessly integrates with ControlLogix and RSLogix 5000 / Studio 5000 motion control platforms
• Ideal for packaging equipment, robotics, material handling, converting machinery, printing, and OEM automation systems
• Discontinued by Rockwell Automation. Recommended engineering replacement: 2198-C1004-ERS.

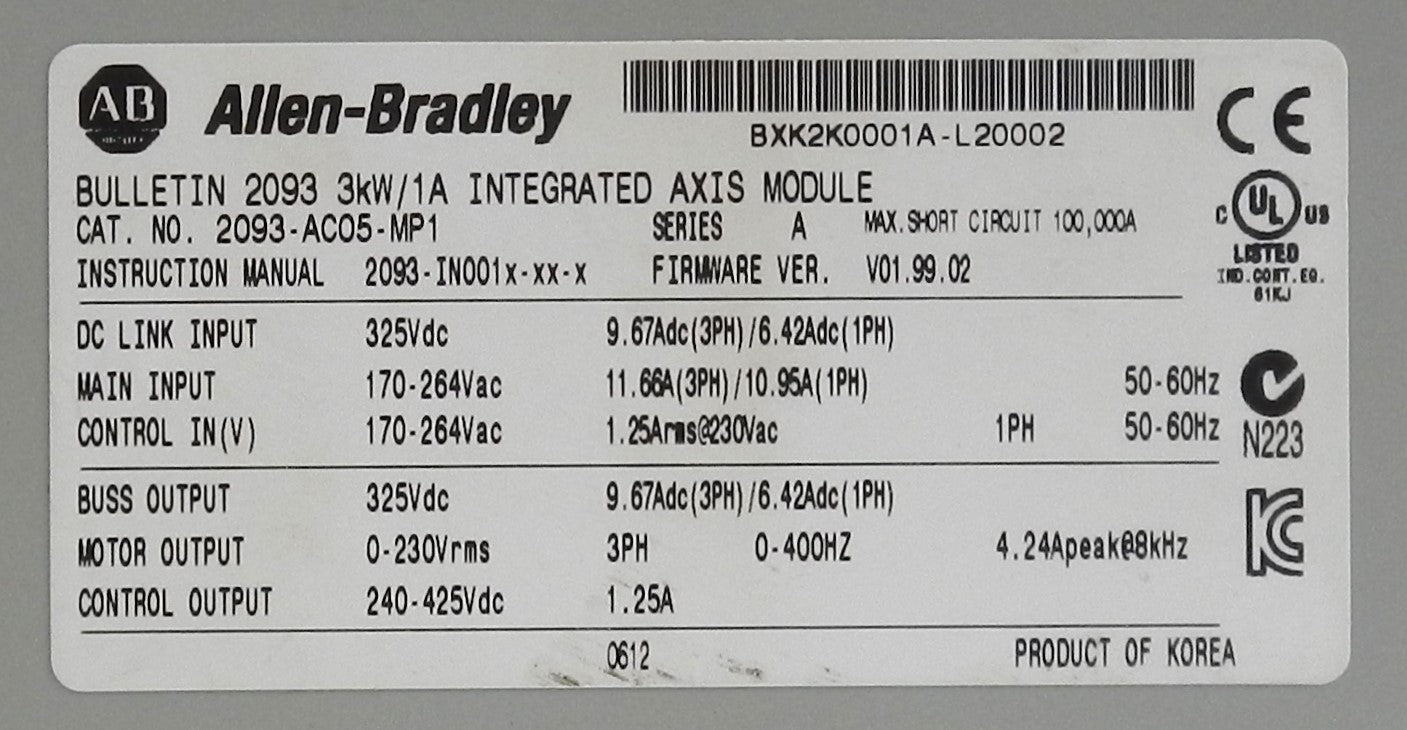

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 2093-AC05-MP1
• Product Series: Kinetix 2000
• Product Type: Integrated Axis Module (IAM)
• Continuous Output Power: 0.3 kW
• Continuous Bus Power: 3.0 kW
• Nominal Input Voltage:
  • 170–264 VAC
  • 1-Phase or 3-Phase
• Input Frequency: 50/60 Hz
• Nominal AC Input Current:
  • 10.95 A (1-Phase)
  • 11.66 A (3-Phase)
• DC Bus Voltage: 325 VDC
• Continuous Output Current: 1.0 A RMS
• Peak Output Current: 3.0 A RMS
• PWM Switching Frequency: 8 kHz
• Efficiency: 98%
• Mounting Type: Kinetix 2000 Power Rail
• Country of Origin: Republic of Korea
• Lifecycle Status: Discontinued
• Recommended Replacement: 2198-C1004-ERS
• Applications:
  • Servo Motion Control
  • Robotics
  • Packaging Machinery
  • Material Handling
  • CNC Equipment
  • Printing Equipment
  • Industrial Automation
  • OEM Machinery

Dimensions:

• Compact Kinetix 2000 integrated axis module designed for installation on the Kinetix Power Rail system.
• Modular design minimizes panel space and simplifies wiring.

Weight:

• Approximate Weight: 1.36 kg (3.0 lb).
