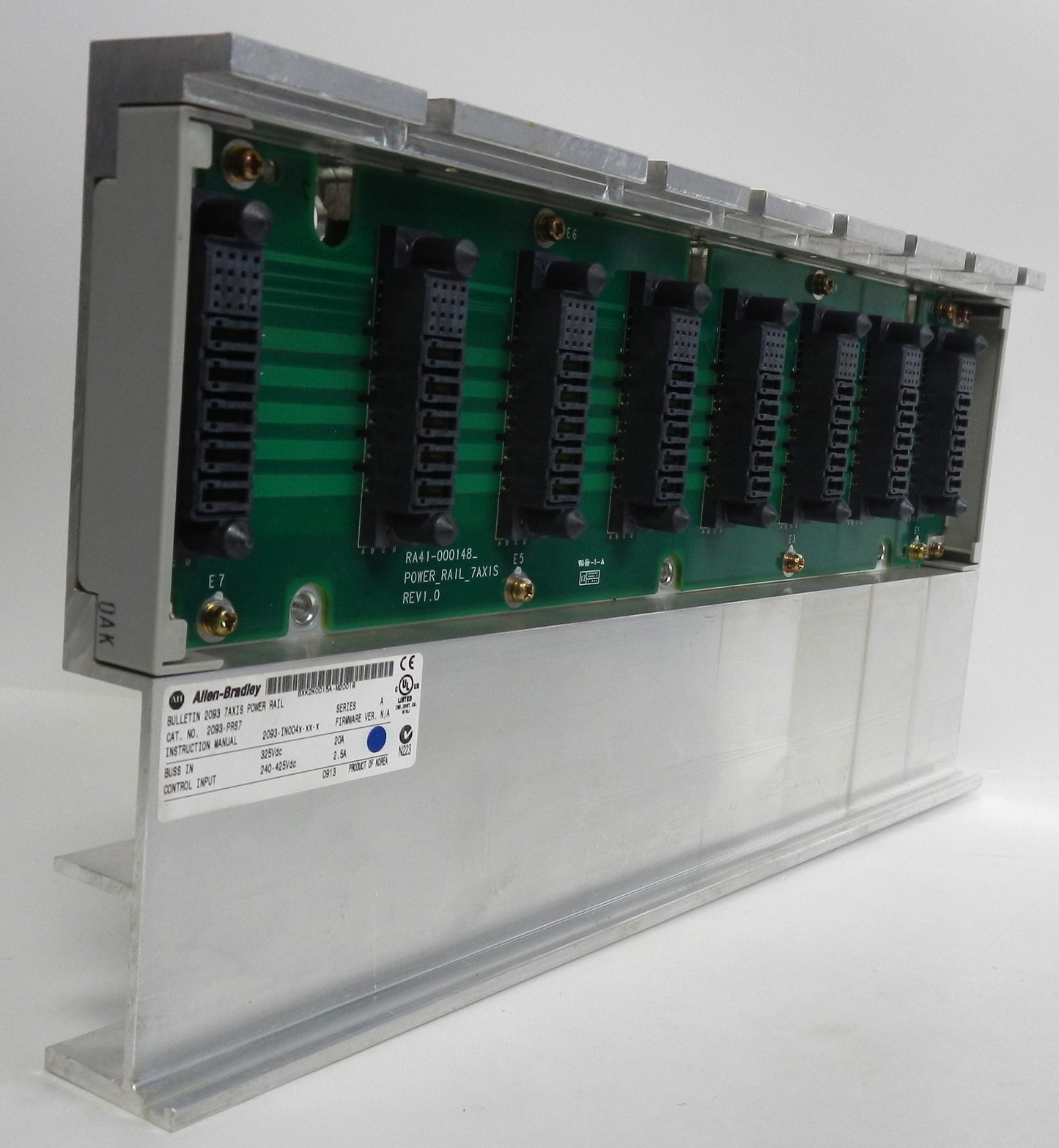

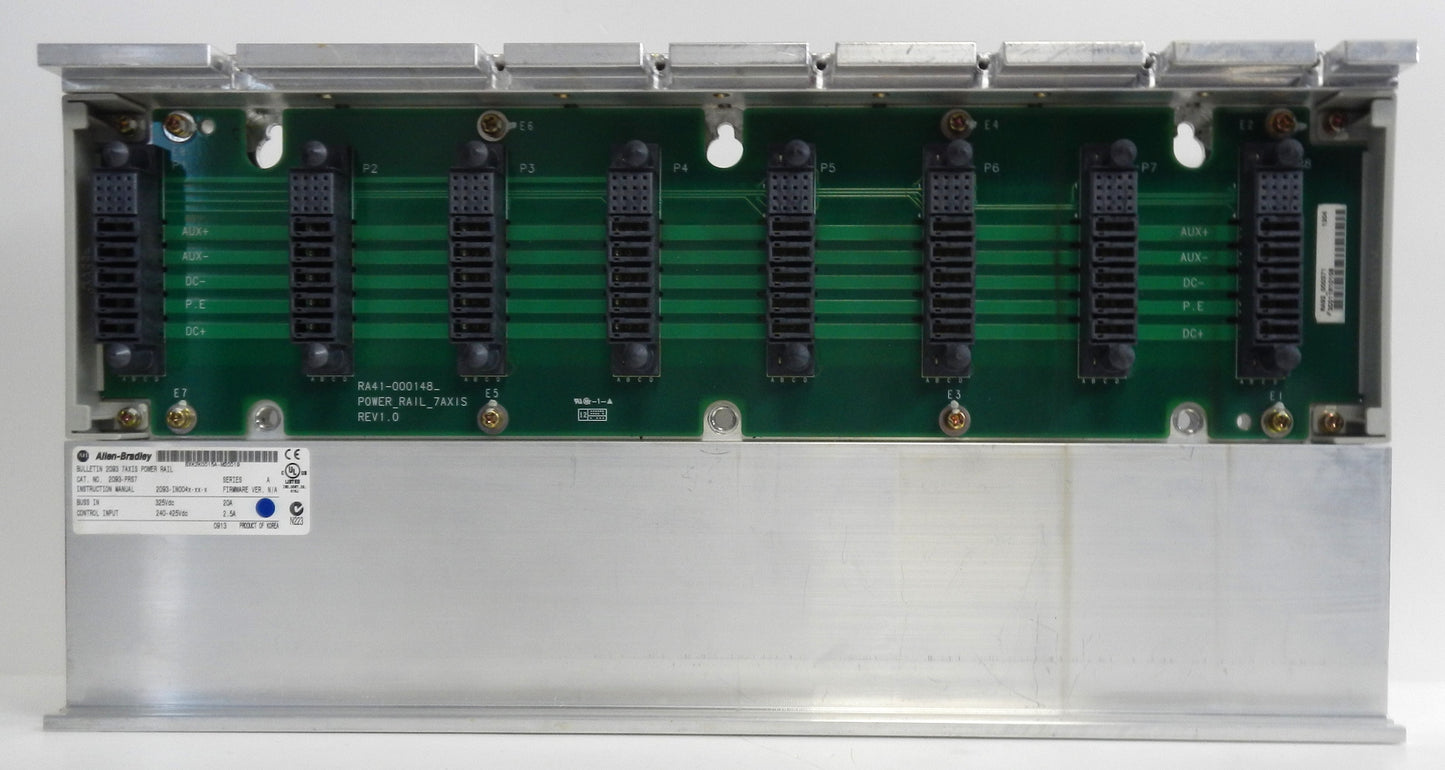

2093-PRS7 Allen-Bradley Kinetix 2000 7-Axis Slim Power Rail 240-425VDC 2.5A

Description:

• Genuine Allen-Bradley Kinetix 2000 slim power rail for multi-axis servo drive systems
• Designed to support one Integrated Axis Module (IAM) and up to six Axis Modules (AM) for a total 7-axis Kinetix 2000 configuration
• Rated for 240–425 VDC shared DC bus applications
• Supports 2.5A continuous current for Kinetix 2000 servo systems
• Extruded aluminum construction provides excellent mechanical strength and heat dissipation
• Integrated grounding path simplifies installation and improves system reliability
• DIN rail mounting design enables fast installation inside industrial control panels
• Compatible with Allen-Bradley Kinetix 2000 Integrated Axis Modules (IAMs) and Axis Modules (AMs)
• Ideal for robotics, packaging machinery, CNC equipment, material handling systems, and industrial motion control
• Discontinued by Rockwell Automation as of December 31, 2022 with repair options available.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 2093-PRS7
• Product Series: Kinetix 2000
• Product Type: Slim Power Rail
• Axis Capacity: 7 Axes
• Compatible Modules:
  • One Integrated Axis Module (IAM)
  • Up to Six Axis Modules (AM)
• DC Bus Voltage: 240–425 VDC
• Continuous Current Rating: 2.5 A
• Mounting Type: DIN Rail
• Construction: Extruded Aluminum
• Grounding: Integrated Ground Path
• Supports:
  • One 2093-ASP06 Shunt Module
  • 2090-K2KSCLAMP-4 Cable Clamp
• Enclosure Type: Open Style
• Operating Temperature: 0°C to +50°C
• Relative Humidity: 5–95% Non-Condensing
• Lifecycle Status: Discontinued
• Applications:
  • Kinetix 2000 Servo Systems
  • Motion Control
  • Robotics
  • Packaging Equipment
  • Material Handling
  • CNC Machinery
  • OEM Automation Systems

Dimensions:

• Length: 165 mm (6.5 in)
• Width: 33 mm (1.3 in)
• Height: 25 mm (1.0 in)

Weight:

• Approximate Weight: 1.08 kg (2.38 lb).
