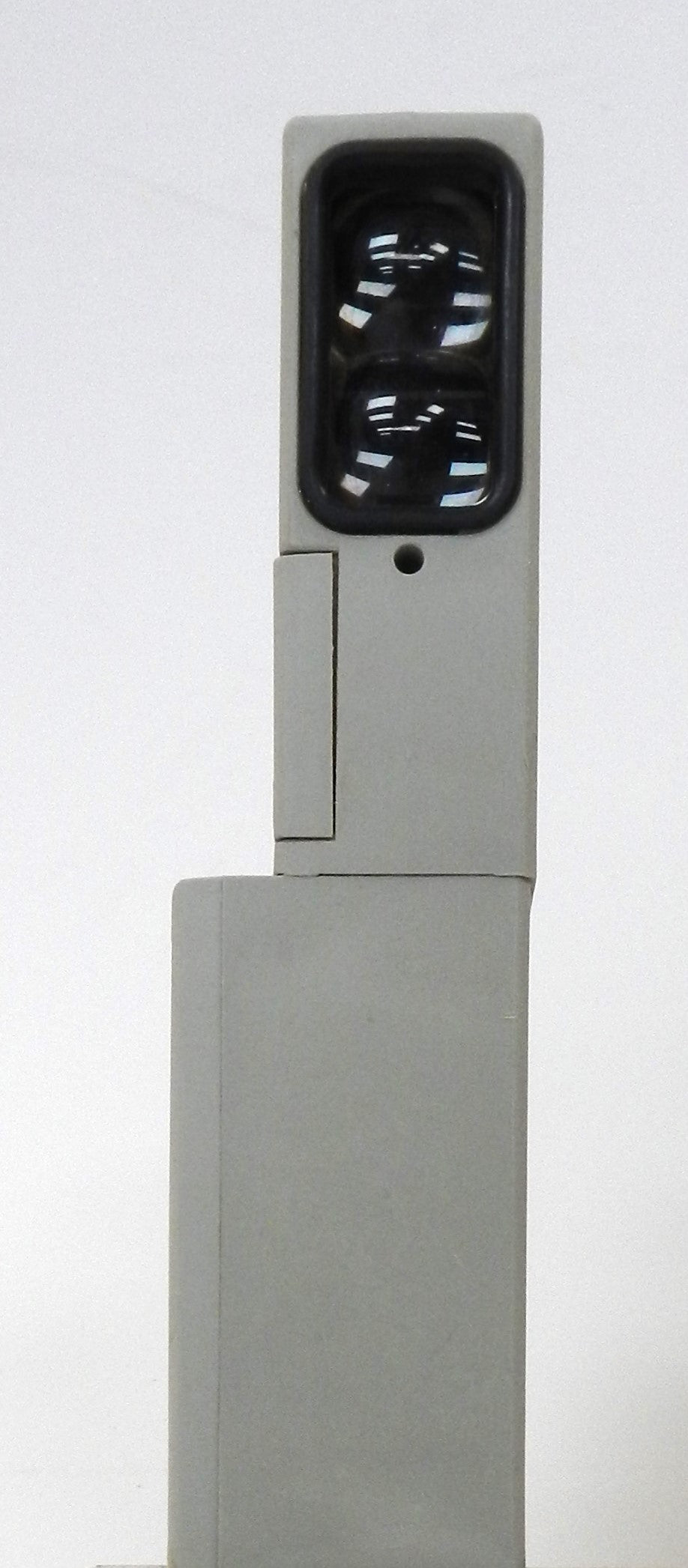

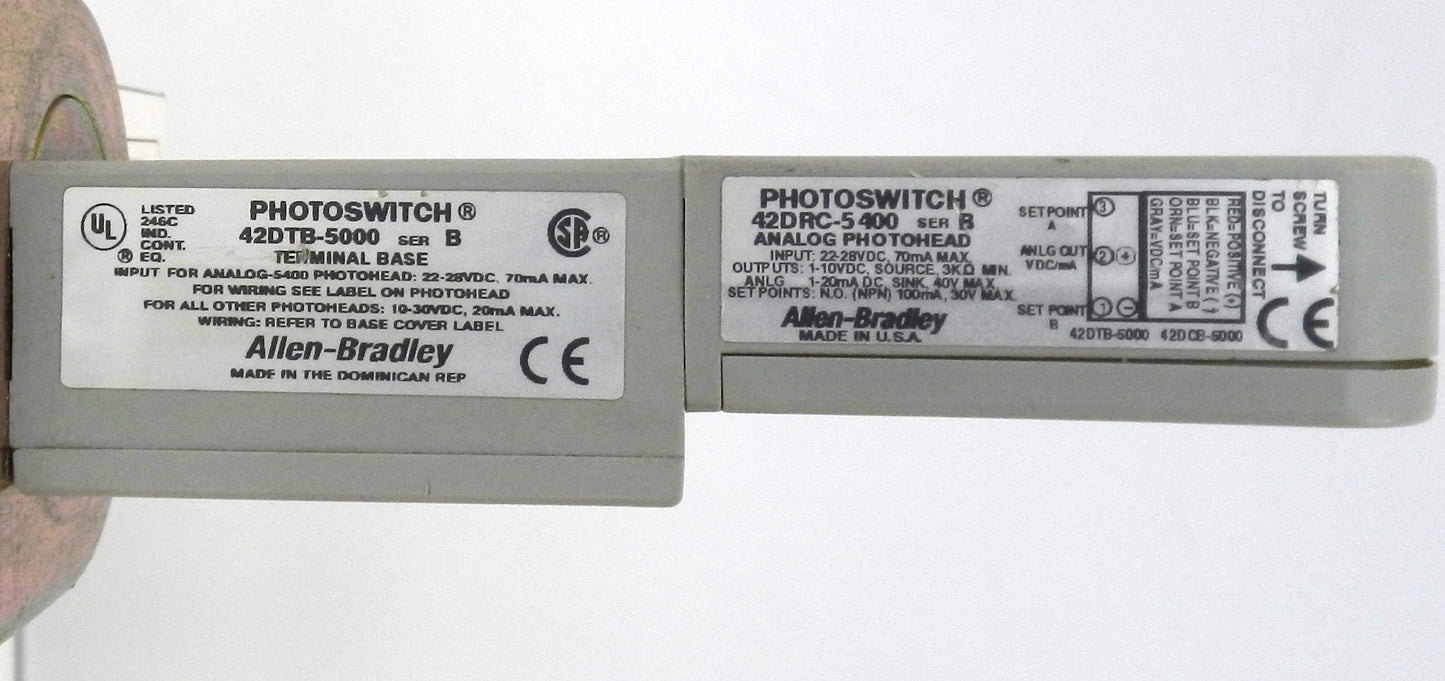

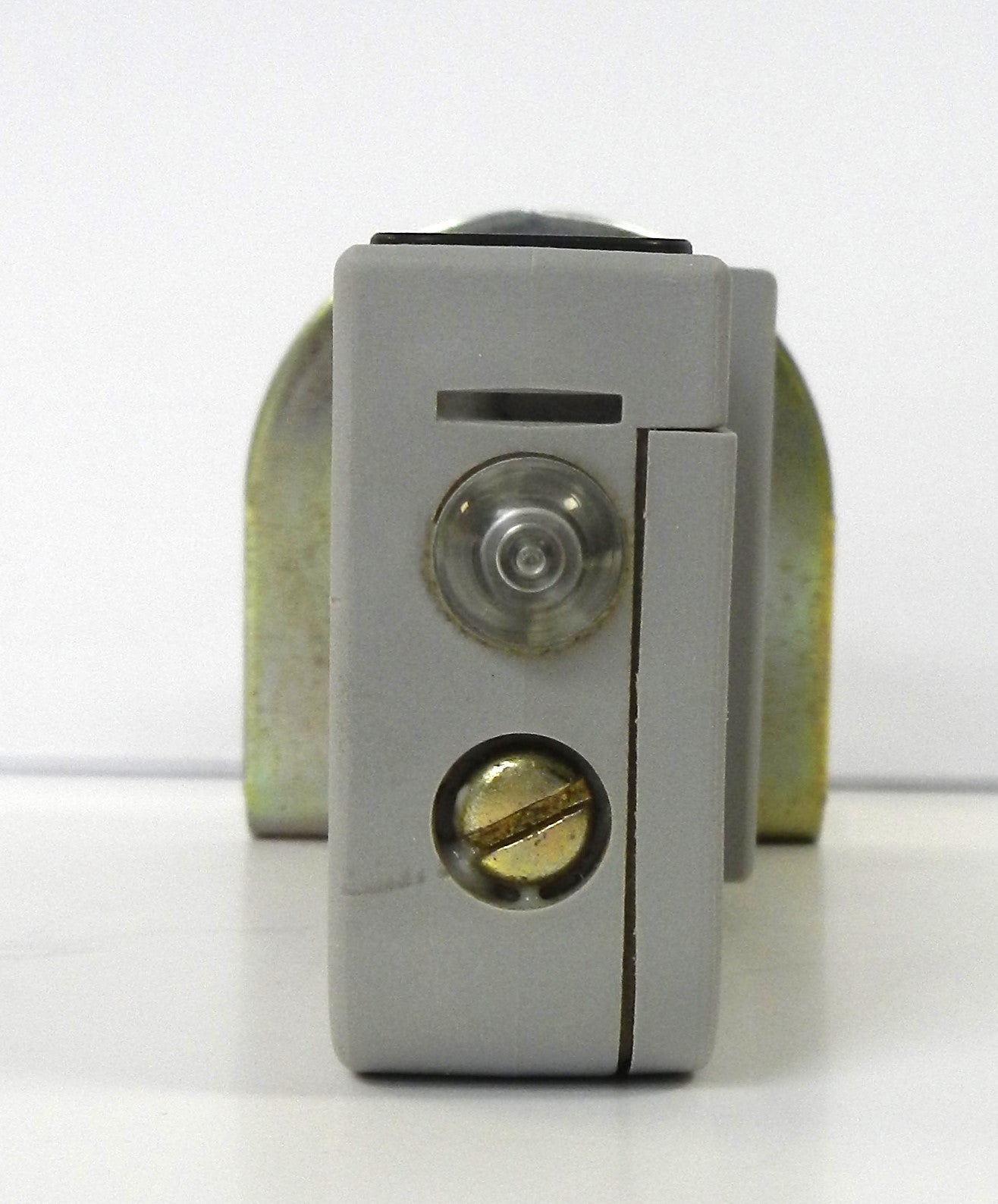

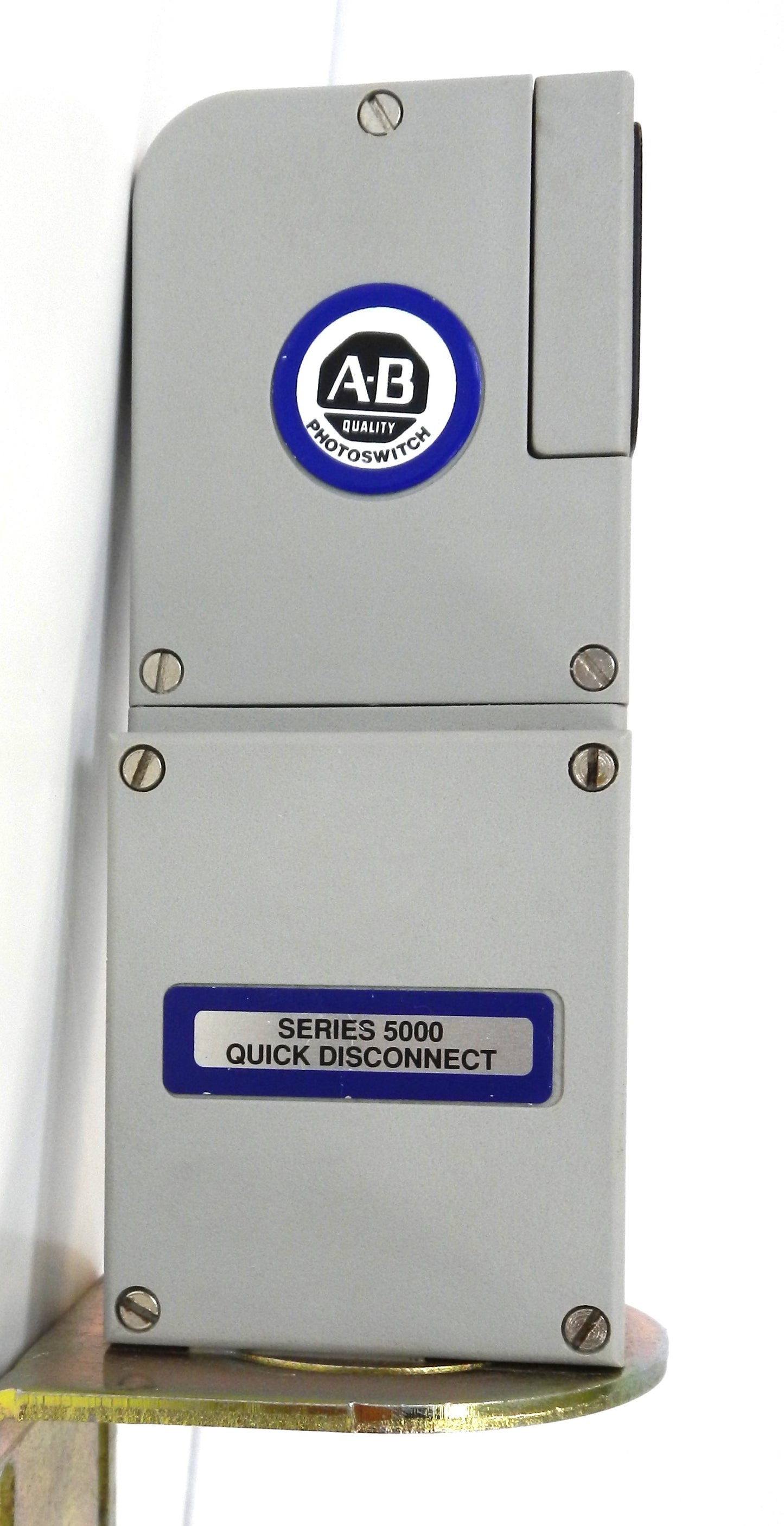

42DRC-5400 + 42DTB-5000 Allen-Bradley Series 5000 Analog Retroreflective Photoelectric Sensor with Terminal Power Base – Series B

Description:

• Genuine Allen-Bradley PHOTOSWITCH Series 5000 analog retroreflective photoelectric sensor with 42DTB-5000 terminal power base
• Designed for non-contact distance sensing and object detection in industrial automation applications
• Retroreflective sensing using a compatible reflector for accurate long-range detection
• Provides both 1–10 VDC analog voltage and 1–20 mA analog current outputs with two adjustable NPN set-point outputs
• Adjustable sensing range and selectable positive or negative output slope for flexible installation
• Infrared 880 nm LED emitter with a 3° field of view for precise sensing
• Suitable for conveyors, packaging equipment, material handling, robotics, machine automation, and process control
• 42DTB-5000 terminal-style power base operates from 22–28 VDC and provides convenient field wiring
• Rated for NEMA 3, 4, 12, 13 and IP66 environments for demanding industrial applications
• Series B configuration
• Discontinued by Rockwell Automation as of February 28, 2023; commonly used for maintenance and replacement of existing systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (Sensor Head): 42DRC-5400
• Part Number (Power Base): 42DTB-5000
• Product Series: Series 5000 Blue Line
• Series Revision: Series B
• Product Type: Analog Retroreflective Photoelectric Sensor
• Sensing Method: Retroreflective / Diffuse
• Light Source: Infrared LED, 880 nm
• Field of View: 3°
• Analog Outputs:
  • 1–10 VDC
  • 1–20 mA
• Discrete Outputs:
  • 2 Adjustable NPN Set Points
  • 100 mA Maximum
• Response Time: 100 ms
• Operating Voltage (Power Base): 22–28 VDC
• Current Consumption: 70 mA
• Retroreflective Sensing Distance:
  • 0.61–4.57 m (2–15 ft) using reflector
• Diffuse Sensing Distance:
  • Up to 1.5 m (5 ft) using white target
• Adjustable Features:
  • Analog Output Calibration
  • Sensing Range
  • Positive/Negative Output Slope
  • Two Adjustable Set Points
• Protection:
  • Reverse Polarity Protection
  • Short-Circuit Protection (Analog Output)
  • Transient Noise Protection
• Environmental Rating:
  • NEMA 3, 4, 12, 13
  • IP66
• Lifecycle Status: Discontinued
• Applications:
  • Conveyor Systems
  • Packaging Equipment
  • Material Handling
  • Robotics
  • Machine Automation
  • Industrial Inspection
  • Process Control

Dimensions:

• Modular sensor head with 42DTB-5000 terminal power base.
• Compact industrial housing designed for panel or machine mounting.

Weight:

• Approximate Combined Weight: 0.17 kg (0.37 lb).
