42MRU-5000 + 42MTB-5000 Allen-Bradley Series 5000 Retro-Reflective Photoelectric Sensor 10m Range

Description:

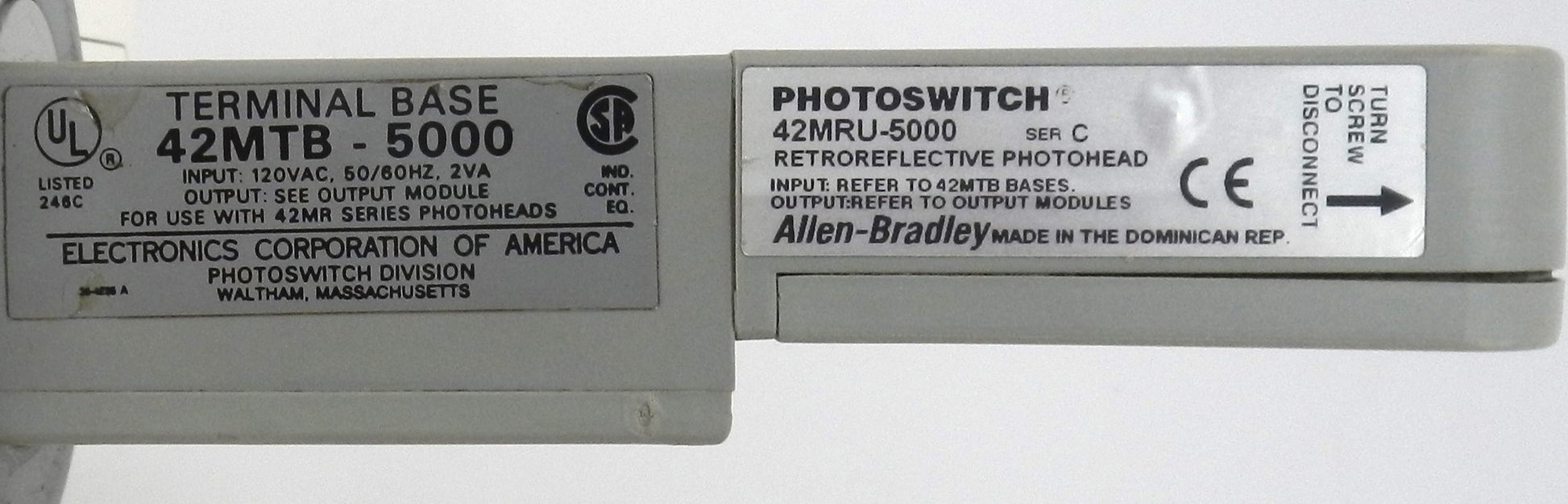

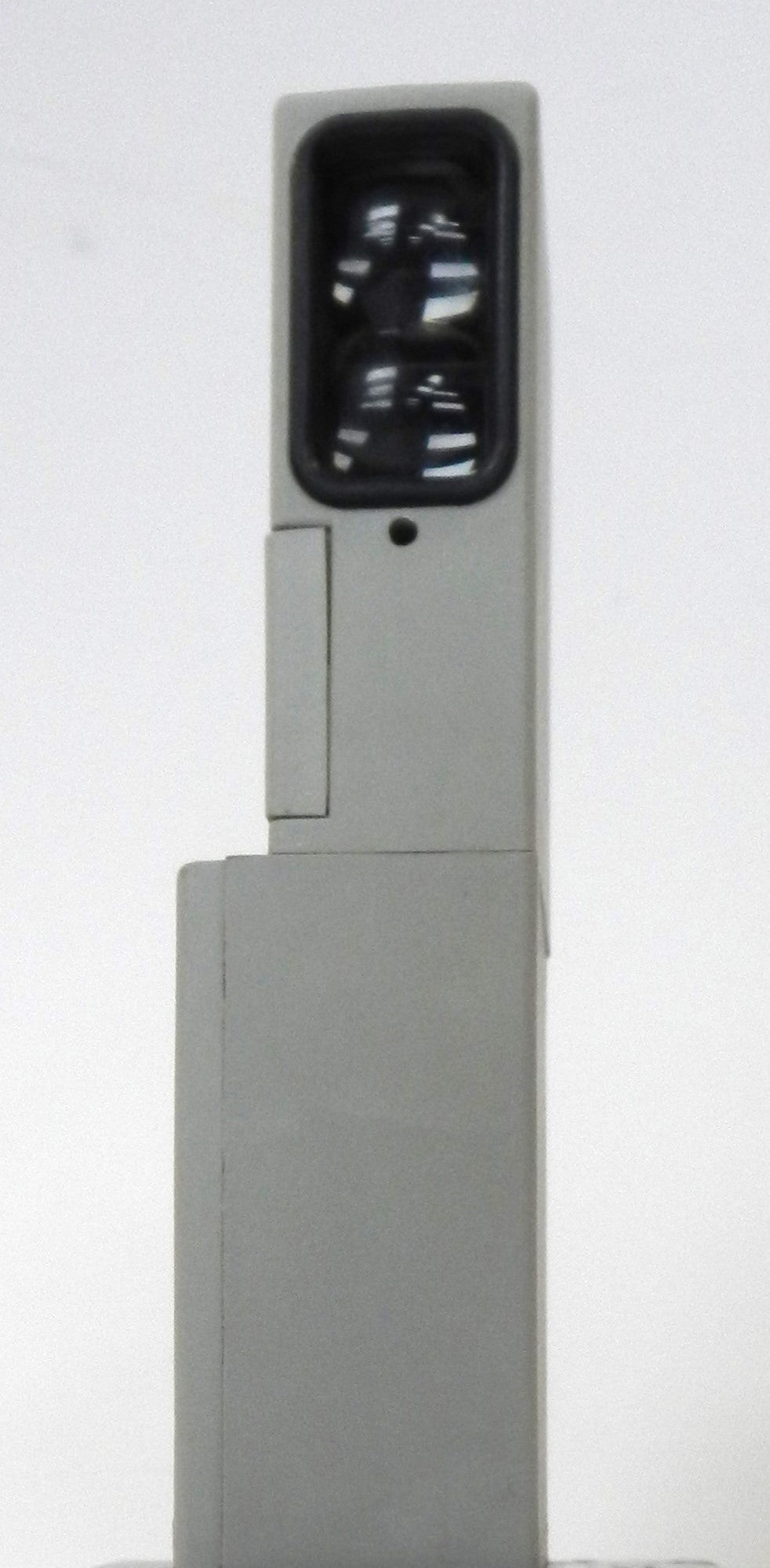

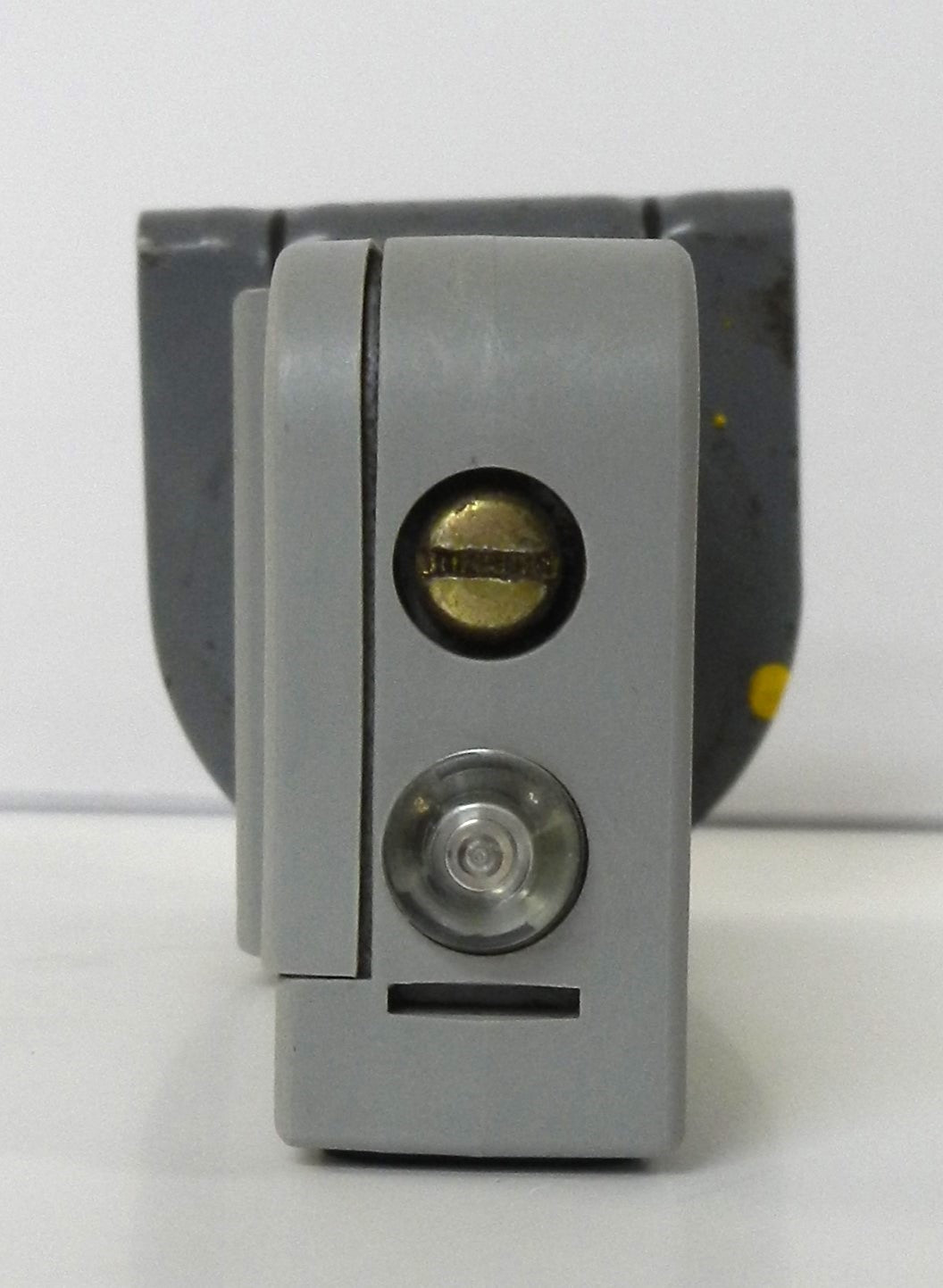

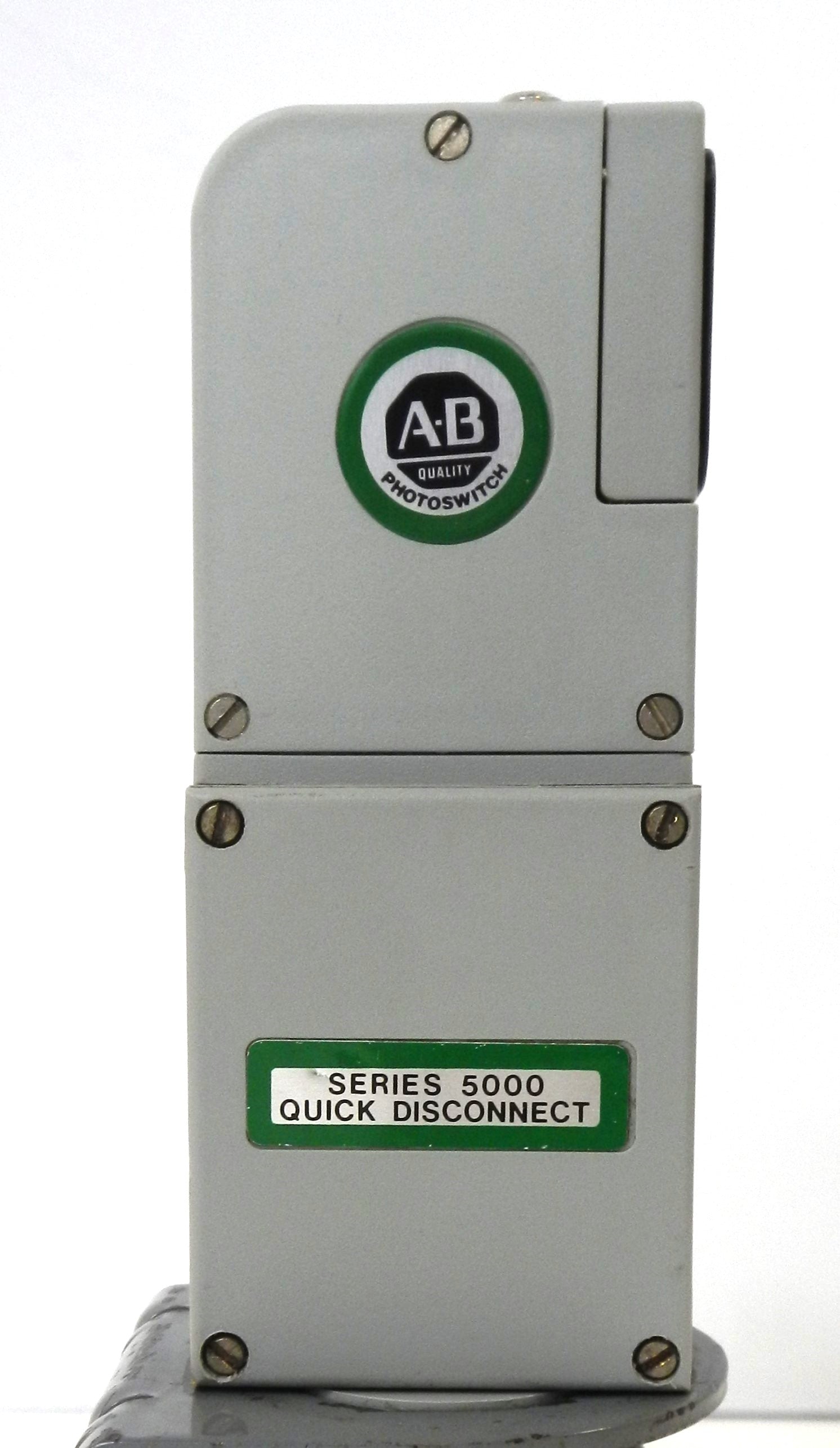

• Genuine Allen-Bradley Series 5000 Green Line modular photoelectric sensor assembly consisting of the 42MRU-5000 retro-reflective photohead and 42MTB-5000 power base
• Retro-reflective sensing with a maximum sensing distance of 10 m (33 ft) using a standard 76 mm (3 in.) reflector
• Infrared LED (880 nm) light source provides reliable object detection in industrial environments
• Light-Operate/Dark-Operate selectable output for flexible application requirements
• Fast 1 ms response time for high-speed automation and machine control
• Modular design allows easy replacement of the photohead or power base independently
• 42MTB-5000 power base operates on 102–132 VAC, 50/60 Hz with terminal wiring connections
• Ideal for conveyor systems, packaging machinery, material handling, palletizers, industrial automation, and OEM equipment
• Series 5000 sensors were discontinued by Rockwell Automation on February 28, 2023 and are commonly used for maintaining existing systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Numbers:
  • 42MRU-5000 – Retro-Reflective Photohead
  • 42MTB-5000 – AC Power Base
• Product Series: Series 5000 Green Line
• Product Type: Modular Photoelectric Sensor
• Sensor Type: Retro-Reflective
• Sensing Distance: 50.8 mm to 10 m (2 in. to 33 ft)
• Light Source: Infrared LED (880 nm)
• Field of View: 2.5°
• Response Time: 1 ms
• Operating Mode: Light Operate / Dark Operate Selectable
• Supply Voltage (42MTB-5000): 102–132 VAC, 50/60 Hz
• Supply Power: 2 VA
• Connection Type: Terminal Base
• Environmental Rating:
  • IP66
  • NEMA 3, 12, 13
• Country of Origin: Dominican Republic (Power Base)
• Lifecycle Status: Discontinued
• Applications:
  • Conveyor Systems
  • Packaging Equipment
  • Material Handling
  • Industrial Automation
  • Machine Control
  • OEM Machinery
  • Palletizers
  • Presence Detection

Dimensions:

• Standard Series 5000 modular photohead and power base assembly designed for panel or machine mounting.
• Compatible with Allen-Bradley Series 5000 modular sensor accessories and reflectors.

Weight:

• Approximate Assembly Weight: 0.45 kg (0.99 lb)
