440G-T27241 Allen-Bradley Guardmaster TLS-GD2 Guard Locking Safety Switch 24V AC/DC Power-to-Lock M23

Description:

• Genuine Allen-Bradley Guardmaster TLS-GD2 guard locking safety switch for machine guarding and personnel protection
• Power-to-Lock operating principle helps secure hazardous machine access until safe conditions are met
• Operates on 24V AC/DC solenoid voltage
• Features 2 Normally Closed (NC) safety contacts, 1 Normally Open (NO) auxiliary contact, and 1 NC + 1 NO solenoid monitoring contacts

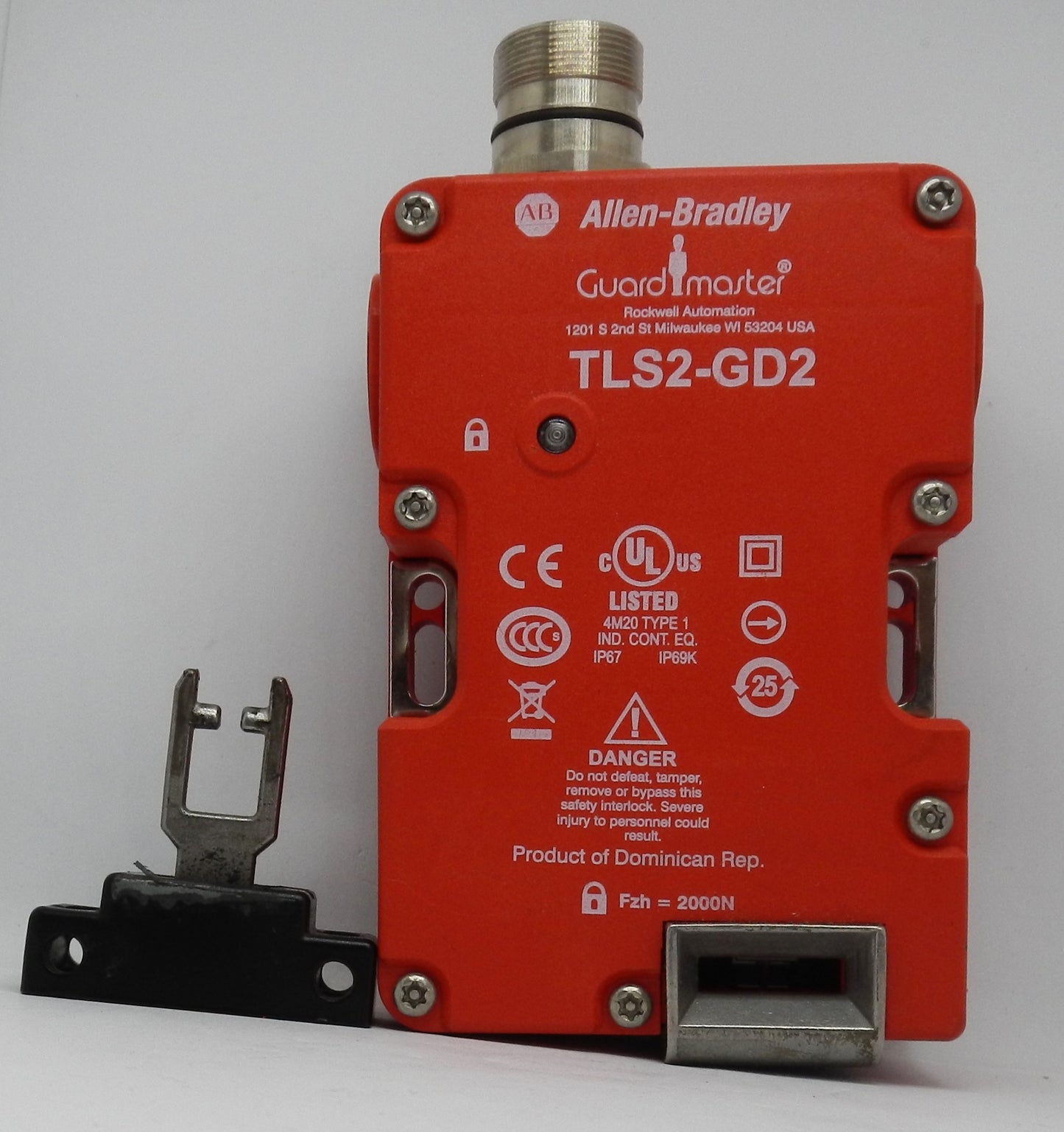

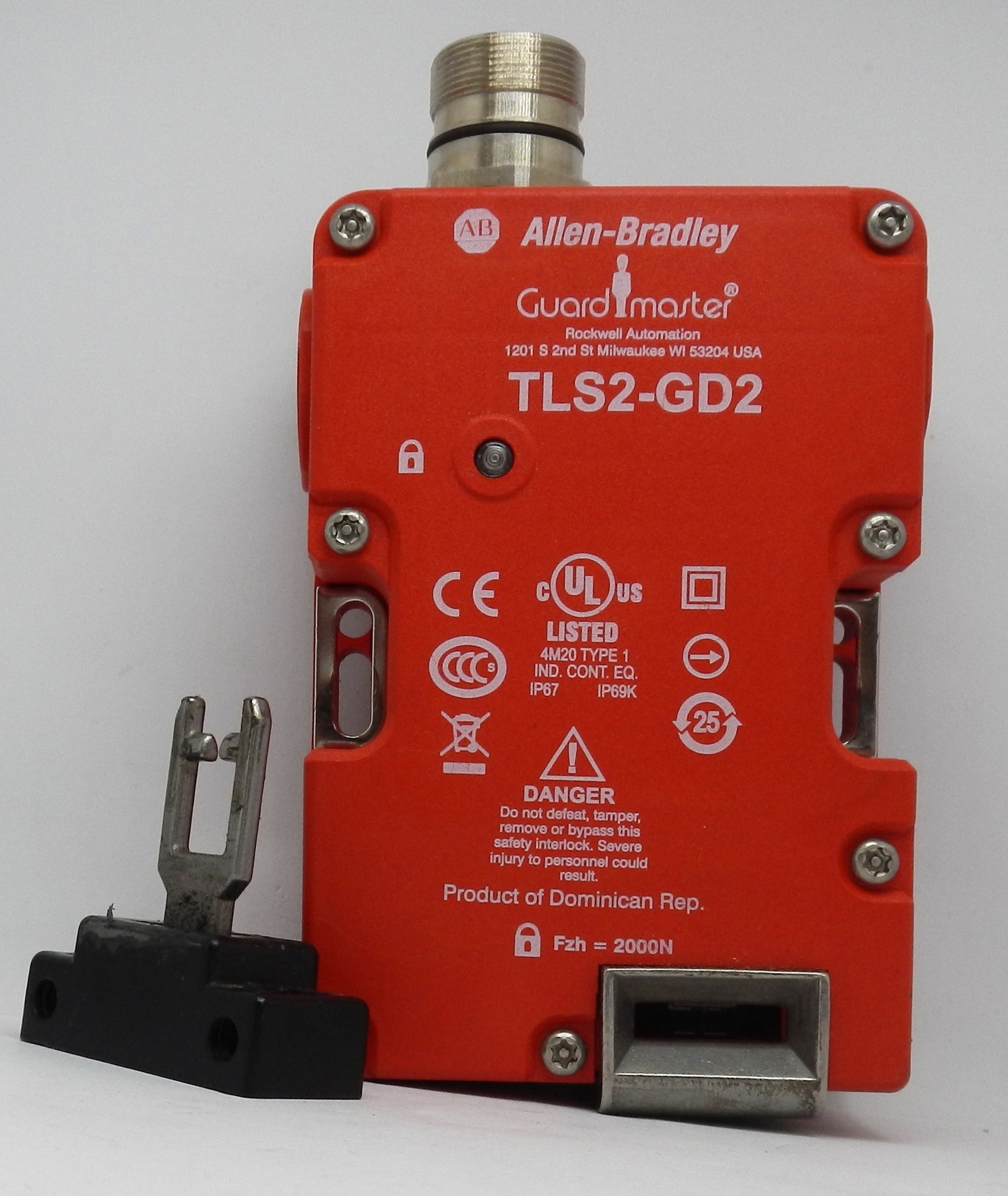

• Equipped with a fully-flexible actuator for installation flexibility and improved guard alignment

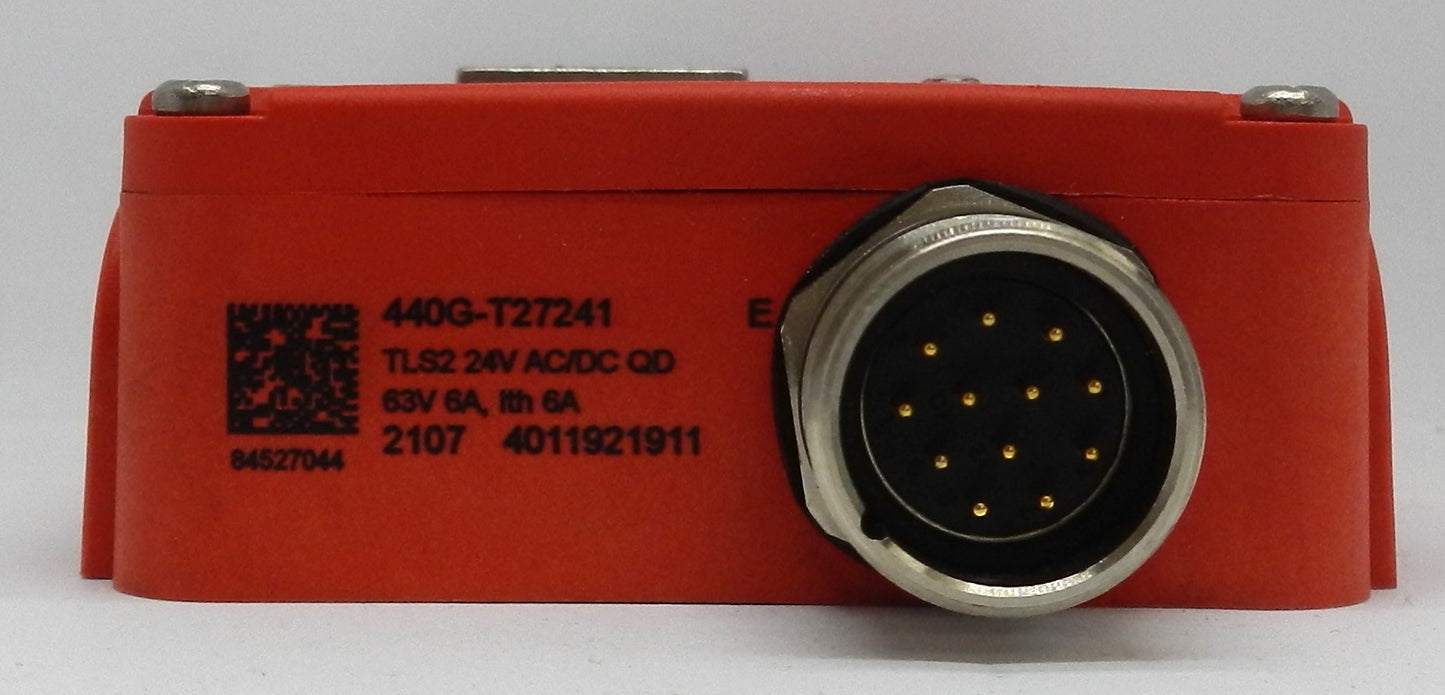

• 12-pin M23 quick-disconnect connector enables fast installation and maintenance
• High 2,000 N (450 lb) guard holding force for demanding industrial safety applications
• Rugged housing designed for harsh industrial environments
• Ideal for safety gates, access doors, robotic cells, packaging machinery, conveyors, machine tools, and automated production systems
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 440G-T27241
• Product Series: Guardmaster TLS-GD2
• Product Type: Guard Locking Safety Switch
• Model Type: TLS-2 GD2 Power-to-Lock
• Solenoid Voltage: 24V AC/DC
• Guard Locking Principle: Power-to-Lock
• Safety Contacts: 2 NC
• Auxiliary Contacts: 1 NO
• Solenoid Monitoring Contacts: 1 NC + 1 NO
• Contact Action: Break Before Make
• Actuator Type: Fully-Flex
• Connection Type: 12-Pin M23 Quick Disconnect
• Holding Force (Fzh): 2,000 N (450 lb)
• Housing Material: Industrial Plastic
• Mounting Type: Surface Mount
• Certifications:
  • UL Listed
  • CE
  • CCC
  • TÜV
  • UKCA
• Country of Origin: Dominican Republic
• Applications:
  • Machine Guarding
  • Safety Gates
  • Robotic Cells
  • Packaging Equipment
  • Conveyor Systems
  • Industrial Automation
  • OEM Machinery

Dimensions:

• Compact TLS-GD2 safety switch designed for machine guard and access door mounting.
• M23 quick-disconnect configuration minimizes installation space requirements.

Weight:

• Approximate Weight: 1.75 kg (3.86 lb).
