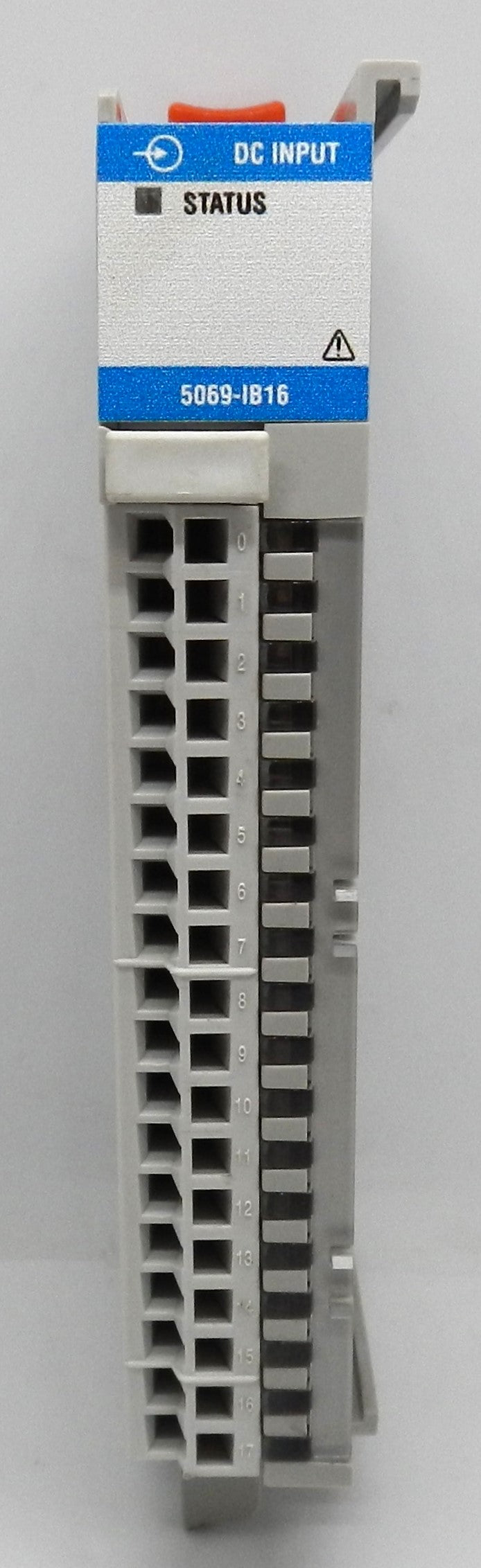

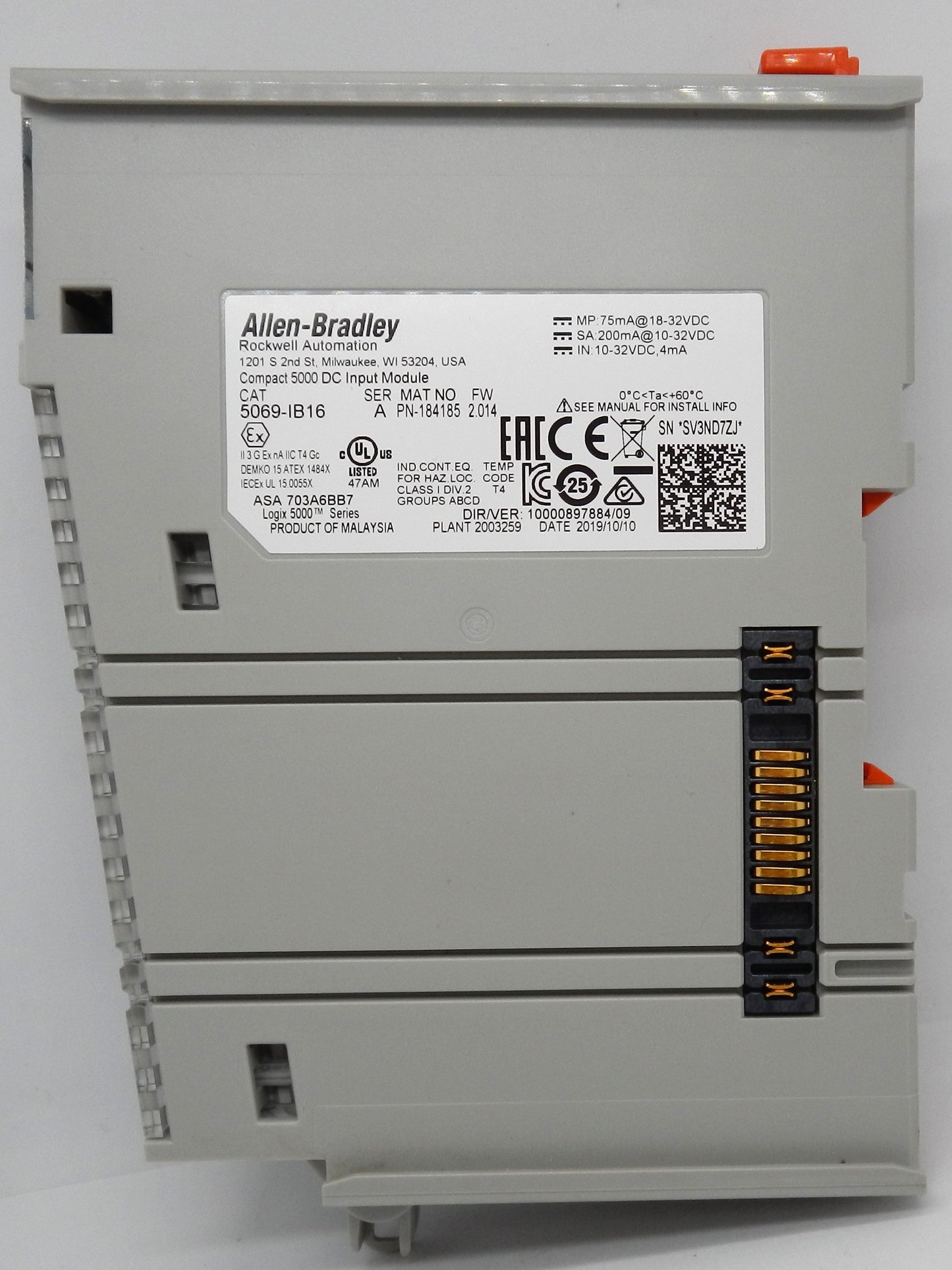

5069-IB16 Allen-Bradley Compact 5000 16-Channel 24VDC Digital Sink Input I/O Module

Description:

• Genuine Allen-Bradley Compact 5000 digital input module for CompactLogix™ 5380 and Compact GuardLogix® control systems
• Provides 16 sinking digital input channels for monitoring 12/24 VDC field devices
• Supports 10–32 VDC input voltage for industrial sensors, push buttons, limit switches, and proximity switches
• Features one group of 16 sinking inputs with reverse polarity protection
• High-speed input capability with up to 500 Hz counter and frequency measurement support
• Requires 5069-RTB18-SCREW or 5069-RTB18-SPRING removable terminal block (sold separately)
• Compact modular design simplifies installation, maintenance, and system expansion
• Front-panel LED indicators provide clear module and input status diagnostics
• Ideal for machine automation, process control, packaging equipment, material handling, OEM machinery, and industrial automation
• Active Rockwell Automation product with ongoing manufacturer support.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 5069-IB16
• Product Series: Compact 5000 I/O
• Product Type: Digital DC Input Module
• Number of Inputs: 16
• Input Type: Sinking
• Input Groups: 1 Group of 16
• Nominal Input Voltage: 12/24 VDC
• Operating Voltage Range: 10–32 VDC
• Input Current: 4–7.4 mA per Channel
• Counter/Frequency Input: Up to 500 Hz
• Reverse Polarity Protection: Yes
• Isolation Voltage: 250V Continuous
• MOD Power Consumption: 75 mA @ 18–32 VDC
• SA Power Consumption: 200 mA @ 10–32 VDC
• Mounting Type: Compact 5000 I/O System
• Compatible Terminal Blocks:
  • 5069-RTB18-SCREW
  • 5069-RTB18-SPRING
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Enclosure Rating: Open Style
• Certifications:
  • UL
  • UKCA
  • CCC
  • ABS
  • RINA
• Lifecycle Status: Active

Dimensions:

• Compact Compact 5000 module form factor designed for high-density I/O installations.
• Compatible with Compact 5000 distributed I/O systems.

Weight:

• Approximate Weight: 0.12 kg (0.26 lb).
