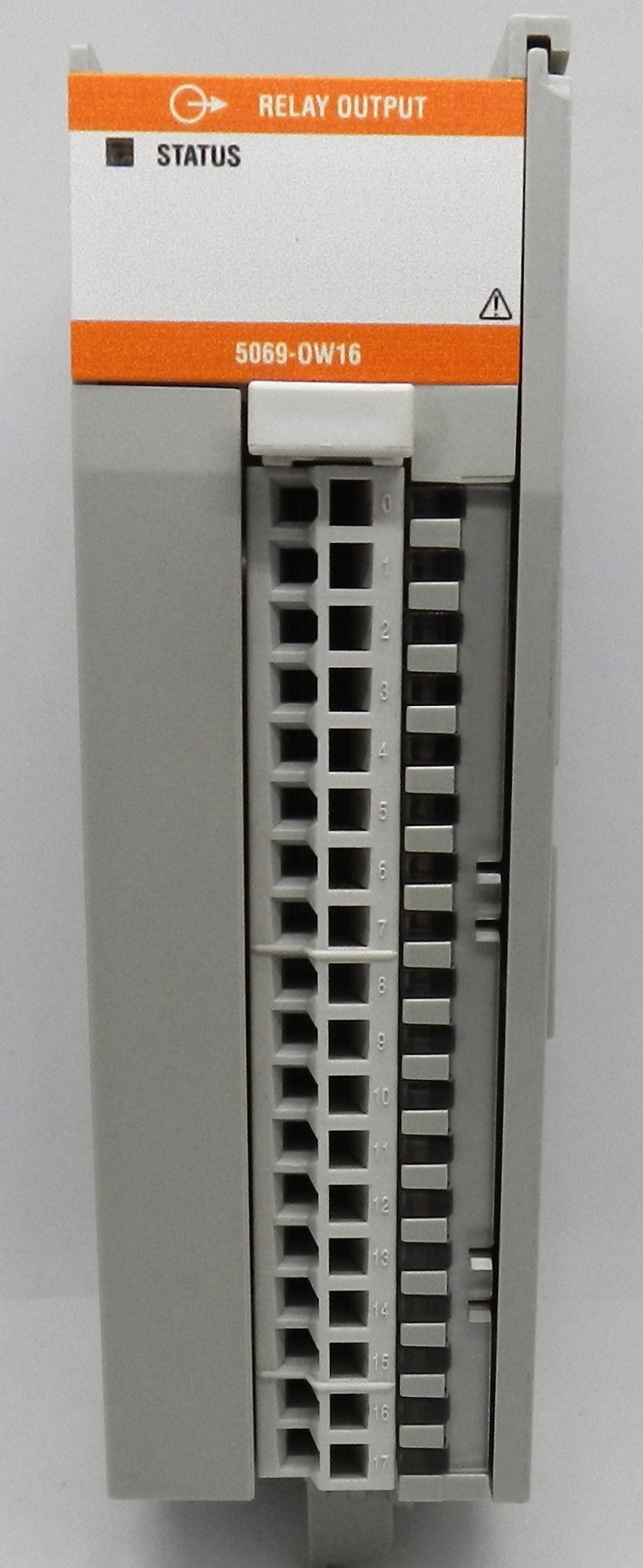

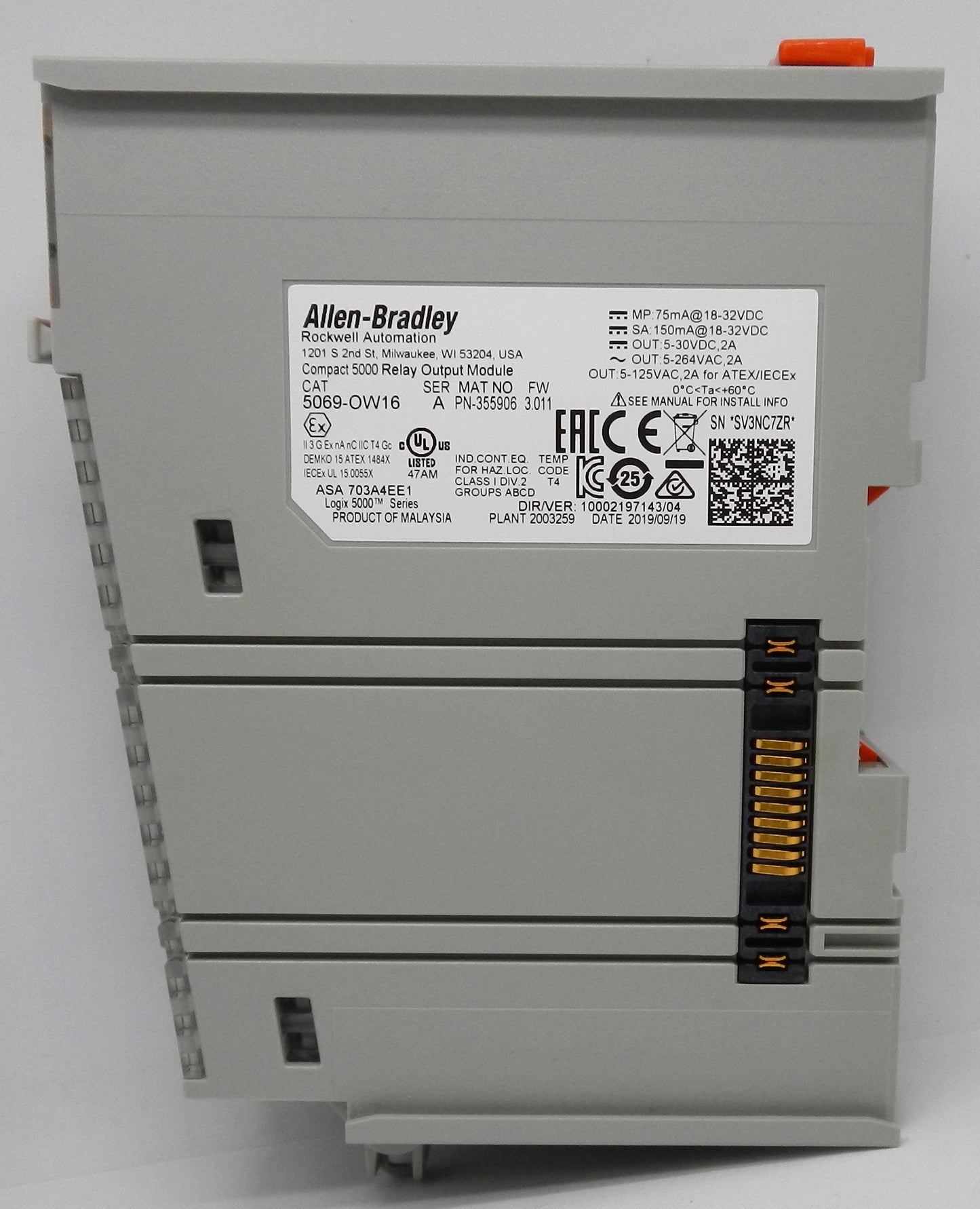

5069-OW16 Allen-Bradley Compact 5000 16-Point Relay Output Module CompactLogix I/O

Description:

• Genuine Allen-Bradley Compact 5000 relay output module for CompactLogix 5380 and Compact GuardLogix 5380 control systems
• Provides 16 Normally Open (Form A) relay output channels arranged in 2 groups of 8 outputs
• Supports both AC and DC load switching for maximum application flexibility
• Output voltage range of 5...264 VAC or 5...125 VDC
• Relay outputs rated for 2 A per channel, with a maximum of 8 A per group and 16 A per module
• Configurable output behavior during program mode and fault conditions
• Features integrated diagnostics with support for fault detection and status monitoring
• Compact, high-density design reduces cabinet space while simplifying installation
• Compatible with the Allen-Bradley Compact 5000 I/O platform and EtherNet/IP-based CompactLogix systems
• Ideal for industrial automation, machine control, process control, packaging equipment, OEM machinery, and manufacturing applications
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 5069-OW16
• Product Series: Compact 5000 I/O
• Product Type: Relay Output Module
• Number of Outputs: 16
• Output Configuration: 2 Groups of 8
• Contact Type: Form A (Normally Open)
• Output Voltage:
  • 5...264 VAC
  • 5...125 VDC
• Relay Rating:
  • 2 A Resistive per Channel
• Maximum Output Current:
  • 8 A per Group
  • 16 A per Module
• Minimum Load Current: 1 mA
• Output Delay:
  • Off to On: 10 ms
  • On to Off: 10 ms
• Contact Life:
  • 300,000 Cycles (Resistive)
  • 100,000 Cycles (Inductive)
• Isolation: 300V Continuous (Basic)
• Mounting Type: Compact 5000 I/O Chassis
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Enclosure Rating: Open Style
• Certifications:
  • UL Listed
  • CE
  • ATEX
  • IECEx
  • UKCA
  • RCM
• Compatible Controllers:
  • CompactLogix 5380
  • Compact GuardLogix 5380
  • Compact 5000 I/O Systems

Dimensions:

• Height: 138 mm (5.43 in)
• Width: 36 mm (1.42 in)
• Depth: 105 mm (4.15 in)

Weight:

• Approximate Weight: 0.24 kg (0.53 lb).
