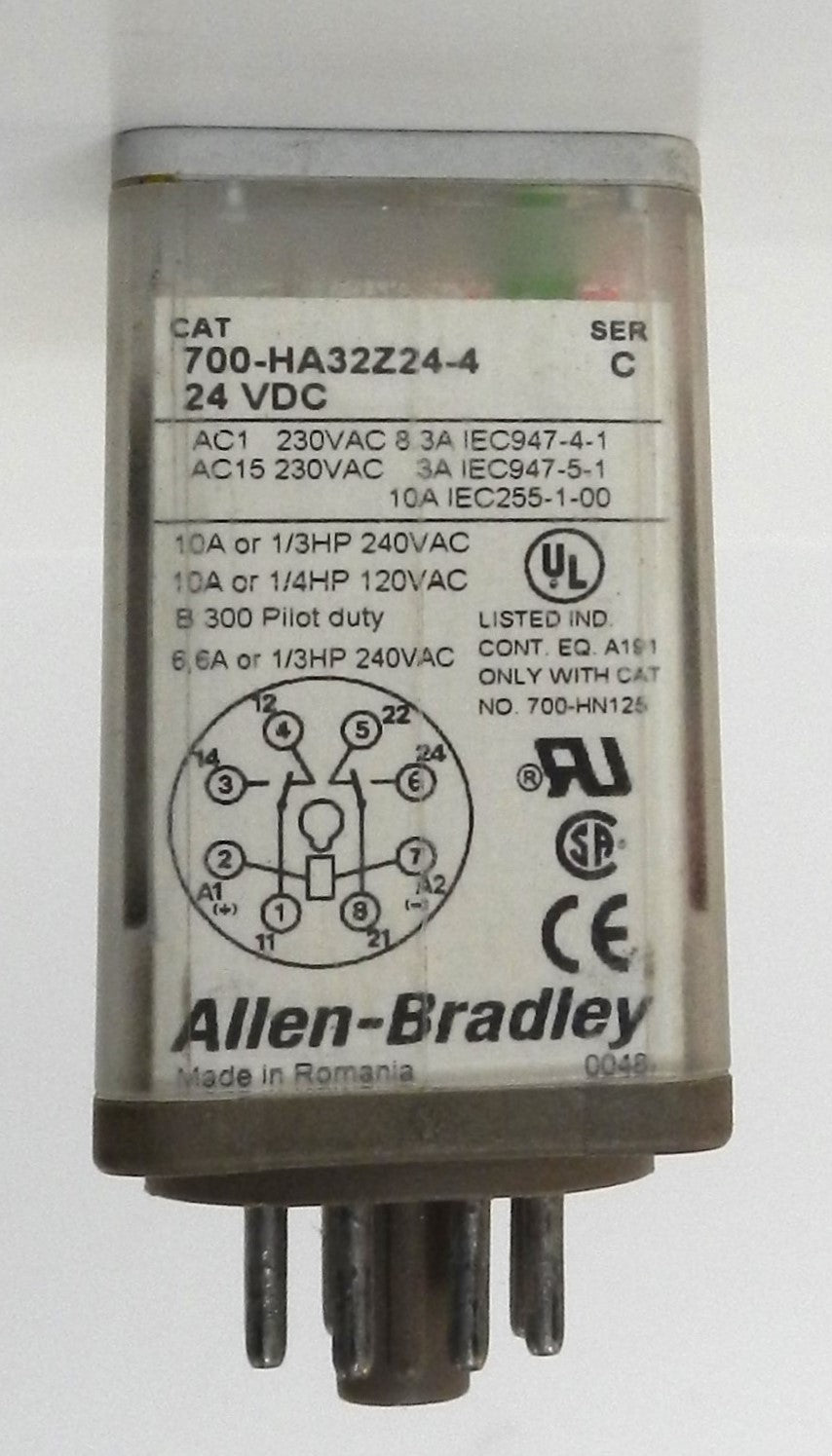

700-HA32Z24-4 Allen-Bradley General Purpose Tube Base Relay DPDT 10A 24VDC with LED

Description:

• Genuine Allen-Bradley general purpose tube base relay for industrial control and automation applications
• Features DPDT (2 Form C) contact configuration with 10A contact rating
• Operates with a 24 VDC control coil

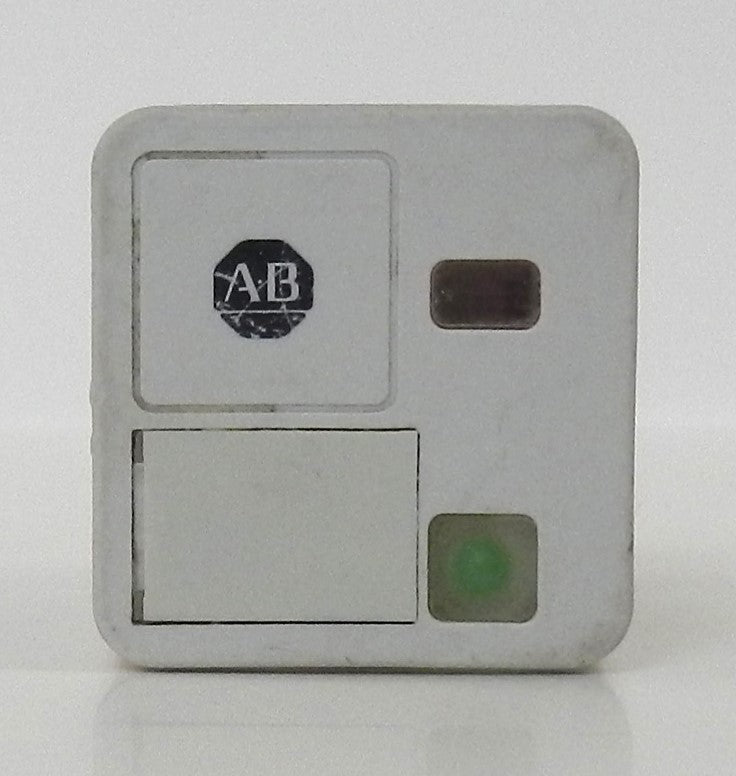

• Integrated LED pilot light provides clear visual indication of relay coil status
• Plug-in design enables fast installation and easy relay replacement
• Compatible with Allen-Bradley 700-HA series relay sockets (socket sold separately)
• Silver nickel (AgNi) contacts provide reliable switching performance and long service life
• Compact industrial design ideal for control panels, PLC interfaces, machine automation, HVAC systems, OEM equipment, and process control
• Active Rockwell Automation product with a standard 1-year warranty and estimated lead time of approximately 5 days.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HA32Z24-4
• Product Series: Bulletin 700-HA
• Product Type: General Purpose Tube Base Relay
• Contact Configuration: DPDT (2 Form C / 2 Changeover Contacts)
• Contact Rating: 10 A
• Coil Voltage: 24 VDC
• Voltage Type: DC
• Coil Indicator: LED Pilot Light

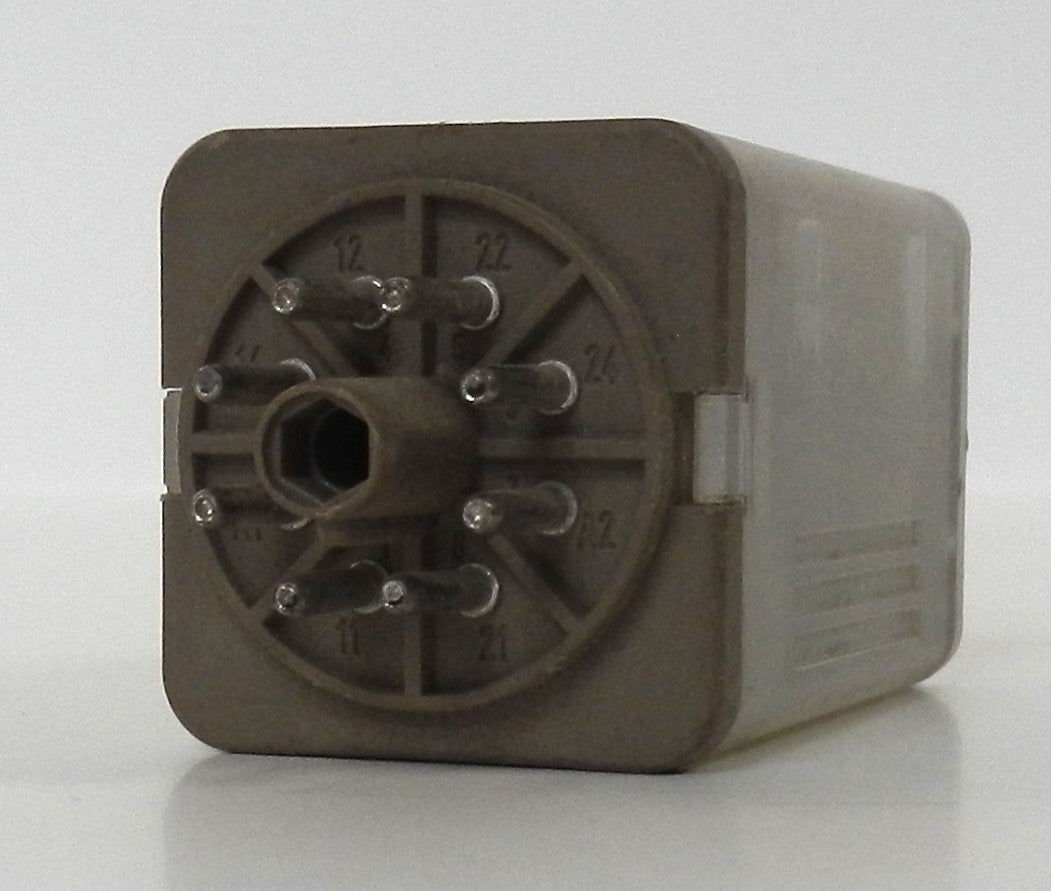

• Connection Type: Plug-In
• Rated Thermal Current: 10 A @ 240 VAC
• Contact Material: Silver Nickel (AgNi)
• Mechanical Life: 50 Million Operations
• Minimum Electrical Life: 100,000 Operations
• Degree of Protection:
  • IP40
  • IP20 when installed with guarded terminal socket
• Operating Temperature: -40°C to +70°C
• Country of Origin: Italy
• Certifications:
  • UL Listed
  • CSA Listed
  • CE
  • UKCA
• Applications:
  • Industrial Automation
  • PLC Control Panels
  • Machine Control
  • HVAC Systems
  • Process Control
  • Relay Logic
  • OEM Equipment

Dimensions:

• Height: 54.1 mm (2.13 in)
• Width: 32.8 mm (1.29 in)
• Depth: 36.5 mm (1.44 in)

Weight:

• Approximate Weight: 0.09 kg (0.20 lb).
