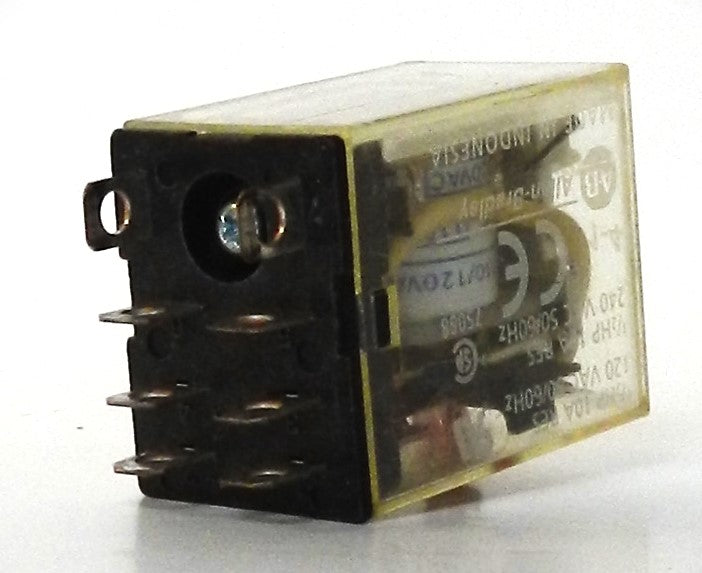

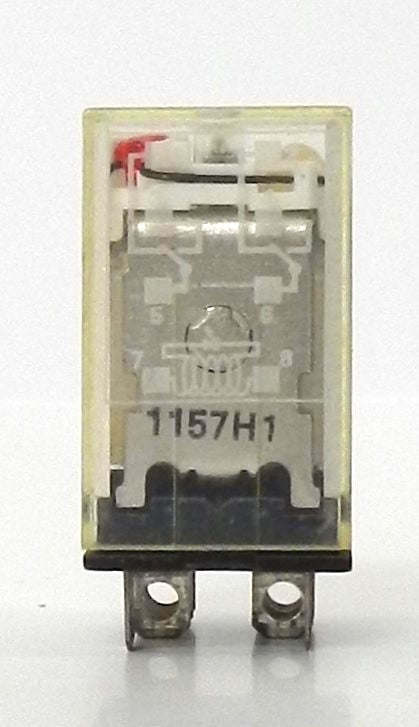

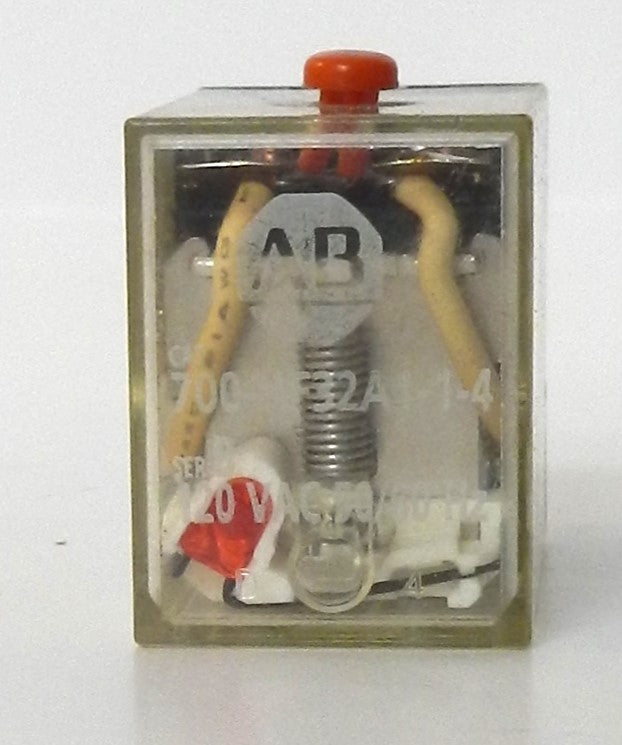

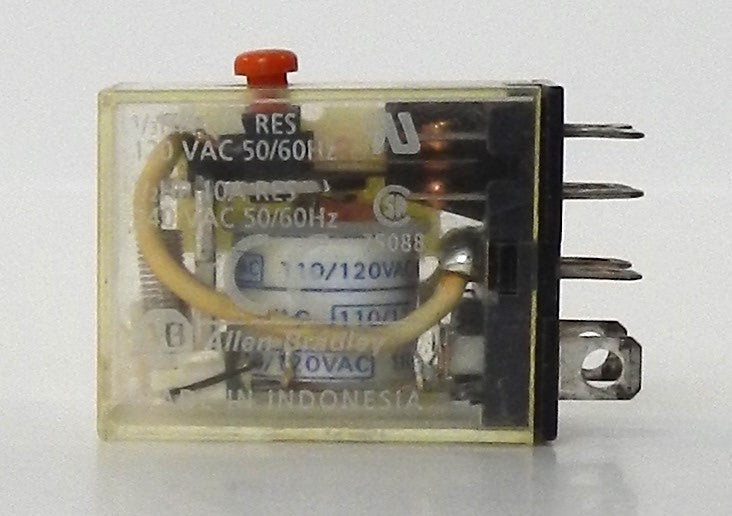

700-HF32A1-1-4 Allen-Bradley General Purpose Relay DPDT 120VAC 12A Plug-In with Pilot Light

Description:

• Genuine Allen-Bradley general purpose miniature square base relay for industrial control and automation applications
• Features DPDT (2 Form C / 2 Changeover Contacts) contact configuration
• Rated for 12A switching capacity with silver cadmium oxide (AgCdO) contacts for long electrical life
• Operates with a 120 VAC, 50/60 Hz control coil
• Built-in pilot light (LED indicator) provides clear visual indication of coil status
• Compact 8-pin plug-in design allows fast installation and replacement
• Compatible with Allen-Bradley 700-HN series relay sockets
• Ideal for industrial control panels, PLC interfaces, motor control, HVAC systems, machine automation, OEM equipment, and process control
• Designed for reliable switching in demanding industrial environments
• Active product in the Allen-Bradley Bulletin 700-HF General Purpose Relay family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HF32A1-1-4
• Product Series: Bulletin 700-HF
• Product Type: General Purpose Relay
• Contact Configuration: DPDT (2 Changeover Contacts / 2 Form C)
• Number of Poles: 2
• Contact Rating: 12 A
• Nominal Current: 12 A
• Coil Voltage:
  • 120 VAC, 50 Hz
  • 120 VAC, 60 Hz
• Coil Type: AC
• Connection Type: 8-Pin Plug-In
• Contact Material: AgCdO (Silver Cadmium Oxide)
• Indicator: Built-in LED / Pilot Light
• Compatible Socket: Allen-Bradley 700-HN Series
• Degree of Protection:
  • IP20 (when used with guarded terminal socket)
• Shock Resistance: 15 G
• Vibration Resistance: 15 G
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -50°C to +85°C
• Country of Origin: Italy
• Certifications:
  • UL Listed
  • UL Recognized
  • CSA Listed
  • CE
• Applications:
  • Industrial Automation
  • PLC Interface
  • Control Panels
  • Motor Control
  • HVAC Systems
  • OEM Equipment
  • Process Control

Dimensions:

• Height: 44.2 mm (1.74 in)
• Width: 20.7 mm (0.81 in)
• Depth: 27.7 mm (1.09 in)

Weight:

• Approximate Weight: 0.05 kg (0.11 lb).
