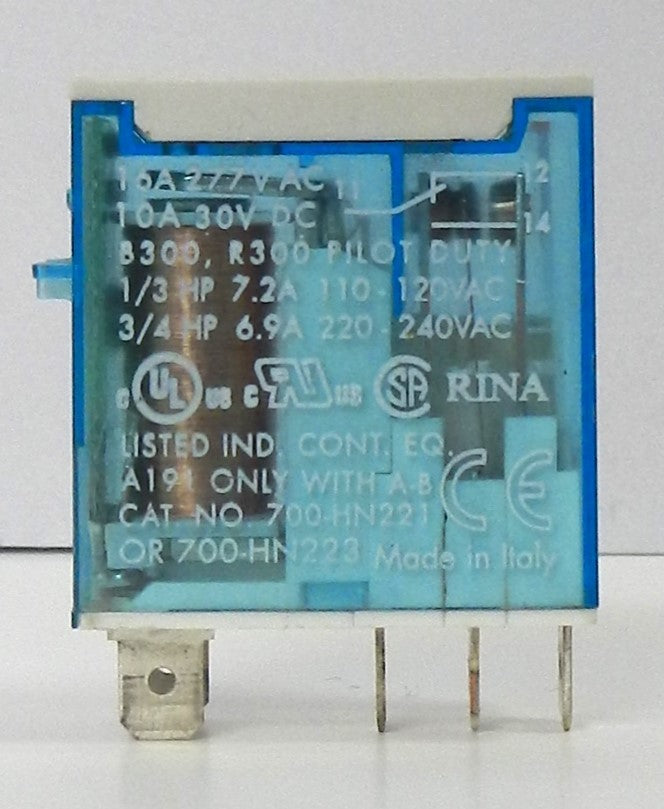

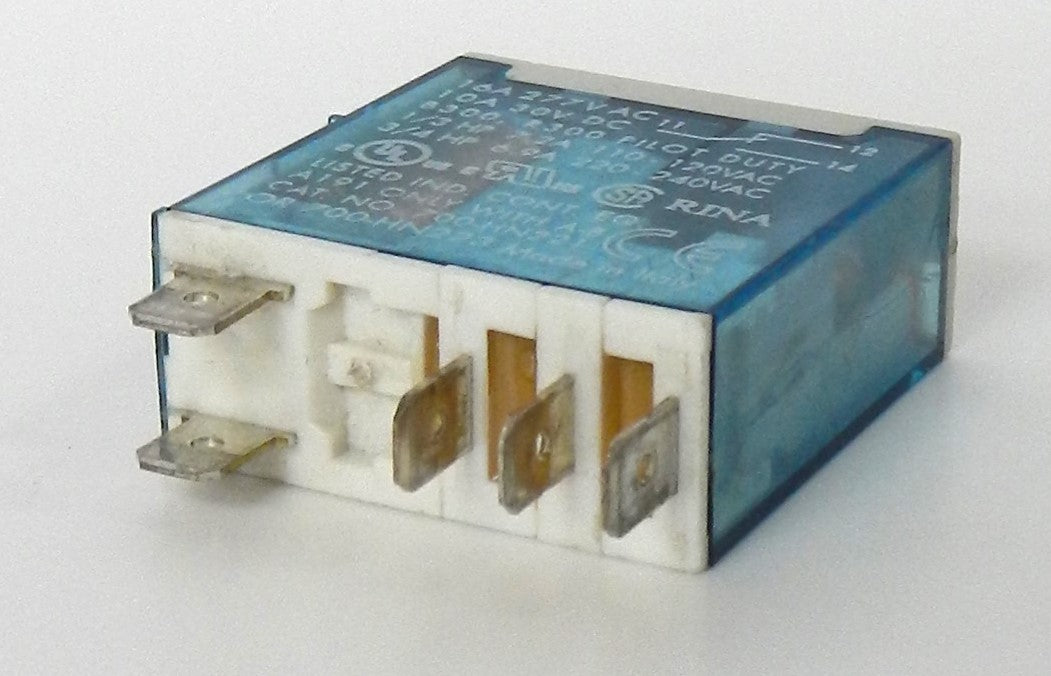

700-HK36Z24-4 Allen-Bradley Slim Line General Purpose Relay SPDT 16A 24VDC with LED

Description:

• Genuine Allen-Bradley slim line general purpose relay for industrial control and automation applications
• Features 1 Form C (SPDT) changeover contact rated for 16A
• Equipped with a 24 VDC control coil and integrated LED pilot light for quick visual status indication
• Slim, space-saving design maximizes panel space in industrial control cabinets
• Plug-in relay design allows fast installation and easy replacement without rewiring

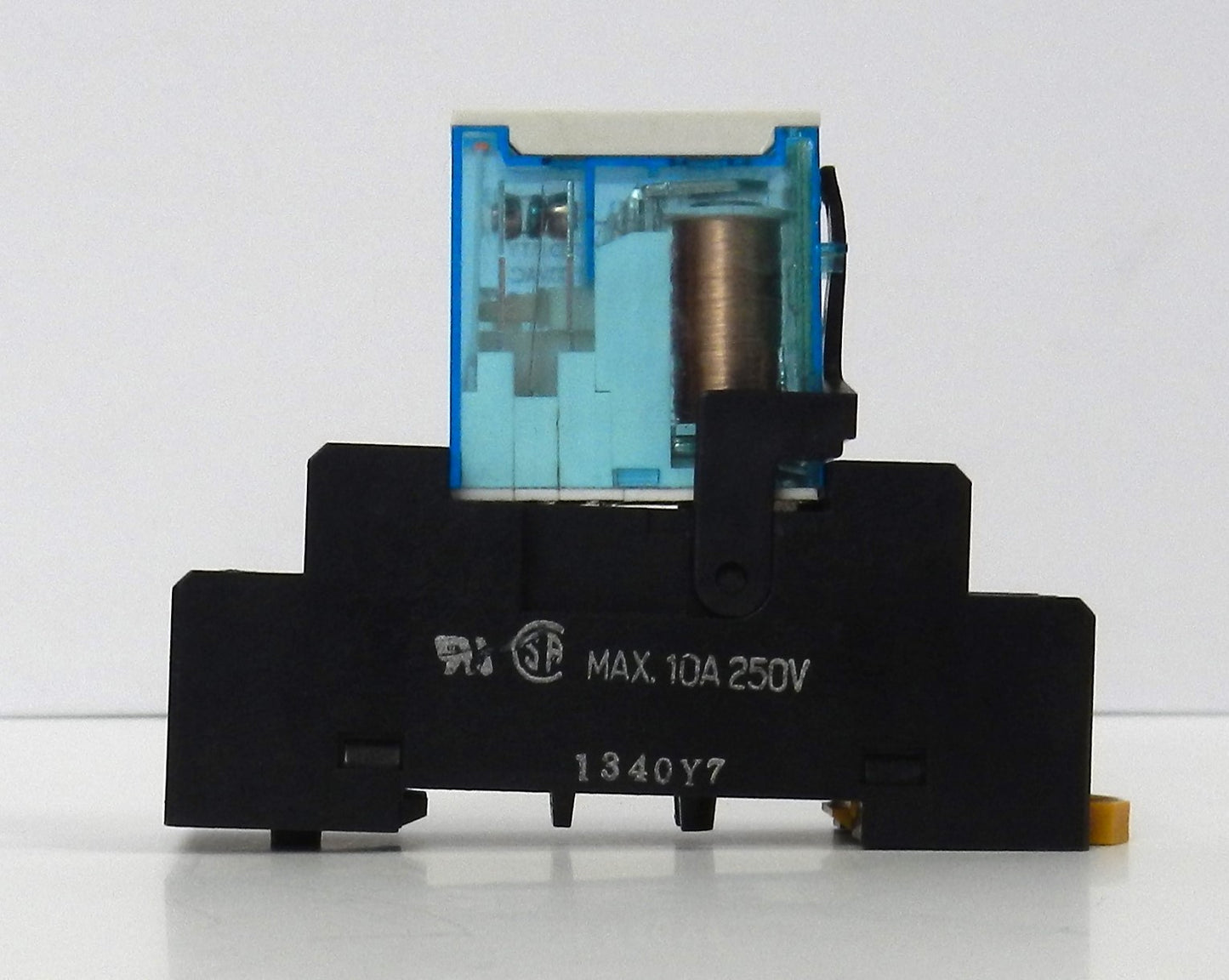

• Compatible with Allen-Bradley 700-HK relay sockets (sold separately)
• Silver nickel (AgNi) contacts provide reliable switching performance and long service life
• Ideal for PLC interfaces, interposing relays, motor control, process automation, HVAC systems, machine building, and OEM equipment
• Part of the Allen-Bradley Bulletin 700-HK relay family with active lifecycle status.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HK36Z24-4
• Product Series: Bulletin 700-HK
• Product Type: Slim Line General Purpose Relay
• Contact Configuration: SPDT (1 Form C)
• Number of Contacts: 1 Changeover Contact
• Rated Contact Current: 16 A
• Rated Thermal Current (Ith): 16 A
• Coil Voltage: 24 VDC
• Coil Type: DC
• Indicator: Integrated LED Pilot Light
• Connection Type: Plug-In
• Contact Material: Silver Nickel (AgNi)
• Degree of Protection:
  • IP20
  • IP20 with Guarded Terminal Socket
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Country of Origin: Italy
• Certifications:
  • UL Listed
  • UL Recognized
  • CSA Listed
  • CE
  • IMQ
  • RINA
• Lifecycle Status: Active

Applications:

• PLC Interface Relay
• Industrial Automation
• Machine Control
• Control Panels
• HVAC Systems
• OEM Equipment
• Process Control
• Interposing Relay Applications

Dimensions:

• Height: 39.3 mm (1.55 in)
• Width: 29 mm (1.14 in)
• Depth: 12.4 mm (0.49 in)

Weight:

• Approximate Weight: 0.02 kg (0.04 lb).
